Audio-Techncia ATW-1501 System 10 Stompbox- Guitar Wireless System

R 5,199.00
R 5,199.00
Sale Sold out
Tax included.

Audio-Techncia ATW-1501 System 10 Stompbox- Guitar Wireless System

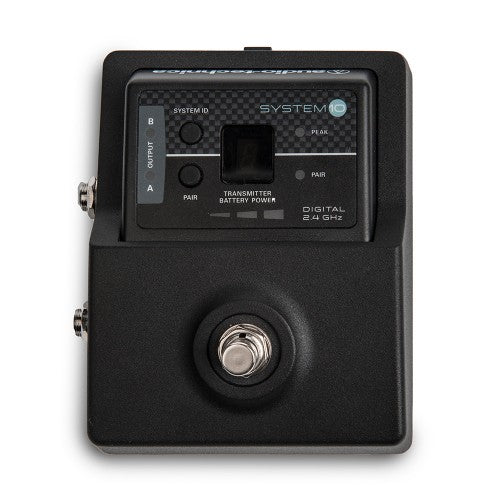

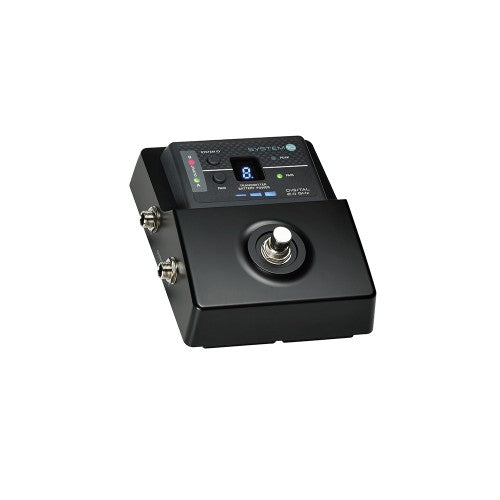

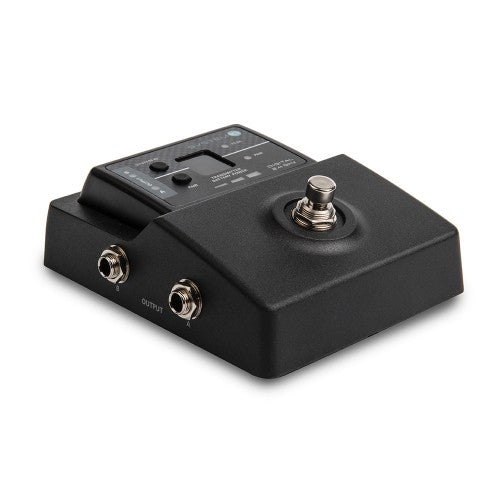

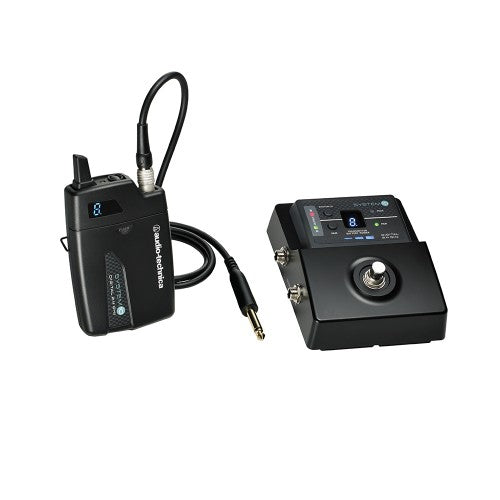

The innovative digital wireless guitar system from Audio-Technica that fits right on your pedal board. Pair up to 8 guitars with separate body pack transmitters for easy on stage changeovers, and either mute, tune or use a second rig with the A-B switching. All presented in a sturdy metal casing.



Features:

  • Audio-Technica’s innovative digital wireless guitar system
  • 2.4 GHz range – licence free and far from TV and DTV interference
  • Stompbox design to fit comfortably on a pedalboard
  • 9v or 12v negative or positive power to match pedal board power supplies
  • A-B box to toggle outputs or mute for tuning

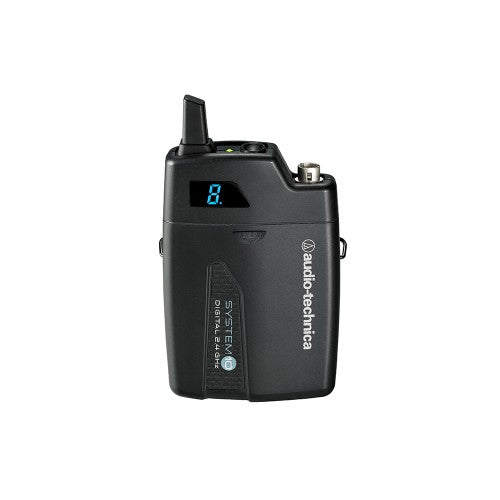

  • Pair up to 8 guitars to one receiver with separate bodypack receivers
  • Ideal for guitar, bass or any other jack input instruments



Specifications:

Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 18.3 m (60′) radius, 36.6 m (120′) diameter typical. Open range environment with no interfering signals
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level 1/4″ (6.3 mm), TRS balanced: +12 dBV
Power Supply 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Dimensions 101 mm (3.98″) W x 44 mm (1.73″) H x 130 mm (5.12″) D
Weight 565g
Accessories Included Power supply, hook & loop fastener x2
