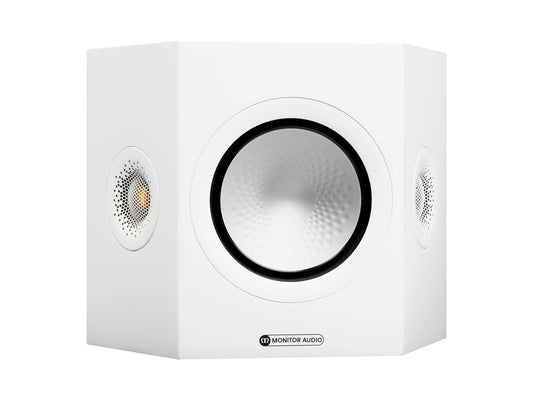

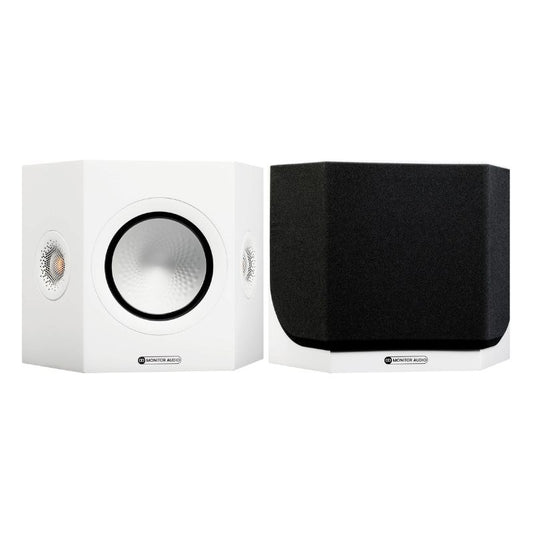

Monitor Audio Silver FX On-Wall - pair - Satin White

Monitor Audio has all your rear and side channel requirements covered with the Silver FX, a loudspeaker specially designed for 5.1 and 7.1 systems and featuring Monitor Audio’s advanced technology. This wall-mountable compact two-way design offers dual dispersion characteristics for the perfect surround sound set-up.

The discreet profile and angled baffle design of Monitor Audio’s specially-developed Silver FX incorporates a single 6-inch C-CAM bass/mid driver featuring RST technology and C-CAM Gold Dome tweeters.

The Silver FX can be flush-mounted on side or rear walls where it blends unobtrusively with any interior. Its dispersion characteristics can be easily changed with a switch to accommodate the precise requirements for dipole or bipole orientation, giving it maximum flexibility in multi-channel system installations.

Technology:

Discreet design with flush wall placement and with recessed terminations

Sealed cabinet for accurate performance when installed in cabinet, restricted voids or close to a wall

Dual 25 mm C-CAM (Ceramic-Coated Aluminium/Magnesium) tweeters featuring vented Neo magnet system tuned for lower distortion and cleaner-sounding highs

6-inch bass/mid driver with ‘dished’ C-CAM cone profile ensures best damping and mid-range clarity

RST Cone profile for improved diaphragm rigidity and lower distortion

Unique-build ring/voice coil-cone coupling mechanism (DCF) carefully optimised to reduce high-frequency cone break-up and increasing the critical voice coil circumferential rigidity

Cast polymer driver chassis design means improved rigidity and damping characteristics

Pureflow silver-plated OFC copper internal cabling for the highest quality transfer through the signal chain

High-quality crossovers using premium-grade bespoke polypropylene film capacitors, air-core and low-loss laminated steel-core inductors giving maximum signal transfer

Rigid 20 mm MDF construction utilising scientifically optimised cabinet bracing

Single bolt-through driver technology provides increased bracing strength, rigidity and driver/baffle de-coupling

Bespoke, high-quality bi-wire terminals

Selected, premium-quality wood veneers, high-gloss lacquer and contemporary Satin White finishes

Easily switchable dipole/ bipole modes.

SPECIFICATIONS

System Format
2-way

Frequency Response (-6 dB)
60 Hz – 35 kHz

Sensitivity (1W@1M)
87 dB

Nominal Impedance
8 ohms

Minimum Impedance
4 ohms @ 229 Hz

Maximum SPL
110 dBA (pair)

Power Handling (RMS)
85 W

Recommended Amplifier Requirements
30 – 85 W

Bass Alignment
Sealed cabinet

Crossover Frequency
2.5 kHz

Drive Unit Complement
1 x 6" C-CAM RST bass/mid driver
2 x 1" (25 mm) C-CAM Gold Dome tweeter

Cabinet Dimensions (Excluding Grille and Terminals)
250 x 310 x 130 mm (913/16 x 123/16 x 51/8")

External Dimensions (Including Grille and Terminals (H x W x D))
250 x 322 x 147 mm (913/16 x 1211/16 x 513/16")

External Dimensions (Including Out-Rigger Plates, Feet and Spikes)
N/A

Weight (each)
4.3 kg (9 lb 7 oz)

Sold As
Pair
