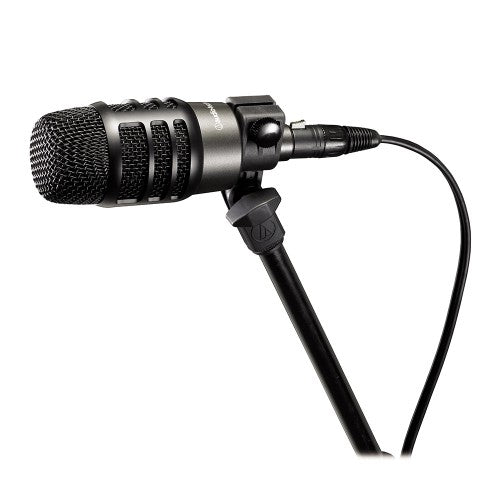

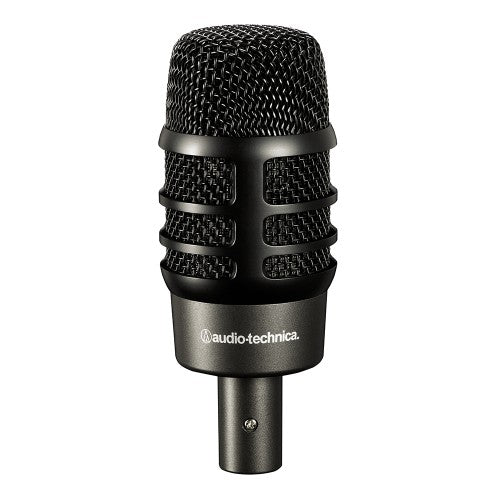

Audio-Technica ATM250DE Dual-Element Instrument Microphone

Regular price R 6,489.00
Regular price Sale price R 6,489.00
Sale Sold out
Tax included.

Audio-Technica ATM250DE Dual-Element Instrument Microphone





Overview:

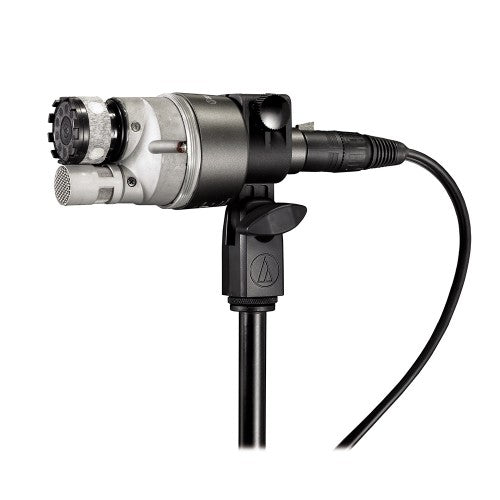

Audio-Technica’s proven dual-element design features two elements (condenser and dynamic) enclosed in a single housing
Neodymium dynamic element provides punch and attack, while the condenser element captures the full audio spectrum
Elements are positioned in a perfect phase relationship, something practically unachievable with two separate microphones
Perfect for kick drum, guitar amps, percussion and other instruments
Integral 80 Hz HPF switch and 10 dB pad (condenser element)

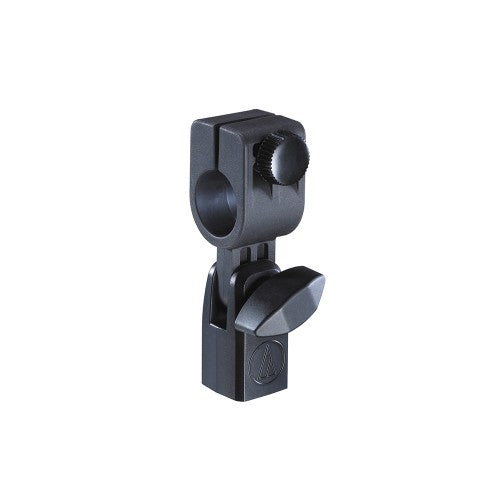

Versatile mounting options and effective dampening of mechanical noise thanks to included AT8471 isolation clamp
Corrosion-resistant contacts from gold-plated XLRM-type connector
Rugged, all-metal design and construction for years of trouble-free use



Features:


The ATM250DE has been discontinued. Please see the ATM250 Hypercardioid Dynamic Instrument Microphone or the AE2500 Dual-element Cardioid Instrument Microphone The ATM250DE dual-element instrument microphone features cardioid condenser and hypercardioid dynamic capsules combined in a single housing. Audio-Technica’s innovative use of two polar patterns is ideal for kick drum: the hypercardioid dynamic element focuses tightly on the aggressive attack of the beater, while the condenser captures the round tonalities of the shell. The elements are positioned in a perfect phase relationship, something practically impossible to achieve with two separate microphones. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.



Specifications:

Microphones
Element Condenser, dynamic
Polar Pattern Cardioid (condenser)
Hypercardioid (dynamic)
Frequency Response 40 - 20,000 Hz (condenser)
40 - 15,000 Hz (dynamic)
Low Frequency Roll Off 80 Hz, 12 dB/octave (condenser)
Open Circuit Sensitivity -49 dB (3.5 mV) re 1V at 1 Pa (condenser)
-53 dB (2.2 mV) re 1V at 1 Pa (dynamic)
Maximum Input Sound Level 148 dB SPL, 1 kHz at 1% T.H.D. (condenser)
158 dB SPL, with 10 dB pad (nominal)
Dynamic Range 122 dB, 1 kHz at Max SPL (condenser)
Signal-to-Noise Ratio 68 dB, 1 kHz at 1 Pa (condenser)
Phantom Power Requirements 11-52V DC, 3.5 mA typical (condenser)
Switches Flat, roll-off; 10 dB pad (condenser only)
Weight 320g

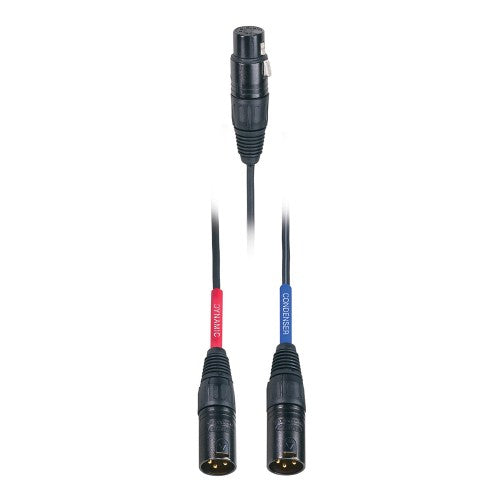

Cable 5.0 m (16.5') dual shielded, 8-conductor cable, 5-pin XLRF-type connector at microphone, two 3-pin XLRM-type output connectors
Dimensions 143.6 mm (5.65") long, 55.0 mm (2.17") diameter
Output Connector Integral 5-pin XLRM-type

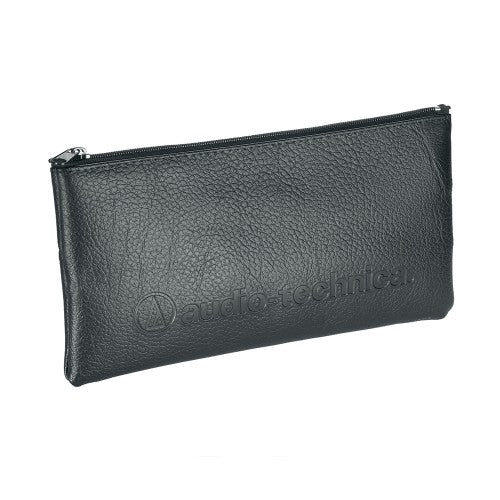

Accessories Included AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 adapter; soft protective pouch
