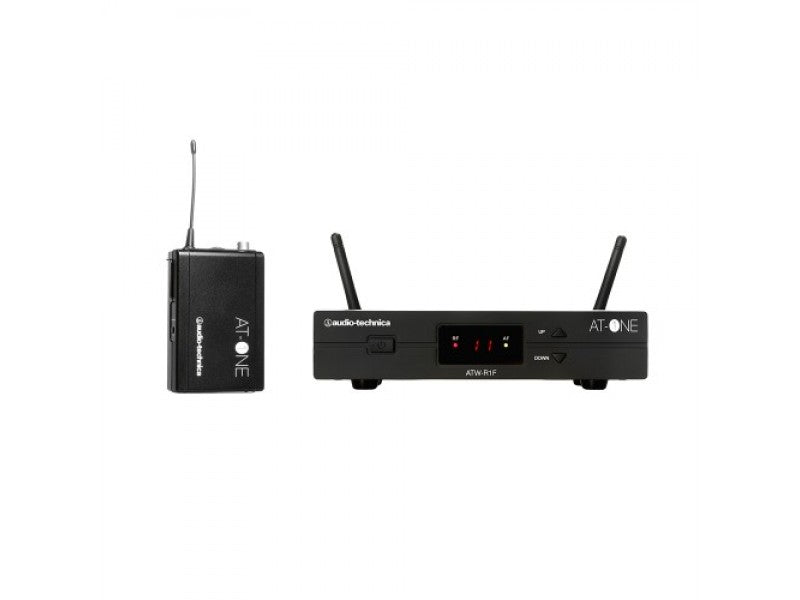

Audio-Technica ATW-11DE3 AT-One Beltpack System
Couldn't load pickup availability
Audio-Technica ATW-11DE3 AT-One Beltpack System
Overview:
AT-One, Audio-Technica’s entry level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.
AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price. The AT-One’s frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.
Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-11 comes equipped with a sturdy, discreetly designed beltpack, providing 10mW RF output power, damping switch and a battery life of 10 hours.
Features:
Designed for quick and easy use
Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
Users can choose up to 4 channels in a group
The ATW-11 system is equipped with a discreet and robust pocket transmitter
RF transmission power 10mW
The bodypack transmitter has a 4-pin HRS connector, which is able to connect to all Audio-Technica wireless microphones
Up to 10 hours' battery life with 2 x 1.5V AA batteries
RF Indicator light
Robust construction from high quality components
Delivered in a transport case with a rack mount kit and detachable antennas
Specifications:
| Overall System | |
|---|---|
| Operating Frequencies | DE3 Band: 482 - 512 MHz |
| Number Of Channels | 2 x 4 frequencies |
| Frequency Stability | +/- 0.005%, Phase lock loop frequency control |
| Modulation Mode | FM |
| Frequency Response | 60 Hz - 16 kHz |
| Operating Range | 60m, typical |
| Receiver | |
|---|---|
| Receiving System | Antenna switching diversity |
| Image Rejection | 55dB minimum |
| Dynamic Range | HH: 108 dB, BP 103 dB (@ max deviation) |
| Sensitivity | 10dBµV (S/N 60dB @ 20 kHz deviation) |
| Total Harmonic Distortion | <1% - 20 kHz deviation @ 1 kHz |
| Audio Output Unbalanced | -2dBV |
| Audio Output Balanced | 4dBV |
| Output Connectors (Microphone) | Balanced: XLRM-type |
| Output Connectors (Instrument) | Unbalanced: 6.3 mm mono jack |
| Maximum Output Level | Mic / Line (0 / -20dB) |
| Antenna Input | BNC type, 50 - BIAS voltage 12V DC 100mA each |
| Dimensions | 200 mm x 42 mm x 122 mm (W x H x D) |
| Weight | 418 g without accessories |
| Accessories Included | AC Adapter, Antennas, Rack mount adapter, protective carrying case |
| Belt Pack | |
|---|---|
| RF Power Output | 10 mW |
| Spurious Emissions | Following national regulations |
| Input Connections | Pin 1: GND Pin 2: INST Pin 3: Mic Pin 4: DC Bias +10V |
| Battery Type | Two 1.5V AA alkaline (not included) |
| Battery Life | 10 hours - depending on battery type and use pattern |
| Dimensions | 66 mm x 98 mm x 22 mm (W x H x D) |
