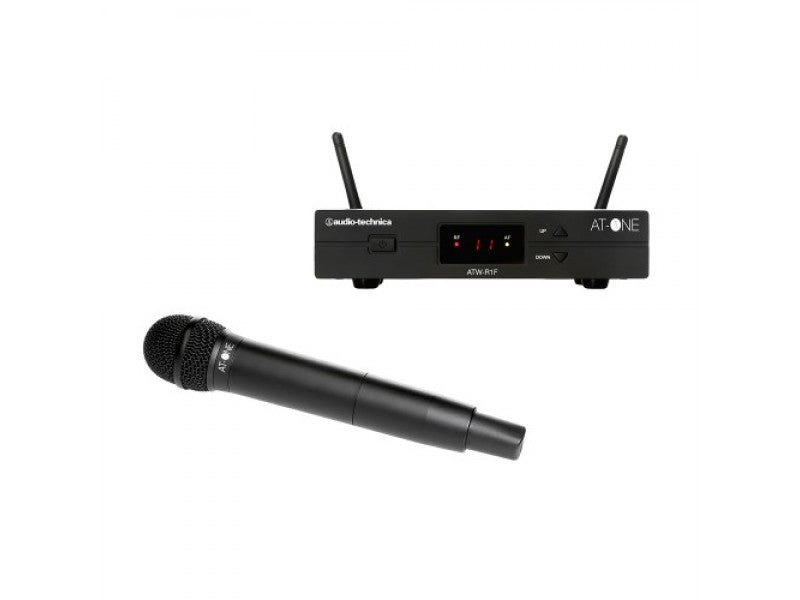

Audio-Technica ATW-13DE3 AT-One Handheld Transmitter System

Regular price R 4,999.00
Regular price Sale price R 4,999.00
Sale Sold out
Tax included.

Audio-Technica ATW-13DE3 AT-One Handheld Transmitter System





Overview:

AT-One, Audio-Technica’s entry level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.

AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price. The AT-One’s frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.

Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-13 handheld system features the ATW-T3 cardioid condenser handheld transmitter, again with 10mW RF output and 10 hour battery life.



Features:

Designed for quick and easy use
Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
Users can choose up to 4 channels in a group
The ATW-13 system is equipped with a cardioid condenser handheld transmitter
RF transmission power 10mW
Up to 10 hours' battery life with 2 x 1.5V AA batteries
RF Indicator light
Robust construction from high quality components
Delivered in a transport case with a rack mount kit and detachable antennas



Specifications:

Overall System
Operating Frequencies DE3 Band: 482 - 512 MHz
Number Of Channels 2 x 4 frequencies
Frequency Stability +/- 0.005%, Phase lock loop frequency control
Modulation Mode FM
Frequency Response 60 Hz - 16 kHz
Operating Range 60m, typical
Receiver
Receiving System Antenna switching diversity
Image Rejection 55dB minimum
Dynamic Range HH: 108 dB, BP 103 dB (@ max deviation)
Sensitivity 10dBµV (S/N 60dB @ 20 kHz deviation)
Total Harmonic Distortion <1% - 20 kHz deviation @ 1 kHz
Audio Output Unbalanced -2dBV
Audio Output Balanced 4dBV
Output Connectors (Microphone) Balanced: XLRM-type
Output Connectors (Instrument) Unbalanced: 6.3 mm mono jack
Maximum Output Level Mic / Line (0 / -20dB)
Antenna Input BNC type, 50 - BIAS voltage 12V DC 100mA each
Dimensions 200 mm x 42 mm x 122 mm (W x H x D)
Weight 418 g without accessories
Accessories Included AC Adapter, Antennas, Rack mount adapter, protective carrying case
Handheld Transmitter
RF Power Output 10 mW
Spurious Emissions Following national regulatios
Microphone Element Condenser Cardioid
Battery Type Two 1.5V AA alkaline
Battery Life 10 hours - depending on battery type and use pattern
Dimensions 268 mm long - 52 mm (diameter)
Accessories Included Stand clamp
