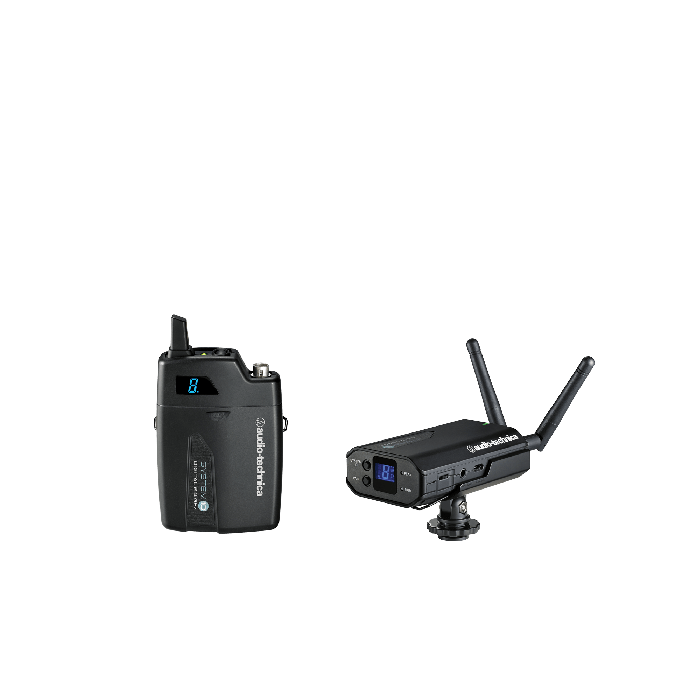

Audio-Technica ATW-1701 System 10 Camera-Mount Wireless Body-pack System

R 6,739.00
R 6,739.00
Sale Sold out
Tax included.

Audio-Technica ATW-1701 System 10 Camera-Mount Wireless Body-pack System





Overview:

The ATW-1701 is a high-quality wireless microphone system that includes the ATW-R1700 receiver and ATW-T1001 body-pack transmitter. It operates within the 2.4 GHz ISM band, offering exceptional performance for various audio applications. Whether for live performances, presentations, or public speaking engagements, this wireless system provides reliable connectivity and clear sound reproduction



Features:

Complete wireless microphone system with receiver and body-pack transmitter

Operating frequencies in the 2.4 GHz ISM band (2400 to 2483.5 MHz)

Wide frequency response range of 20 Hz to 20 kHz (depending on microphone type)

Operating range of 30 m (100′) radius, 60 m (200′) diameter in typical open range environments

Diversity receiving system ensures reliable signal reception (frequency/time/space)

Body-pack transmitter with 10 mW RF power output for strong signal transmission

Compatible with microphones or cables featuring a cW-style locking 4-pin connector

Receiver features balanced and unbalanced output options for versatile connectivity

Internal rechargeable Li-ion battery in the receiver provides long-lasting performance

Body-pack transmitter operates on two 1.5V AA batteries (not included), offering over 7 hours of battery life

Accessories included: AT8456a Quiet-Flex™ stand clamp, antennas, camera shoe mount, AC adapter, USB cable, and stereo cable



Specifications:

Overall System
Operating Frequencies 2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 30 m (100′) radius, 60 m (200′) diameter typical
Open range environment with no interfering signals
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures
Audio Sampling 24 bits / 48 kHz
Handheld Transmitter
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Battery Type Two 1.5V AA not included
Battery Life >7 hours (alkaline) Depending on battery type and use pattern
Dimensions 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter
Net Weight 280 grams (9.9 oz) without batteries
Accessories Included AT8456a Quiet-Flex™ stand clamp
Body Pack
RF Power Output 10 mW
Battery Life >7 hours (alkaline) Depending on battery type and use pattern
Battery Type Two 1.5V AA not included
Dimensions 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D
Input Connections Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Net Weight 100 grams (3.5 oz) without batteries
Spurious Emissions Following federal and national regulations
Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level 3.5 mm (1/8″), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
Power Supply 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
Operating Temperature Range 40° F (4° C) to 110° F (43° C)
Dimensions 56.0 mm (2.20″) W x 91.4 mm (3.60″) H x 27.8 mm (1.09″) D
Weight 105 grams (3.7 oz)
Accessories Included Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8″) stereo cable
Battery Current/Life 12 hours Depending on environmental conditions Battery Charging Time: 4 hours 30 minutes Depending on environmental conditions Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
Battery Type Internal Battery: 3.7V rechargeable Li-ion battery
Battery Rating: 5.5 Wh
1,460 mAh
