Audio-Technica ATW-3211DE2EU 3000 Series Wireless Body-pack System
Couldn't load pickup availability
Audio-Technica ATW-3211DE2EU 3000 Series Wireless Body-pack System
Overview:

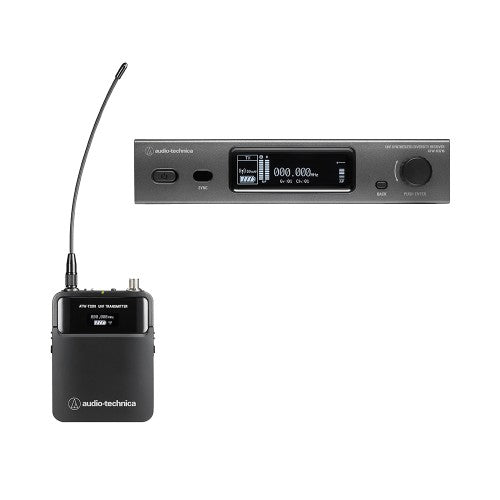

The ATW-3211 is a fourth-generation wireless microphone system designed for professional audio applications. It includes the ATW-R3210 receiver and the ATW-T3201 body-pack transmitter with a secure cH-style screw-down 4-pin connector. This system offers easy setup, versatile operation, and richly detailed high-fidelity sound, providing users with the flexibility to operate within the congested UHF spectrum.
Features:
Wide 60 MHz UHF tuning bandwidth for maximum versatility in congested RF environments
Available in 6 frequency bands for flexibility (DE2, EE1, EF1, FG1, GH2, HH2)
Multifunction button on the body-pack transmitter enables switching to a backup frequency in case of interference
True Diversity operation reduces dropouts for reliable performance
Auto Squelch feature automatically adjusts squelch setting to optimize range while minimizing interference
Frequency scan and IR sync functionality for easy setup
Dual-mode OLED display on receiver for standard or performance view
OLED screen on transmitter for clear readout of key settings and alerts
Rugged cH-style connector on body-pack transmitter ensures secure connection to lavalier mics, headworn mics, and cables
Tactile mute toggle switch on transmitter provides physical confirmation of mute status
Charging terminals on transmitter compatible with optional smart charging docks for NiMH batteries
Antenna power available for powered antennas and other in-line RF devices
Ground-lift switch helps eliminate audible hum from ground loops
Balanced and unbalanced audio output jacks for versatile connectivityWide 60 MHz UHF tuning bandwidth for maximum versatility in congested RF environments
Available in 6 frequency bands for flexibility (DE2, EE1, EF1, FG1, GH2, HH2)
Multifunction button on the body-pack transmitter enables switching to a backup frequency in case of interference
True Diversity operation reduces dropouts for reliable performance
Auto Squelch feature automatically adjusts squelch setting to optimize range while minimizing interference
Frequency scan and IR sync functionality for easy setup
Dual-mode OLED display on receiver for standard or performance view
OLED screen on transmitter for clear readout of key settings and alerts
Rugged cH-style connector on body-pack transmitter ensures secure connection to lavalier mics, headworn mics, and cables
Tactile mute toggle switch on transmitter provides physical confirmation of mute status
Charging terminals on transmitter compatible with optional smart charging docks for NiMH batteries
Antenna power available for powered antennas and other in-line RF devices
Ground-lift switch helps eliminate audible hum from ground loops
Balanced and unbalanced audio output jacks for versatile connectivity
Specifications:
| Overall System | |
|---|---|
| Operating Frequencies | Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) |
| Operating Frequencies | Band DE2: 470.125 to 529.975 MHz (2395 frequencies) Band EE1: 530.000 to 589.975 MHz (2400 frequencies) Band EF1: 590.000 to 649.975 MHz (2400 frequencies) Band FG1: 650.000 to 699.875 MHz (1996 frequencies) Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth / transmitting power due to local regulations. |
| Minimum Frequency Step | 25 kHz |
| Modulation Mode | FM |
| Maximum Deviation | ATW-T3201: ±38 kHz (THD:10%) ATW-T3202: ±36 kHz (THD:10%) |
| Frequency Response | ATW-T3201: 31 Hz to 15,500 Hz ATW-T3202: 25 Hz to 16,700 Hz Frequency response depends on attached microphone element |
| Operating Range | 100 m (328') Open range environment with no interfering signals. |
| Total Harmonic Distortion | <1.0% (at 1 kHz, ±17.5 kHz deviation) |
| Operating Temperature Range | -5° C to +45° C (23° F to 113° F) |
| Simultaneous Use | 40 Channels per band* For assistance with multi-band operation or other frequency coordination issues, please contact your regional Audio-Technica customer service representitive. *Region and band dependent |
| Handheld Transmitter | |
|---|---|
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Spurious Emissions | Following Federal and National Regulations |
| Microphone Capsule | Interchangable industry standard thread |
| Battery Type | Two 1.5V AA, not included |
| Battery Life | High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions. |
| Dimensions | ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter |
| Net Weight | ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries ATW-T3202/C510: 330 g (11.6 oz), without batteries ATW-T3202/C710: 314 g (11.1 oz), without batteries |
| Body Pack | |
|---|---|
| RF Power Output | High: 30 mW, Low: 10 mW (switchable), at 50 ohms |
| Battery Life | High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline) High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh) Depending on battery type, usage, and environmental conditions. |
| Battery Type | Two 1.5V AA, not included |
| Dimensions | 64 mm x 82 mm x 23 mm (W x D x H) 2.52" x 3.22" x 0.91" (W x D x H) |
| Input Connections | cH-style screw-down 4-pin connector Pin 1: GND Pin 2: INST INPUT Pin 3: MIC INPUT Pin 4: DC BIAS +5V |
| Net Weight | 102 g (3.6 oz), without batteries |
| Spurious Emissions | Following Federal and National Regulations |
| High-pass (low-freq. roll-off) | 125Hz, 12dB/octave |
| Receiver | |
|---|---|
| Receiving System | True Diversity |
| Image Rejection | 60 dB nominal |
| RF Sensitivity | 20 dBuV at 60 dBA S/N ratio (50 ohms termination) |
| Maximum Output Level | XLR, balanced: +14 dBV 6.3 mm (1/4"), unbalanced: +8 dBV |
| Antenna Input | BNC-type, 50 ohms |
| Antenna Power | 12 V DC, 160 mA (combined) |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply |
| Dimensions | 210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27" x 7.52" x 1.71" (W x D x H) |
| Weight | 1100 g (38.8 oz), without accessories |
| Accessories Included | Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters |
