Audio-Technica ATW-DR3120DAN 3000 Digital Series Dual-Channel Receiver

Regular price R 46,279.00
Regular price Sale price R 46,279.00
Sale Sold out
Tax included.

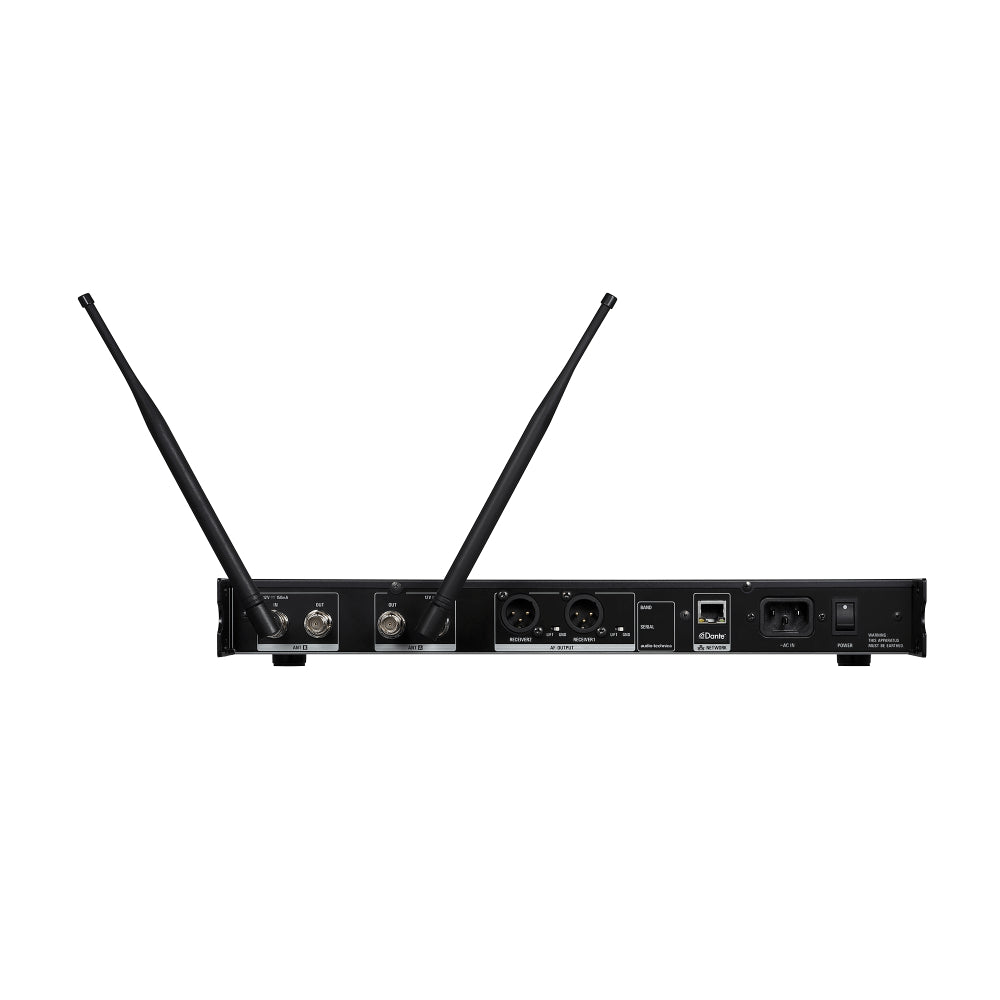

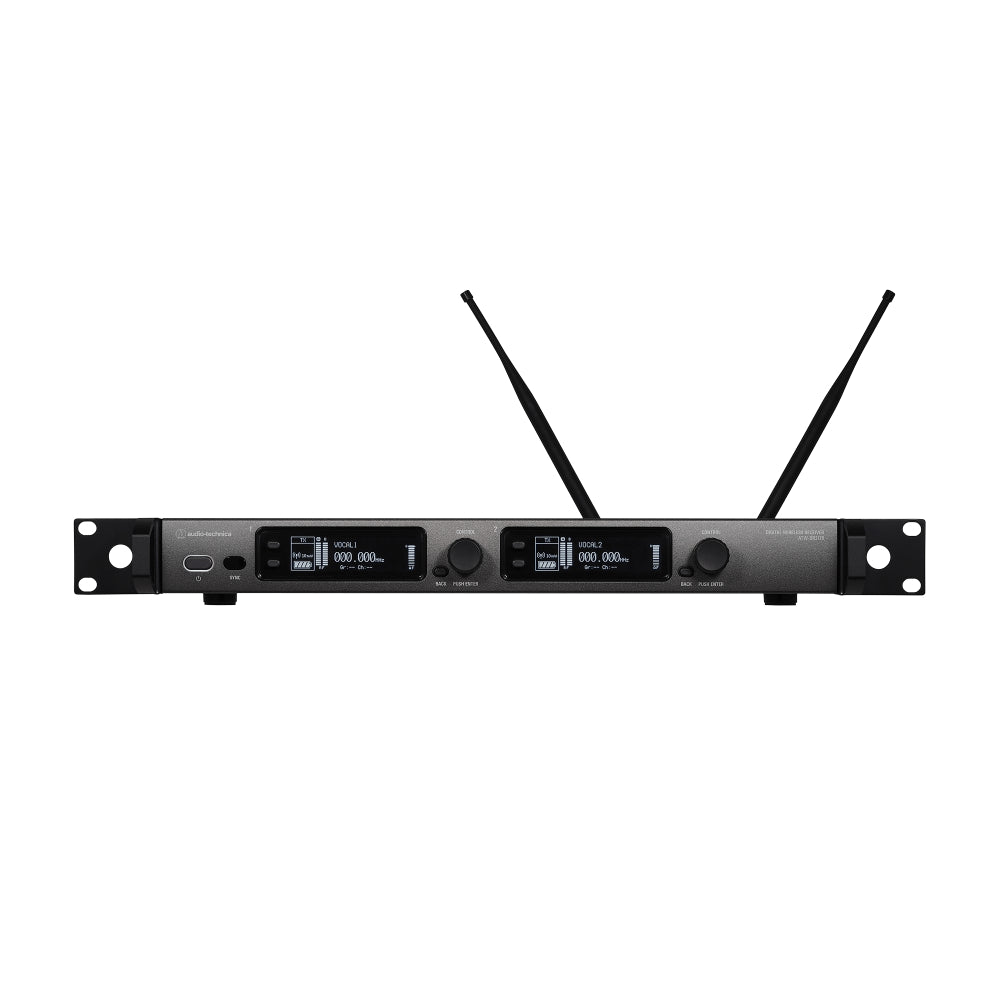

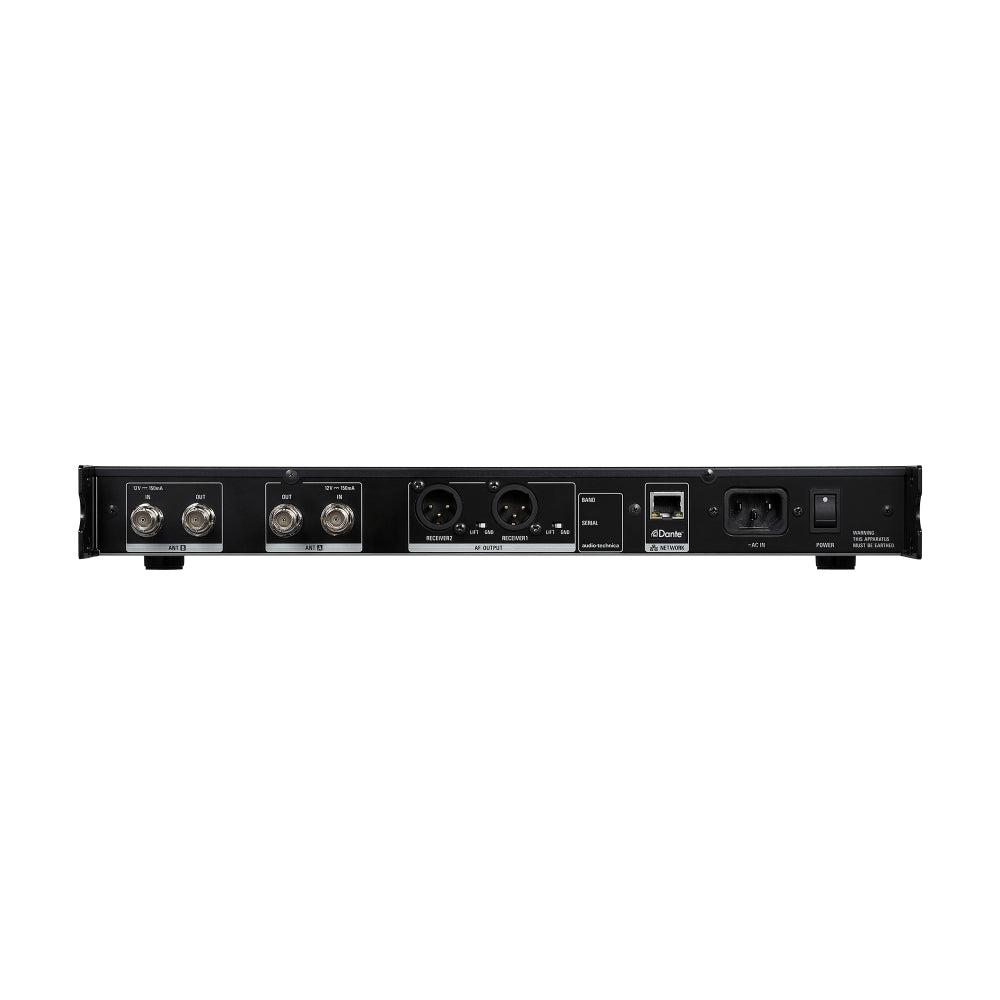

Audio-Technica ATW-DR3120DAN 3000 Digital Series Dual-Channel Receiver





Overview:


The sleek, rack-mounted 3000 Digital Series dual channel receiver features the newly created Audio-Technica codec. The digital signal can be streamed over the Dante™ network. The antenna cascade output allows five receivers to be simultaneously connected; this allows a single pair of antennas to feed up to 10 channels of wireless audio, minimizing the rack space required.

You’re In Control

With the 3000 Wireless Digital Series ATW-DR3120DAN dual channel receiver, easily monitor frequency coordination, equipment status and logs by the free of charge Wireless Manager software. For even more accuracy and peace of mind, real-time in-field walk testing is possible helping you spot operating range limits and dropout zones.



Features:

High-quality digital wireless system with a newly developed proprietary Audio-Technica codec for excellent-quality sound
Super-low latency of 2.5ms.
Antenna cascade output allows 5 receivers to be connected so a single pair of antennas can feed up to 10 channels of wireless.
AES256 encryption allows you to transmit confidently and without fear of network intrusion.
The Network-enabled receiver offers network control and monitoring via the Audio-Technica Wireless Manager software.
MIX (Audio MIX) output function of receiver 1 and receiver 2.
Receiver features Dante™ output.



Specifications:

Receiver
Receiving System True Diversity
Image Rejection 70 dB
RF Sensitivity −98 dBm (10−5 BER)
Maximum Output Level 18 dBV (Line), −12 dBV (Mic)
Antenna Input BNC-type, 50 ohms
Antenna Power 2x (12 VDC, 150mA)
Power Supply 100 to 240 VAC (50/60 Hz)
Operating Temperature Range −5°C to +40°C (23°F to 104°F)
Dimensions 483 mm (19.02") × 385 mm (15.16") × 44 mm (1.73") (W × D × H)
Weight Approx. 4.1 kg (144.6 oz)
Accessories Included 1/2λ whip antenna × 2, power cable, rubber legs × 4
