audio-technica

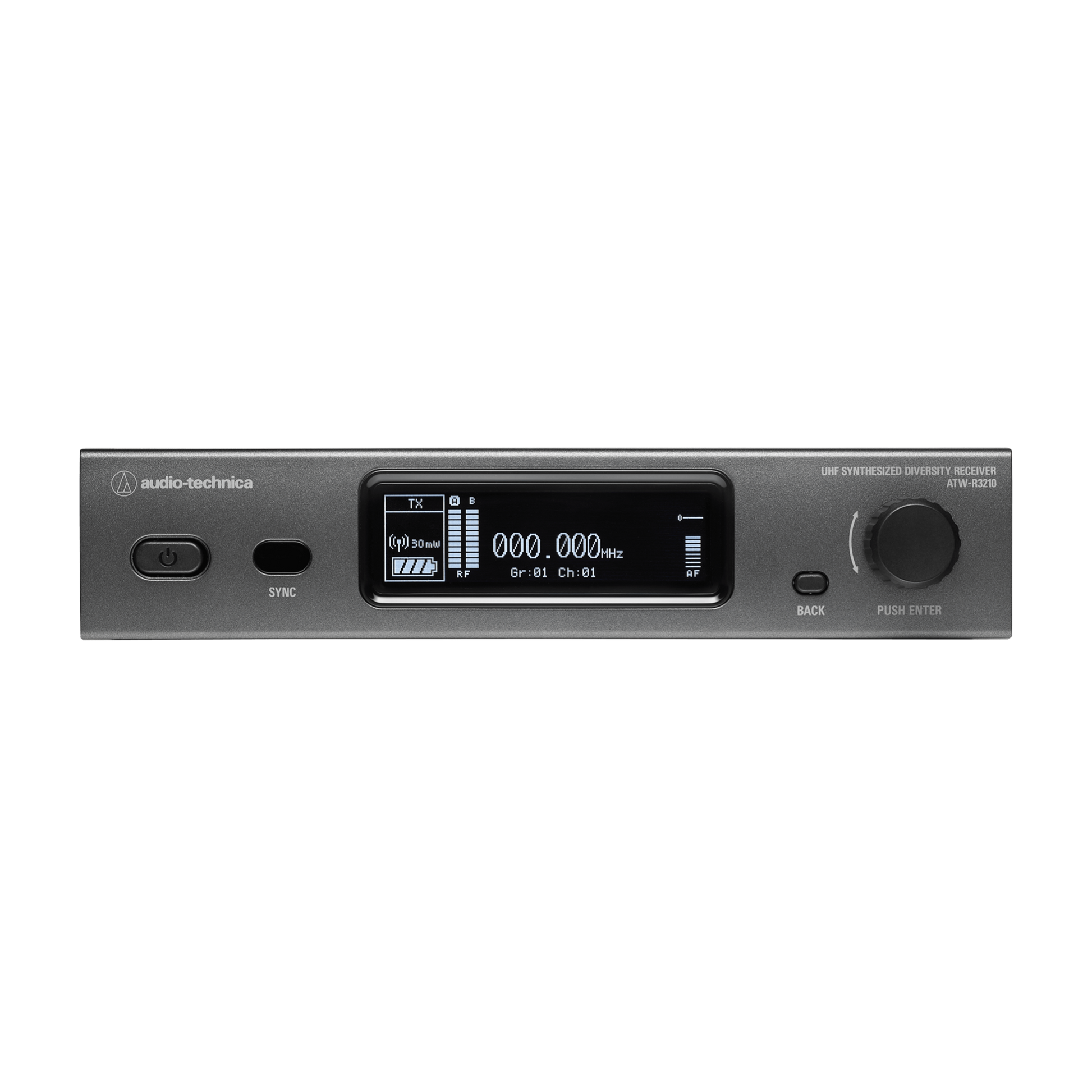

Audio-Technica ATW-R3210DE2 3000 Series diversity receiver

Regular price R 9,749.00
Regular price Sale price R 9,749.00
Sale Sold out
Tax included.

Audio-Technica ATW-R3210DE2 3000 Series diversity receiver



Overview:

The Audio-Technica ATW-R3210DE2 3000 Series diversity receiver is designed for maximum flexibility in RF environments. With a 60 MHz UHF tuning bandwidth and true diversity operation, it minimizes dropouts. Its user-friendly interface, complete with OLED screens and dual-mode display, makes setup and monitoring straightforward. This receiver is an ideal choice for professionals seeking reliability and performance.

Features:

Wide UHF Tuning Bandwidth: The Audio-Technica ATW-R3210 features an extensive 60 MHz UHF tuning bandwidth. This wide range enhances versatility in increasingly congested RF environments, allowing users to find and maintain stable frequencies with ease.

True Diversity Operation: This receiver employs true diversity operation, which significantly reduces audio dropouts. By utilizing two independent receivers that pick up the same signal, the ATW-R3210 ensures consistent audio quality, making it reliable for live performances and broadcasts.

User-Friendly Setup: The built-in frequency scan and IR sync functionalities simplify the setup process. Users can quickly identify clear frequencies and sync their transmitters effortlessly, saving time and reducing potential issues before events.

Dual-Mode Display: The ATW-R3210 comes with a dual-mode display that switches between standard view and performance view. The performance view highlights essential metering information, enabling users to monitor audio levels and other critical data at a glance.

OLED Screen Readouts: Equipped with OLED screens, the receiver offers optimal visibility of essential settings and alerts. This feature ensures users can easily read information, even in low-light conditions, which is crucial for live applications.

Antenna Power Supply: The antenna power feature allows the use of powered antennas and other in-line RF devices. This flexibility enhances the system’s overall performance, particularly in complex setups that require additional equipment.

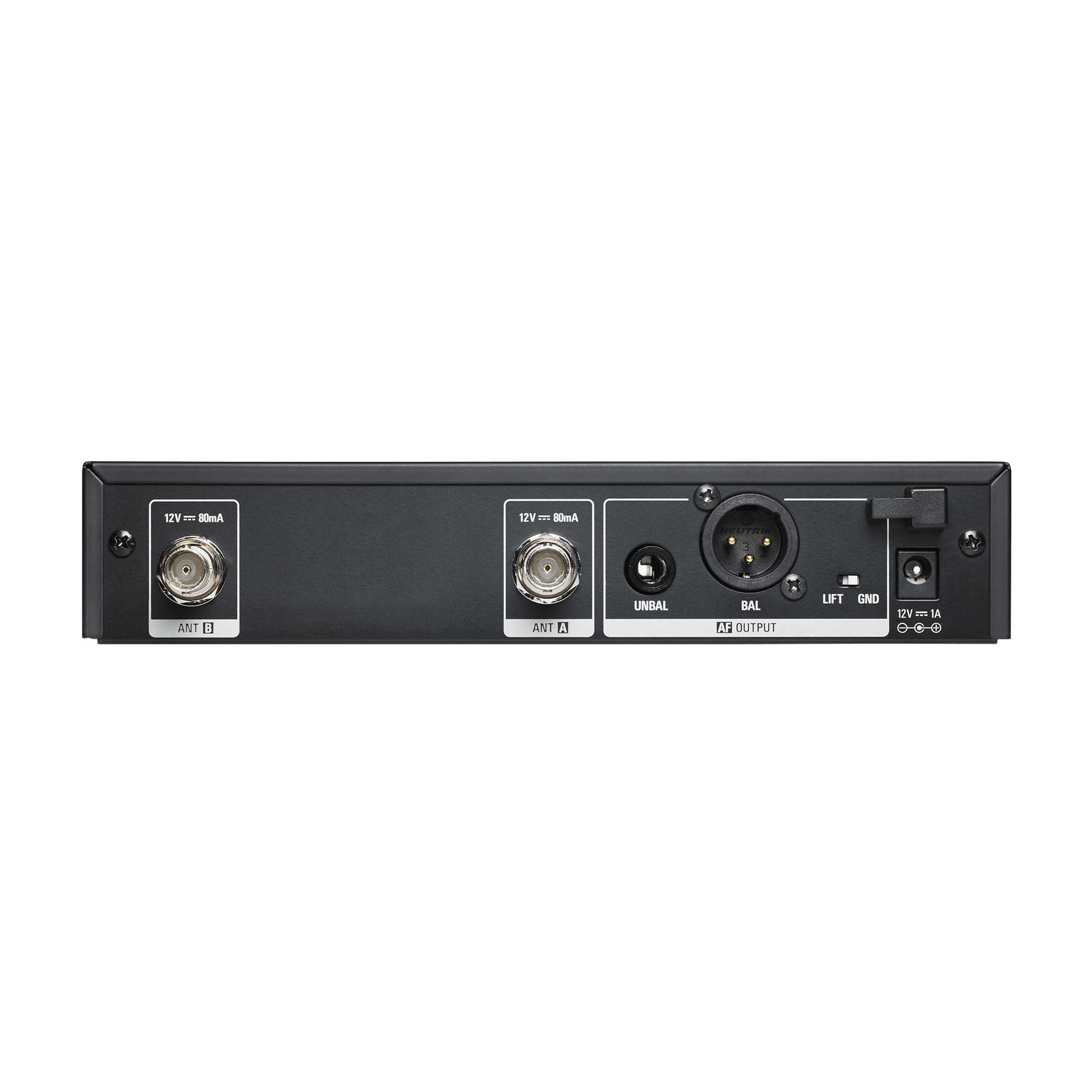

Ground-Lift Switch: To eliminate audible hum caused by ground loops, the ATW-R3210 includes a ground-lift switch. This feature improves audio clarity, making it ideal for professional environments where sound quality is paramount.

Flexible Audio Outputs: The receiver features both balanced and unbalanced audio output jacks, providing versatility for various setups. This flexibility allows users to connect the receiver easily to a wide range of audio equipment, accommodating different configurations and environments.



Specifications:

  • Operating Frequencies: Band DE2: 470.125 to 529.975 MHz, Band EE1: 530.000 to 589.975 MHz, Band EF1: 590.000 to 649.975 MHz, Band FG1: 650.000 to 699.875 MHz, Band GH2: 794.100 to 805.900 MHz, Band HH2: 821.100 to 831.900 MHz and 863.100
  • Minimum Frequency Step: 25 kHz
  • Modulation Mode: FM
  • Maximum Deviation: ATW-T3201: ±38 kHz (THD:10%), ATW-T3202: ±36 kHz (THD:10%)
  • Frequency Response: ATW-T3201: 31 Hz to 15500 Hz, ATW-T3202: 25 Hz to 16700 Hz
  • Operating Range: 100 m
  • Dynamic Range: ATW-T3201 Mic input: > 115 dB (A-weighted), typical; ATW-T3201 Inst input: > 112dB (A-weighted), typical; ATW-T3202: > 115 dB (A-weighted), typical
  • Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
  • Operating Temperature Range: -5 ºC to +45 ºC
  • Simultaneous Use: 40 Channels per band*
  • Receiver System: True Diversity
  • Sensitivity: 20 dBuV at 60 dBA S/N ratio (50Ω termination)
  • Maximum Output Level: XLR / Balanced: +14 dBV; 6.3 mm (¼”) / Unbalanced: +8 dBV
  • Antenna Input: BNC-type, 50 Ω
  • Power Output: 12 V DC, 160 mA (combined)
  • Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
  • Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
  • Weight: 1100 g, without accessories
  • Accessories Included: Two Flexible UHF antennas, AC adapter (country dependent), Rack Mount Adaptors
