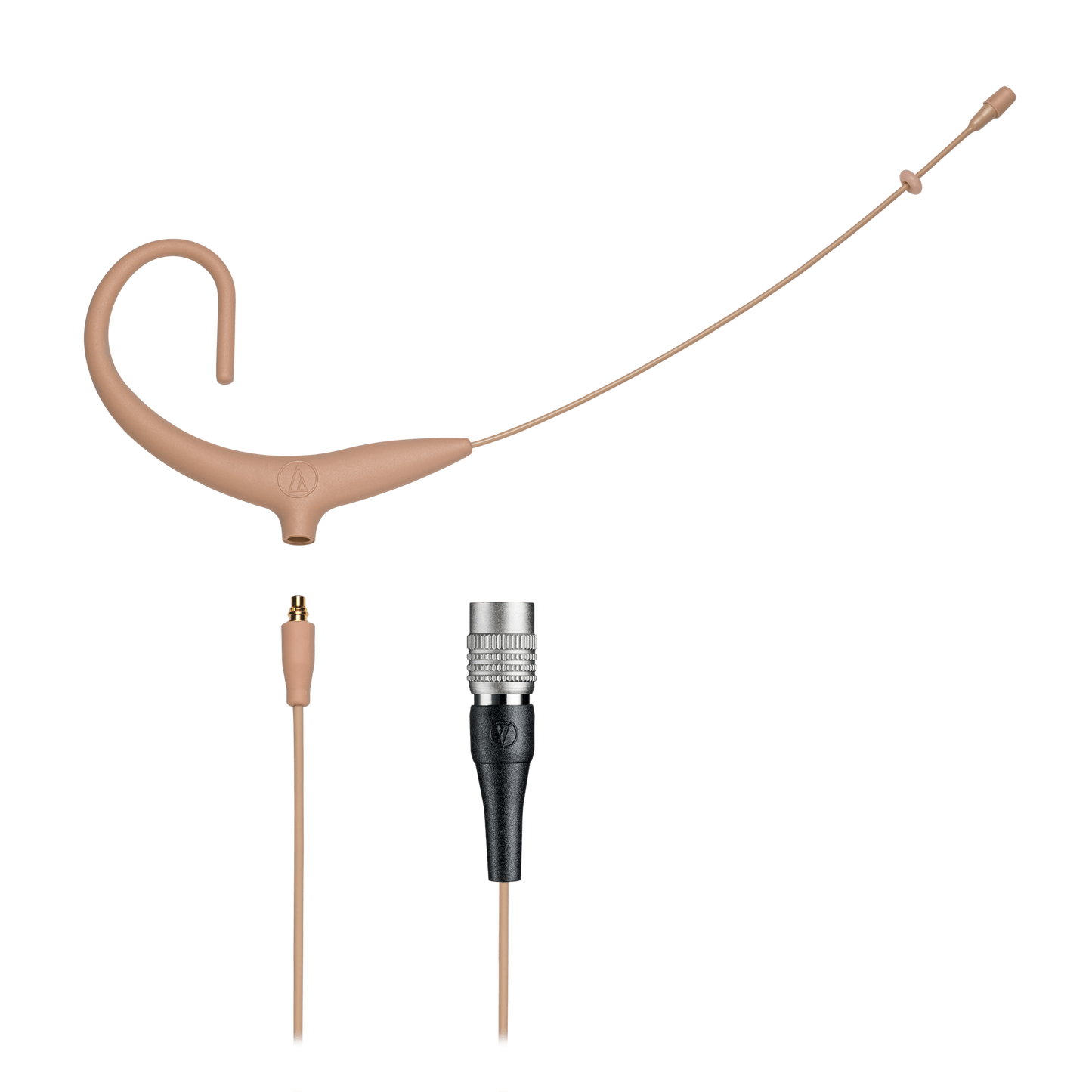

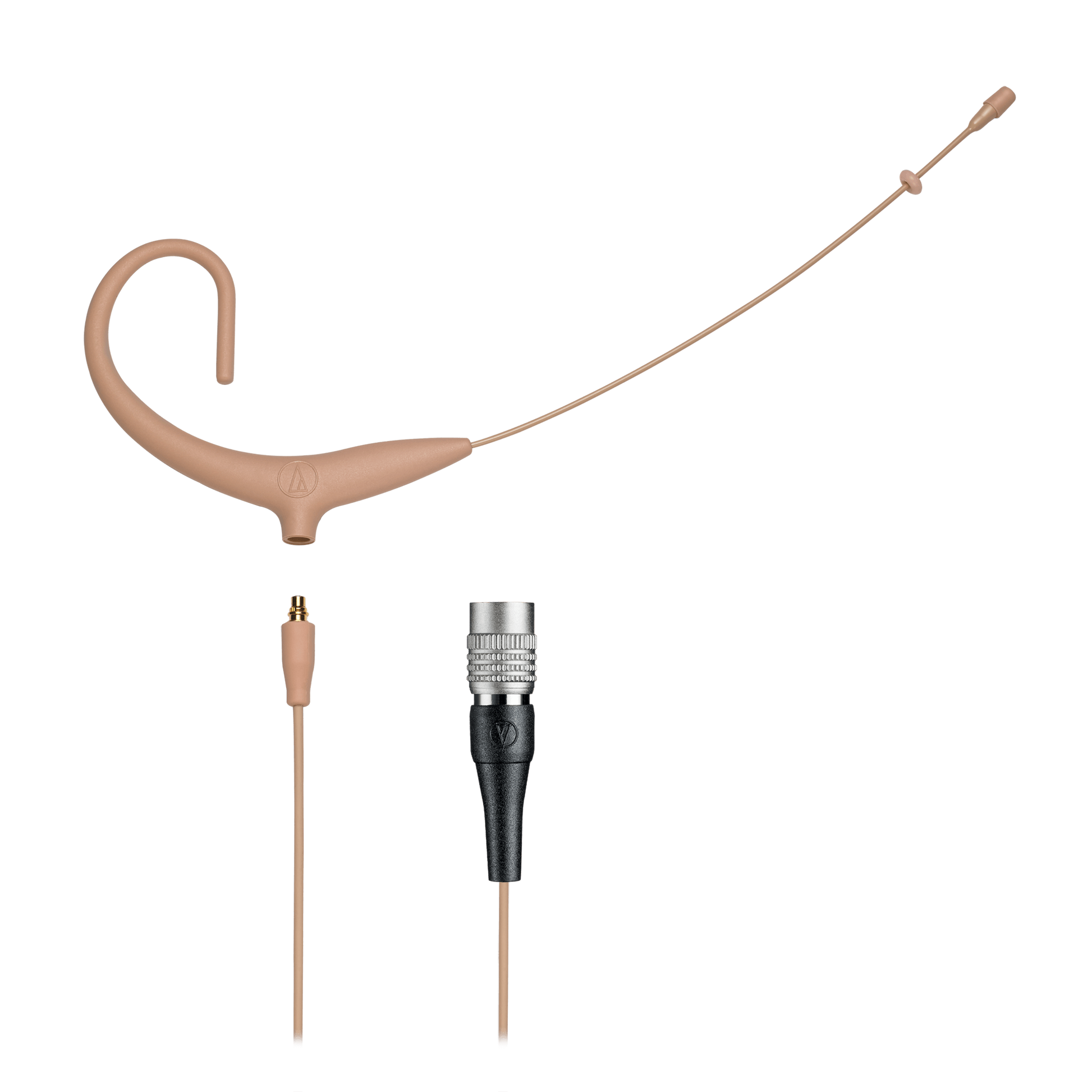

Audio-Technica BP892CW Subminiature Omnidirectional Condenser Headworn Microphone - Beige

Audio-Technica BP892CW Subminiature Omnidirectional Condenser Headworn Microphone - Beige

Overview:

Audio-Technica’s high-SPL BP892x MicroSet® offers the ultimate in low-profile, high-performance audio. Delivering clear and accurate sound in an inconspicuous package, the ultra-lightweight BP892x hooks securely behind either ear and can be worn for hours without fatigue. For maximum stability and comfort, the included AT8464x dual-ear adapter kit converts the MicroSet to a dual-ear-worn unit.

The BP892x MicroSet’s subminiature omnidirectional condenser capsule delivers extremely intelligible, natural audio with a flat, extended frequency response that is ideal for stage and television talent, lecturers, and worship leaders. Engineered to stand up to the rigors of day-to-day use, the BP892x includes a detachable, field-replaceable cable with a robust connector at the earset and a variety of available output terminations.

Features:

Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction

Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility

Ergonomic under-ear design – the flexible, lightweight, contoured loop hooks behind the ear for an ultra-secure, comfortable fit even for those wearing glasses

Detachable, field-replaceable cable with robust connector at the earset and a variety of available output terminations

Handles high sound pressure levels with ease

Wired version’s power module (AT8545) includes a high-pass filter that provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality

Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear MicroSet to a unit that’s worn on both ears for maximum stability and comfort

Constructed of hypoallergenic materials

Specifications:

Microphone
Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional
Frequency Response 20-20,000 Hz
Low Frequency Roll Off 80 Hz, 18 dB/octave (wired only)
Open Circuit Sensitivity -43 dB (7.2 mV) re 1V at 1 Pa
Output Impedance 250 ohms (wired only)
Maximum Input Sound Level 136 dB SPL, 1 kHz at 3% T.H.D.
Dynamic Range 104 dB, 1 kHz at Max SPL (wired only)
Signal-to-Noise Ratio 63 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 2 mA typical (wired only)
Switches Flat, roll-off (wired only)
Current Consumption 0.2 mA typical at 5V (wireless only)
Voltage Range 2.5-10V (wireless only)
Weight (microphone) Microphone, boom & earpiece: 2.6 g (0.09 oz)
Weight (power module) 85 g (3.0 oz) (wired only)
Cable Detachable 1.4 m (55") long, 1.6 mm (0.06") diameter, 2- or 3-conductor shielded cable (termination dependent)
Dimensions Microphone: 9.5 mm (0.37") long, 2.6 mm (0.10") diameter Boom: 98.5 mm (3.88") long, 1.07 mm (0.04") diameter
Dimensions (power module) 100.0 mm (3.94") long, 18.9 mm (0.74") diameter (wired only)
Output Connector (power module) Integral 3-pin XLRM-type (wired only)

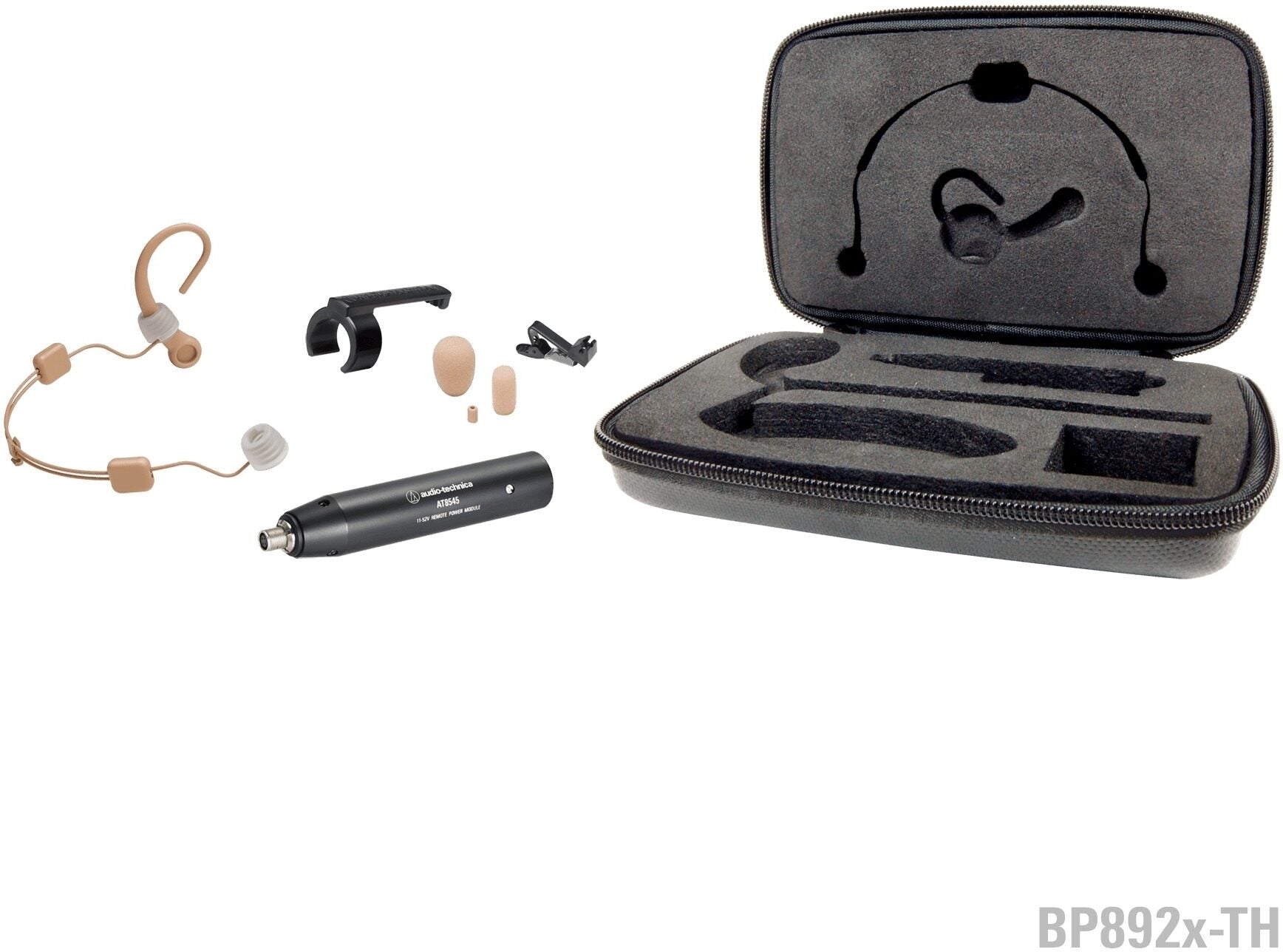

Accessories Included BP892x: AT8545 power module (wired only); AT8464x dual-ear adapter kit; AT8440 cable clip; AT8157 windscreen; AT8171 windscreen; two AT8156 element covers; moisture guard; belt clip (wired only); carrying case BP892x-TH: AT8545 power module (wired only);
Audio-Technica Case Style M31
