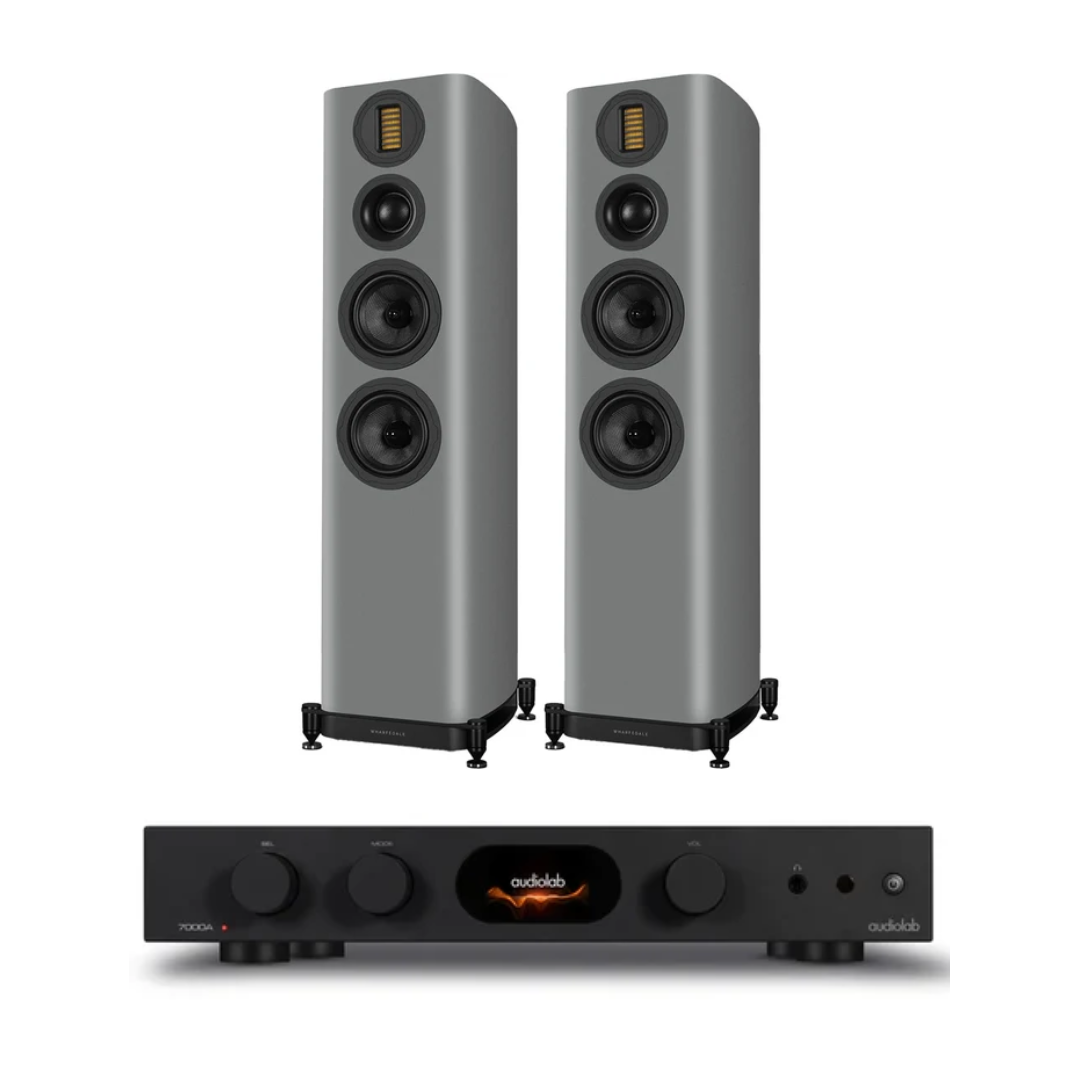

Audiolab 7000A Integrated Amplifier (Black) + Wharfedale EVO 5.4 Floorstanding Speakers - Pair (Grey)

R 46,990.00
R 57,990.00 R 46,990.00
Sale Sold out
Tax included.

Audiolab 7000A Integrated Amplifier (Black) + Wharfedale EVO 5.4 Floorstanding Speakers - Pair (Grey)

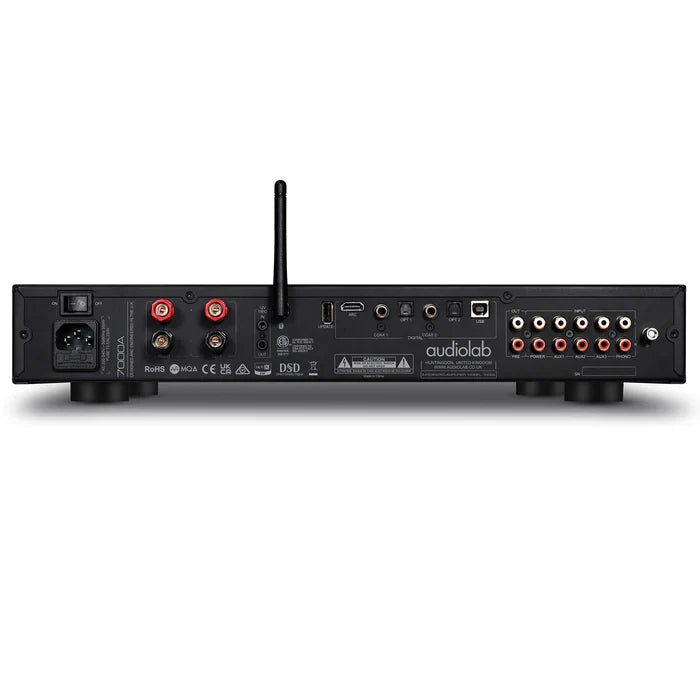

Audiolab 7000A Integrated Amplifier (Black)





7000A


Nestled between the 6000 and 9000, the 7000 fuses premium traits into a pricing category that follows the mantra of class-leading performance.

Outwardly resembling the sequential series and therefore offering a brand-wide visual aesthetic match, the audiolab 7000A improves on the 6000A with a genuine 70W per channel output, a new DAC, a new full-colour IPS LCD screen and more! More compact than the 9000 series, it maintains crisp ergonomics, high-quality engineering, a useful range of facilities and an excellent all-around acoustic performance and connectivity.



Classes of A and B

audiolab pulls no punches with the genuine nature of our power rating. The 7000A’s discrete Class AB power amp stage delivers 70W per channel into eight ohms, with a maximum current delivery of 9A amps into difficult loads. A new standard in audiolab amplifiers, the output stage of the discrete power amp circuits uses a CFB (Complementary Feedback) topology, ensuring superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors. Critically specified by Jan Ertner (lead engineer for the audiolab brand); the newly developed power supply features a substantial 250VA toroidal transformer, followed by 4x15000uF reservoir capacity (60000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.



Name Your Source

Whatever the input source – analogue, digital, wireless or TV – the 7000A has been crafted to the same level of detail one has come to expect from audiolab, all with the latest tech to be fully equipped to cover many bases, yet it maintains a price point that keeps the audiolab brand at the forefront of quality home audio. Dual analogue inputs cater for CD players and line-level sources, dual Coax and SPDIF inputs expand this for the digital sources while a Bluetooth aptX receiver serves up a solution for wireless audio playback and smart devices. Following the growing trend for direct living room integration of premium audio electronics and there for more in tune as the centrepiece of your home audio system, the 7000A takes connectivity to a new dimension with a built-in Audio Return Channel (ARC) connection for use with screens – thus bringing the audiolab dynamic to TV-app based music playback and home theatre. And let’s not forget the direct-to-PC connection via USB.



Flagship DAC

As is standard with audiolab integrated amplifiers, the 7000A reaffirms the natural integration and synergy with an ESS ES9038Q2M chip. Improving on the 6000A with this latest iteration and taking learnings from the 9000A, the 7000A utilises ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. As with the 9000A, the 7000A uses a post-DAC filter based upon Class A topology and proprietary DC-coupled high-gain electronic amp designs to deliver ultra-low noise and high dynamic range for the digital audio connoisseur.



Streaming Technology

What’s more, the 7000A also delivers full decoding of MQA, the hi-res streaming technology from a custom-engineered MQA-certified DAC solution. This means that the complete ‘three unfold’ decoding process is performed internally, as opposed to just the final unfold in the manner of an MQA ‘renderer’, which makes the 7000A an excellent system choice for subscribers to Tidal’s ‘HiFi Plus’ tier where Tidal Masters (MQA) content can be found.



Tables Are Turning

The 6000A is applauded for its ability to offer an integrated phono pre-amp solution. The 7000A builds on this with a further improved phono stage for moving magnet phono cartridges – using an improved version of the high-quality, low noise MM Phono circuit and precise RIAA equalisation that sets the benchmark in ‘built-in’ phono preamplifier solutions. Same with the dedicated headphone output. Enhancing the versatility claims of the 7000 series, the dedicated headphone amp with current-feedback circuitry caters for the head-fi that lurks in the audiophile! Its gain bandwidth and high slew rate ensure a dynamic, detailed and engaging performance with all manner of headphone types – more boxes ticked for this most integrated of integrated amplifiers.



Improved Interface

As the engineers in the audiolab camp have learned with every model and series; greatness can be improved upon. Taking the 6000A as the standard, audiolab know that the regular audio enthusiast’s thirst for specification and features would mean that the eagerly anticipated linear upgrade from the 6000A would instinctively also offer an improved display and general user interface (GUI); hence the vibrant and visually informative 2.8″ (48 x 64mm) IPS display. The detailed but simple-to-use GUI also carries through a general theme of information and structure from the 9000A, just in a more compact style. The GUI includes settings for the digital phase lock loop of the D/C converter



Satisfying Graphics

(DPLL), brightness, and operational modes. It can even be set to display a VU meter in ‘analogue’ or ‘digital’ form; showing real-time decibel levels for the left and right channels – a satisfying graphical representation of the music as it plays. As with all audiolab electronic hi-fi components, the audiolab 7000A yet again delivers with remarkable sonic consistency, a plethora of source and connectivity options and crisp styling. Regardless of the source material and format, the 7000A is lively and engaging but also never loses focus on the musicality and detail. Broadness, depth and toe-tapping rhythm are assured. The benchmark in this price class is elevated – it’s now in the 7000 series domain!





Specifications:


Model 7000A
General Description Integrated Amplifier
Design Philosophy and Core Technology - 2 x 70W (8 ohms) / 2 x 110W (4 ohms) Class AB
- ES9038Q2M 32-bit DAC
- 2.8" (480x640mm) Full View IPS LCD
- Built in Certified Hardware MQA Full Decoder (PC USB, Coax / Optical)
- Bluetooth 5.0 (aptX / aptX LL) Support
- Low Noise Moving Magnet Phono Stage
- Dedicated Current-Feedback Headphone amp
- Integrated / PRE-POWER / PRE only Modes
- VU Digital / VU Analogue Meter
- USB Upgrade Support
Inputs 3 x Analogue, 1 x Phono (MM), 1 x Power Amplifier,
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC,
1 x PC USB (USB B - Windows / mac OS only), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger
Outputs 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency Optical / Coaxial: 44.1kHz - 192kHz;
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
Gain +6dB (Line); +55dB (Phono MM)
Input Sensitivity 820mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB)
Input Impedance 10K (Line); 47K // 100pF (Phono MM)
Total Harmonic Distortion (THD) < 0.0005% (1kHz @ 2V, Volume = 0dB)
Frequency Response 20Hz-20kHz (+/-0.1dB)
Output Voltage 2.3V max. (Volume = 0dB)
Output Impedance 100 ohms
Signal-to-Noise Ratio > 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted
DAC
D to A Converter ES9038Q2M
Total Harmonic Distortion (THD) < 0.0005% (1KHz @ 0dBFS)
Output Level (0dBFS, 1kHz) 2.1Vrms
Max. Sampling Frequency Optical, Coaxial: 192kHz;
PC USB: PCM768kHz, DSD512
Power Amplifier Section
Gain +29dB
Rated Power Output 2 x 70W (8 ohms, THD<1%); 2 x 110W (4 ohms, THD<1%)
Frequency Response 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD) <0.003% (1kHz @ 40W / 8 ohms)
Input Sensitivity 720mV
Signal-to-Noise Ratio (S/N) > 110dB (A-weighted)
Max. Output Current 9A
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
Output Impedance 4.7 ohms
Load Impedance 20-600 ohms
General
Standby Power Consumption <0.5W
Net Weight 8.4kg
Gross Weight 10.7kg
Dimensions (mm) (W x D x H) 444 x 340 x 78
Carton Size (mm) (W x D x H) 500 x 455 x 140
Finish Black / Silver
Power Requirements 220-240V ~ 50/ 60Hz;
(depending on region) 100-120V ~ 50/ 60Hz
Standard Accessories Power Cord, Remote Control, User Manual, Antennas, etc.

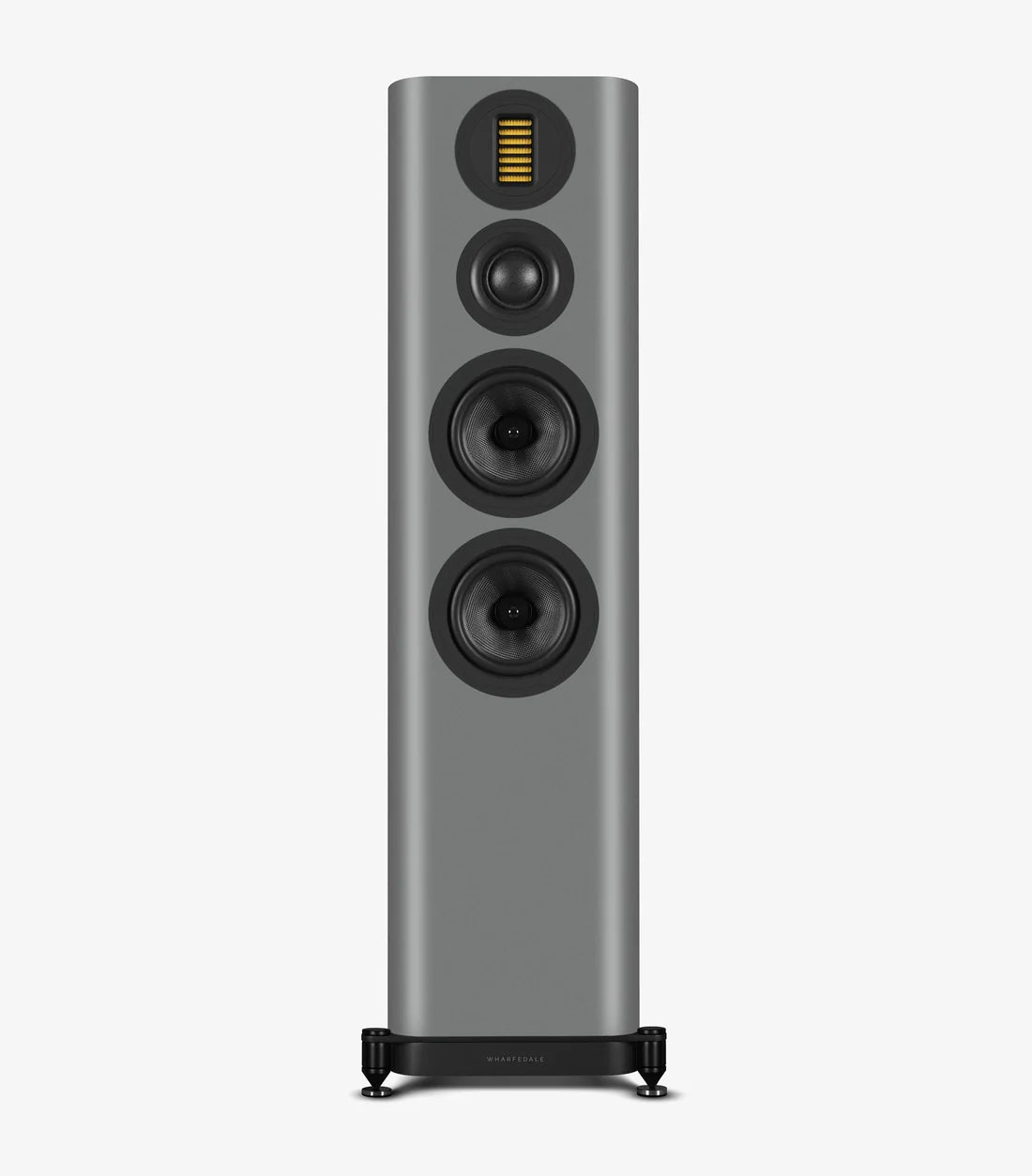

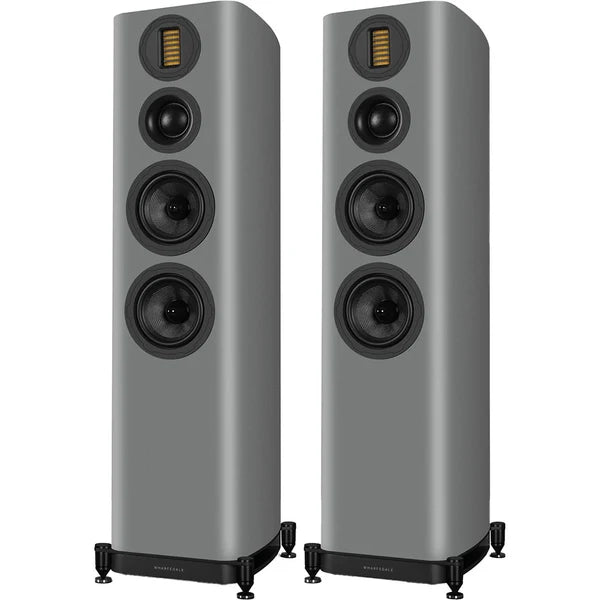

Wharfedale EVO 5.4 Floorstanding Speakers - Pair (Grey)



The EVO 5 Series represents a bold step forward for Wharfedale - taking everything that makes the EVO4 a showroom-staple and multi-award winning loudspeaker series but blending luxurious design updates with technical evolution further to enhance the appeal of a price-bracket-defying loudspeaker offering.

Whether an audiophile seeking nuanced musical expression or a casual listener desiring clarity and depth, the EVO 5 speakers promise an immersive, high-fidelity experience that rivals far more expensive high-end audio offerings.


High Frequency Unit

The EVO series concept originated from the same thorough research and development processes that characterised Wharfedale’s flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.



A Distinctive Approach to High Frequencies

AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.

Instead of using a conventional dome or cone to push air forward, an AMT uses a pleated diaphragm made of an ultra-thin, lightweight material (often a polymer film). Strong magnets are positioned on either side of the diaphragm, creating a powerful magnetic field. When an audio signal is passed through the conductive traces, the diaphragm is energised, causing the pleats to contract and expand. As the pleats move, they "squeeze" and "expand" the air between them, pushing it out in a highly controlled and eficient manner. This method allows the AMT to move four times more air than a traditional dome tweeter of the same surface area, leading to lower distortion (since the diaphragm moves less than a typical dome or ribbon), faster transient response (due to the lightweight material and minimal movement), wider frequency range and better dispersion.



The EVO 5 AMT goes further with Revolutionary Sound

Absorption and Damping Enhancements

A new sound-absorbing material, Silentweave™, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound colouration inside the speaker. This material, a combination of cotton and felt fibre, was specially developed for the EVO 5 series.

All EVO 5 drive units benefit from a new acoustic damping frame called ResoFrame™, made from elastomer and visible as a cog-like shape within the driver’s front panel. In the case of the AMT, an additional elastomer damping gasket between the diaphragm and the front plate further reduces mechanical resonances and smooths the response, especially in the important lower treble band.

These Internal Acoustic enhancements minimise unwanted sound colouration, ensuring a purer, more natural sonic signature. This smoother treble response delivers a listening experience that is crisp, controlled, and devoid of harshness.



Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproduction

Enhanced Midrange: A new technique, labelled Resoseal™, sees a thin mass ring of elastomer applied to the rear of the cone where it meets the surround. This further optimises midrange frequency response, allowing vocals to sound richer, more natural, and more emotionally engaging. This subtle yet critical enhancement ensures a refined and immersive listening experience.



Reengineered Cabinetry for Superior Resonance Control

Each model in the EVO 5 series now features an optimally increased internal cabinet volume. The expanded cabinet volume contributes to deeper bass extension and improved overall sound dispersion, creating a more immersive and expansive audio field.

The inclusion of a hybrid plinth, which combines metal and wood elements of the cabinet’s details, enhances structural integrity and reduces unwanted vibrations. This innovative base ensures that sound remains clean and uncoloured, free from external resonance artefacts.



Next-Generation Slot-Loaded Port Design

Wharfedale’s proprietary Slot Loaded Profiled Port (SLPP) system efficiently channels the rear output of the bass drivers into the room. The specially designed slot at the speaker's base equalises pressure to the room, reducing turbulence while enhancing low-frequency performance.

The EVO 5 Series debuts a groundbreaking three-directional SLPP (Slot Loaded Profiled Port) channel. Unlike the previous two-directional port in EVO 4, this system optimises airflow distribution, reducing turbulence and distortion. This refined engineering allows the speakers to produce profound yet controlled bass without the muddiness common in conventional bass reflex designs. The result is exceptionally well-defined, tight bass that integrates seamlessly with mid and high frequencies.



Specifications:

Model    EVO 5.4
General description    3-way floorstanding speaker

Design philosophy and core technology
Enclosure type    bass reflex
Transducer complement    3-way

ABR
Bass driver    6.5"(165mm) Black Woven Kevlar Cone x2
Midrange driver    2"(50mm) Soft Dome
Treble driver    35 x 70mm AMT

Full-range driver
AV shield    No
Sensitivity (2.83V @ 1m)    90dB
Recommended amplifier power    30-200W

Peak power handling
Peak SPL    108dB
Nominal impedance    4Ω (8Ω compatible)
Minimum impedance    4.3Ω
Frequency response (+/-3dB)    42Hz – 24kHz
Bass extension (-6dB)    36Hz
Crossover frequency    1.1kHz, 4kHz
Cabinet Volume (in litres)    59.5L

Dimensions (mm)
Height (on plinth&spike)    1028mm
Width    302mm
Depth (with grille+terminal)    (350 + 40)mm
Carton size    495 * 390 * 1185mm
Net weight    31.2kg/pcs
Gross weight    33.2kg/ctn
Finish    Walnut/Black Oak Veneer
Standard accessories    spike seat
