As ever, the 9000A is the centre of the audiolab focus in being the beating heart of any high-performance audio system. It’s more powerful, capable and feature-packed than any of the preceding models – the most advanced audiolab integrated amplifier yet. Versatility is key to audiolab’s integrated amplifier appeal, and the 9000A offers to cater for audiophiles of all creeds. Loaded with digital and analogue source connection, wireless connectivity for portable devices, an all-new phono stage to cater for vinyl playback and the usual, class-leading amplification for loudspeakers and headphones.
Digital Face

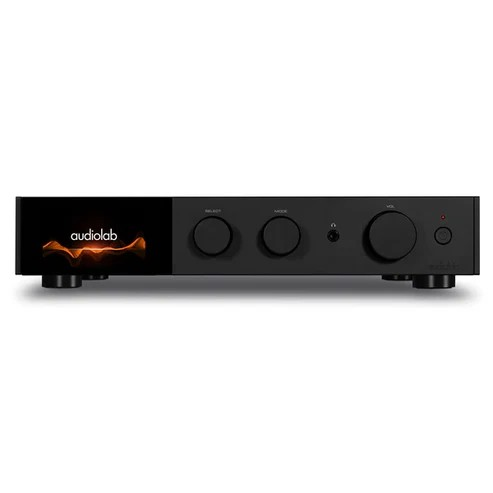

Matching the modern hi-fi enthusiast’s requirements, the 9000A features a full-colour IPS LCD screen, offering clear and informative playback, source and file information. Not to mention a host of menu options for optimum performance and user-defined settings. Various display options are provided, which also include two VU meter options, allowing the 9000A to be visually informative or, in the case of ‘display off’ settings, a discreet centrepiece of any audio system
Flexible and capable
Differentiating itself from rivals within its category, the audiolab 9000A blends digital capability with an analogue pedigree. Premium level D/A conversion, as one would always expect from audiolab, allows a range of digital sources (over four digital inputs) to be connected directly to this high-power integrated unit. Yet, based on over 40 years of amplifier design pedigree, not to mention a recent history of multi-award-winning audio solutions, the 9000A also caters for analogue device integrations (via three AUX, balanced XLR and a dedicated phono input).
The world of modern audio enjoyment is not limited to wired playback devices though, hence the 9000A also supports wireless connectivity via Bluetooth and digital audio via a PC USB connection.
The 9000A is the brainchild of lead designer, Jan Ertner. Famed for a plethora of class-leading and award-winning audio electronic models, Jan has pushed the 9000A to the highest levels of performance by evolving and redeveloping the principles that created the 8300A and uber-successful 6000A, to deliver the most exceptional performance ever seen in an audiolab integrated amplifier.
Flagship DAC
The 9000A features the latest ESS 9038PRO flagship 32-bit DAC chip. Using the critically acclaimed patented HyperStream® II architecture and Time Domain Jitter Eliminator, the ES9038PRO delivers an unprecedented performance level that will satisfy the needs of the most demanding audio applications – fitting an amplifier of the 9000A’s calibre.
Years of experience and countless ESS-equipped models mean that audiolab is more than familiar with making the most of this technically excellent but challenging DAC technology. Great attention has been paid in developing a system that allows audiolab electronics and ESS DAC technology to offer the best in audiophile performance.
The amp’s four S/PDIF digital inputs – two coaxial and two optical – handle hi-res PCM data up to 24-bit/192kHz and benefit from a host of user-selectable digital filters that allow the user to optimise the response to suit the source file and bandwidth of the partnering equipment.
PCM audio is supported to 32-bit/768kHz, alongside DSD to 22.5MHz (DSD512). Every significant hi-res and lossless audio format is catered for, including FLAC, ALAC, AIFF and WAV, as well as compressed legacy formats.
MQA All the Way
The 9000A also delivers full decoding of MQA, the hi-res streaming technology from a custom engineered MQA certified DAC solution. This means that the complete ‘three unfold’ decoding process is performed internally, as opposed to just the final unfold in the manner of an MQA ‘renderer’, which makes the 9000A an excellent system choice for subscribers to Tidal’s ‘HiFi Plus’ tier where Tidal Masters (MQA) content can be found.
As expected for modern audio playback convenience, Bluetooth connectivity is featured as standard with the 9000A stepping up to the aptX HD protocol for sonically superior and easy wireless streaming from smartphones, tablets, laptops and more. Bluetooth-paired devices also benefit from the quality of the amp’s DAC section and filter options.
The 9000A’s discrete Class AB power amp stage delivers 100W per channel into 8 ohms (160w per channel into 4 ohms!). Unlike over-specified competitor models, the genuine 100W per channel will put the 9000A up against the best in its class. Referring to the standards set with the audiolab 6000A (rated at 50W per channel), the 9000A’s 100W per channel will undoubtedly satisfy the most demanding of loudspeakers and their power-hungry masters.
A key to the audiolab performance is the world-famous CFB (Complementary Feedback) topology, which ensures superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors. An all-new and custom specified 320VA toroidal transformer, followed by 4 x 15,000uF reservoir capacity (60,000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.
In an effort to maintain consistent signal purity, with line input signals passing to a precision analogue volume stage, the preamp section is kept as simple as possible. As with all of Jan Ertner’s designs, the circuity is a work of art in more than layout and architecture. The very design protects the sensitive preamp section from noise interference and colouration – a key cornerstone of the audiolab philosophy.
High-Performance Phono Stage
With every iteration of integrated amplifier design, audiolab works to improve on the bench-mark, built-in phono stage section. The 9000A is no different; pushing the boundaries of performance of an onboard phono pre-amp section. The all-new phono pre-amp for 9000A offers compatibility for moving magnet – a JFET-based circuit with precise RIAA equalisation offers the best of both worlds for the turntable using audiolab fans.
Similarly, for the headphone output stage employing current-feedback circuitry with wide bandwidth and high slew rate; the 9000A ensures a dynamic, detailed and engaging performance with all manner of headphone types, with that extra added audiolab sparkle from the consistent signal integrity from all inputs.
The audiolab 9000A continues with the theme of flexibility in audio system integration. As is a staple to the audiolab integrated amplifier design, the 9000A offers three variations of operating mode, making it a versatile and essential component in any system.
Power to the People
The primary mode is ‘Integrated’ – this combines the pre and power amp stages, for the connection of digital and analogue sources to the amp’s inputs and a pair of speakers to its binding posts.
‘Pre-Power Mode’ disconnects the pre and power amp stages. The allows the 9000A to be used solely as a power amp – for example, connected to an AV processor in a home cinema system. It also enables additional signal processing to be added, by connecting the 9000A’s ‘preamp out’ socket to an external processor, then returning the processor’s output to the amp’s ‘power amp in’ socket, making the most of its gargantuan 100W per channel performance and critical performance characteristic of the 9000A’s pre-section, regardless of what magic the users wants to implement in between!
Specifications:
Model
9000A
General Description
Integrated Amplifier
Design Philosophy and Core Technology
2 x 100W (8 ohms) / 2 x 160W (4 ohms) Class AB ES9038Pro 32-bit DAC 4.3" (800 x 480px) Large Size Full View IPS LCD Built-in Certified MQA Full Decoder (PC USB, Coax/Optical) Bluetooth 5.1 (aptX/aptX HD/AAC/LDAC) Support Dedicated High-performance, Low-noise MM Phono Stage Dedicated Current-Feedback Headphone AMP Integrated / PRE-POWER / PRE Only Modes USB Upgrade Support

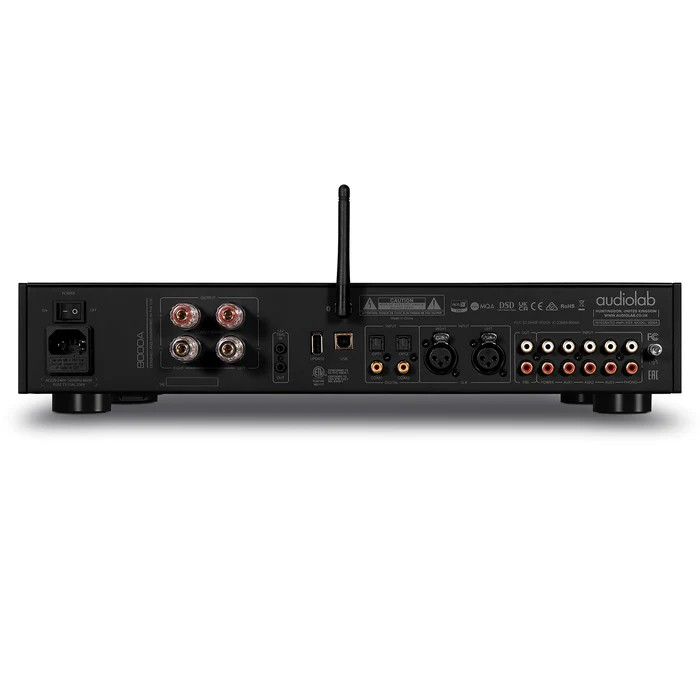

Inputs
3 x Analogue, 1 x XLR, 1 x Phono (MM), 1 x Power Amplifier, 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x PC USB (USB B - Windows / mac OS only), 1 x Bluetooth (aptX/aptX HD/LDAC), 1 x 12V Trigger
Outputs
1 x PRE Amplifier,1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Optical, Coaxial: 192kHz; PC USB: PCM768kHz, DSD512
Signal-to-Noise Ratio (S/N)
> 117dB (A-weighted)
Power Amplifier Section
Gain
+29dB
Rated Power Output
2 x 100W (8 ohms, THD<1%); 2 x 160W (4 ohms, THD<1%)
Frequency Response
20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD)
<0.002% (1kHz @ 50W / 8 ohms)
Input Sensitivity
1Vrms
Signal-to-Noise Ratio (S/N)
> 110dB (A-weighted)
Max. Output Current
15A
Headphone Amplifier
Total Harmonic Distortion (THD)
< 0.01% (1kHz, 50mW )
Output Impedance
2.35 ohms
Load Impedance
20-600 ohms
General
Standby Power Consumption
<0.5W
Net Weight
9.4kg
Gross Weight
11.2kg
Dimensions (mm) (W x H x D)
444 x 89 x 342
Carton Size (mm) (W x H x D)
514 x 470 x 161
Finish
Black / Silver
Power Requirements
220-240V ~ 50/60Hz;
(depending on region)
100-120V ~ 50/60Hz
Standard Accessories
Power Cord, Remote Control, User Manual, Antennas, etc.

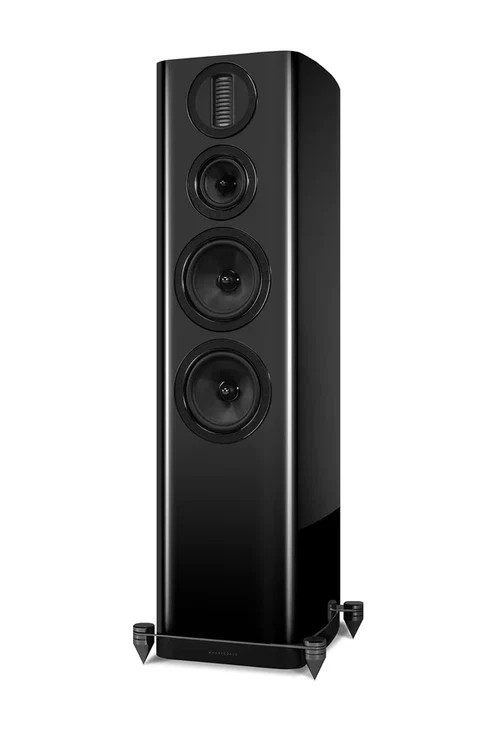

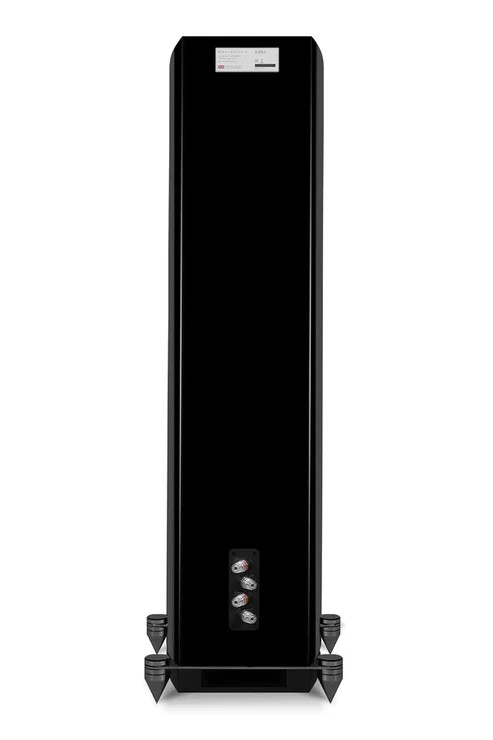

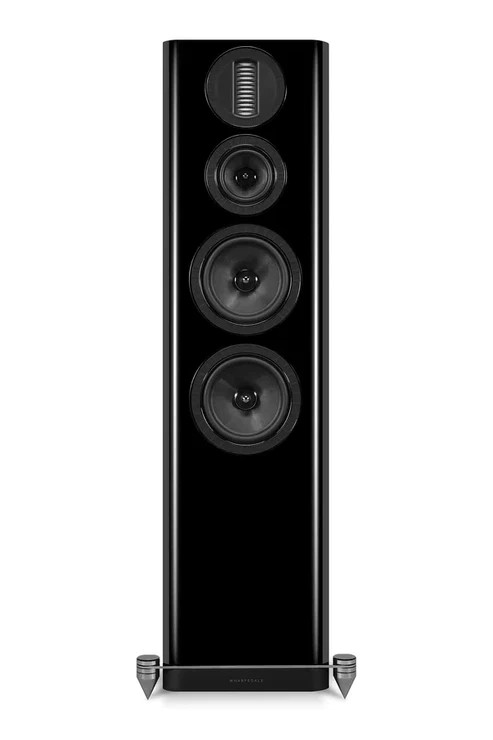

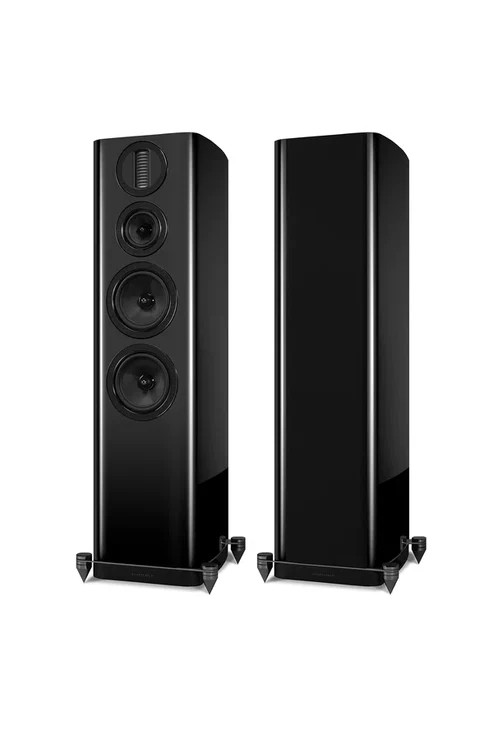

Wharfedale Aura 4 Floorstanding Speakers - Pair - Black
Description:
Unleash the Power of AURA: Heritage, Innovation, and Unrivaled Performance
Welcome to the world of AURA, where Wharfedale's rich heritage meets groundbreaking innovation. Building upon our legacy of excellence, AURA speakers embody the perfect synergy of monitor-class audio transparency and an unparalleled level of musical enjoyment. Drawing inspiration from the esteemed Elysian research project, AURA showcases advanced features including the acclaimed Wharfedale AMT high-frequency transducer, glass fibre matrix midrange and bass cones, the revolutionary SLPP port system, and meticulously crafted multi-layer cabinets. Experience the perfect blend of heritage, innovation, and unrivaled performance with AURA. Redefine your audio journey today.
Wharfedale AMT High-Frequency Transducer
Unlike conventional dome or ribbon and planar diaphragms, the Wharfedale AMT high-frequency transducer offers exceptional clarity and transient response. Its unique folded diaphragm design, immersed in a powerful magnetic field, accurately reproduces pressure waves without the blurring effects caused by diaphragm mass. The result is treble detail and shimmering realism that enhances the harmonic overtones of voices and instruments.
Glass Fibre Matrix Cones
To complement the AMT transducer, the AURA loudspeakers utilize proprietary woven glass-fiber matrix diaphragms for the midrange and bass cones. These cones, terminated by high flexibility rubber surrounds, deliver transient accuracy and efficiency. The voice coils, immersed in high-flux magnetic fields, are controlled by copper-clad pole pieces to minimize distortion. Mounted on die-cast aluminum chassis, the low-distortion motor systems provide rigidity and precise transient response for exceptional audio performance.
AURA Crossover
The crossover is the heart of every loudspeaker, and Wharfedale's AURA series features a meticulously designed crossover that ensures seamless integration between drive units. By accurately dividing the frequency band and matching the acoustic performance of each driver, the AURA loudspeakers achieve a blend that is acoustically seamless. The crossovers are tested and evaluated for their acoustic transparency, and the bass and midrange/treble crossovers are laid out on separate PCBs to minimize electromagnetic interference. With hundreds of hours of fine-tuning using both advanced analysis and careful listening, the AURA speakers deliver a stunningly realistic musical experience.
Multi-layer Lacquered Cabinet
The AURA cabinets are not only a work of art but also engineered to optimize sound quality. Crafted with multiple layers of different woods, these cabinets reduce panel resonance below audibility, ensuring a clean audio output. The smooth curves of the cabinet help disperse sound without undesirable reflections, enhancing the overall listening experience. Available in Black, White, and Walnut real wood veneer, the AURA cabinets are beautifully lacquered and polished to add a touch of elegance to any room.
SLPP Reflex Design
Wharfedale's SLPP (Slot Loaded Profiled Port) bass reflex design, originating from a concept by Gilbert Briggs, provides enhanced bass performance in the AURA loudspeakers. The downward-facing port directs high-pressure, high-velocity airflow through a series of slot ports in the plinth, matching it more efficiently with the low air pressure in the room. This design reduces turbulence and improves the bass reflex system's overall efficiency. Combined with the low resonance of the bass units, the SLPP system delivers powerful and articulate bass extension down to the 30Hz region, faithfully reproducing the true acoustic power of musical performances.
Specifications:
General Description:
3-way Floorstanding speaker
Enclosure Type:
Bass reflex
Transducer Complement:
3-way
Bass Driver:
6.5" (150mm) Black Glass Fibre Matrix Cone (x2)
Midrange Driver:
4" (100mm) Black Glass Fibre Matrix Cone
Treble Driver:
27*90mm AMT
AV Shield:
No
Sensitivity (2.83V @ 1M):
89dB
Recommended Amplifier Power:
30-200W
Peak SPL:
107dB
Nominal Impedance:
4Ω (8Ω Compatible)
Minimum Impedance:
3.1Ω
Frequency Response (+/-3dB):
37Hz ~ 22kHz
Bass Extension (-6dB):
26Hz
Crossover Frequency:
475Hz, 3.3kHz
Dimensions (HxWxD):
43.58" H x 11.22" W x 14.173" D
Net Weight:
54.013 lbs each
