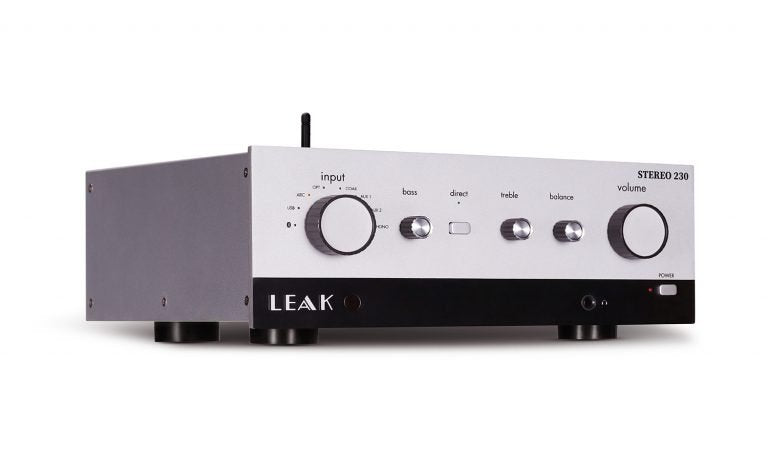

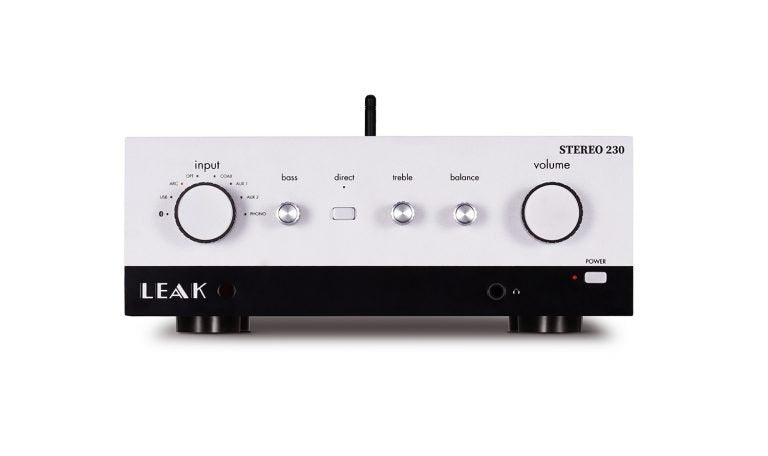

Leak Stereo 230 Integrated Amplifier - Silver

Leak Stereo 230 Integrated Amplifier - Silver





Stereo 230 at a glance:

  • 115 watts per channel output
  • HDMI ARC connectivity function for high-quality audio in AV applications
  • Range of inputs for connecting analog and digital sources, including a built-in phono pre-amplifier for turntables
  • Bluetooth connectivity with aptX and AAC codecs for CD-quality audio
  • High-quality digital circuitry for excellent sound
  • Reliable and well-crafted design with classic LEAK styling



Stereo 230 in detail:

The Leak Stereo 230 is a top-of-the-line integrated amplifier that delivers high-performance sound and style. With 115 watts per channel and a range of input options, it's perfect for modern audio and movie enthusiasts. The Stereo 230 also boasts a newly developed HDMI ARC function for top-quality audio in AV applications.

Connect your turntable, digital sources, or stream music via Bluetooth with the Stereo 230's built-in phono pre-amplifier and aptX and AAC codecs. We've made sure the digital circuitry in this amplifier delivers the same level of quality you'd expect from a standalone D/A converter.

In addition to its excellent performance, the Stereo 230 is designed with reliability and craftsmanship in mind. It combines contemporary performance with classic Leak styling to make it a standout piece in any setup.



Turntable Ready:

Experience exceptional sound quality with the included high-quality, low-noise turntable input optimized for moving magnet cartridges. The JFET-based circuit offers precise RIAA equalization, meeting industry standards for the best vinyl record playback.


Headphone Users:

Get the same performance as standalone headphone amplifiers, but at a lower price point with the dedicated amplifier circuit and current-feedback technology included for the headphone output. The high slew rate allows for exceptional output signal transitions, delivering a dynamic, detailed, and engaging performance with all types of headphones.

Conversion Without Compromise:

Enjoy ultra-low noise and high dynamic range of digital audio files with the included acclaimed ES9038Q2M Reference chip and ESS Technology's 32-bit HyperStream architecture with Time Domain Jitter Eliminator. The sampling rate goes up to a breathtaking 768kHz (PCM) and DSD512.


HDMI ARC Input:

The included Audio Return Channel (ARC) connection makes this amplifier perfect for home AV applications, bringing the LEAK Hi-Fi pedigree to your screen as well.





Specifications:



D/A Converter: ES9038Q2M 32-bit DAC
Input Sampling Rates: Optical/Coaxial: 44.1kHz~192kHz
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Rated Output Power: 2 x 75W (8ohm) / 2 x 115W (4ohm) Class AB
Total Harmonic Distortion: <0.003% (1kHz @30W/8ohm)
Frequency Response: 20Hz-20kHz (+/-0.3dB)
Input Sensitivity: 480mV (RCA AUX IN); 4.1mV (phono MM)
Input Impedance: 10Kohm (AUX) ; 47Kohm //100pF (phono MM)
Signal to Noise Ratio: ≥109dB (A-weighted, ref.45W)
Bluetooth: A2DP, aptX (priority), SBC
USB Input: 1 x USB (B-type)
Digital Audio Inputs: 2 x Optical TOSlink ,1 x RCA COAX
Digital Audio Outputs: 1 x Optical TOSlink ,1 x RCA COAX
Analog Inputs: 2 x RCA (AUX1, AUX2) ,1 x RCA (phono MM)
Analog Output: 1 x RCA (PRE OUT)
Power Requirement: 100-120V ~ 50/60Hz
Dimensions (W x H x D): 12.83" x 5.74" x 16.2"
Weight: 28 lbs
Shipping Dimensions (W x H x D): 20.2" x 8.2" x 16.8"
Shipping Weight: 33.5 lbs
