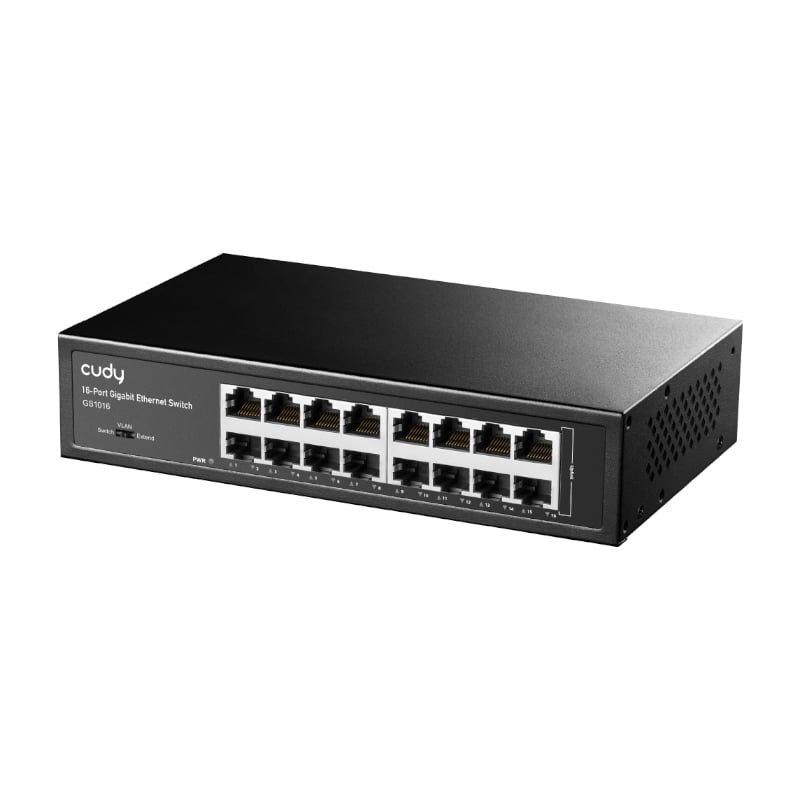

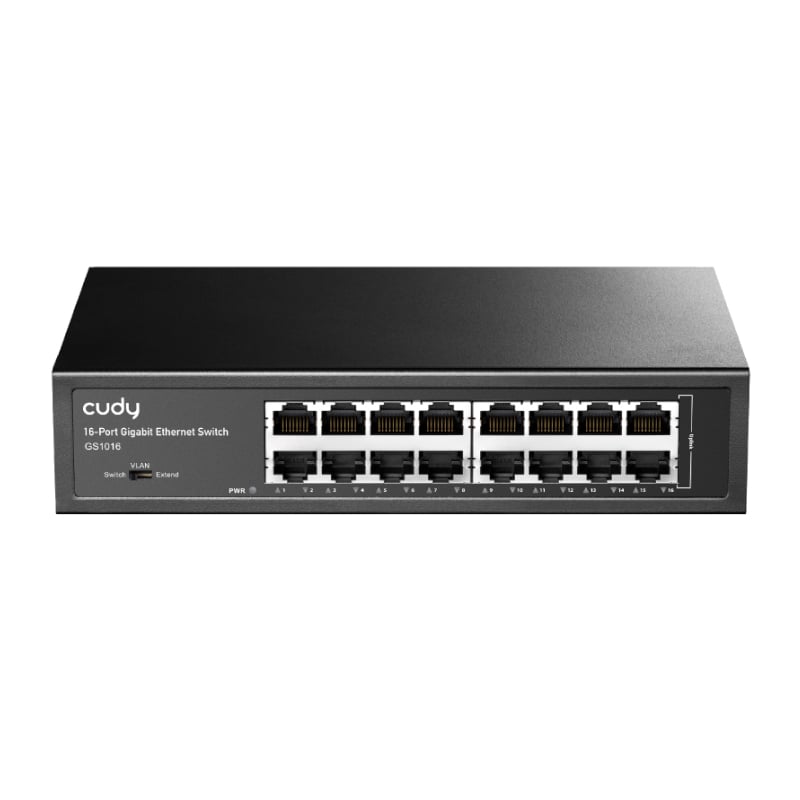

cudy 16 Port Gigabit Metal Switch

cudy 16 Port Gigabit Metal Switch

The Cudy 16-Port Gigabit Ethernet Switch is a great way to expand and manage your network. It provides a variety of installation methods for easy deployment in any environment. It supports both 8-inch rack-mounted steel cases as well as desktop installations making it very versatile. Designed for either the home or the office, this 16 port ethernet switch can easily be connected to your router, printer, monitor, PC, camera, gaming console or access point.

Auto-negotiation RJ-45 ports can provide large file transferring and also be compatible with any 10/100/1000Mbps Ethernet devices.IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode offer increased bandwidth to alleviate network congestion, making the switch work more reliably.

The Ethernet Switch allows you to save power up to 40%. The GS1016 uses green Ethernet technology to make your network more compatible without compromising performance. The switch automatically powers down the ports that are idle and can budget power output for different Ethernet cable lengths.

FEATURES:
Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
16 10/100/1000Mbps Auto-Negotiation, Auto MDI/MDIX ports provide smart switching abilities
Non-blocking switching architecture enables full wire-speed packet forwarding and filtering
Store-and-Forward switching method
Supports 8K MAC address auto-learning and auto-ageing

SPECIFICATIONS:

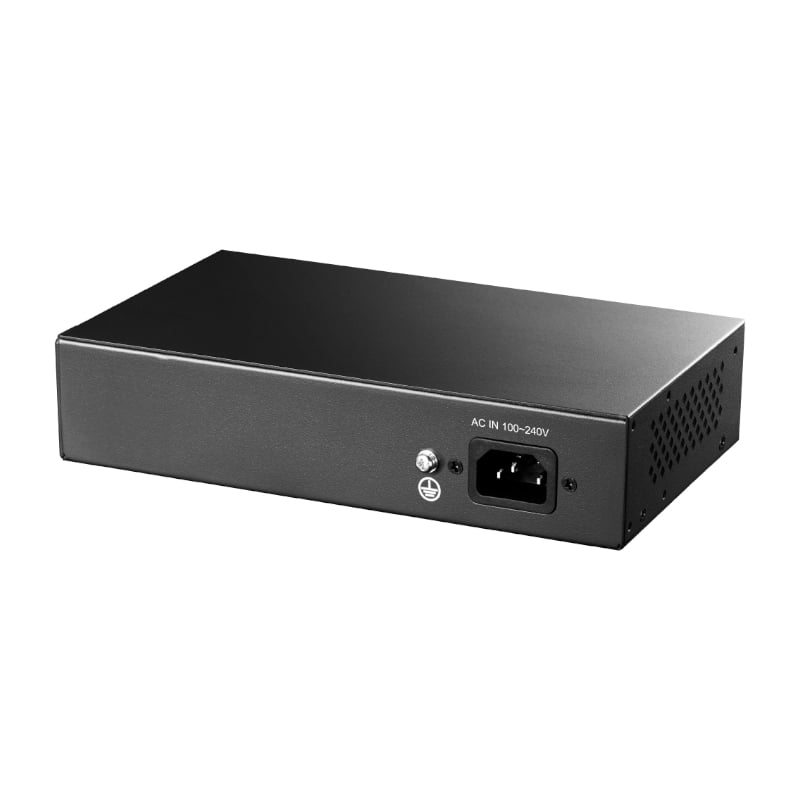

Power Supply: Built-in power supply
Voltage Range: Ac100~ 240V
Consumption: <15W
Speed: 1-16 Port: 10/100/1000Mbps
Transmission Distance: 100Meter (328ft)
Ethernet Standard: IEEE 802.3/802.3u / 802.3ab
Switching capacity: 32G
MACAddress: 8K MAC address table
VLAN (1-14Ports):
Port Isolation: Downlink designated ports are isolated from each other, only transmit data with the uplink port.
Default:
Standard Switch: All ports communicate freely
Extend (1-14Ports):
Link Extension: The specified port speed drops to 10Mbps, max transmission distance is 250 meters.
LINK/ACT:
On: Green – The port is connecting
Blinks: / – The port is receiving or transmitting data
Off: / – The port is not linked successfully with the device
Transfer Rate:
14,880pps for 10Mbps
148,800pps for 100Mbps
148,8000pps for 100Mbps
Environment:
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~70℃
Operating Humidity: 10%~85% non-condensing
Storage humidity: 5%~85% non-condensing
Product Dimensions: 20 x 11.8 x 4.4 cm

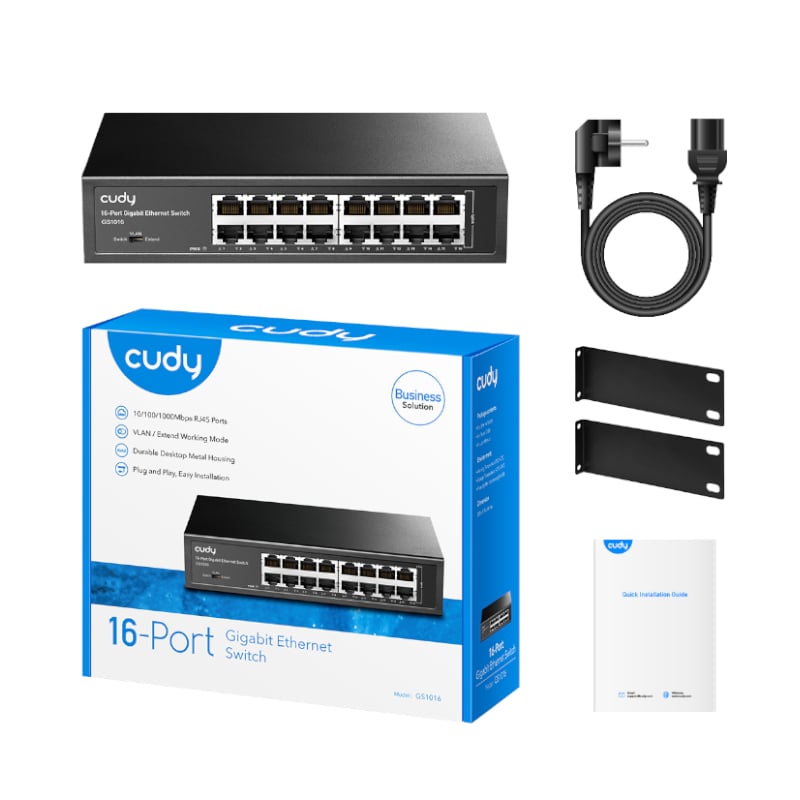

WHAT’S IN THE BOX:
Cudy 16-Port Gigabit Ethernet Switch – Black x1
Power Cable x1
Mounting Brackets x2
Quick Start Guide x1
