CUDY

cudy 16-Port Unmanaged PoE+ Switch – Rack Mount

Regular price R 1,899.00
Regular price Sale price R 1,899.00
Sale Sold out
Tax included.

cudy 16-Port Unmanaged PoE+ Switch – Rack Mount

Β

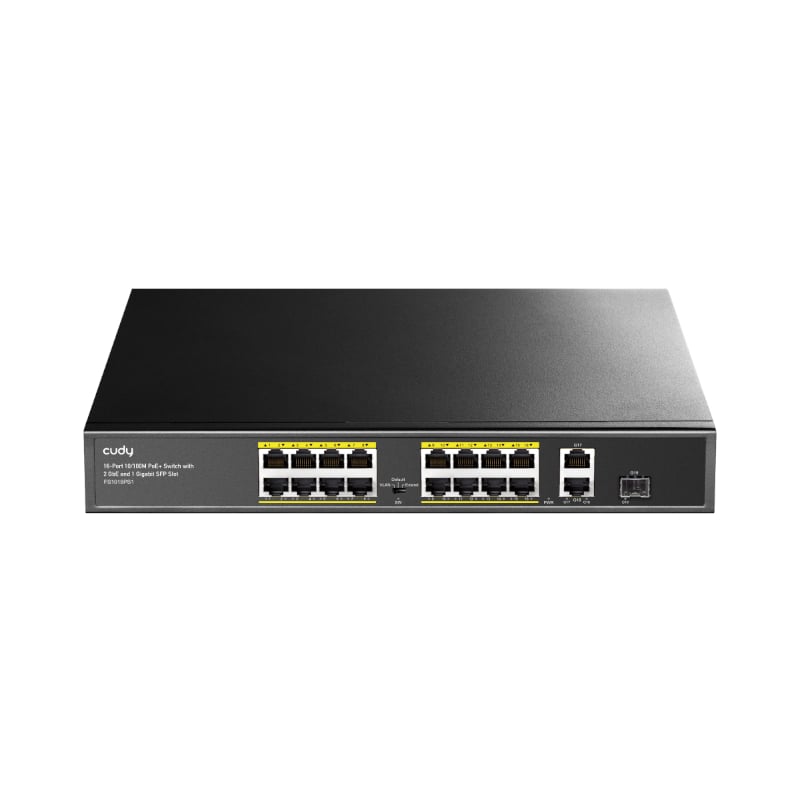

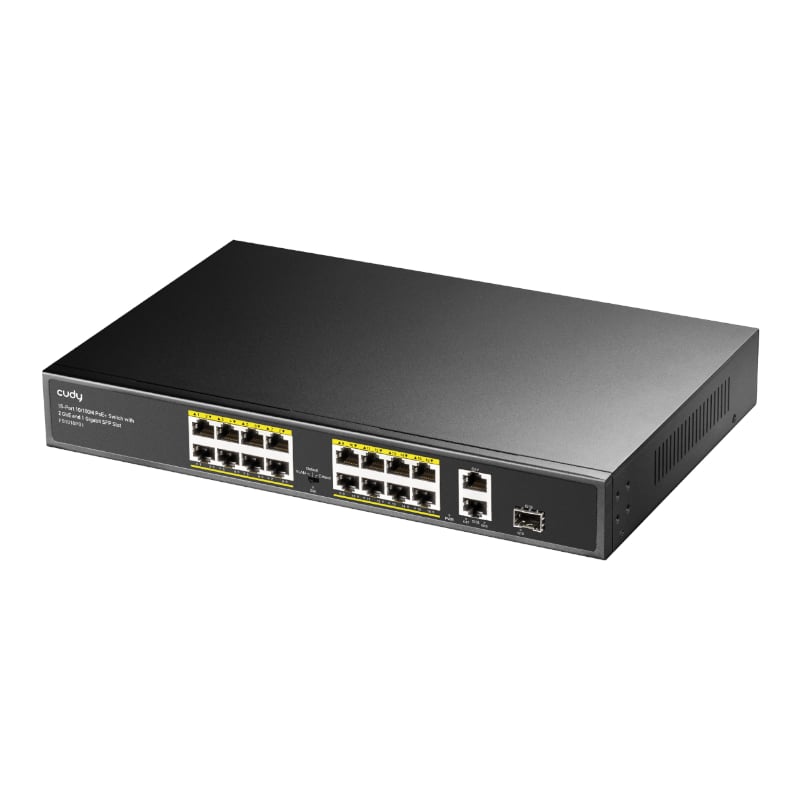

The Cudy FS1018PS1 18-Port 10/100M PoE+ Switch is a security surveillance Ethernet switch aimed at high-definition surveillance and security. It supports bandwidth speeds of up to 7.2Gbps and features 16 PoE ports and 2 uplink ports. It also complies with IEEE802.3af/at Standard speeds for great performance.

The 18 port switch supports 120W total PoE power and up to 30W for one PoE port. It uses Auto-sensing technology to automatically detect how much power is needed depending on the cable used. For additional protection, it features Port-Power-Prioritization technology which ensures continuous power supply of key nodes. In addition to this, it also offers lightning protection with an electrostatic standard of 6KV for contact and 8KV for air.

Used for many applications the Cudy FS1018PS1 works with IP Cameras for home, office or small businesses. Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a built-in fan and venting holes to ensure stable product operation.

FEATURES:
200 watts PoE power supply, up to 30 watts per port
2 10/100/1000M uplink ports +1 SFP Port
16 10/100M PoE+ ports
CCTV mode supports remote PoE feeding up to 250m
VLAN mode isolates each PoE Ports for security
IEEE 802.3at / IEEE 802.3af standard compliant
Plug&play, simple setup with no configuration needed
Watchdog reactivates the abnormalPD by resuming POE power


SPECIFICATIONS:
Power
Power Supply: Built-in power supply
Voltage Range: AC100~240V
Consumption: 190W for 16 PoE
Ethernet
Speed
1~16 Port: 10/100/Mbps
G17~G18 Port:10/100/1000Mbps
G19 Port: SFP 1.25bps
Transmission Distance
100Meter(328ft)for RJ-45
The distance is determined by the optical module
The optical module is optional
Network Switch:
Ethernet Standard: IEEE 802.3 802.3u 802.3ab 802.3af/at
Switching Capacity: 7.2G
Transfer Rate:
14880 pps for 10Mbps
148800 pps for 100Mbps
1488000 pps for 1000Mbps
MAC Adsress: 4K MAC sddress table
Link/ACT:
On(Green): The port is connecting
Blinks: The port is receiving or transmitting data.
Off: The port is not linked successfully with the device
POE
On(Orange): PD is connected
Off: No PD is connected or power forwarding fails
PoE Pin Assignment: V+(RJ45 Pin 1, 2) – (RJ45 Pin 3,6)
Colour: Grey
Product Dimensions: 28 x 18 x 4.4 cm

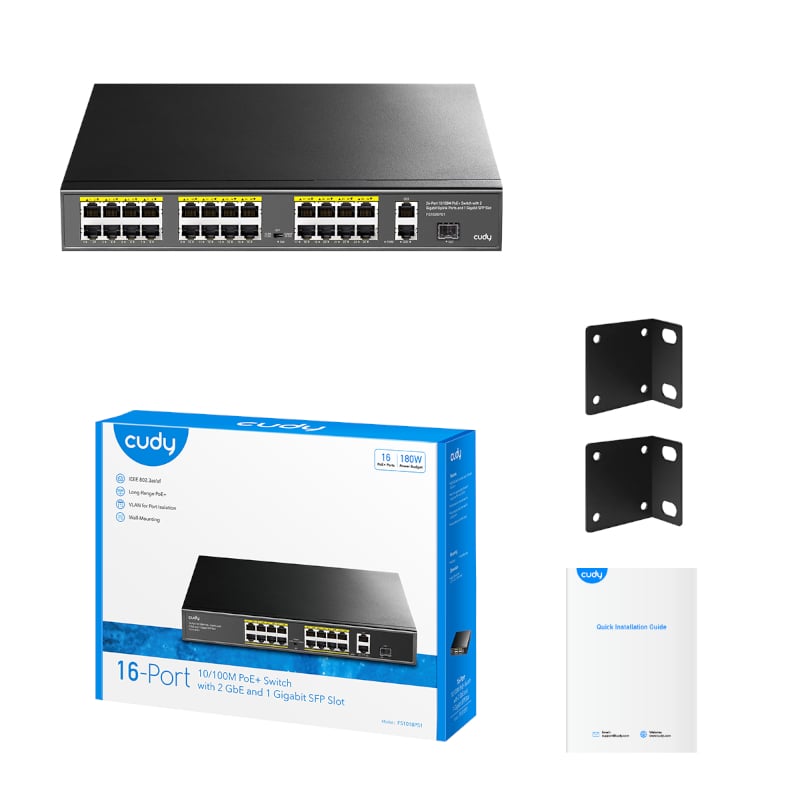

WHAT’S IN THE BOX:
Cudy FS1018PS1 18-Port 10/100M PoE+ Switch – Grey x1
Power Adapter x1
