cudy 24-Port Unmanaged POE Switch – Rack Mount

Cudy 24-Port Unmanaged POE Switch – Rack Mount

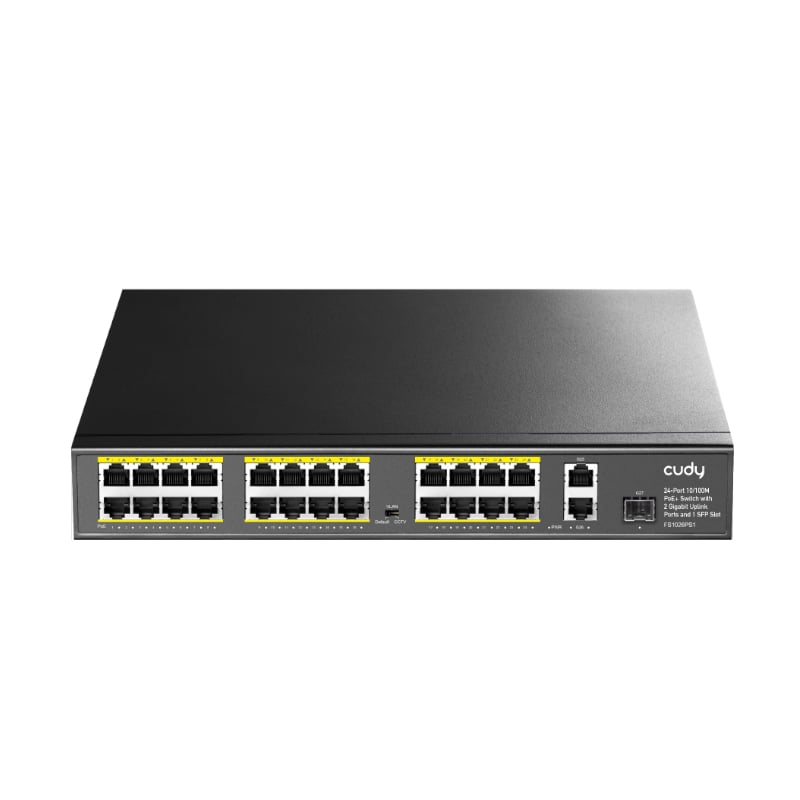

The Cudy FS1026PS1 26-Port 10/100M PoE+ Switch with 1 FSP Slot allows you to manage your home or office network with ease. It features 24 Ethernet PoE ports with 2 uplink ports and 1 SFP slot. It’s PoE RJ-45 connectors support any 10/100Mbps Ethernet devices, while the 2 non-PoE uplink ports support 10/100/1000Mbps Ethernet devices and it’s compliant with IEEE 802.3af/802.3at network standards.

Used for many applications the Cudy FS1026PS1 works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a VLAN mode for additional security, this allows the ports to be isolated from one another.

Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation.

Watchdog guarantees the uninterrupted operation of your PoE devices. The PoE watchdog continuously monitors the connection status of remote hosts. If an error is detected on the remote PoE device, the PoE switch immediately restarts the device to bring it back to normal operation.

FEATURES:
24 x 10/100M PoE+ ports
2 x Gigabit Uplink port
1 x 1.25Gbps SFP slot
300 Watts PoE power budget
IEEE 802.3at / IEEE 802.3af standard compliant
Plug&play, simple setup with no configuration needed

SPECIFICATIONS:
Connector Type: 24-Port 10/100M PoE+ Switch with 2 Gigabit Uplink Ports and 1 SFP Slot
Network Protocols:
IEEE802.3
IEEE802.3u
IEEE802.3ab
IEEE802.3x
IEEE802.3z
PoE Parameters:
PoE Standard: IEEE802.3af /IEEE802.3at
Max each port: 15.4W ( IEEE 802.3af )
Max each port：30W ( IEEE 802.3at )
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC48-55V
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media:
10BASE-T: Cat 6 UTP(≤250 meters)
100BASE-TX: Cat5 or more UTP (≤100 meters)
1000BASE-TX: Cat5 or more UTP (≤100 meters)
Optical:
Multi-Mode Fiber: 850nm, 1310nm
Transmission Distance: 550m/2Km
Single-Mode Fiber: 1310nm, 1550nm
Transmission Distance: 20/40/60/80/100/120km
Performance Specification
Bandwidth: 10.8Gbps
MAC Address: 2K
Packet Neck Scarfer Memory: 1M
Packet Forwarding Rate: 8Mpps
Forwarding Mode: Store-And-Forward
Power Supply
Product Input Voltage: AC100-240V 50/60Hz
Output: 52V5.76A, Power Budget: 300W
Led indicator:
PWR – Power supply indicator(Red):
Lighting: Powered
Un-Light: No Power
SW – DIP indicator(Green):
OFF: Normal
Vlan: Lighting
Extend: Slow flash
1-27 – RJ-45 ACT indicator(Green):
Lighting: Connecting
Flashing: Data Transmit
Un-Light: Disconnect
MTBF: 100,000 hours
Product Dimensions: 32 x 21 x 4.6 cm
Product Weight: 1900g

WHAT’S IN THE BOX:
Cudy FS1026PS1 26-Port 10/100M PoE+ Switch with 1 FSP Slot – Grey x1
Power Adapter x1
