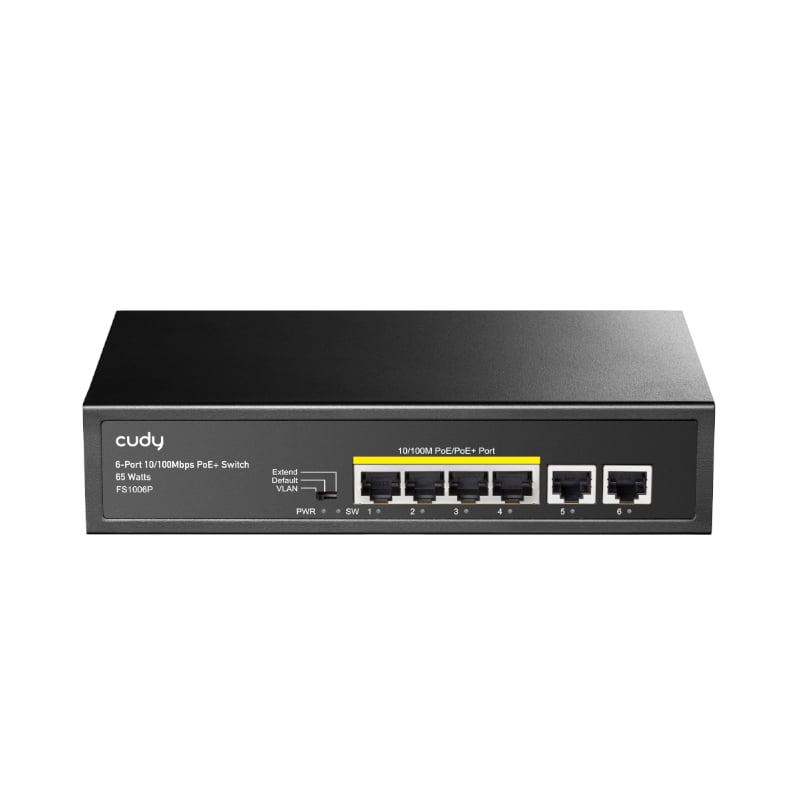

cudy 6-Port Ethernet Unmanaged Switch – 4 Ports POE

cudy 6-Port Ethernet Unmanaged Switch – 4 Ports POE

The Cudy 6-Port 10/100M PoE+ Switch allows you to easily manage your home or office network. It features 4 Ethernet PoE ports with 2 x uplink ports as well. Its PoE RJ-45 connectors support any 10/100Mbps Ethernet devices, and it’s compliant with IEEE 802.3af/802.3at network standards. Used for many applications the Cudy 6 Port PoE+ Switch works with IP Cameras for home, office or small businesses. It also works well with PCs, printers and access points in your home or office, making it ideal for small businesses. It even features a CCTV/VLAN mode for additional security, this allows the ports to be isolated from one another and can extend the range of your network for longer distances.

Its simple plug-and-play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design with venting holes to help dissipate heat with silent operation. It also supports rack mounting as well as wall mounting, and even desktop mount support thanks to its mounting slots underneath the device.

FEATURES:
Complies with IEEE802.3af/at Standard
Supports PoE power up to 32W for each PoE port
Auto-detect non PoE devices and PoE device
Power prioritization guarantee power supply of key nodes
CCTV/VLAN mode switch, remote power and data up to 250m
Supports IEEE802.3 x full duplex / half duplex flow control
Supports storage and forward for Data exchange

SPECIFICATIONS:
Network Protocol: IEEE802.3 / IEEE802.3u, IEEE802.3x / IEEE802.3af/at
PoE standard: IEEE802.3af/at
Interface: 6 x 10/100Mbps RJ45 port
POE port output: DC 52V
PoE port: 1-4

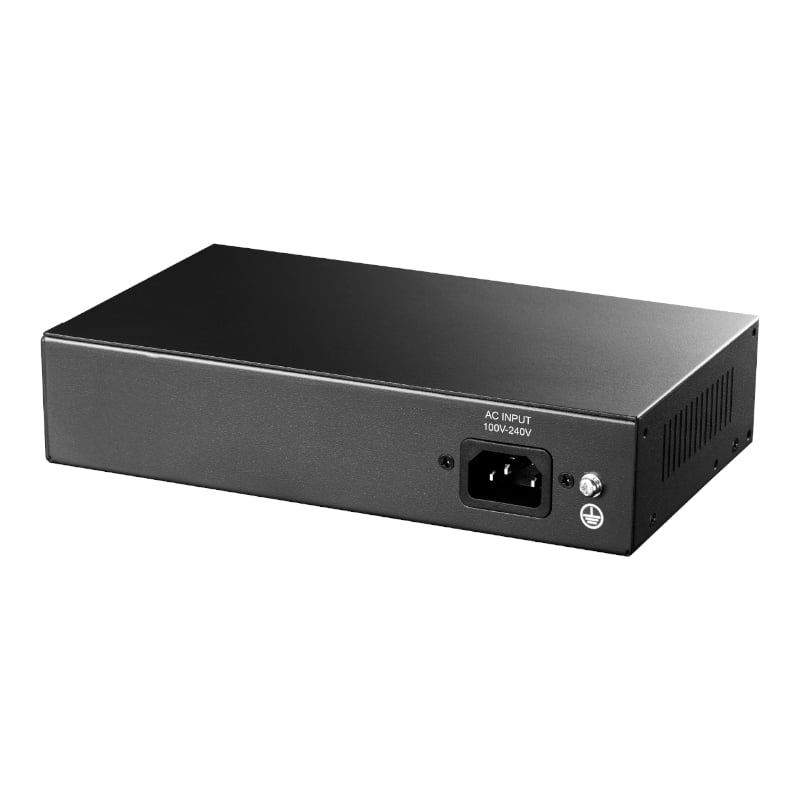

AC Input Voltage: AC100~240V
Power supply: 65W
Power Pin: Power over spare pairs 1/2(+) , 3/6 (-)
PoE output-port: Max 30W
MAC Address: 1K MAC address table
Packet buffer: 448K bit
Transfer Mode: Store-and-forward
Bandwidth: 1.2Gbps
Fan: Fanless
Machine weight: 1000g
Product Dimensions: 20 x 12 x 45 cm

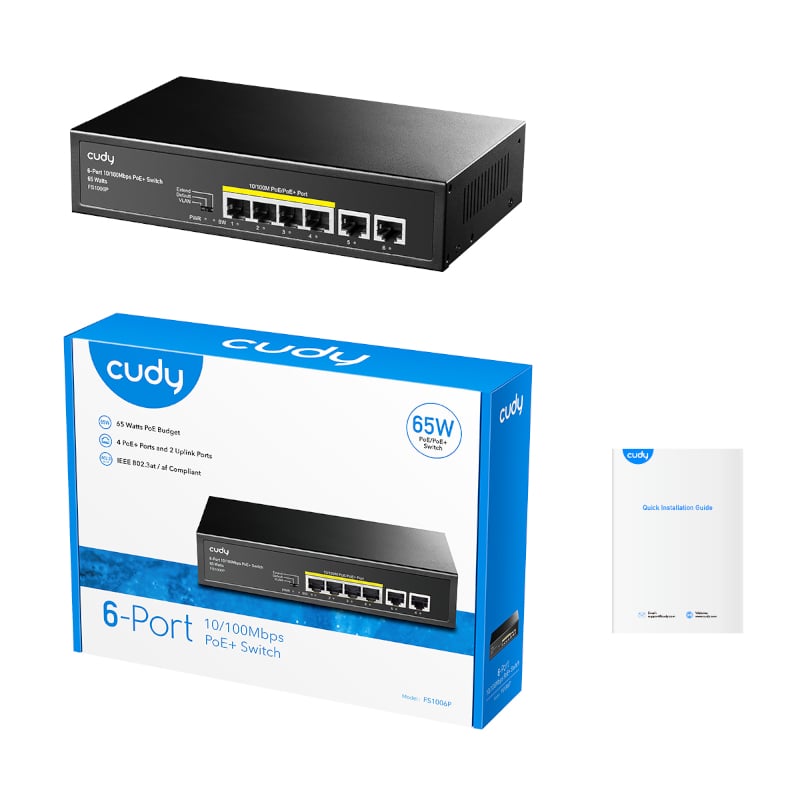

WHAT’S IN THE BOX:

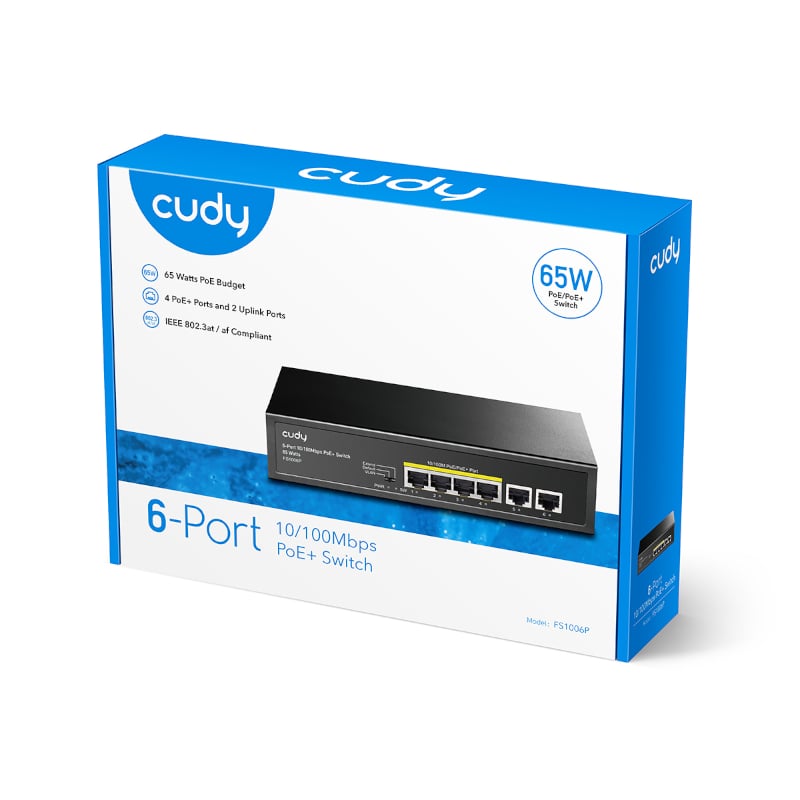

Cudy 6-Port 10/100M PoE+ Switch x1
Power Cable x1
User Manual x1
