Denon AVR-X580BT 5.2 Channel AV Receiver - Each - Black

Overview
Bring movies to life in smaller spaces with amazing 8K picture quality and true surround sound. Enjoy all your favourite entertainment with 5.2 channel surround sound and wireless music streaming via Bluetooth.

• Key Features
  True surround sound experience.: Supports Dolby TrueHD and DTS-HD for high-fidelity, lossless surround sound playback as well as Dolby and DTS mixers up to 5.1 channels.

• Affordable 8K: Supports the latest 8K HDMI technology so you can enjoy amazing picture quality.

• Easy music streaming: Stream audio from your favourite music service via Bluetooth from any smart device.

• Lag-free gaming: Brings together the latest technologies to ensure a smooth, lag-free gaming experience.

Powerful, discreet 5-channel amplifier
With up to 130W per channel (at 6 ohms, 1kHz, THD 1%), there is enough power to drive high-quality sound from any speaker.

Advanced 8K HDMI connection
There's no need to worry about video compatibility issues—the AVR-X580BT supports all the latest video technologies including 8K.

Simple, intuitive setup
Setup is simple. Our award-winning Denon Setup Assistant provides clear, step-by-step instructions to get you started.

Wireless music streaming.
With the ability to stream music from your smart devices via Bluetooth, your favourite tracks at your fingertips.

Dolby TrueHD
High-fidelity lossless Dolby True HD and Dolby Digital, Dolby Digital Plus signal decoder, and Dolby Pro Logic II up mixer for 2-channel audio signals to create a full 5.1 surround sound experience.

DTS Surround Technology
High-fidelity lossless DTS-HD and DTS Surround, DTS 96/24signal decoding, along with DTS Neo 6 upmixer for 2-channelaudio signals to create a full 5.1surround sound experience.

HDMI Connectivity with ARC/eARC
Supports the latest technology on all HDMI inputs and outputs. ARC (Audio Return Channel) or eARC (Enhanced Audio Return Channel) makes playing TV audio through your AV receiver simple with just a single HDMI connection. eARC provides HD and 3D audio transmissions such as Dolby TrueHD, DTS HD Master Audio, and Dolby Atmos while ARC is limited to conventional 5.1ch audio formats or PCM.

8K / HDCP 2.3
Enjoy pristine picture quality on your 8K TV or projector.8K/60Hz pass-through and 8Kupscaling on 1080p or 4Kcontent is supported on all four HDMI inputs and one output. Supports HDCP 2.3, the latest copy protection standard, for peace of mind when streaming copy-protected content.

Brilliant color from HDR 10+
Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through. HLG offers HDR technology over broadcast content. Both Dynamic HDR and HDR10+ use dynamic metadata to optimize shadows and highlights as screens change.

Dolby Vision
Dolby Vision is a stunning HDR imaging technology that brings extraordinary colour, contrast, and brightness to the screen. Compatible with Dolby Vision so you can enjoy Dolby Vision content from a compatible source device and TV.

Next-generation gaming
Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM) for smooth, lag free gaming experience when connected with compatible gaming devices.

Wireless music streaming via Bluetooth
Enjoy listening to your favorite audio content wirelessly from your smart devices.

High-resolution audio via USB input
Discover the incredible fidelity of high-resolution audio tracks and enjoy music as the artist intended. A front USB port supports up to 24bit/192kHz and hires audio playback from a USB drive. Supported audio formats are MP3, WMA, WAV, MPEG-4/AAC, FLAC, and ALAC.

Quick Select
Press one of the four Quick Select buttons on the front panel to easily store and retrieve your favourite audio settings, such as an input source, volume level, or sound mode. You can also access Quick Select buttons on the Denon 500 series remote app downloaded on your phone.

Denon 500 Series Remote App
This iOS or Android control app allows you to turn the receiver on and off, select an input source, adjust the volume level, and browse music from your phone or in a USB drive when connected to the receiver.

Dual subwoofer outputs
Immerse yourself in evenly distributed, accurate bass. Two subwoofer outputs smooth out low frequencies and provide better dispersion. No audible peaks or dips—just powerful,room-filling bass.

Guided Setup Assistant on TV
Award-winning Denon Setup Assistant provides simple, clear instructions to get started. Just connect your AV receiver to your TV and follow the instructions on the TV screen to connect your speakers, perform speaker measurements, and connect source devices.

Auto Setup and Room EQ
As part of setup, follow the instructions on your TV to complete speaker setup and measurement using the included microphone. The receiver uses the measurements to optimize sound for the room, bringing the best out of your system. Just sit back and enjoy great sound.

Specifications:

Multichannel Surround

• DTS HD Master, DTS:X, DTS:X Pro
  o, -, -
• DTS Neo:X, DTS Neural:X
  -, -
• DTS Virtual:X
  -
• IMAX Enhanced
  -
• Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music
  o, -, -, -
• Dolby ProLogic Ilz, Dolby Surround
  -, -
• Auro 3D
  -
• 360 Reality Audio/MPEG H

-

Sound Enhancements

• Mono Block Power Amp Construction
  -
• Discrete Power Amplifier
  o
• D.D.S.C. HD Digital
  -
• Pure Direct
  o
• Gold Plated RCA Terminals
  -
• Clock Jitter Reducer
  -
• Alpha Processing
  -
• Audyssey
  -
• Audyssey Dynamic EQ, Dynamic Volume
  -, -
• Audyssey LFC
  -
• Dirac Live Upgradability
  -
• Compressed Audio Restorer
  o

Network

•
  Media Server
  -
• HEOS Wireless Multi-Room Technology
  -
• Alexa/Google Voice Assistant/Apple HomePod
  -, -, -
• Lossy Formats: MP3, WMA, AAC
  -, -, -
• Lossless Formats: FLAC, ALAC, WAV
  -, -, -
• Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit)
  -, -, -
• DSD Audio Streaming
  -
• AirPlay 2
  -
• TuneIn
  -
• Spotify Connect
  -
• Pandora
  -
• SiriusXM
  -
• Roon Tested
  -
• HEOS App Control
  -
• Compatible with Remote APP for Smart Phones
  Denon 500 Series Remote
• Ethernet Ports
  -
• Wi-Fi
  -
• Bluetooth
  o

HDMI

•
  HDMI Inputs: Back, Front
  4, -
• HDCP2.3 support
  o
• HDMI Outputs: Main, Zone
  1 / -
• HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB
  o, o
• HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR
  o , o, o, o, o
• ALLM (Auto Low Latency Mode) Pass-Through for Gaming
  -
• Variable Refresh Rate, Quick Flame Transport, Quick Media Switching
  o, o, -
• 3D Signal Pass-through
  o
• 8K Signal Pass-Through, Scaling, GUI Overlay
  o, o, o
• DSD Audio Capability
  -
• Audio Return Channel (ARC), Enhanced ARC
  o, o
• Auto LipSync
  -

Multiroom / CI

• Multi-Room Zones
  -
• Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog
  -, -, -, -
• Zone Audio Output: Speaker, Pre-Out
  -, -
• Zone HDMI Output from HDMI Source
  -
• IP Control, RS232 Control, Web Control, App Control
  -, -, -, -
• Remote In / Out
  -, -
• DC Trigger Output
  -
• HDMI Diagnostics
  -

Others

• Auto Speaker Setup by Microphone
  yes
• Front Display
  1-Line FLD
• GUI Languages
  3
• Setup Assistent
  o
• Quick Select Plus, Quick Select
  o, -
• Variable Crossover
  o
• Optimized Bass Redirection
  -
• Bass Sync
  -
• ECO Mode
  o
• Auto Power Off
  o
• Sleep Timer
  o

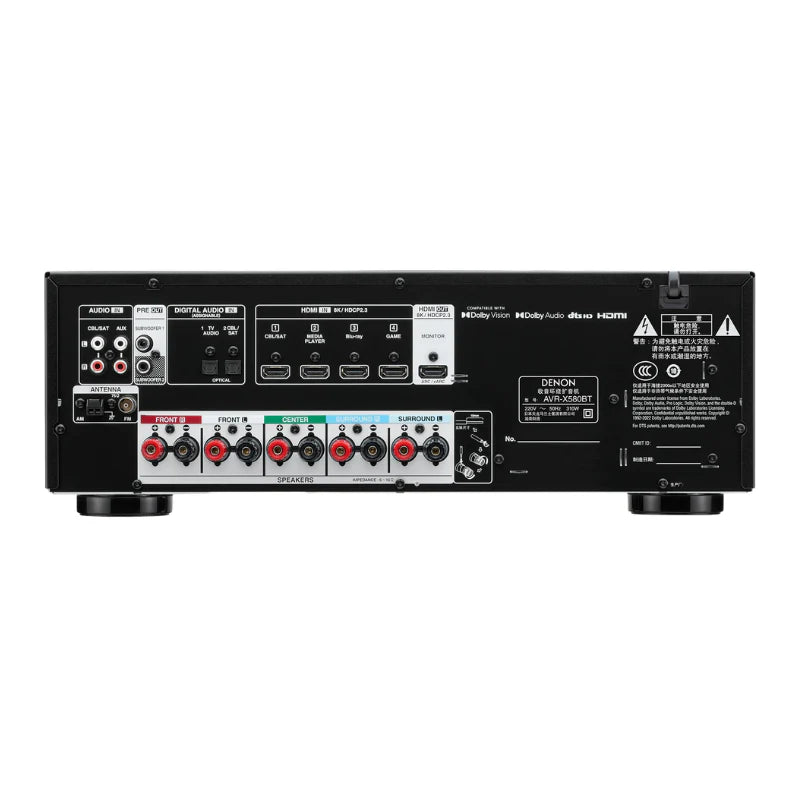

Inputs/Outputs

• HDMI In / Out
  4, 1
• Multi-room Video Out: Video / HDMI
  -, -
• Analog In, Out
  2, -
• Phono (MM) In
  -
• Digital In: Optical / Coaxial
  2, 1
• Multi-room Out: Analog / Digital
  -, -
• Multichannel Preout
  o (0.2)
• Subwoofer Out
  2
• Speaker Terminal: Gold Plated Screw / Regular Screw
  -, -
• Number of Speaker Terminals
  5
• Speaker A / B
  -
• Bi-amp Drive
  -
• Multi-Room Speaker Terminal
  -
• Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB
  -, -, -, -, o
• USB Audio / Made for iPod / Made for iPhone
  o, -, -
• AM/FM Tuner
  o

Specifications

• Number of Poweramps
  5
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
  70W
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)
  -
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
  90W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive)
  140W

General

• Metal Front Panel
  -
• System Remote Control
  RC-1254
• Pre-programmed / Learnable / LCD Display
  -, -, -
• Power Consumption in W
  310
• Power Consumption No-Sound (ECO On / Off) in W
  26W/35W
• Standby Consumption in W
  0.1
• CEC Standby Consumption in W
  0.5
• Network Standby Consumption in W
  -
• Maximum Dimensions

• • Antenna:Horizontal: (W x D x H) in inches

  • Antenna:Vertical: (W x D x H) in inches)

  • 【w/o Antenna: (W x D x H) in inches】
    17.1 × 13 × 6

Weight in LBS
16.8
