Delivers high-fidelity sound with a premium DAC along with support for the latest hi-res audio formats.
Â
Superb sound, compact design
-
Wireless Streaming:
Stream music from nearly unlimited sources Powered by HEOS™, Airplay, or Bluetooth®
- Simple TV Connection: With an HDMI ARC input, connect directly to your television with a single HDMI cable.
- Power For Small Spaces: Two channels with up to 65W of power (at 6 ohms) to fill a small room with high-fidelity sound.
- Quick Select Buttons: With three Quick select buttons, you can easily access your favorite sources or streaming playlists when you want - without the hassle of searching.
Sonic Innovation
For the Past 110 Years
For more than a century, we've crafted cutting-edge audio products that deliver the ultimate detail. Our Japanese heritage inspires us, and each product is hand-tuned by our sound master. Prepare to hear sound differently.
Specifications:Â
Features
-
High-Quality Power Output2 x 65 W
-
CD Compatibility: CD / CD-R/RW / WMA / MP3Yes / Yes / Yes / Yes
-
Tuner: FM/AMYes / Yes
-
Phono MM InputYes
-
Network Audio StreamingYes
-
Spotify Connect*/Tidal*/Deezer*/others *Yes / Yes / Yes / Yes
-
Amazon Prime Music*/Pandora*Yes / Yes
-
AirPlay 2Yes
-
Roon TestedYes
-
Internet RadioTuneIn
-
HEOS Multi-Room and StreamingYes
-
Voice Control —Works with Amazon AlexaYes
-
Auto Power On by Optical Input SignalYes
-
TV Remote LearningYes
-
Quick Select ButtonsYes
-
Bluetooth/aptX/NFCYes / No / No
-
Bluetooth Headphone TransmissionYes
-
USB Audio: Front/RearYes / No
-
USB-A: DSD/WAV/FLAC/AIFF/ALAC5.6 / 192 / 192 / No / 192
-
Ethernet/Wi-FiYes / Yes
-
WiFi Setup: WPS/Wi-Fi SharingYes / Yes
-
Lossy Formats: MP3/WMA/AACYes / Yes / Yes
-
Lossless Formats: FLAC HD/ALAC/WAV/AIFF/DSDYes / Yes / Yes / No / Yes
-
Gapless PlaybackYes (FLAC, WAV, DSD)
-
Tone Control: Bass/Treble/BalanceYes / Yes / Yes
-
Low Noise OELD Display3 line
-
ClockYes
-
Sleep TimerYes
-
Programmable Timer: Once/DailyYes / Yes

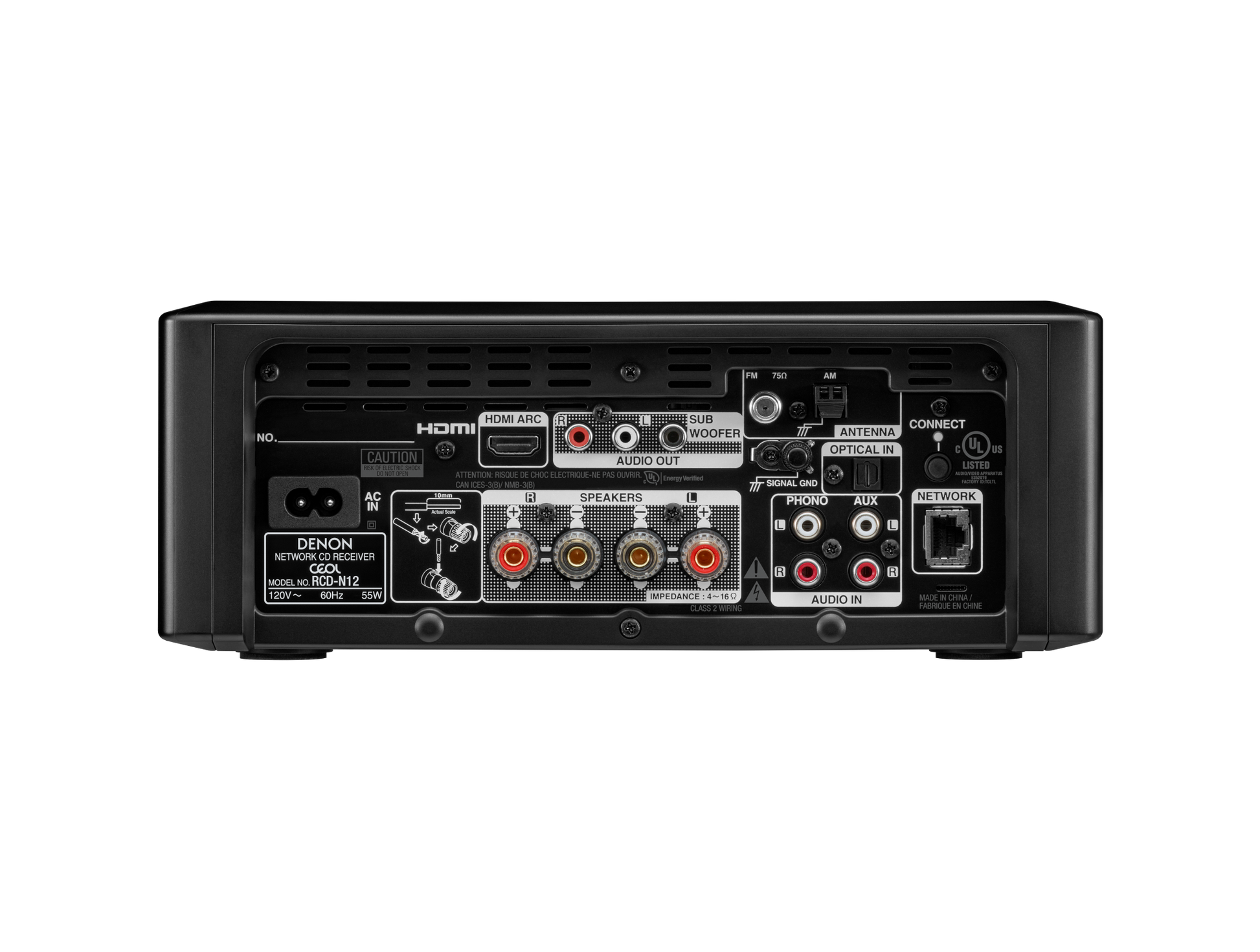

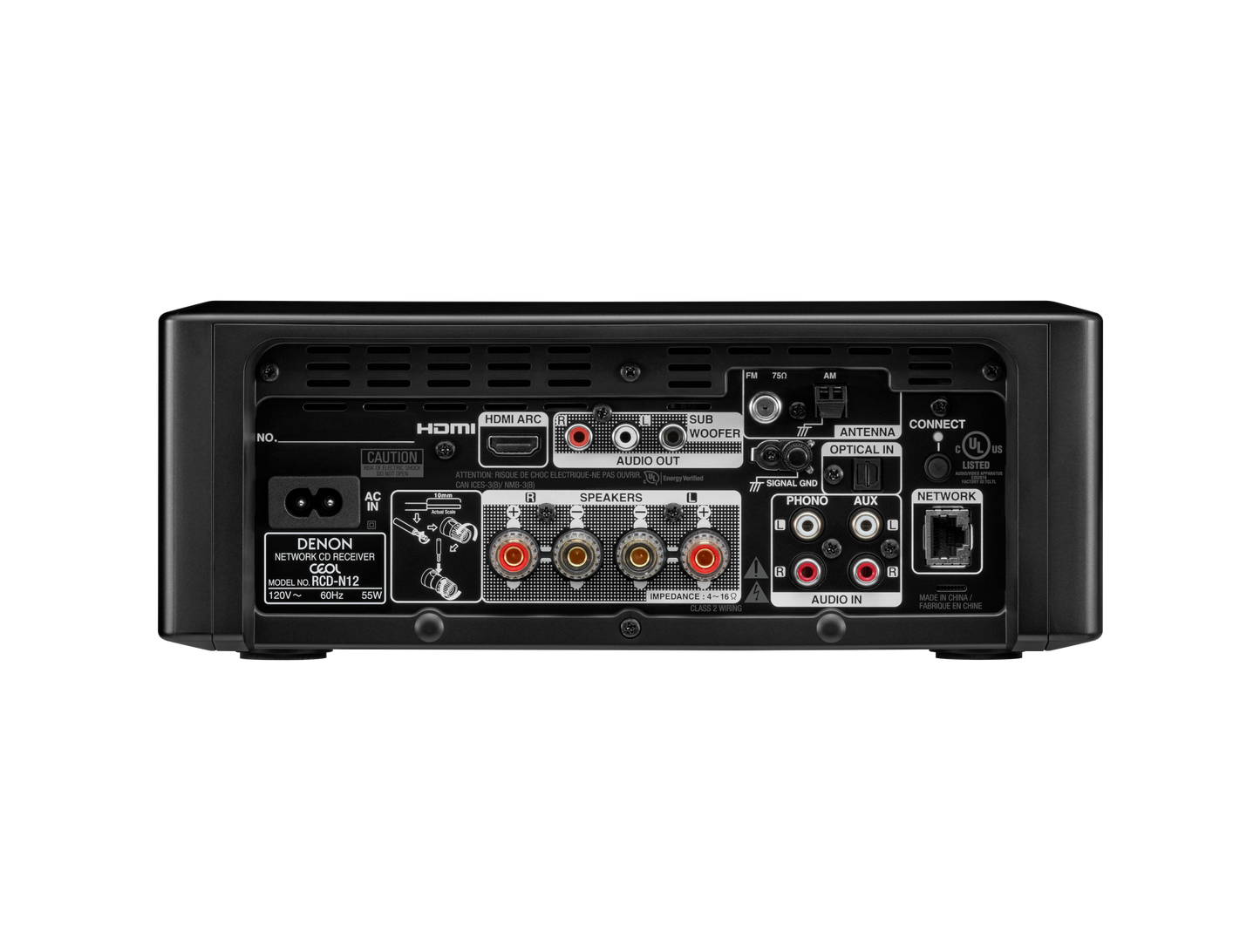

Inputs/Outputs
-
AUDIO
-
Analog In/Out2 (AUX, PHONO MM) / No
-
Digital Optical In/Out1 / No
-
HDMI ARC InputYes
-
OTHER
-
Subwoofer Pre-OutYes
-
Main Pre-OutYes
-
Speaker Terminal: Push Type/ScrewNo / Yes
-
Headphone OutYes
Specifications
-
AUDIO SECTION (ANALOG IN)
-
Power Output (4 ohms, 1 kHz, 0.7% THD)2 x 65W
-
Number of Channels2
-
Freq. Response (Analog In)10 Hz–40 kHz
-
Signal-to-Noise Ratio (Audio)90dB
-
Input Sensitivity/Impedance (Analog In)200mV / 30 kohms
-
Total Harmonic Distortion (Audio)0.1 (1 kHz/5W/ 4 ohms)
-
AUDIO SECTION (PHONO (MM))
-
Freq. Response (Phono)20Hz–20kHz (RIAA deviation)
-
Signal-to-Noise Ratio (Phono)74dB
-
Input Sensitivity/Impedance (Phono)2.5mV / 47 kohms
-
TUNER SECTION FM
-
Frequency Range FM87.5–108 MHz
-
Signal-to-Noise Ratio (Mono/Stereo) FM70 / 70 dB
-
Total Harmonic Distortion (Mono/Stereo) FM0.4 / 0.4%
General
-
Available Colors: Black/WhiteYes / No
-
Remote ControlRC1255
-
Power Consumption in W55
-
Standby Consumption in W0.4
-
Maximum Dimensions (W x D x H) in Inches11 1/8 x 11 59/64 x 4 1/4
-
Weight in lbs7 lbs, 8 oz
-
Carton Maximum Dimensions (W x D x H) in Inches15 5/16 x 13 3/16 x 9 1/16
-
Carton Weight (inc. product) in lbs10 lbs, 9 oz
-
What's in the Box (for the US)Main unit, remote control, batteries,HDMI cable, AM/FM antenna, AC cord, quick start guide
