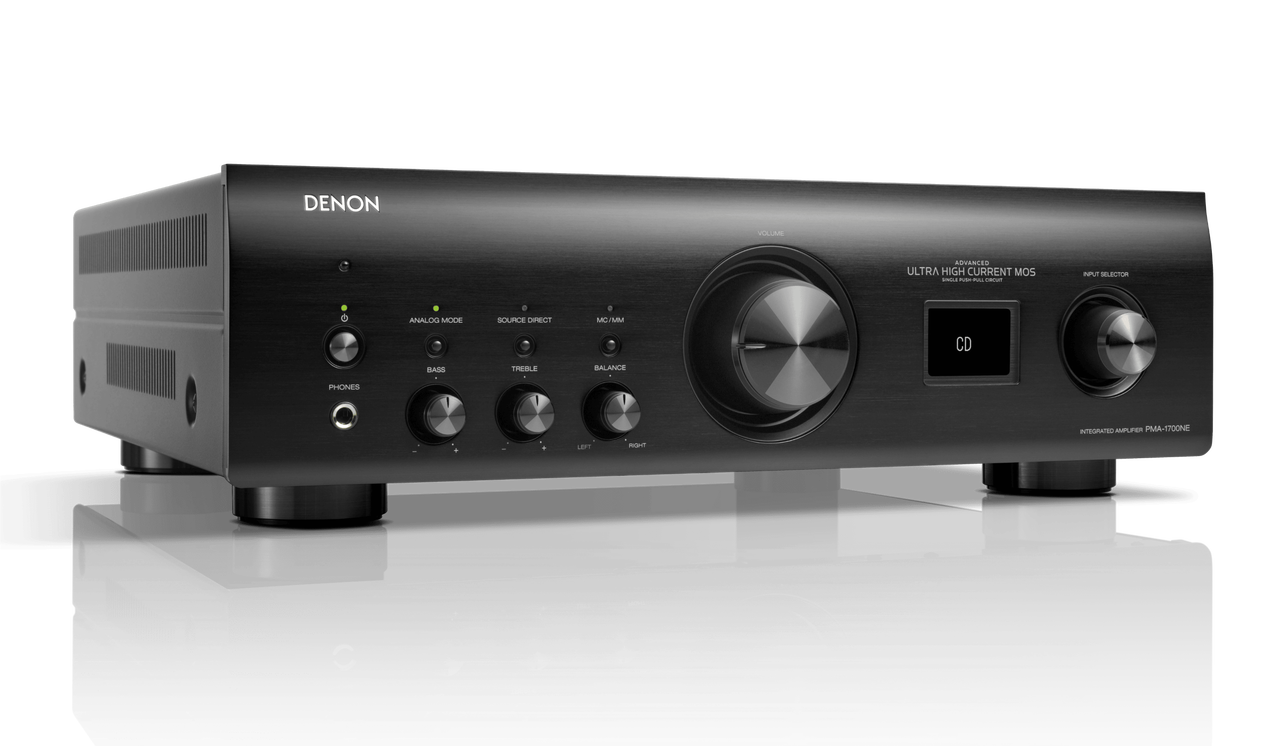

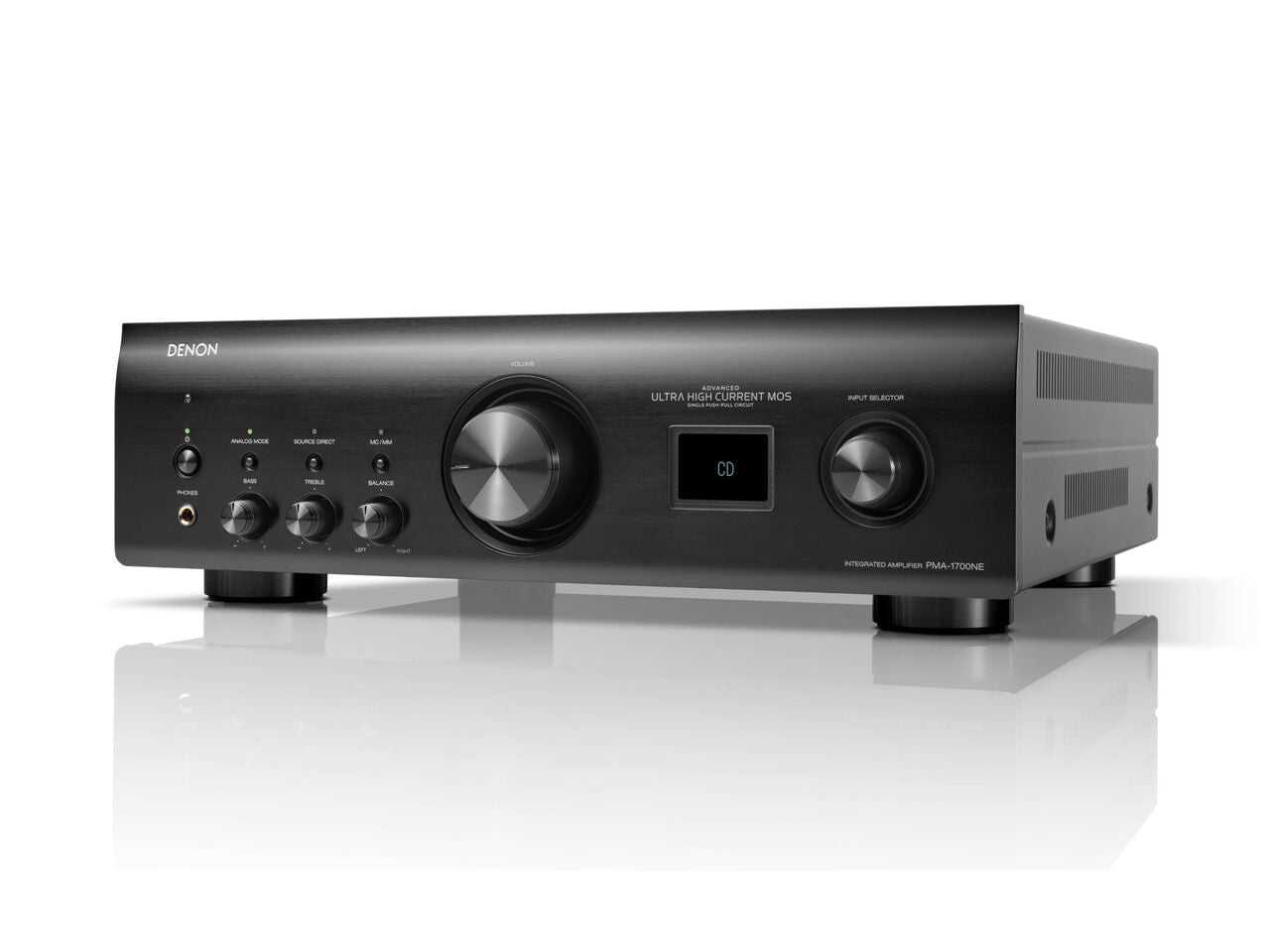

Denon PMA-1700NE 2 Ch. 140W integrated Amplifier with USB-DAC - Black

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing Plus, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

• Stereo amplifier
• 70W per channel (8 ohms)
• AL32 Processing
• USB-DAC
• Precise electrical controls
• MM/MC phono

Discover an amplifier that delivers sound you can feel

Wide bandwidth captures everything from deep bass to detailed highs

Powerful sound from an integrated amplifier

Engineered with premium Denon technologies, this amplifier drives two channels at 140W.

Faithful audio reproduction

Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

Build integrity with selected components

With more than 110 years of audio excellence, Denon products are built to last.

Add power to your Hi-Fi experience

High-Power 140W Integrated Amplifier

Drive your loudspeakers with 140 Watts of power per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.

Advanced AL32 Processing Plus

Advanced AL32 Processing Plus supports digital audio sources up to high resolution of 384-kHz/32-bit. The algorithms restore information that was lost during the digital recording to ensure detailed playback.

USB-DAC

PMA-1700NE provides USB-DAC function that supports high resolution audio signals up to 11.2-MHz DSD and 384-kHz/32-bit PCM. These digital signals with suppressed jitter will get passed on to the high quality DAC for an optimal D/A conversion with highest precision.

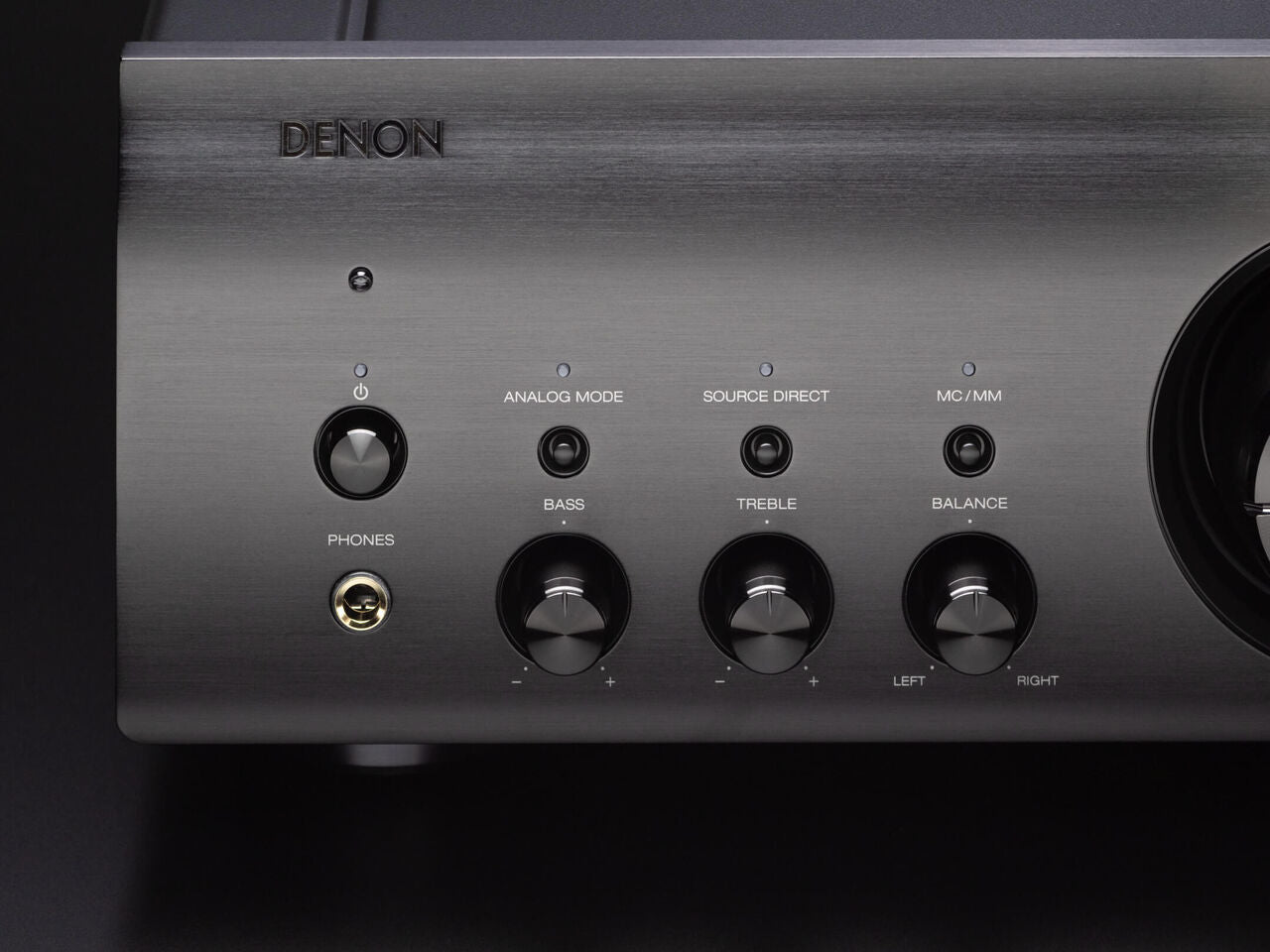

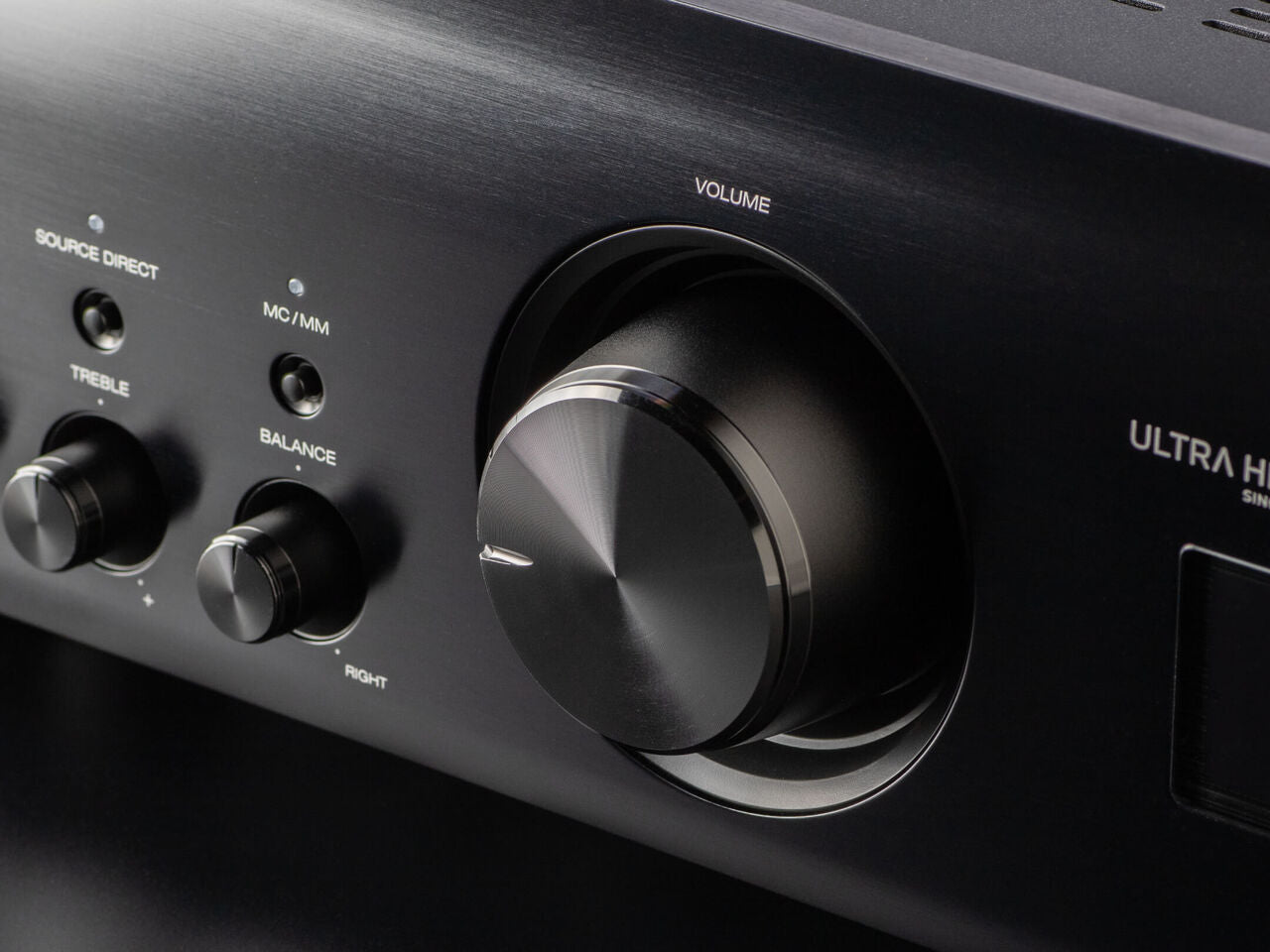

High-Precision Electrical Control

The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analogue feeling of operation. The unique mechanism offers smooth, linear control. A Source Direct function passes by all tone control for purest audio.

Specifications:

General

Unit (W x D x H)
434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H)
434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Net weight
17.6kg
38.8lb
Packaging Dimensions (W x D x H)
548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Packaging gross weight
20.4kg
45lb
Carton Color
2 Color
Cushion / Packing
4 Separate / Sheet
Panel Color
SP / BK
Front (Center) Panel
Aluminum
Side cover
SECC with 4 straight emboss
Side screw
SP: Nickel / BK: Black
Rear Panel
SECC t1.0mm
Chassis Material
SECC t1.2mm
Bottom Layer
Single
Volume Knob
Aluminum
Input Selector
Aluminum
Bass/Treble/Balance/ Phono Sel knobs
Aluminum
Power button
Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc)
Mold (Source Direct,Analog Mode,MM/MC)
Foot
ABS resin with rigid rib
w/Hot stamp
(H : 20mm)
Heatsink for Power Amplifier
Extruded Aluminum

Specifications

Rated Output Power
70W + 70W
(8ohm,20Hz-20kHz,THD0.07%)
140W + 140W
(4ohm, 1kHz, THD0.7%)
Speaker Impedance
A or B : 4 ~ 16ohm
A + B : 8 ~ 16ohm
Frequency Response
5Hz - 100kHz (0~ -3dB)
Total Harmonic Distortion
0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz
Dumping Factor
100 and over
Input Sensitivity: Phono input
MM: 2.5 mV / 47 kohm
MC: 200
RIAA Deviation
20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input
MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER
125 mV / 19 kohm
Input Sensitivity: Power Amp input
0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio
PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
Tone Control
BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption
295W
at Standby
0.2W TV autoplay off
0.4W TV autoplay on

Audio Feature

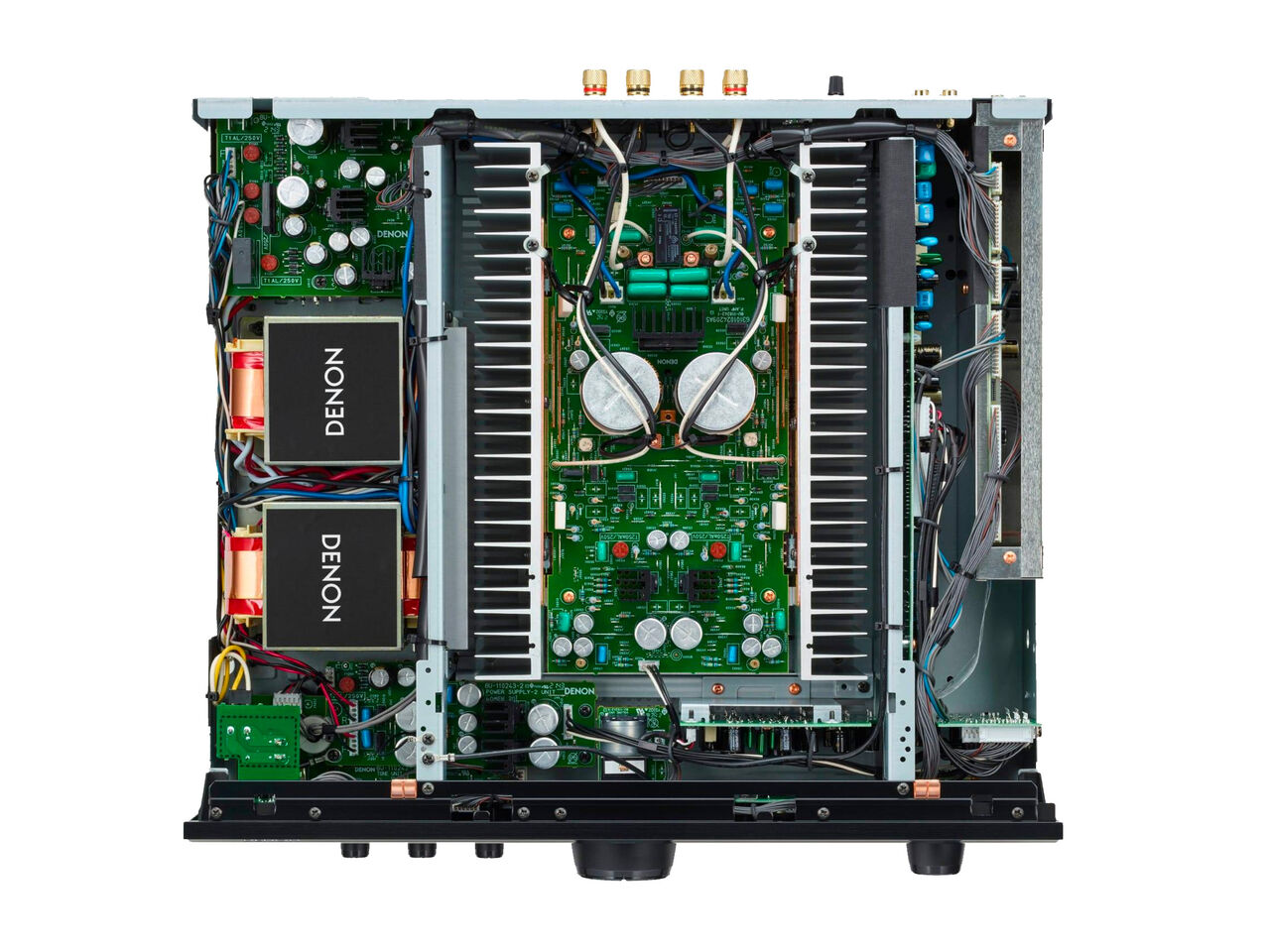

Power Amplifier Circuit
New UHC-MOS
Single Push Pull (7)
Power Trans
Dual El Core
Pre Amplifier Circuit
Variable Gain Preamplifier
(OP AMP)
Volume
Electric
(MUSES 72323)
Bass / Treble / Mid / Balance Control
Yes / Yes / No / Yes
Type of Tone Control
Electric
Controlled by Potentiometer
Headphone Circuit
Use Poweramplifier
Source Direct
Yes
Analog Amp Mode
Yes (button on front panel)
Other
70
DAC Circuit
PCM1795
Digital Filter
Fixed
Digital Processing
Advanced AL32 Processing Plus
DAC Master Clock Design (Doesn’t Support Network Playback)
Yes
Asyncronous mode (for USB-B input)
yes
Isolator (for USB-B input)
Yes
Full Isolation

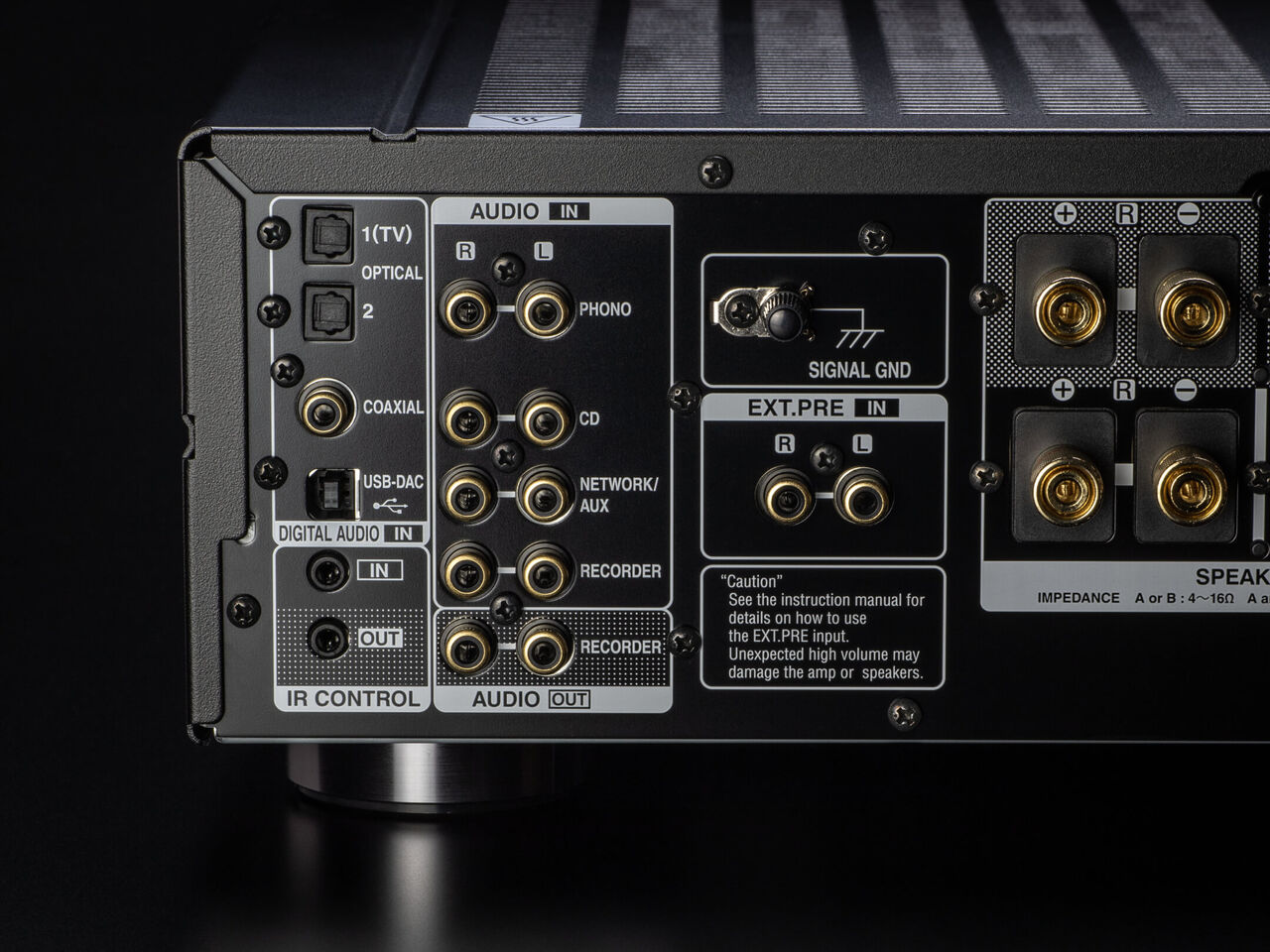

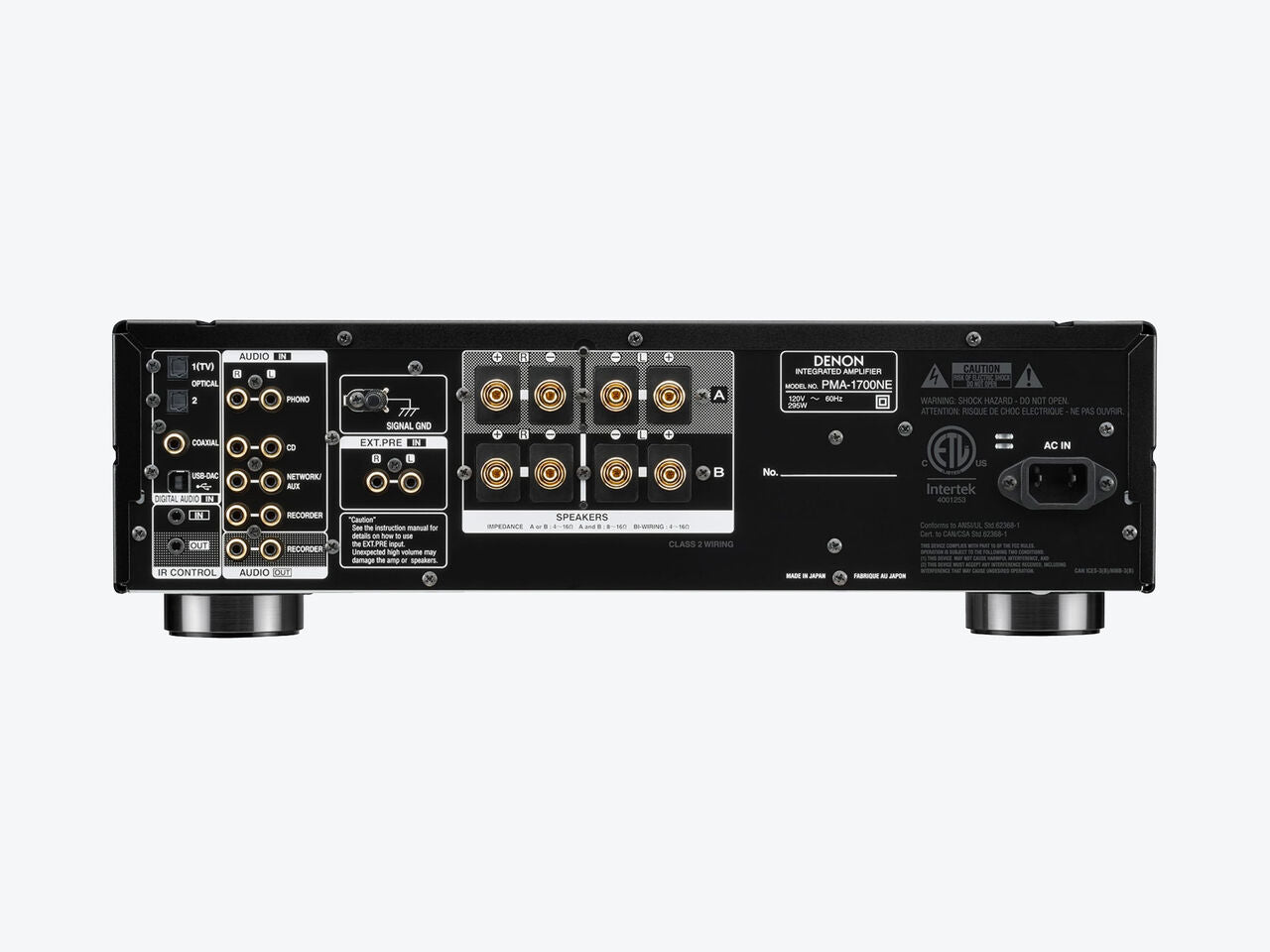

Connectivity

Phono Input
Yes (MM / MC)
*default=MM
Analog Input (include Phono) / REC Out (RCA)
4/1 (PHONO/ CD/ AUX/ RECORDER)
Optical input / output (Maximum Support)
2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support)
1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct)
Yes(Ext.Pre)

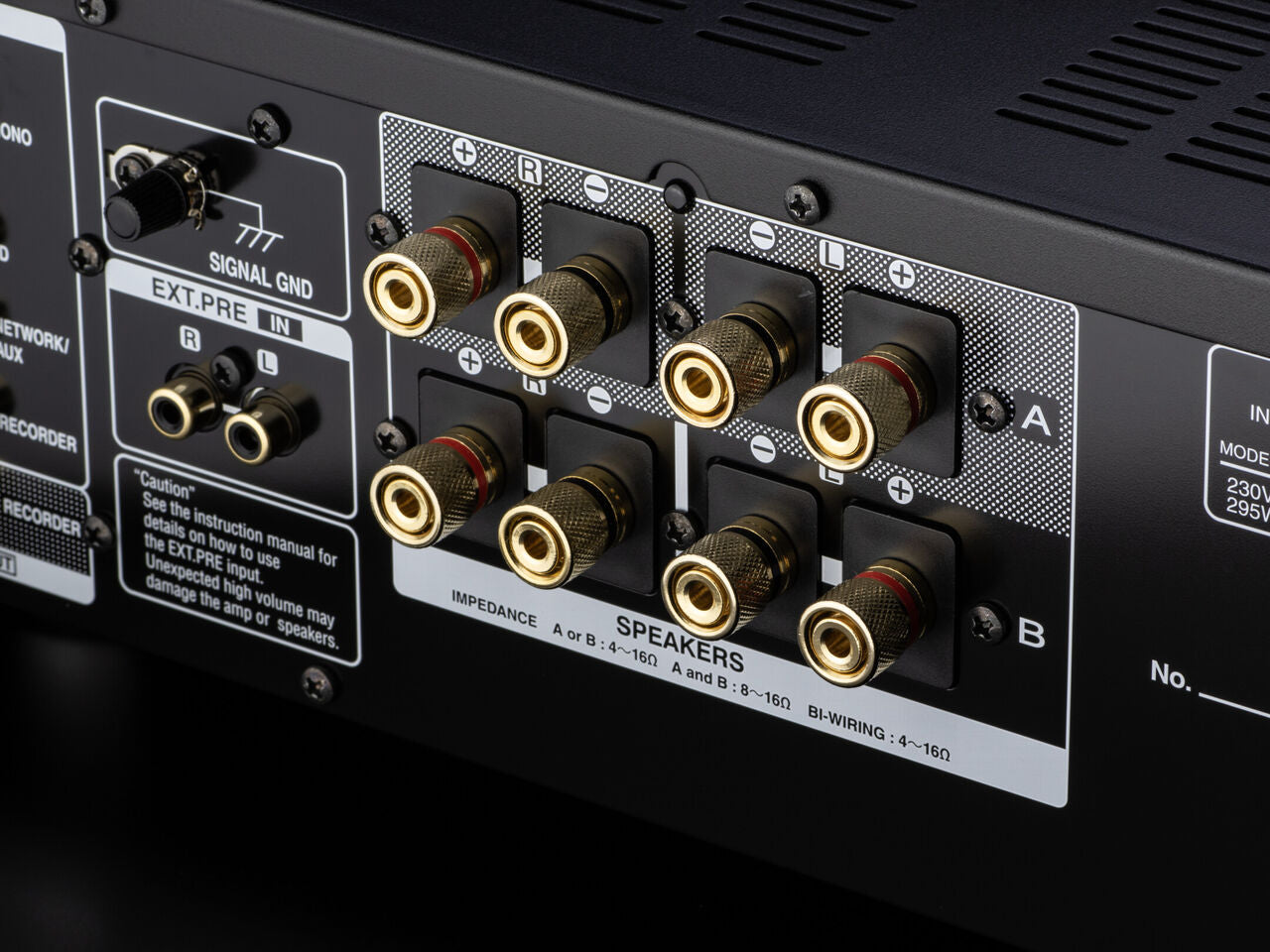

2 sets of Speaker Output
Yes (Bi-wiring)
Speaker Terminal
Gold Plated
Headphone Output
1
(Turn off the speaker when inserting headphone)
Remote Control Bus Terminal
Yes (mini)
AC Inlet
Yes
Wi-Fi
No
HEOS
No
USB B (USB DAC)
1 (Rear)
Module or Main Device
New XMOS
(XU210-256-TQ128 )
PCM Sample Rate
~384kHz/32bit
DSD Audio Streaming (DoP)
~11.2MHz
Roon Certificaton
Yes(Roon Tested)
TBD

Control

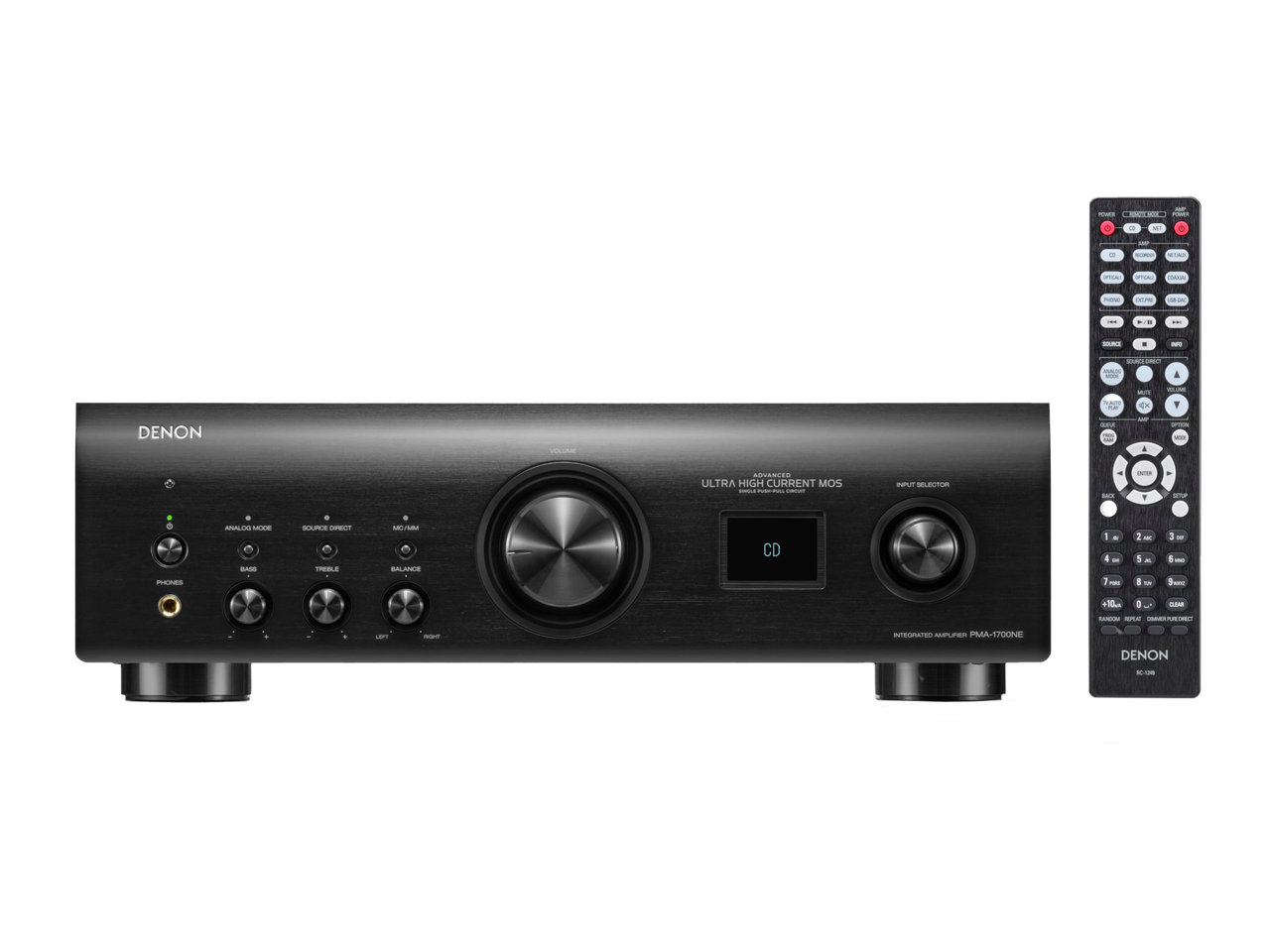

Remote Controller
System Remote
(w/CD Player Control)
Unit control (Button)
Push Switch: 1
POWER
Tact Switch : 3
ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob)
5
VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED
POWER: 1 Red / Green
ANALOG MODE: 1 Green
SOURCE DIRECT: 1 Green
MM / MC :1 Green
Front Panel Display
Yes
(OLED 128 x 100 dot)
MXS4036-A
Display Language
Alphabetical
Dimmer for Front Display
Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus)
Yes
TV Auto-play (Opt/Coax digital-in detecter)
Yes
Last Function Memory
Yes
Auto Standby Mode
Yes
Owner's Manual
Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Paper
JP: (Japanese)
Quick Start Guide
Paper
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Remote Controller
Yes
Battery
Yes (AAA x2)
Power Cord
Yes
