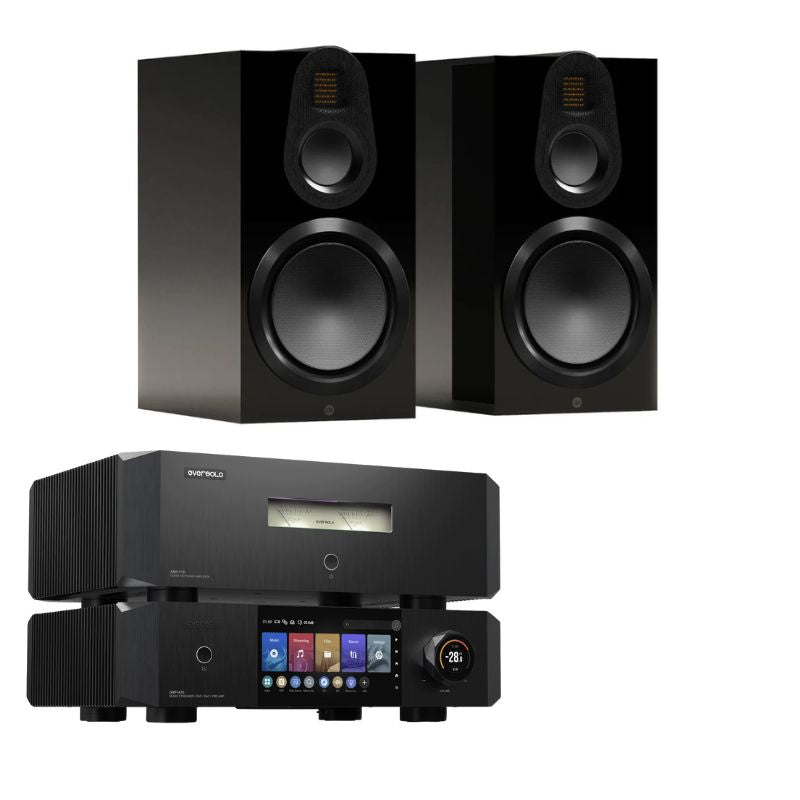

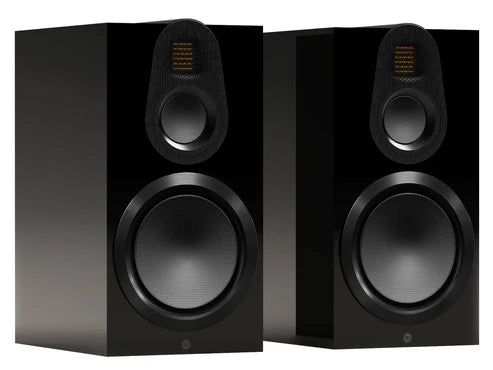

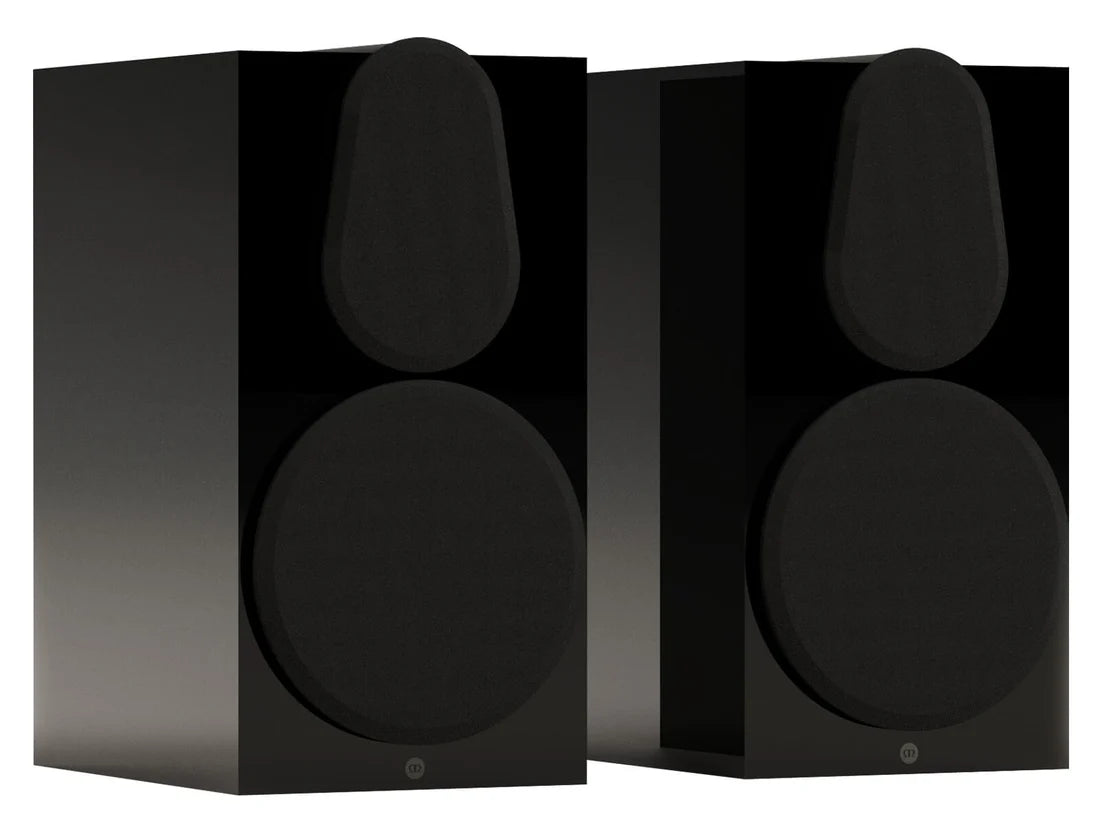

Eversolo DMP-A10 Network Audio Streamer (Black) + Eversolo AMP-F10 Power Amplifier (Black) + Monitor Audio Gold 100 6G Bookshelf Speakers - Pair (Gloss Black)

Home Music Center

In addition to two high-speed USB 3.0 ports and two sets of SSD slots, the DMP-A10 supports NFS, SMB, UPnP, and more sharing protocols, allowing you to stream media from NAS devices or network drives effortlessly. Even high-bitrate files like DSD512 master recordings can be played without stuttering. Additionally, it supports loading and playing music from WebDAV, Plex, Emby and Jellyfin.



Magical Volume Control

A fully balanced analog volume adjustment network composed of precision resistors and relays achieves accurate volume control, effectively suppressing distortion and noise in the analog signal. It also features volume protection, automatically reducing excessive volume to the designated safe level when startup or switching inputs. The incorporation of R2R analog volume control ensures that the DAC can operate at its optimal Bypass state continuously.



Control at Your Fingertips

The DMP-A10 comes with multiple control options. Except for the touch screen and mobile control application, there is a Bluetooth and infrared remote control included with the device. Made from a single cast of alloy material, the remote has a refined and streamlined appearance that fits perfectly in your hand, providing effortless control over your music.

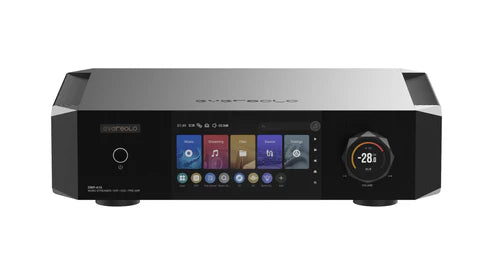

Bigger and Better

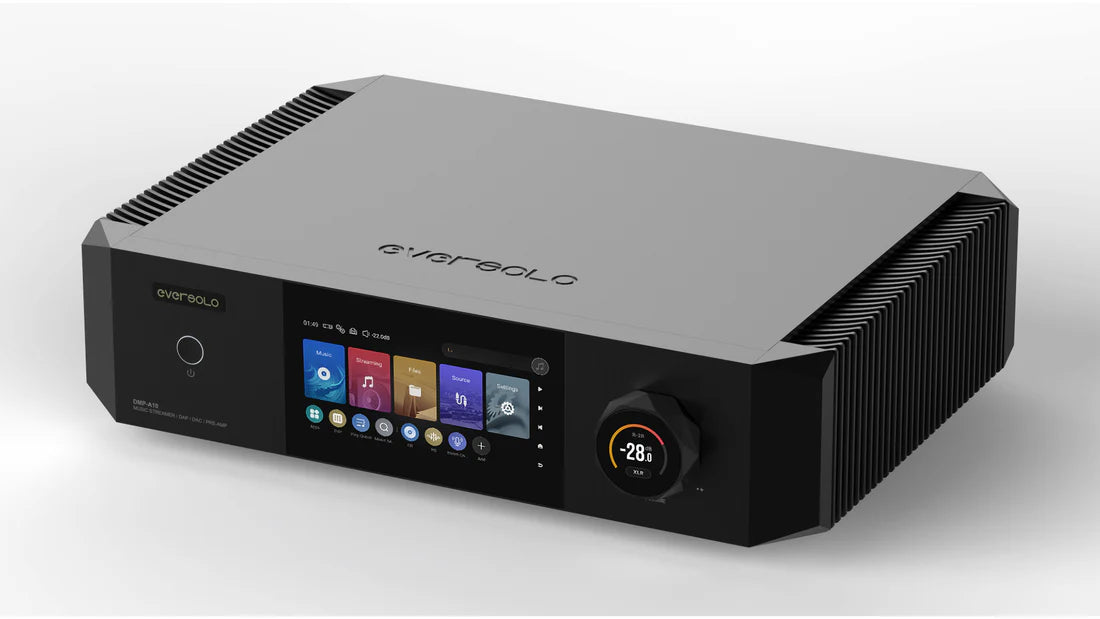

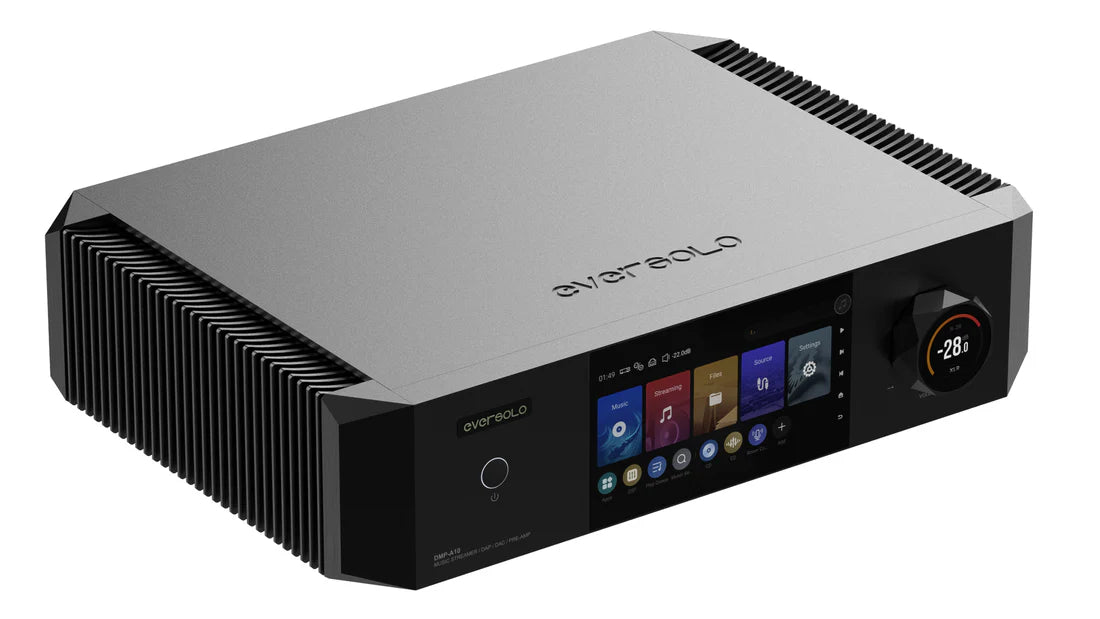

The upgraded control panel features a larger touch screen display for an immersive user experience. With operation experience similar to mobile devices, the DMP-A10's fully intelligent music interface is intuitive and smooth, offering better viewing experience like larger album art displays. It is designed not only for exceptional sound but also for a luxurious visual enjoyment.



Global Music Search

With the DMP-A10, you can search across multiple music services in one go, making it easier than ever to find your favorite tracks, seamlessly connecting to all your music services.

*Note: Integrated music services require account login to enable global search.



Master-grade Playback

The DMP-A10 supports almost every high-resolution music format on the market, as well as common CD-quality lossless music files like FLAC, WAV, APE, SACD ISO, and DSD (dsf/dff/ dst), delivering a rich auditory feast.



Local Storage Expansion

Two M.2 NVMe SSD slots on the bottom allow for up to 8TB*2 storage expansion. With convenient installations and better thermal design, it provides fast and stable support for high-quality local playback; External Storage devices can be connected through the USB 3.0 port as well.



Perfect Sound, Anytime

The DMP-A10 features a 10-band PEQ(Parametric Equalizer) module, allowing precise adjustments to specific frequencies, gain, and Q factors, which significantly enhances sound quality. In different listening environments, sound reflections and absorptions can vary, causing certain frequencies to be too strong or weak. By using PEQ fine-tuning, the DMP-A10 ensures that the sound remains natural and pleasing. Additionally, it supports FIR filter imports, loudness adjustments, and dynamic compression.



Stylish VU Meters

The DMP-A10 tailored multiple dynamic VU meters for audiophiles;

The music sounds great, and also looks good!



Highly Intelligent

The DMP-A10 features a built-in UI and mobile app control for iPhone, Android, and iPad devices. Beyond basic playback and system settings, the app offers direct access to your music library and streaming services. Whether you're selecting a song or enjoying album arts, it delivers anything you need conveniently. It also comes with a dual-mode remote control (infrared and Bluetooth), and a Trigger Out interface to achieve coordinated control of your back-end devices; Additionally, it offers Wake-on-LAN function(requires wired network connection).



Personalized Music Management

The Eversolo provides a comprehensive and nice-looking local music library. You can add music files from local drives or network storage devices, and the library automatically fetches available music metadata from the cloud, matching album covers, artist information, and CUE files. You can create custom playlists, organizing music by different tags such as genre, sample rate, album and artists.



Preserving Timeless Quality

The DMP-A10 allows CD playback and ripping by connecting a USB optical drive. Using a unique data verification and error correction mechanism, it ensures the lossless preservation of CD audio data. The CD app includes a smart algorithm to fetch album and track names(for officially released CDs), automatically generating information for albums and artists.

Note: Metadata retrieval is not guaranteed for all CDs. Online databases may not always have up-to-date information.



Qualcomm Bluetooth

With Qualcomm’s QCC5125 chip, Bluetooth 5.0 connectivity offers the convenience of wireless streaming without compromising sound quality.



Hi-Res Audio Certified

The Eversolo DMP-A10 has been certified by the Japan Audio Society(JAS) for high-resolution audio, ensuring trustworthy sound quality.



OTA Online Upgrade

The Eversolo DMP-A10 supports continuous OTA online upgrades, providing you with an enhanced experience and user-friendly service at all times.



SPECIFICATIONS

Product type
Streamer

Touch screen
6.5″ LCD Full HD

RAM
4Go DDR4

ROM
64Go eMMC

DAC
ES9039PRO

USB interface
XMOS XU316

AOP
OPA1612

Power supply
Dual low-noise linear + digital power supplies

SSD support
M.0 NVME 3.0 protocol 2280 up to 4TB (SSD sold separately)

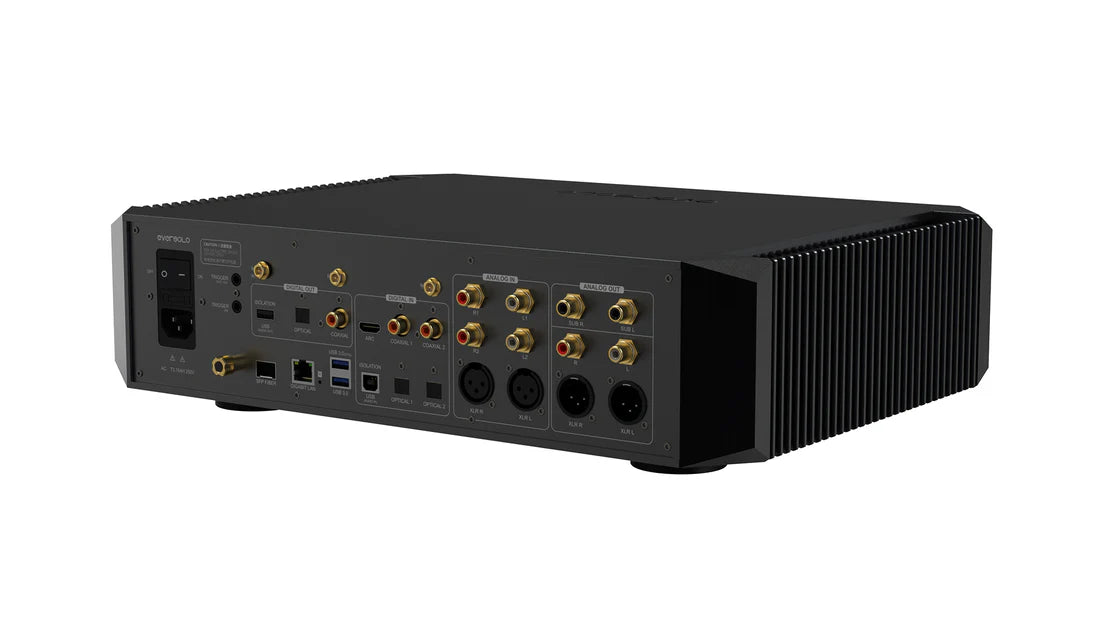

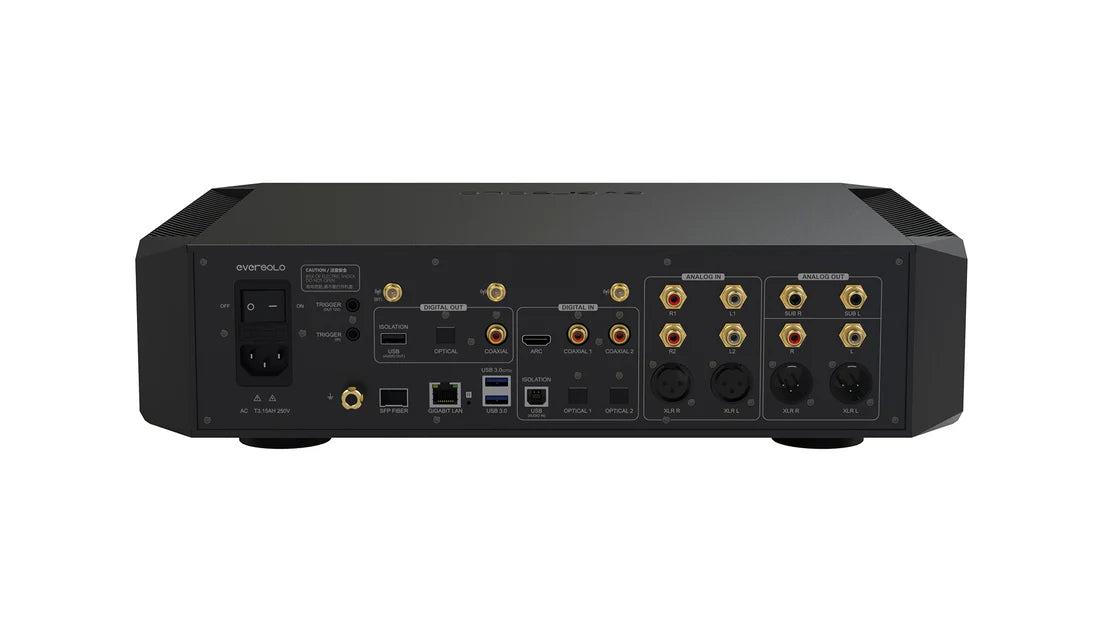

Inputs
1x Ethernet RJ45 (10/100/1000Mbps)
1x Balanced XLR
1x Single-ended RCA
1x HDMI ARC
2x SPDIF Coaxial
1x USB-B
2x Optical Toslink

Outputs
1x Balanced XLR
1x Single-ended RCA
1x SPDIF Coaxial
1x Optical Toslink
2x USB-A
2x Subwoofer output
12V trigger

Wireless connectivity
2.4G+5G dual-band WiFi
Bluetooth 5.0

Suppported sample rates
USB / I2S: PCM up to 32bit 768kHz, DSD up to DSD512

Optical / Coaxial: PCM up to 24bit 192kHz, DSD DoP64

HDMI ARC: PCM up to 24bit 192kHz

Supported streaming services
Tidal
Qobuz
Amazon Music
Deezer
Apple Music
Highresaudio
Paradise Radio

Supported transmission protocols
WebDAV
UPnP
AirPlay
DLNA
Tidal Connect
Roon Ready
…

Supported Bluetooth Codecs
SBC
AAC
aptX
aptX HD
aptX LL
LDAC

Compatible OS (USB)
Windows 10 / 11
Android
iOS

RCA output
Output level
2.1Vrms

Frequency response
20Hz – 20kHz (±0.15dB)

THD+N
< 0.00009% (-119dB) @ A-wt

Crosstalk
> -122dB

Dynamic range
> 129dB

SNR
> 129dB

XLR output
Output level
4.2Vrms

Frequency response
20Hz – 20kHz (±0.15dB)

THD+N
< 0.000078% (-122dB) @ No-wt

Crosstalk
> -123dB

Dynamic range
> 130dB

SNR
> 130dB

General
Power supply
110-240VAC 50/60Hz

Power consumption
30W

Dimensions
430 x 310 x 117mm

Color
Black

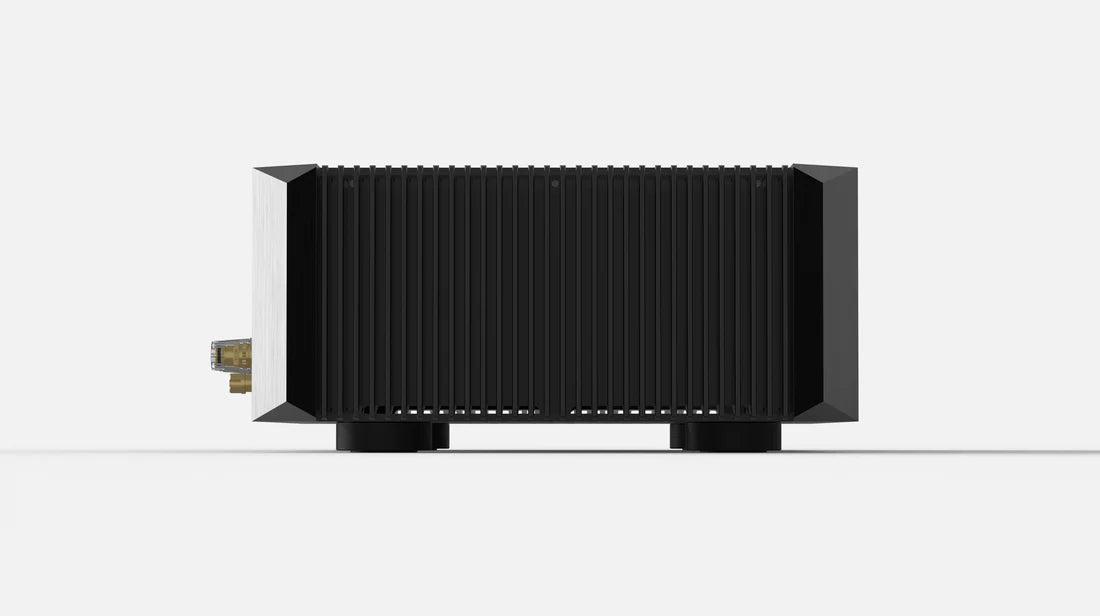

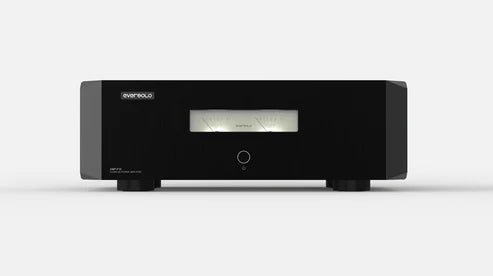

Eversolo AMP-F10 2 Channel Power Amplifier - Black



Robust Output

Authentic Experience

The Eversolo AMP-F10 delivers up to 950W in bridged mode and 320W per channel at 4 ohms, ensuring powerful performance across all volume levels. Whether you're enjoying stereo sound at home or experiencing the electrifying atmosphere of live music in a large space, the AMP-F10 delivers impressive power that draws you into an unparalleled soundstage. *At 8 ohms, it can provide 200W of power per channel, and up to 650W in bridged mode. *At 4 ohms, it can provide 320W of power per channel, and up to 950W in bridged mode.



Faithful Reproduction

Pure Sound Quality

With an ultra-low total harmonic distortion of 0.008%, the AMP-F10 faithfully reproduces music in its purest form. From clear highs to robust lows, every note is handled with precision, presenting an authentic and lifelike sound experience. You’ll feel the fine textures of instruments and the natural expression of vocals, as if you were right there in the performance.



Dynamic and Detailed Representation

The AMP-F10 boasts an excellent signal-to-noise ratio of 113dB, ensuring that musical details are preserved from the quietest passages to the most dynamic peaks. From the elegance of classical to the intensity of rock, you’ll capture every nuance with impressive clarity and depth, making every genre come alive.

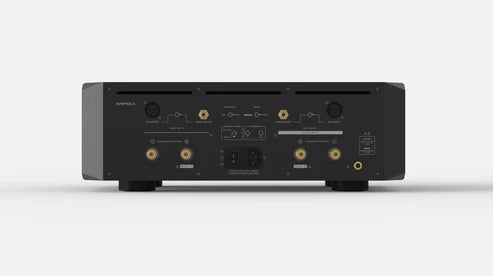

Versatile and Flexible Connections

Whether your source device uses RCA or XLR, the AMP-F10 handles it effortlessly. Its diverse input options allow for seamless integration to various audio setups, perfectly adapting from Hi-Fi stereo systems to studio gear, delivering a convenient and smooth experience.



Advanced DC Filtering Circuit

The AMP-F10 employs an innovative DC filtering circuit between the main AC supply and audio circuit, effectively removing low-frequency DC interference. This design ensures that only clean AC power is delivered to the audio circuits, effectively enhancing the performance of the audio circuit while reducing the hum from the toroidal transformer.



Clear Sound Free of Interference

By eliminating DC interference from the AC supply, the AMP-F10’s overall performance is dramatically enhanced, delivering a pure audio experience.



High-Fidelity Audio Processing

The AMP-F10 is equipped with advanced dual differential amplifiers, which are tailored for low-level audio signals. Its symmetrical circuit design and negative feedback technology minimize distortion, ensuring high-fidelity and high linear audio output. This design not only expands dynamic range but also effectively suppresses common-mode noise(such as power and environmental interference), keeping the output sound broad and natural at any volume levels.



Powerful and Refined Bass

With a damping factor exceeding 600, the AMP-F10 ensures powerful, clear low-frequency performance. Whether delivering the intense impact of deep bass or capturing subtle low frequency details, it handles all effortlessly. From the punch of electronic music to the gentle whispers of jazz, it caters to a wide range of listening scenarios, empowering every note with emotion and passion.



Superior Sound Enduring Reliability

Designed with durability and stability in mind, the AMP-F10 features premium components and fine craftsmanship for long-term performance. Whether delivering intense volume or supporting extended playback, the AMP-F10 operates reliably, letting you enjoy the pleasures of music worry-free.



1000W Dual-Channel Independent Linear Power Supply

The AMP-F10 is equipped with a 1000W dual-channel independent linear power supply, providing robust, stable power to every note. This design not only prevents interference between the two channels but also provides each channel with dedicated, powerful current. It ensures that the left and right channels deliver independent and balanced performance, resulting in a fuller and more precise stereo soundstage. With a powerful 1000W reserve for high dynamic audio, the low frequencies are impactful and strong, while the mid and high frequencies remain smooth and rich, every emotion and strength in music is released for a truly immersive listening experience.



5 Pairs of High-Current MOSFETs per Channel

To improve the consistency of the amplifier circuit, the Eversolo AMP-F10 uses five pairs of precision-matched MOSFET high-current amplification transistors for each channel. The parallel configuration ensures even current distribution, minimizing the potential distortion and inconsistent current distribution issue.



The Eversolo AMP-F10 is not just an amplifier but the dream choice for your audio systems. Whether you’re an audiophile or a home theater lover, the AMP-F10 delivers an unrivaled auditory experience.
