HDCVT

HDCVT HDMI 2.0 3-1 Switch

Regular price R 349.00
Regular price Sale price R 349.00
Sale Sold out
Tax included.

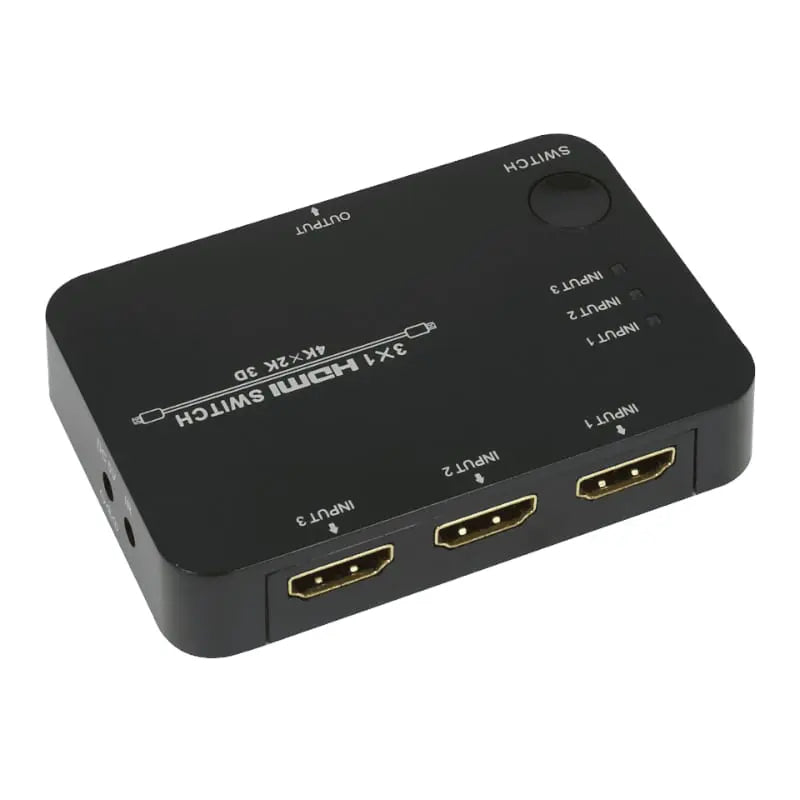

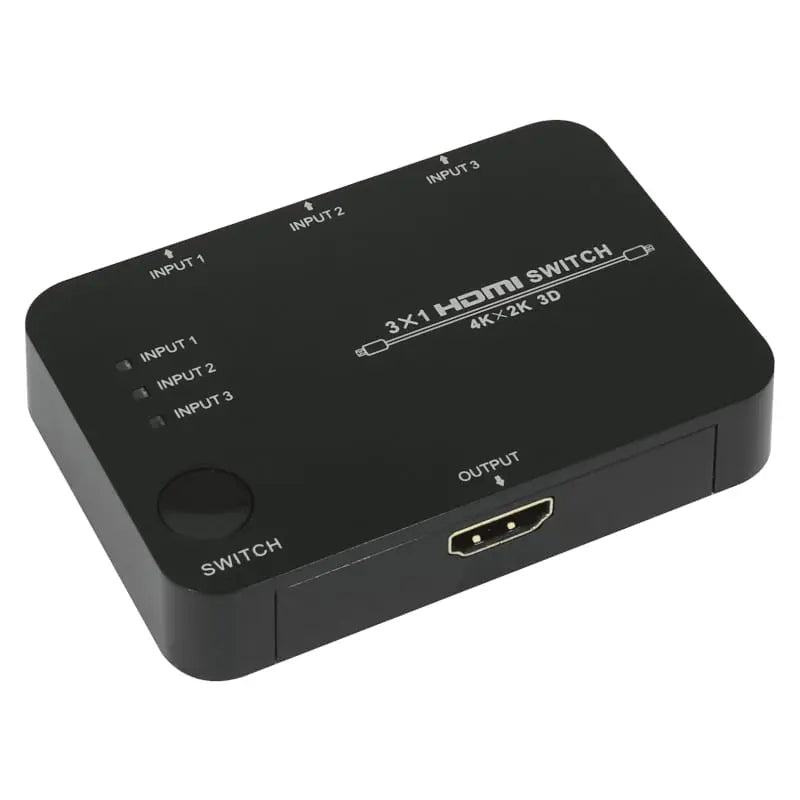

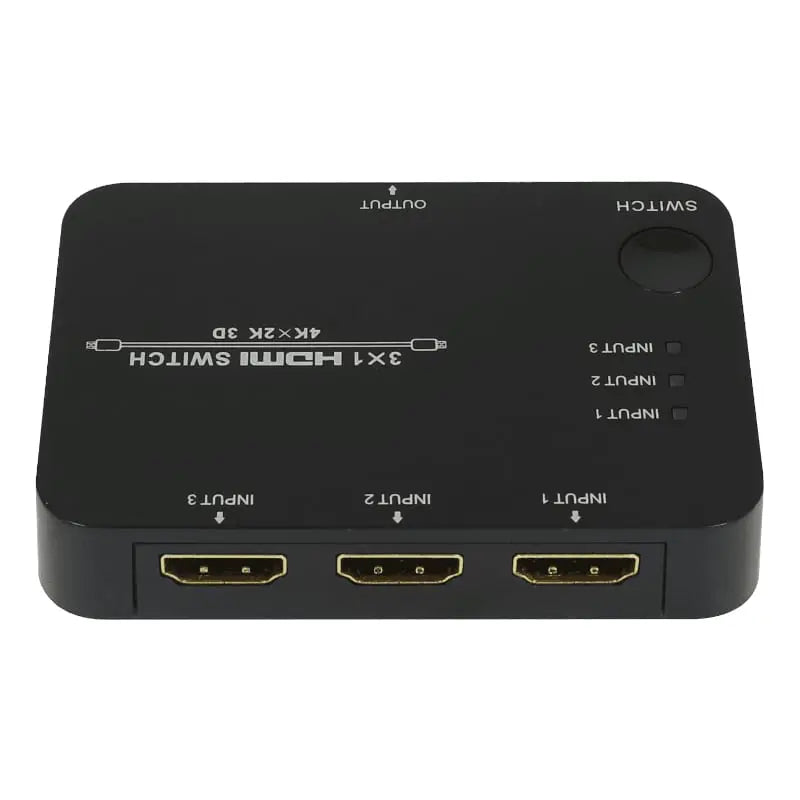

HDCVT HDMI 2.0 3-1 Switch

ย

The HDCVT 18Gbps HDMI 3 x 1 Switch can switch any of the 3 available HDMI sources to one HDMI display. It supports video resolutions of up to 4K2K@50/60Hz YCbCr 4:4:4. The HDMI Switch supports various audio and video features such as HDR, HDR10, Dolby Vision and HLG. It supports all 3D video formats as well. The HDMI Switch also features low power consumption and can be controlled via either the panel button or via the included remote control.

FEATURES:

HDMI V2.0 supports resolutions up to 4K2K@50/60Hz YCbCr 4:4:4
HDCP and EDID compliant
Supports all 3D formats
Switch using a manual button or included IR remote
Supports uncompressed audio such as LPCM and compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
Ultra-low power consumption does not require a power supply
5V USB to DC power cable included for additional power requirements

SPECIFICATIONS:

Housing: Plastic Enclosure
Silkscreen Colour: Black
HDCP Compliance: HDCP 2.2/1.x
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K2K@60Hz
Colour Depth: 8-bit (4K60Hz)
Colour Space: RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:4:4
HDMI Audio Formats: PCM2.0/5.1/7.1 CH, Dolby 5.1, DTS 5.1, Dolby True HD, DTS-HD Master Audio
ESD Protection: Human body model โ€“ ยฑ8kV (Air-gap discharge) & ยฑ4kV (Contact discharge)
Input Ports: HDMI Type A (19-pin female) x3, IR in (3.5mm Stereo Mini-jack) x1
Output Ports: HDMI Type A (19-pin female) x1
Power Supply: Input: 5V/1A
Power Consumption: 1.5W
Dimensions: 8.7 x 5.9 x 1.9 cm
Weight: 60g

WHATโ€™S IN THE BOX:

HDCVT HDMI 3 x 1 Switch โ€“ Black x1
USB Power Cable x1
Remote Control x1
IR Reciever x1
User Manual x1
