HDCVT

HDCVT HDMI1.4 70m Extender with IR

Regular price R 1,135.00
Regular price Sale price R 1,135.00
Sale Sold out
Tax included.

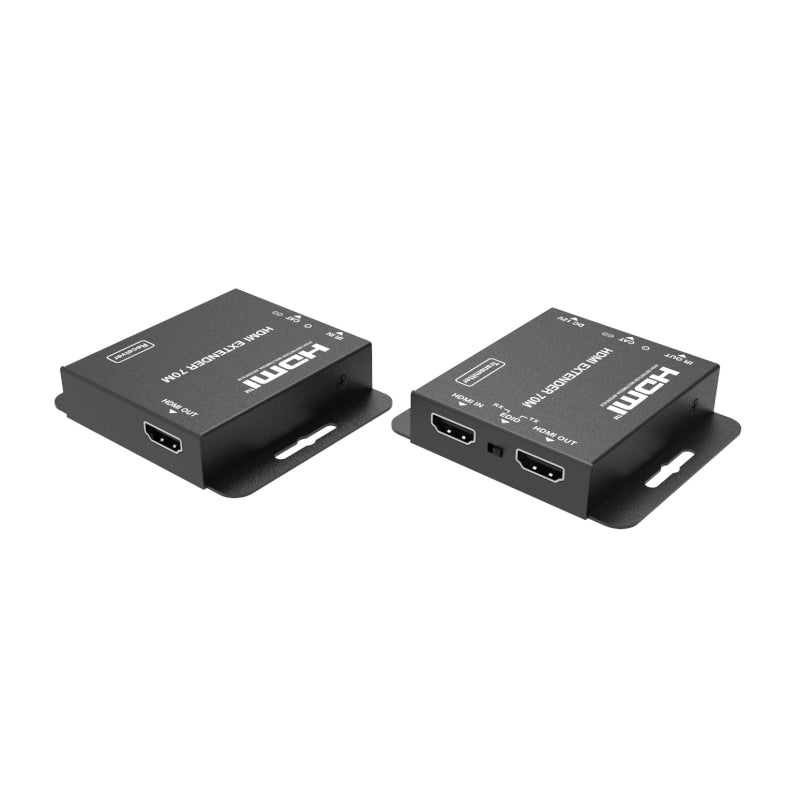

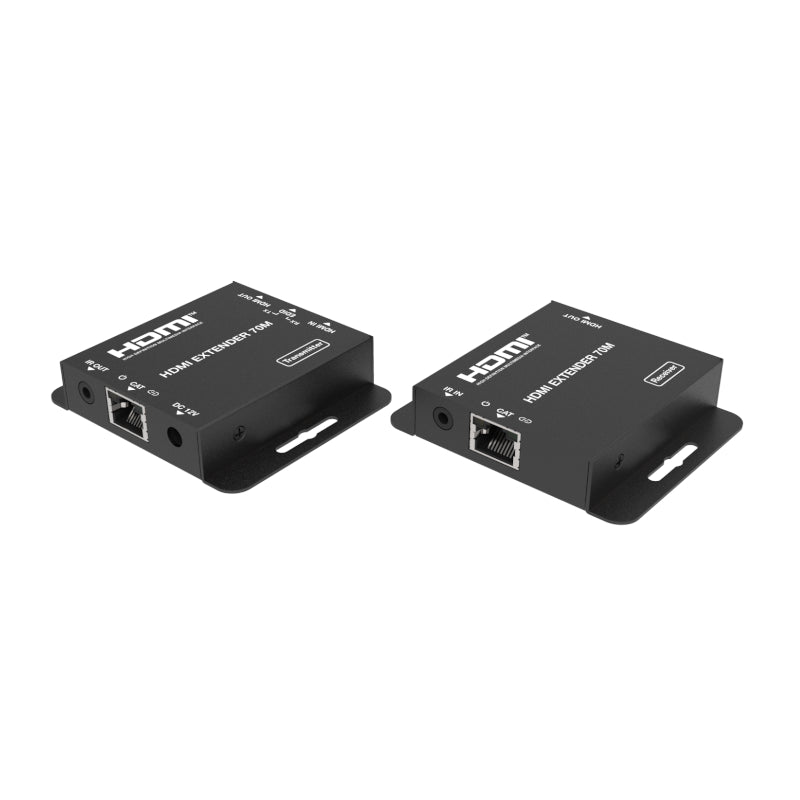

HDCVT HDMI1.4 70m Extender with IR



The HDCVT HDMI Extender with IR Control can extend your high definition video/audio signal and IR control signal up to 70m for 1080p resolution, and up to 40m for 4K30 resolution via a single CAT6 cable. The high-quality construction allows you to achieve zero delays, as well as uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can also be cascaded to the next extender, supporting resolutions of up to 4K @ 30Hz. For additional versatility, it supports the EDID copy function as well (you can choose local or remote EDID). To top it all off it also supports high-quality audio formats like PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching or with large-screen displays.

FEATURES:

HDMI 1.4, HDCP 1.4 and DVI 1.0 Compliant
Support Video Resolution up to 4K2K@30Hz YUV 4:4:4
CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
Support Copying EDID from Receiver Display or Loop Out Display
Allow for Cascading via additional HDMI loop out port
Support one-way POC functionality (from transmitter to receiver)
One-way IR signal transmission

SPECIFICATIONS:

HDMI Compliance: HDMI 1.4
HDCP Compliance: HDCP 1.4
Video Bandwidth: 10.2Gbps
Video Resolution: Up to 4K@30Hz
Audio Support Up to 7.1CH HD audio
Input TMDS Signal: 3.3 volts
Input DDC Signal: 5.0 volts/P-P
ESD Protection
Human Body model:
+/- 8 kV (air-gap discharge)
+/- 4 kV (contact discharge)
Transmitter:
Input:
1 x HDMI Type A [19-pin female]
Output:
1 x HDMI Type A [19-pin female]
1 x IR OUT [3.5mm Stereo Mini-jack]
1 x CAT OUT [RJ45, 8-pin female]
Receiver:
Inputs:
1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
Output:
1x HDMI Type A [19-pin female]
Housing: Metal Enclosure
Colour: Black
Power Supply 12V/1A DC
Power Consumption
Transmitter: 1.86W
Receiver: 0.87W
Product Dimensions: 7.9 x 6.9 x 1.7 cm
Weight:
Transmitter: 132g
Receiver: 130g

WHAT’S IN THE BOX:

HDCVT HDMI 70M Extender Receiver x1
HDCVT HDMI 70M Extender Transmitter x1
IR Blaster Cable x1
IR Receiver Cable x1
12V/1A DC Power Adapter x1
User Manual x1
