HK Audio LINEAR 3 115 FA Active Speaker - Each - Black

HK Audio LINEAR 3 115 FA Active Speaker - Each - Black

Compared to the 12″ version, the active 15″/1″ speaker offers even more depth with the same features. Especially in standalone use, it impresses with powerful bass and a balanced, crystal-clear sound across the entire frequency spectrum.

Advanced DSP technology that can handle any situation with confidence.

No matter where you are or who your sound engineer is, you can achieve brilliant sound results at every performance! Thanks to its DSP filtering that is fine-tuned to listening habits, the LINEAR 3 active speaker system has you covered in a wide range of different performance conditions.

The system is easy to operate from the stage, meaning you can quickly get to grips with the acoustic conditions.

With filter presets, intelligent multiband limiting and FIR separation, you’ve got all the best prerequisites for getting the most out of your sound. High power reserves and superbly matched components make the robust LINEAR 3 speakers absolute high-end units.

And with its stylish slotted grille design, the LINEAR 3 active speaker series looks as good as it sounds.

Advanced DSP technology – Multiband limiter with filter presets

The advanced DSP technology driving LINEAR 3 has one main purpose: to make the job of musicians and DJs easier! LINEAR 3 gives you the ultimate sound in any situation. And it’s so simple to use!

An intelligent multiband limiter and filtering of the frequency response in the ‘Contour’ setting ensure a consistently sweet and assertive sound, from super quiet to really loud.

The multiband limiter monitors and controls the relevant frequency bands separately, only intervening when it is needed. HK Audio’s engineers have developed, tested and fine-tuned all the components and options offered by LINEAR 3 for all the relevant applications, working with musicians to optimise them for practical use.

As a result, LINEAR 3 guarantees an impressively effective sound experience, even for semi-professional musicians and DJs who are not dedicated PA specialists.

This gives musicians on stage more room for musical creativity and a top performance.

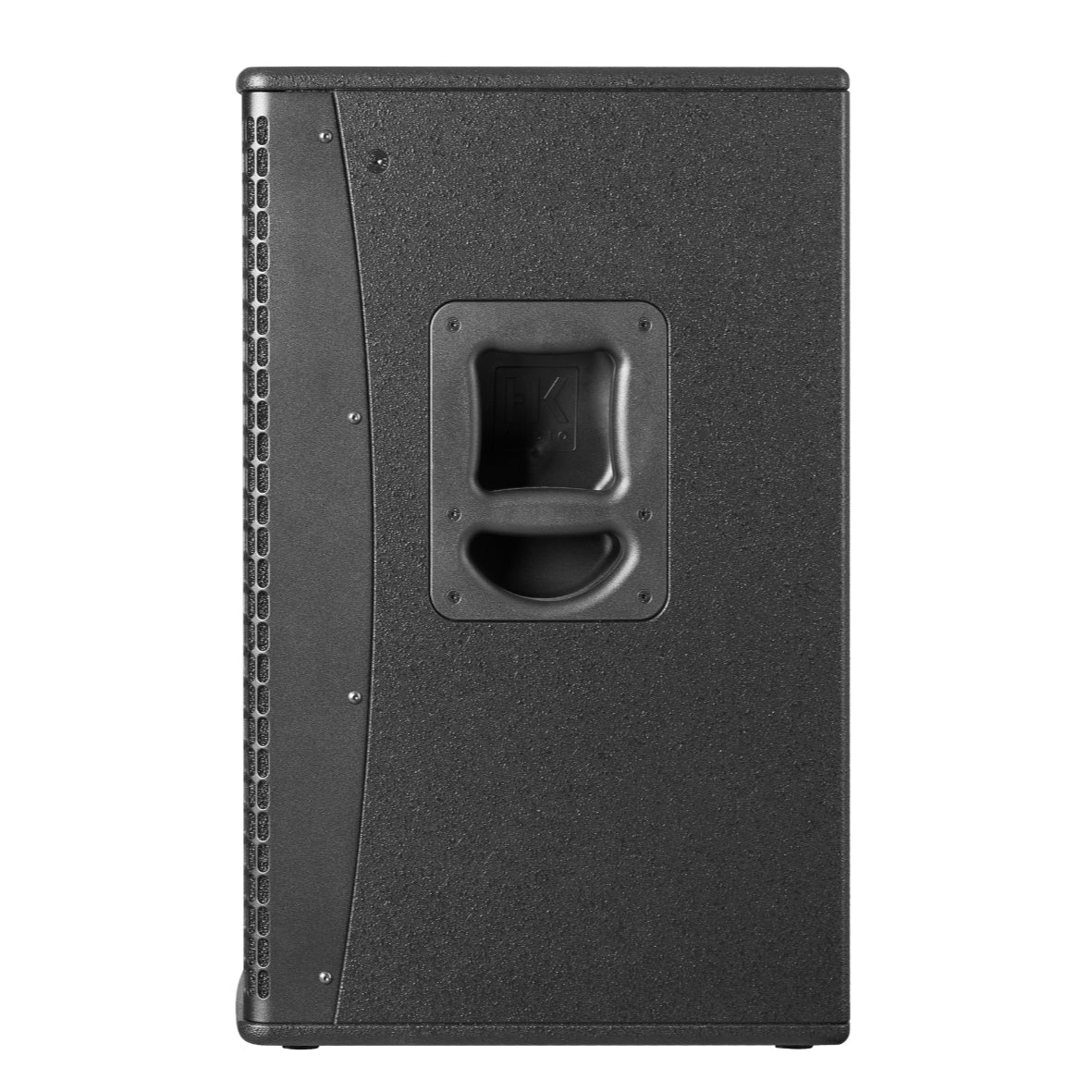

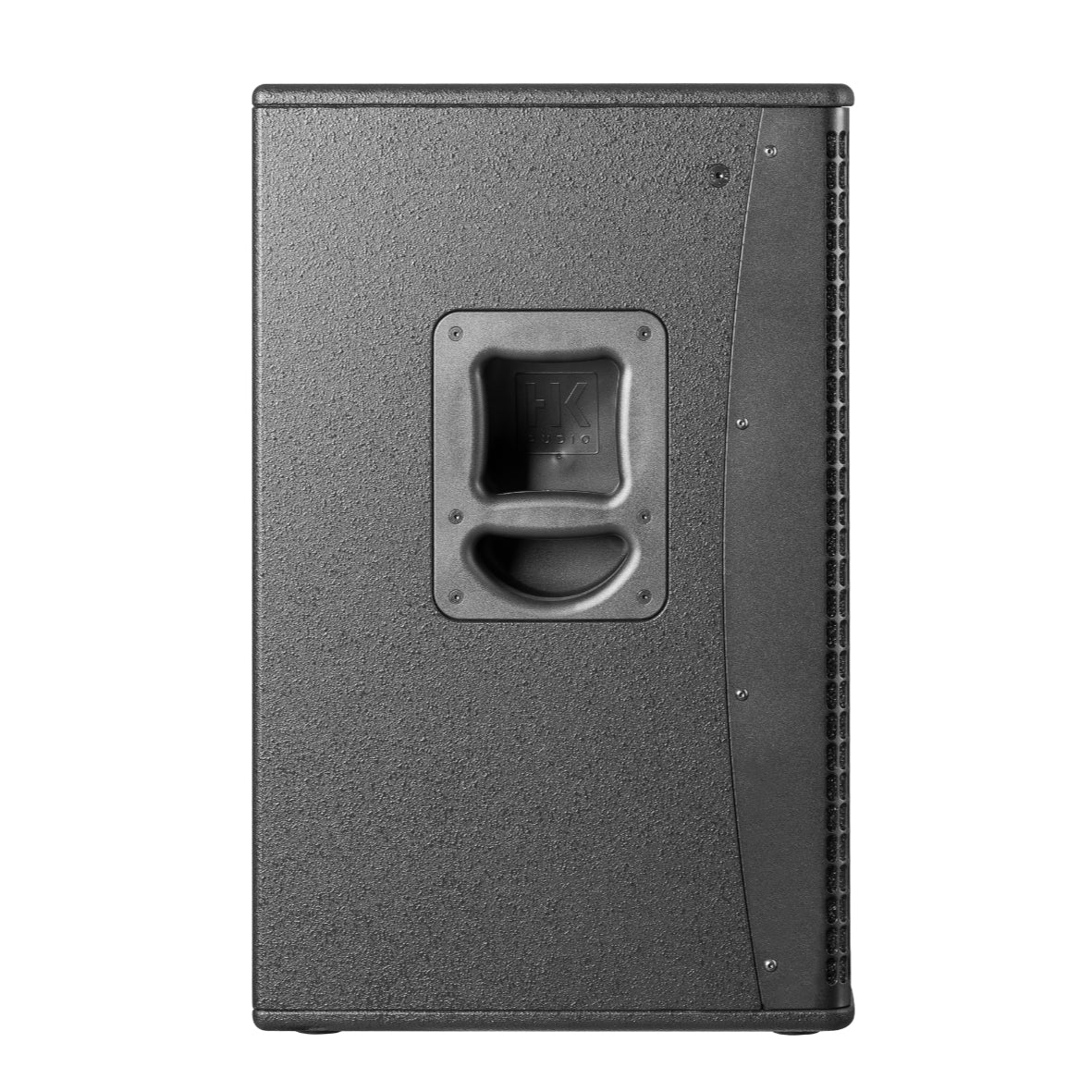

HK Audio MultiGrip

The built-in HK Audio MultiGrips make handling the speakers a breeze and ensure even more safety in every situation. They also allow for professional flying hardware to be fitted. The TB-45N or TB-45NQ tilt brackets can be mounted directly to the MultiGrips on the LINEAR 3 112 FA and LINEAR 3 115 FA models, making them ideal for professional rigging or installation. The models of the LINEAR 3 series have 4 x M8 mounting points and can be flown by mounting AP-8 attachment points, for example.

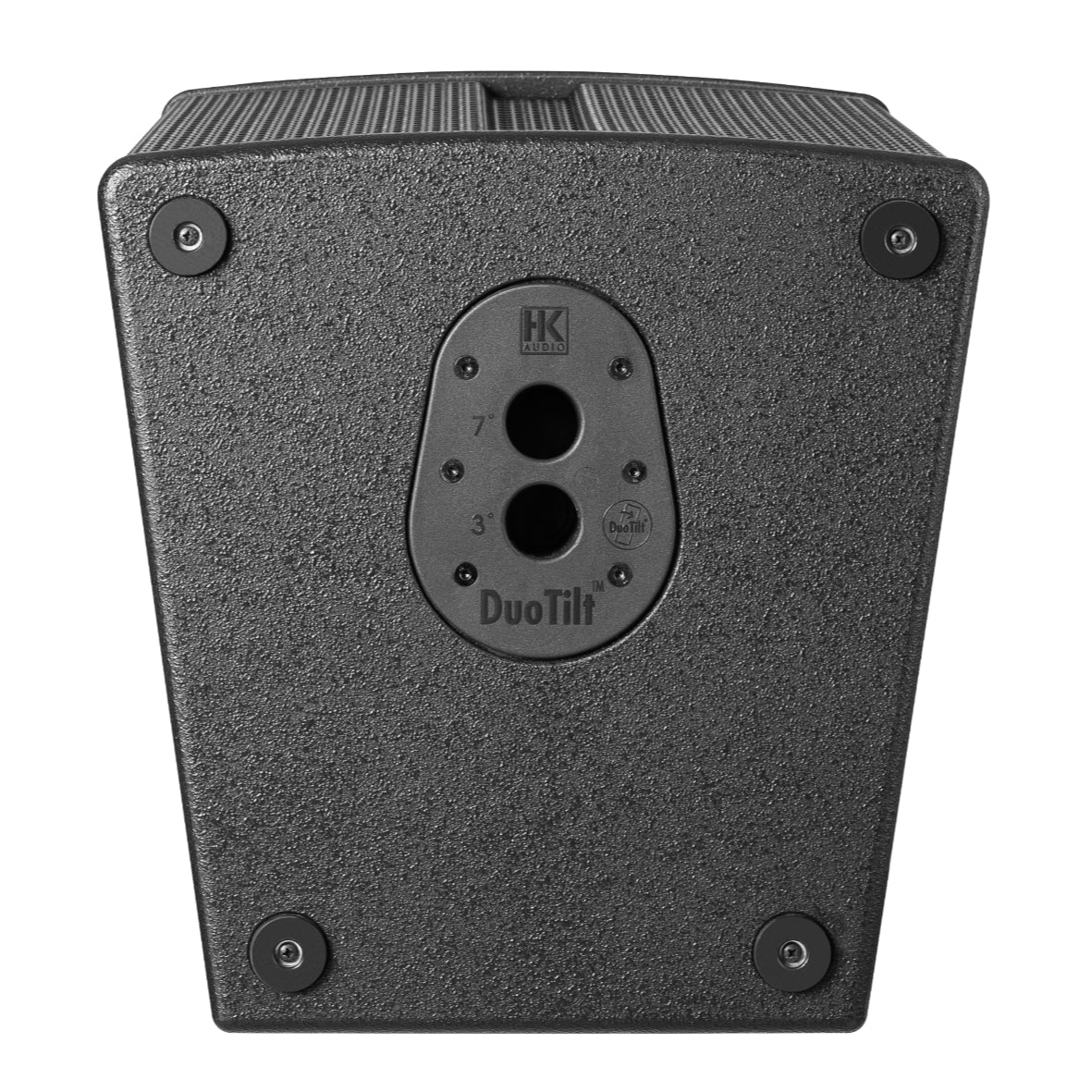

DuoTilt™ 3°/7° pole mount flange

The DuoTilt™ stand mount helps to align the speaker towards the audience reliably so that it provides the best sound. The preset 3° and 7° tilt of the stand mount means you can choose the right alignment, regardless of the setup.

Specifications:

Max. SPL @ 10% THD    126 dB half space (58 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD    135 dB half space
Frequency response +/-3 dB    58 Hz – 16 kHz
Frequency response -10 dB    49 Hz – 18 kHz
Power amp output (peak power)    1200 W
Preamp    DSP (Time Alignment)
Amp type    Class D - biamped
Active protective circuits    Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
Low-/mid speaker    1x 15", 2.5" voice coil
HF driver    1", 1" voice coil
Horn directivity    90° x 55° CD horn
Active crossover frequency    2.3 kHz FIR X-over with 72 dB/oct.

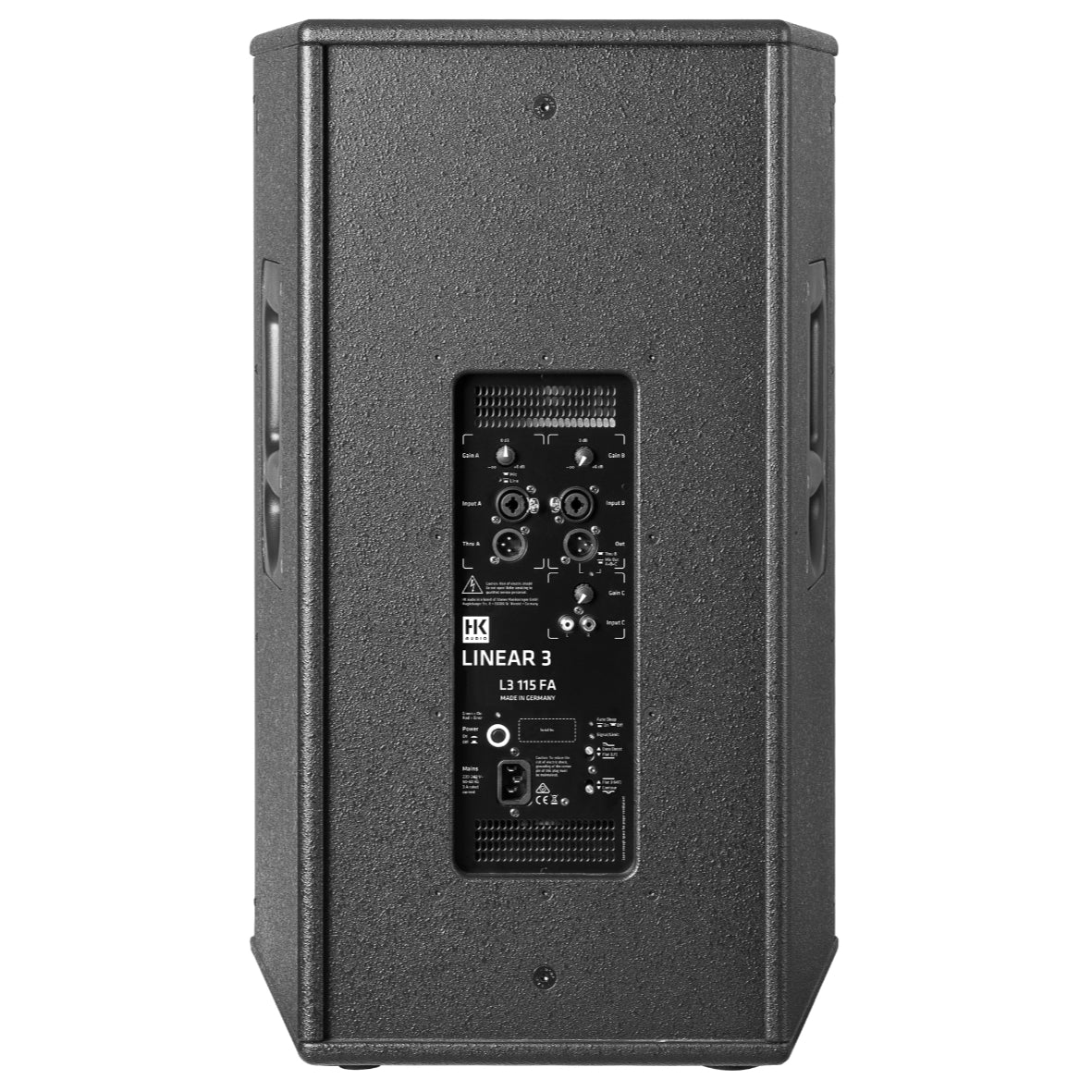

Analog inputs    2x XLR combo balanced, 1x Stereo RCA
Analog outputs    2x XLR Thru balanced, 1x XLR Mix Out
Input sensitivity    +4 dBu @ Gain center-notched
Sensitivity switch    Line/Mic Input A
Filter presets    2 EQ switches: Bass Boost/Flat & Flat/Contour
Mains connector    1x IEC socket with V-Lock cord retainer
Power consumption    3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065
Pole mount    DuoTilt 3°/7°
Rigging points    4x M8 (AP-8)
Carrying handles    2x MultiGrip
Housing    16 mm MDF
Finish    Black acrylic enamel

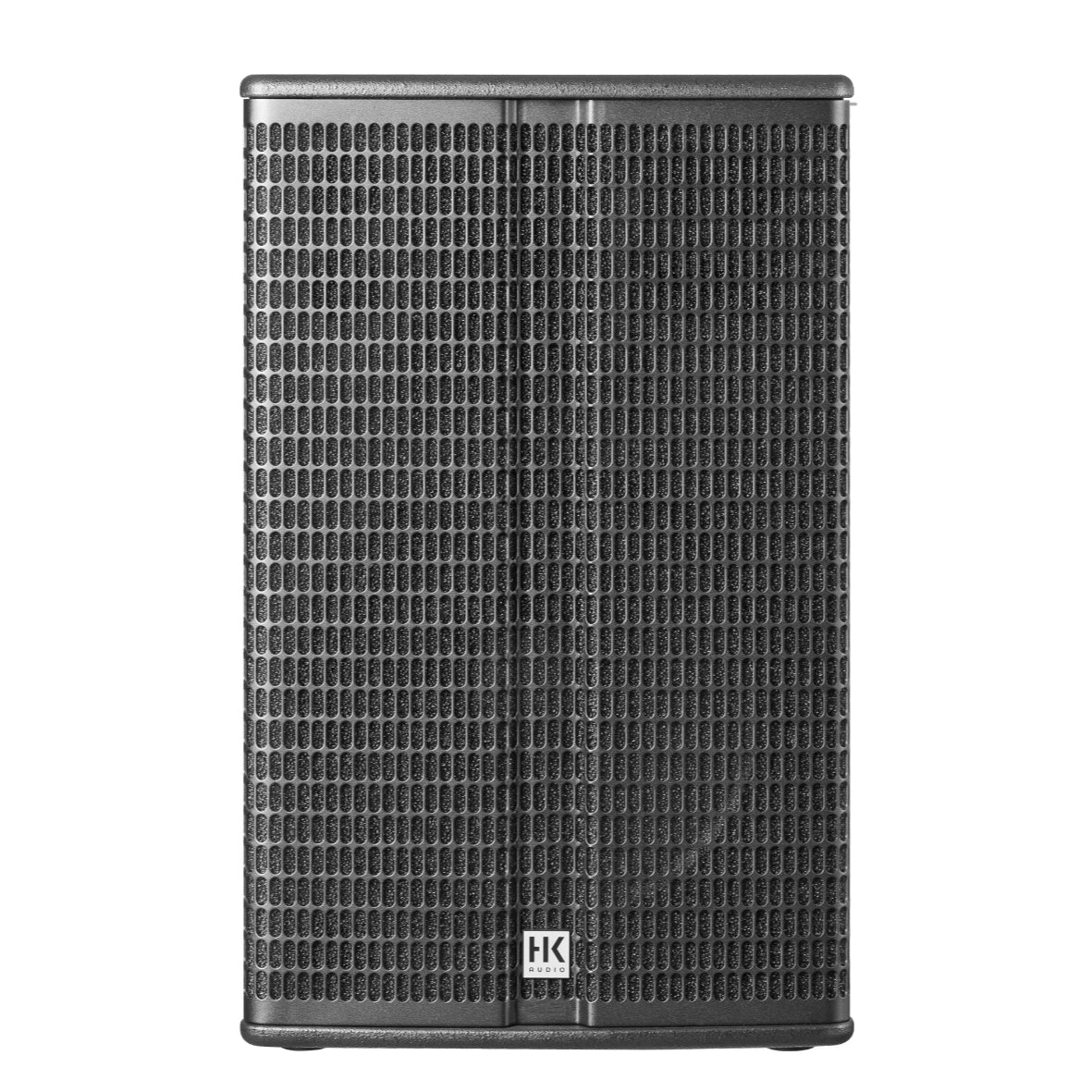

Front grille    2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)    44 x 69 x 44.5 cm 17-21/64 x 27-11/64 x 17-33/64"
Weight    27.9 kg / 61.5 lbs
