HK Audio

HK Audio LINEAR 5 MKII 115 Sub A Subwoofer - Each - Black

Regular price R 41,849.00
Regular price Sale price R 41,849.00
Sale Sold out
Tax included.

HK Audio LINEAR 5 MKII 115 Sub A Subwoofer - Each - Black

ย

Compact, easy-to-transport bass reflex subwoofer with punchy sound

The standard bass-reflex subwoofers form the solid foundation of the new LINEAR 5 MK II systems with their uncompromising performance and dry, defined bass down to the lowest of the lows. Cardioid settings that can be simply selected via a preset give the user an enormously expanded range of options for system configuration and access to the professional class. 2.1 setups are simplified thanks to the stereo preamplifiers.

ย

Specifications:

Max. SPL @ 10 % THD ย  ย 127 dB half space (42 Hz โ€“ 100 Hz averaged)
Max. SPL Peak @ 10 % THD ย  ย 130 dB half space
Frequency response +/-3 dB ย  ย 44 Hz โ€“ X-over
Frequency response -10 dB ย  ย 40 Hz โ€“ X-over
Power amp output (RMS/Peak) ย  ย 600 / 1,200 W
Amplifier type ย  ย Class D
Woofer ย  ย 1 x 15", 3" voice coil
Maximum input level ย  ย 20 dBu

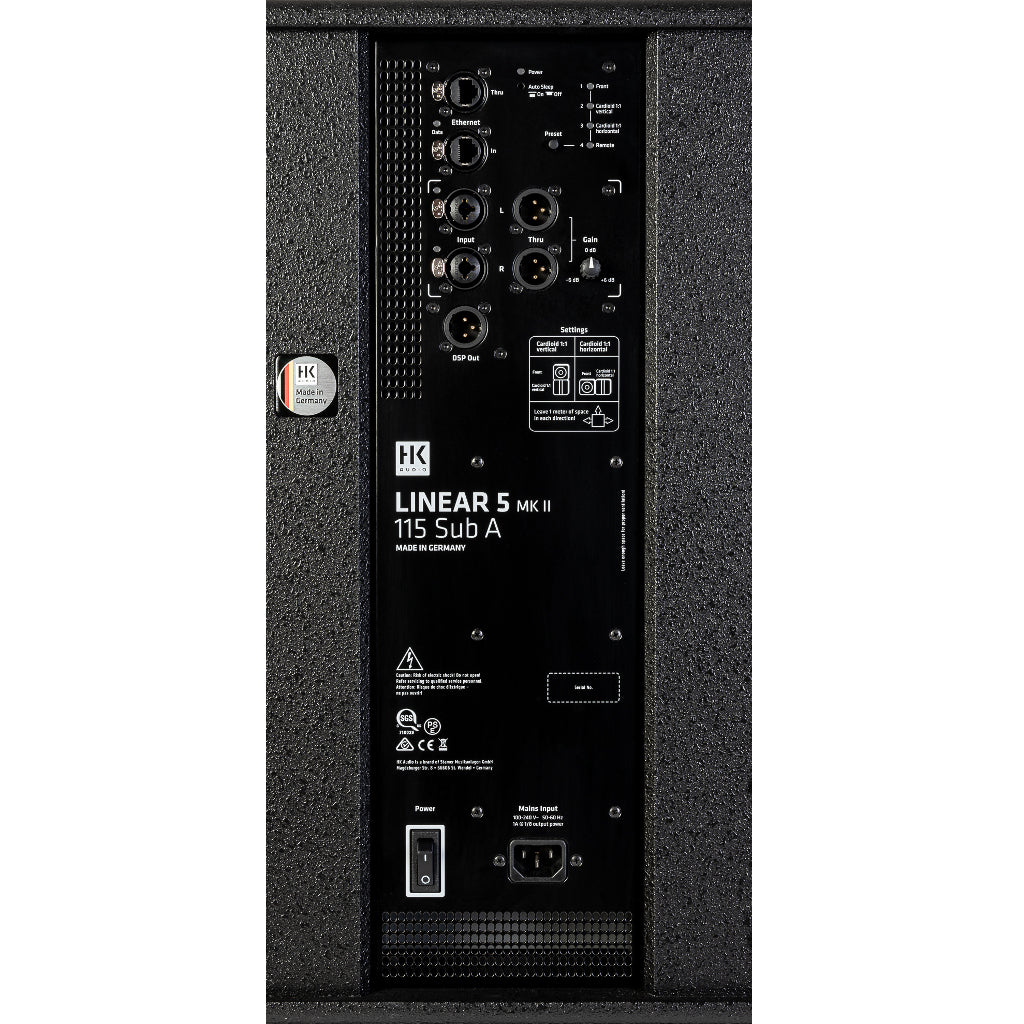

Analogue inputs ย  ย 2 x XLR combo balanced
Analogue Thru ย  ย 2 x XLR balanced
DSP Out ย  ย 1 x XLR balanced
Network port ย  ย EtherCON RJ45, 1 x In, 1 x Thru
Filter presets ย  ย Front, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote
Remote software ย  ย DSP CONTROL (Windows, Mac OS)
DSP functions ย  ย Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate ย  ย 48 kHz
System latency ย  ย Less than 2 ms
Mains connection ย  ย 1x IEC connector with V-Lock securing system, 100-240 V
Power consumption ย  ย 1 A / 100โ€“240 V nominal according to EN 62368-1

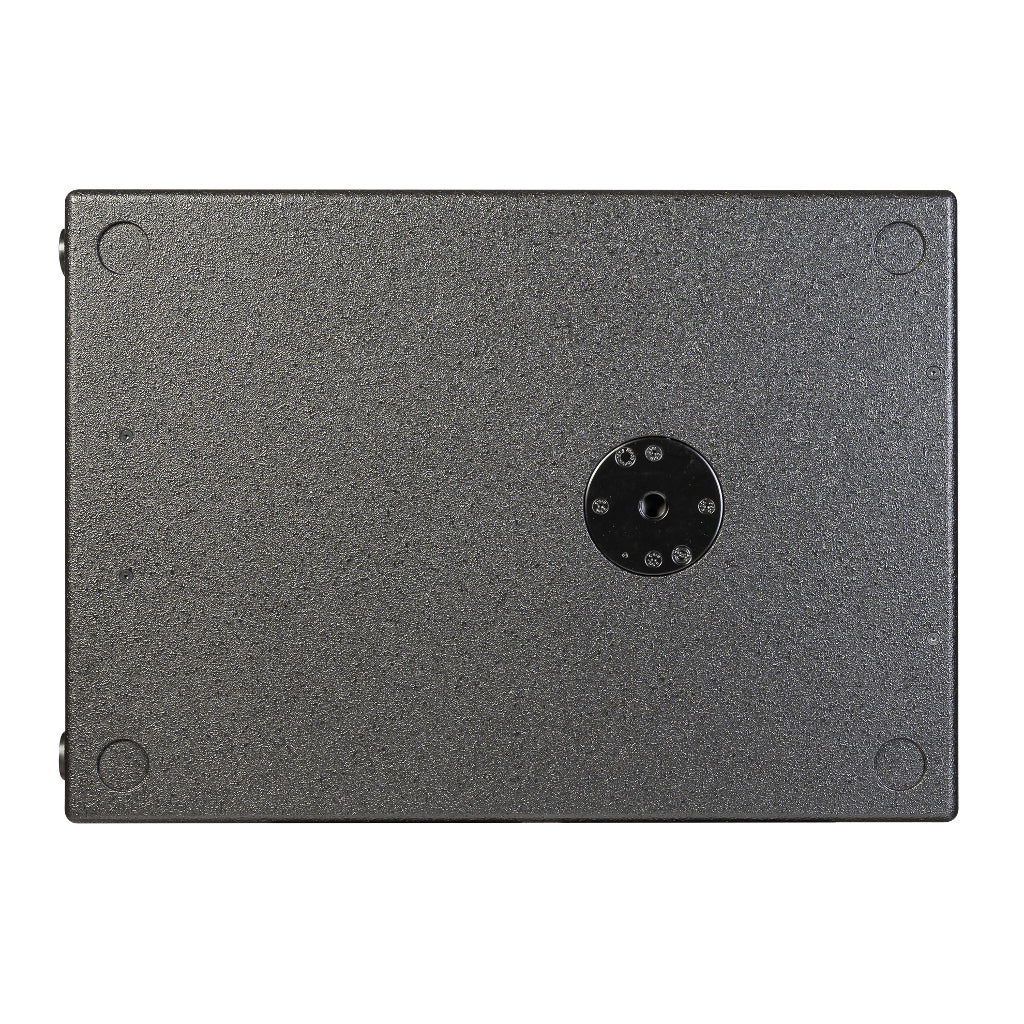

Pole mount ย  ย 1 x M20

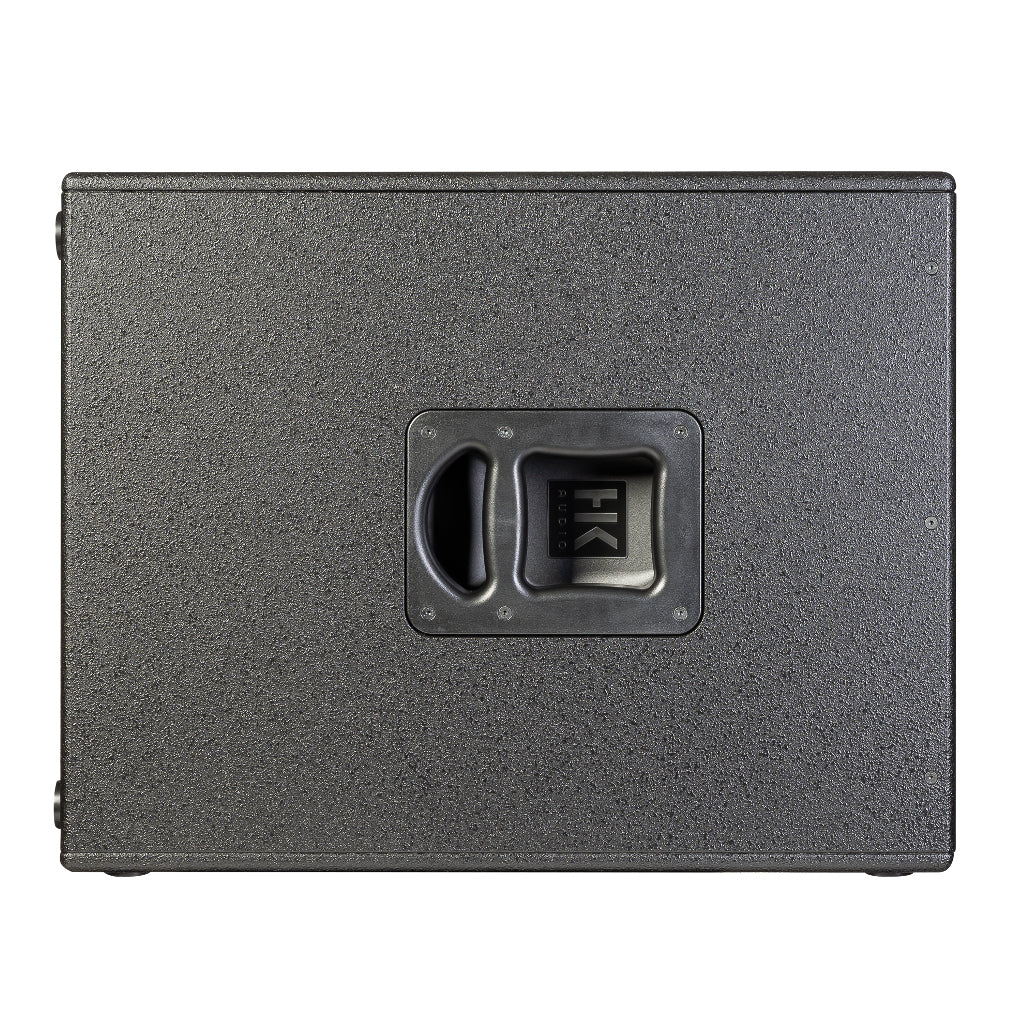

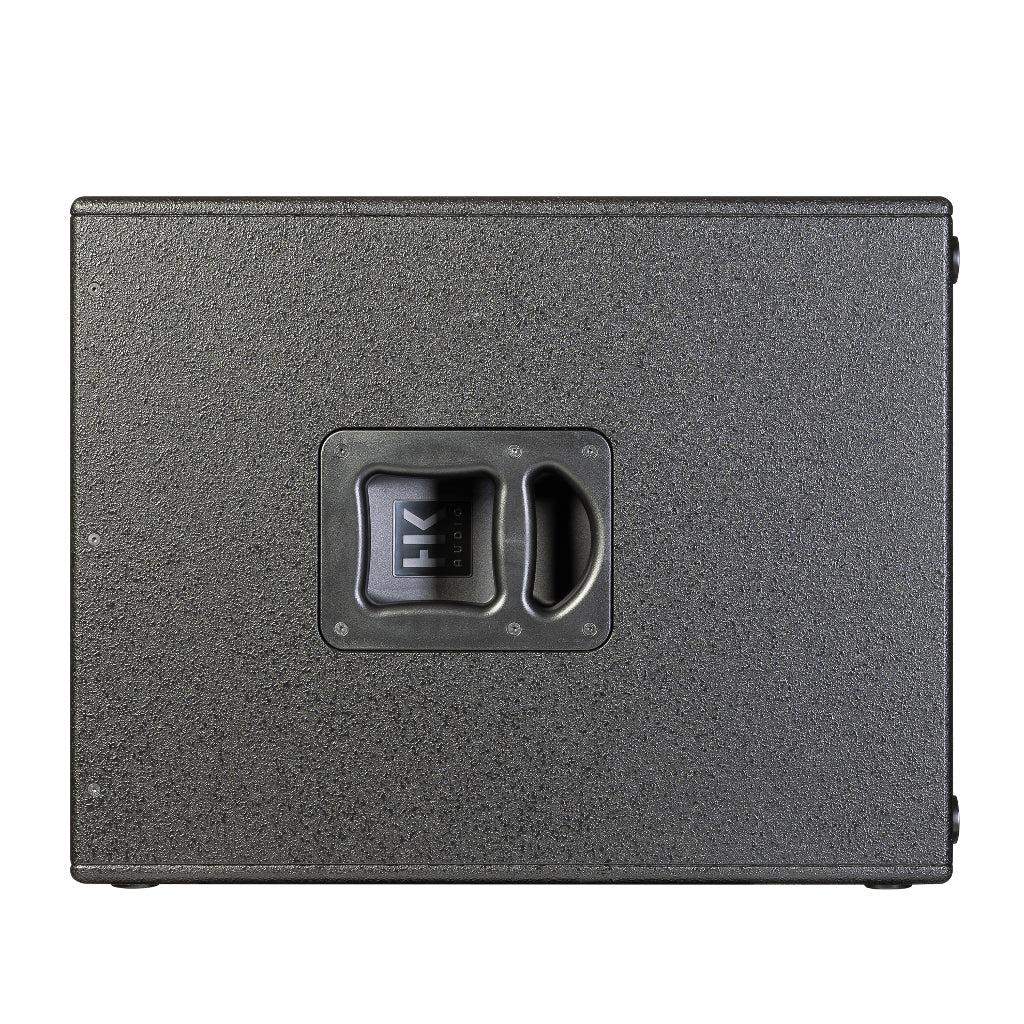

Carrying handles ย  ย 2 x MultiGrip
Housing ย  ย Hybrid (birch multiplex/MDF)
Surface ย  ย Black acrylic enamel

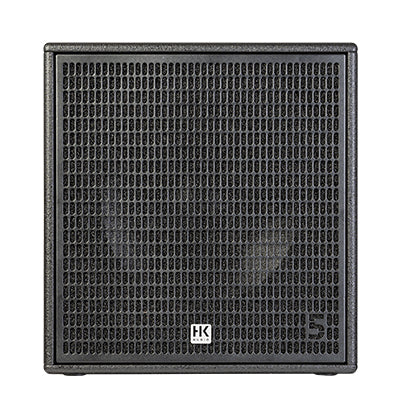

Front grille ย  ย 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) ย  ย 48 x 53.5 x 67.5 cm 18-57/64 x 21-1/16 x 26-37/64"
Weight ย  ย 32.9 kg / 72.53 lbs
