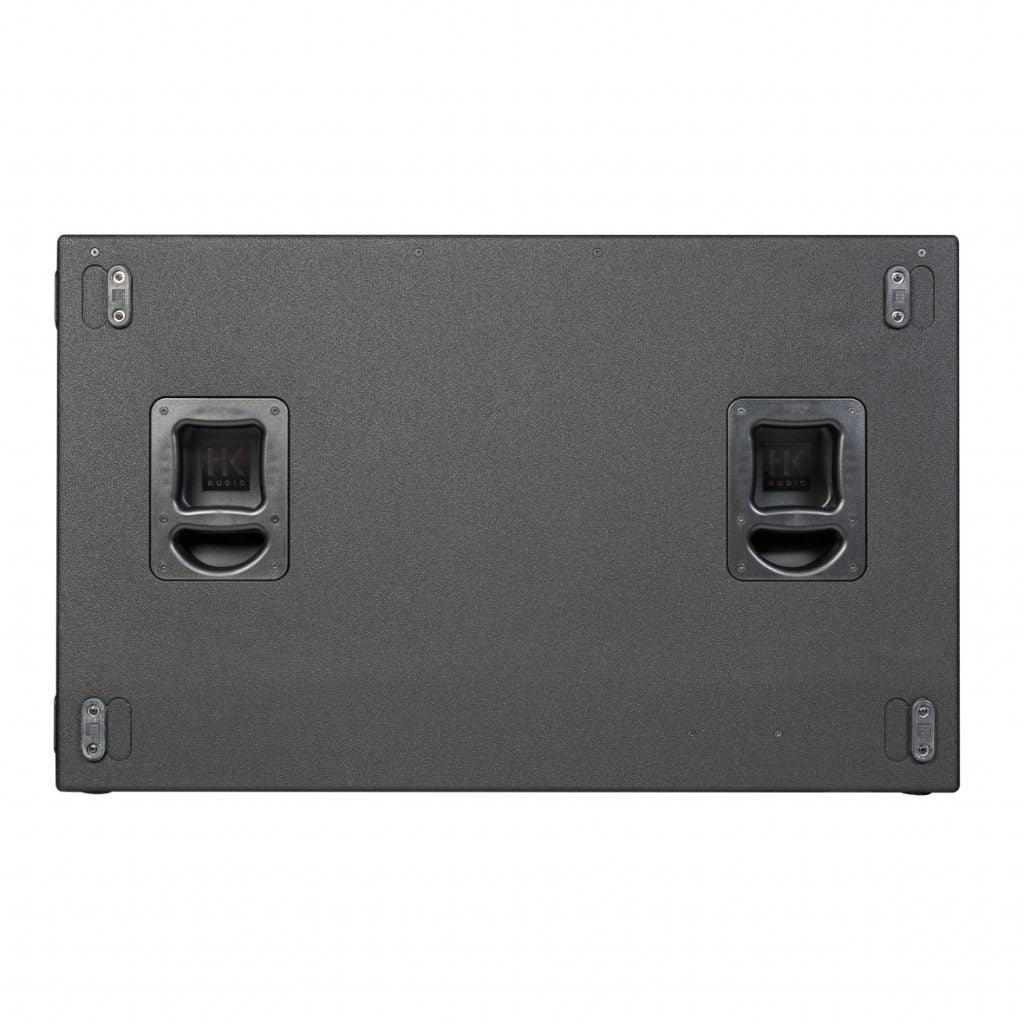

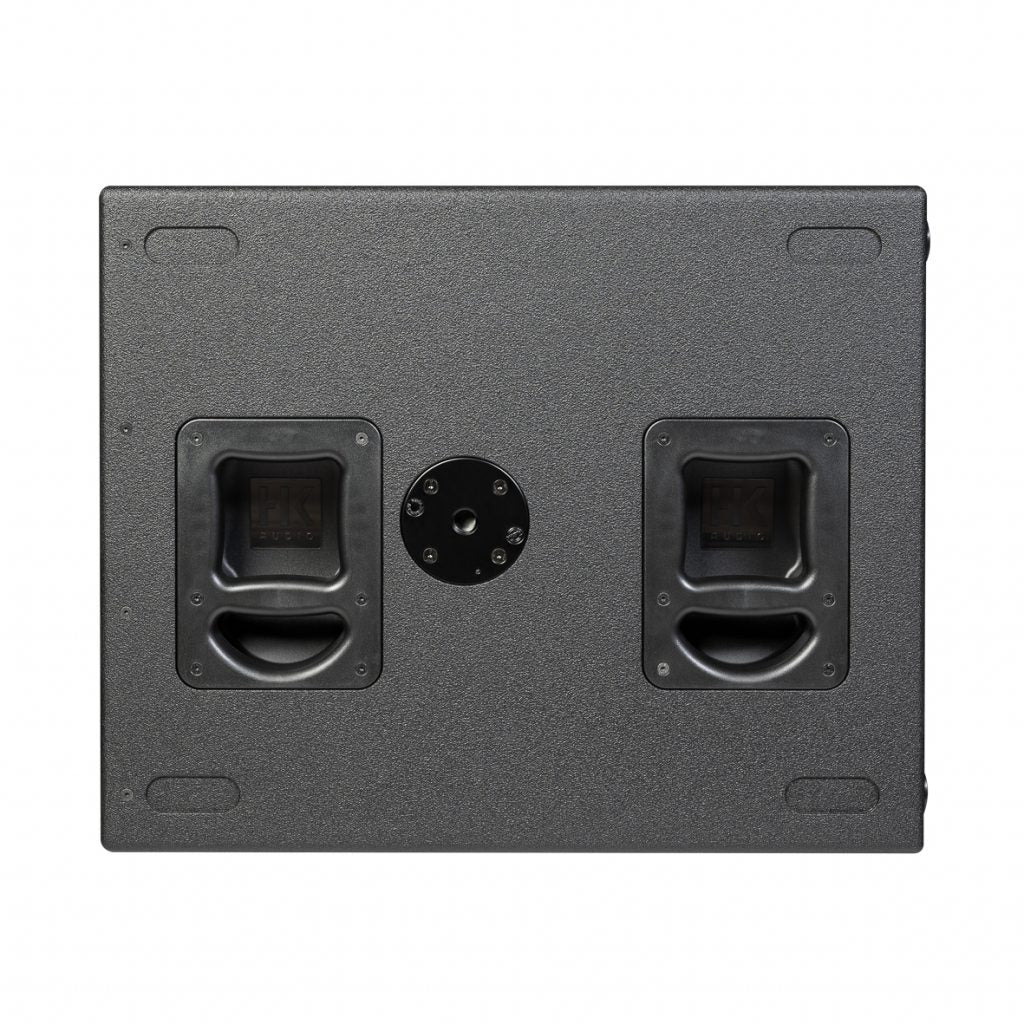

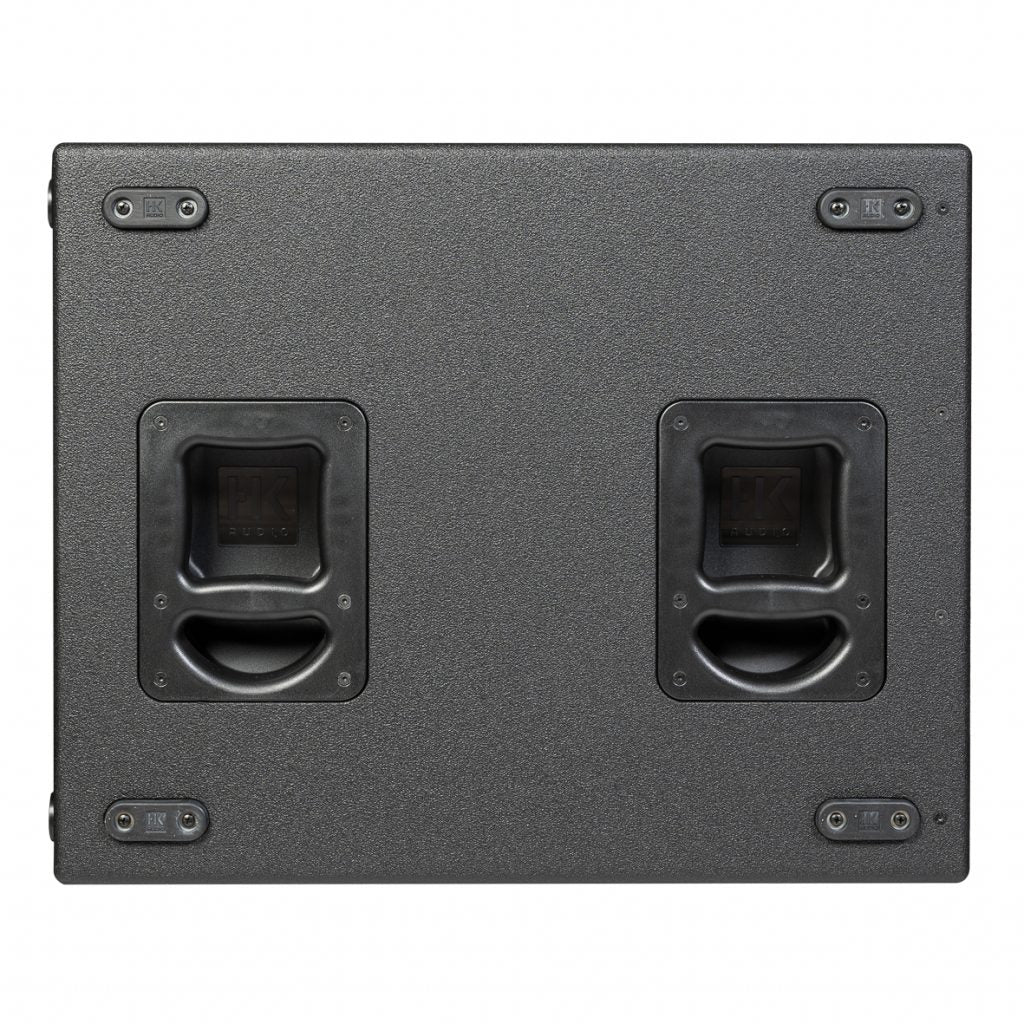

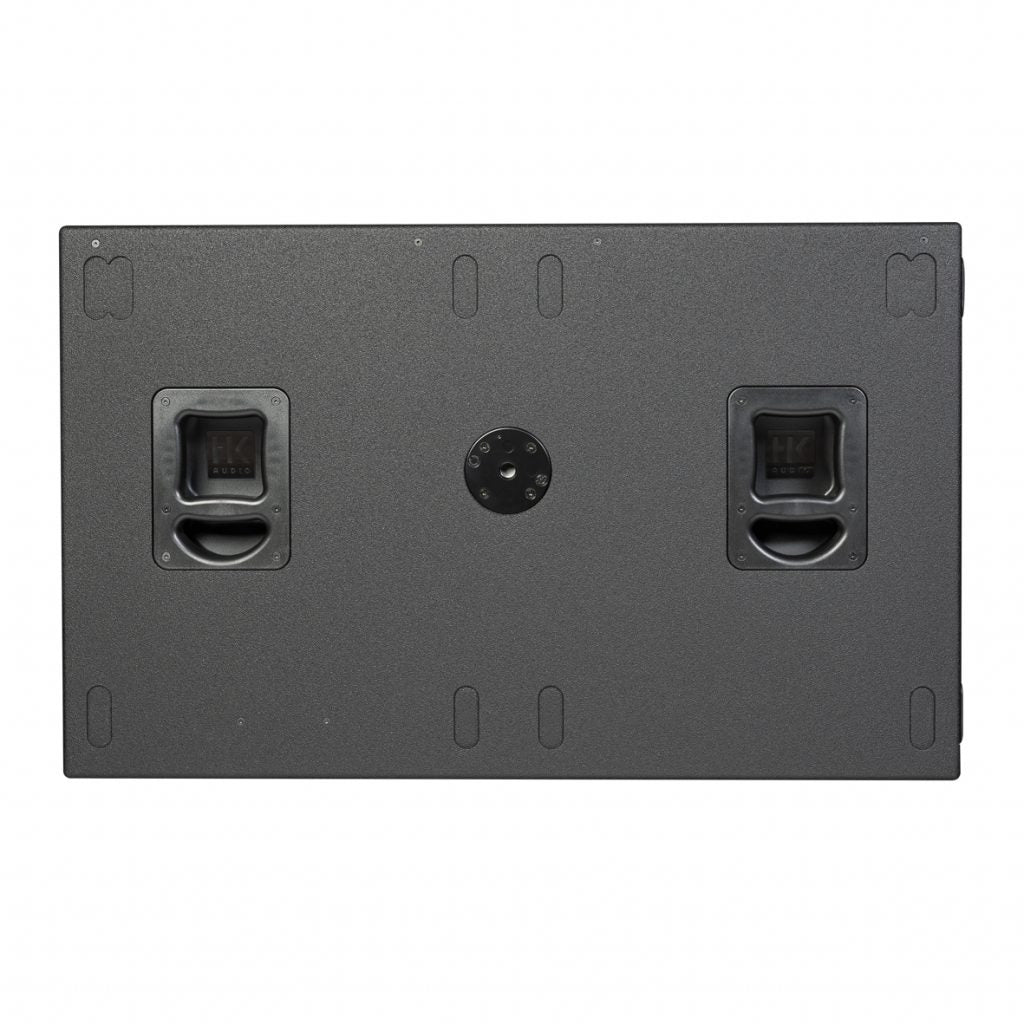

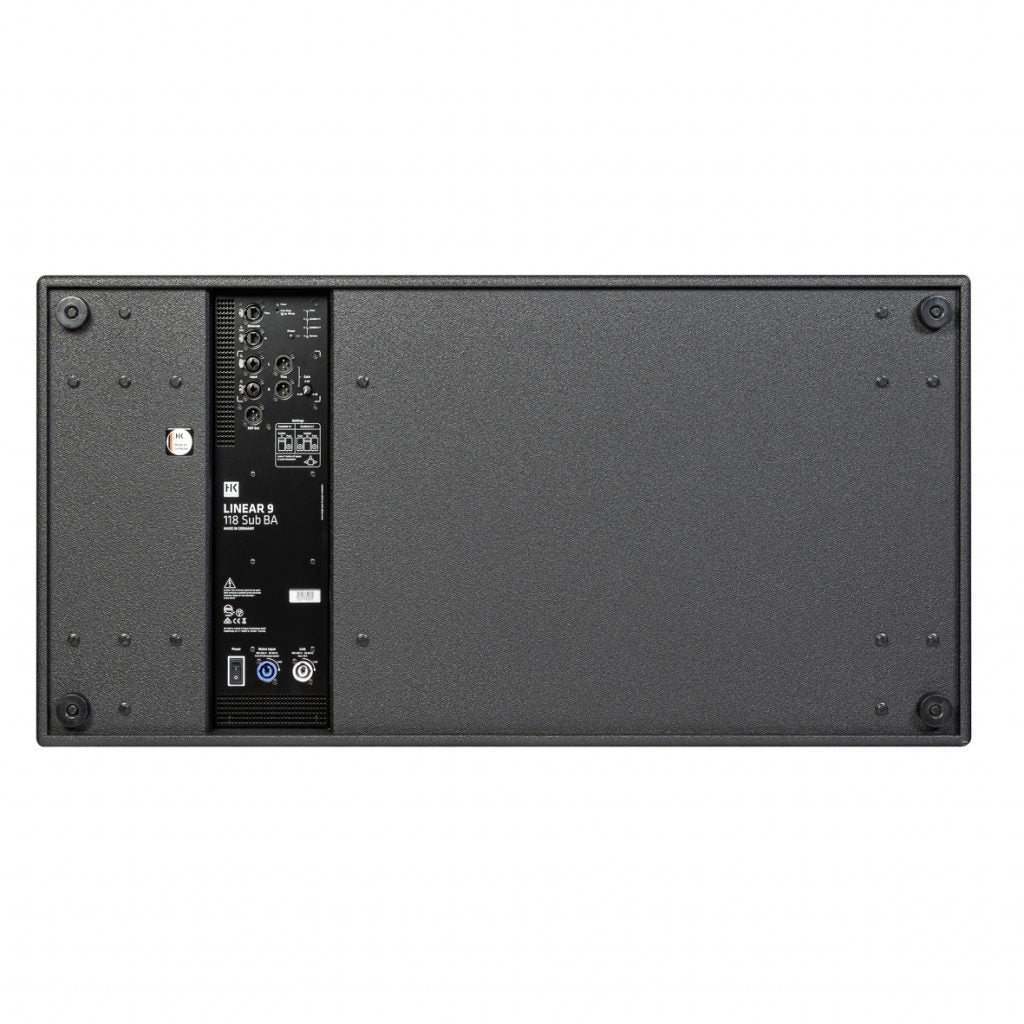

HK Audio LINEAR 9 118 Sub BA Subwoofer - Each - Black

HK Audio LINEAR 9 118 Sub BA Subwoofer - Each - Black

Powerful and deep

The LINEAR 9 118 Sub BA is a powerful 18" dual vented bandpass subwoofer. The generous size of the cabinet allows for an exceptionally high sound pressure level with a low cut-off frequency at the same time. This makes this subwoofer not only a perfect partner for powerful full-range speakers, but also an ideal sub low extension for the direct-radiating LINEAR 9 118 Sub A. Thanks to the integrated presets, cardioid setups can be implemented quickly and easily. The LINEAR 9 118 Sub BA is compatible with all LINEAR 9 Mid/High models.

Powerful and wide – coverage without loss of sound

LINEAR 9 is a great choice for both its mid/high units and its subwoofers, with outstanding low-frequency sound pressure levels. The sound quality that HK Audio is famous for is even impressively maintained right up to the back row of the audience.

Scalable

Both the LINEAR 9 210 LTA, which can be scaled for any conceivable application thanks to the possibility of horizontal clustering, and the two flexible subwoofers, which can reproduce countless subwoofer setups, demonstrate the system’s technical as well as economic scalability.

Smart

The LINEAR 9 family has a high-performance integrated DSP with additional DSP Out. The DSP not only allows users to access the right presets directly on the speakers, but also to set up larger systems on a Mac or PC using an Ethernet connection and even make adjustments mid-event. The DSP Out also makes it possible to integrate a non-networked speaker and process its signal with the DSP CONTROL software.

Professional equipment

All LINEAR 9 speakers have professional connections for safe and smooth operation in the demanding day-to-day rental business. For example, both the mid/high units and the subwoofers have lockable PowerCon and EtherCon connections. All the speaker chassis and drivers used have been specially developed for HK Audio and come from premier suppliers.

Multifunctional cabinet for an even wider range of applications

Thanks to their cabinet shape with integrated 30° slant, the multifunctional speakers are also suitable for use as transverse stage monitors. Both models offer a preset optimised for use as a monitor, which compensates for the overemphasis of the low frequencies caused by ground coupling. The practical functionality is rounded off by the standard rigging points. The combination of a multifunctional cabinet and practical features allows the XA models to be used not only as stage monitors, but also as the ideal front, side or near-fill addition to a larger setup consisting of the LINEAR 9 210 LTA.

Specifications:

Max. SPL @ 10% THD    134 dB half space (40 Hz – 110 Hz averaged)
Max. SPL peak @ 10 % THD    136 dB half space
Frequency response +/-3 dB    38 Hz – X-over
Frequency response -10 dB    31 Hz – X-over
Power amp output (RMS)    1100 W
Amp type    Class D
LF driver    1x 18", 4" voice coil
Low-/mid speaker    -
HF driver    -
Horn directivity    -
Active crossover frequency    -
Maximum input level    +20 dBu
Analog inputs    2x XLR combo balanced
Analog thru    2x XLR balanced
DSP Out    balanced
Network port    Ethercon RJ45, 1x In, 1x Thru
Filter presets    Front, Cardioid 1:1, Cardioid 2:1, Remote
Remote software    DSP CONTROL (Windows, macOS)
DSP functions    Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate    96 kHz
System latency    Less than 2.6 ms
Mains connector    1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
Power consuption    1.9 A / 100–240 V nominal according to EN 62368-1
Clustering angle    -
Angles up (Monitor angle)    -
Pole mount    2x M20
Rigging points    -
Carrying handles    8x MultiGrip
Housing    Birch multiplex
Finish    PU coating black
Front grille    2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)    111 x 56 x 69 cm 43-9/32 x 22-3/64 x 27-11/64"
Weight    63.5 kg / 139.9 lbs
