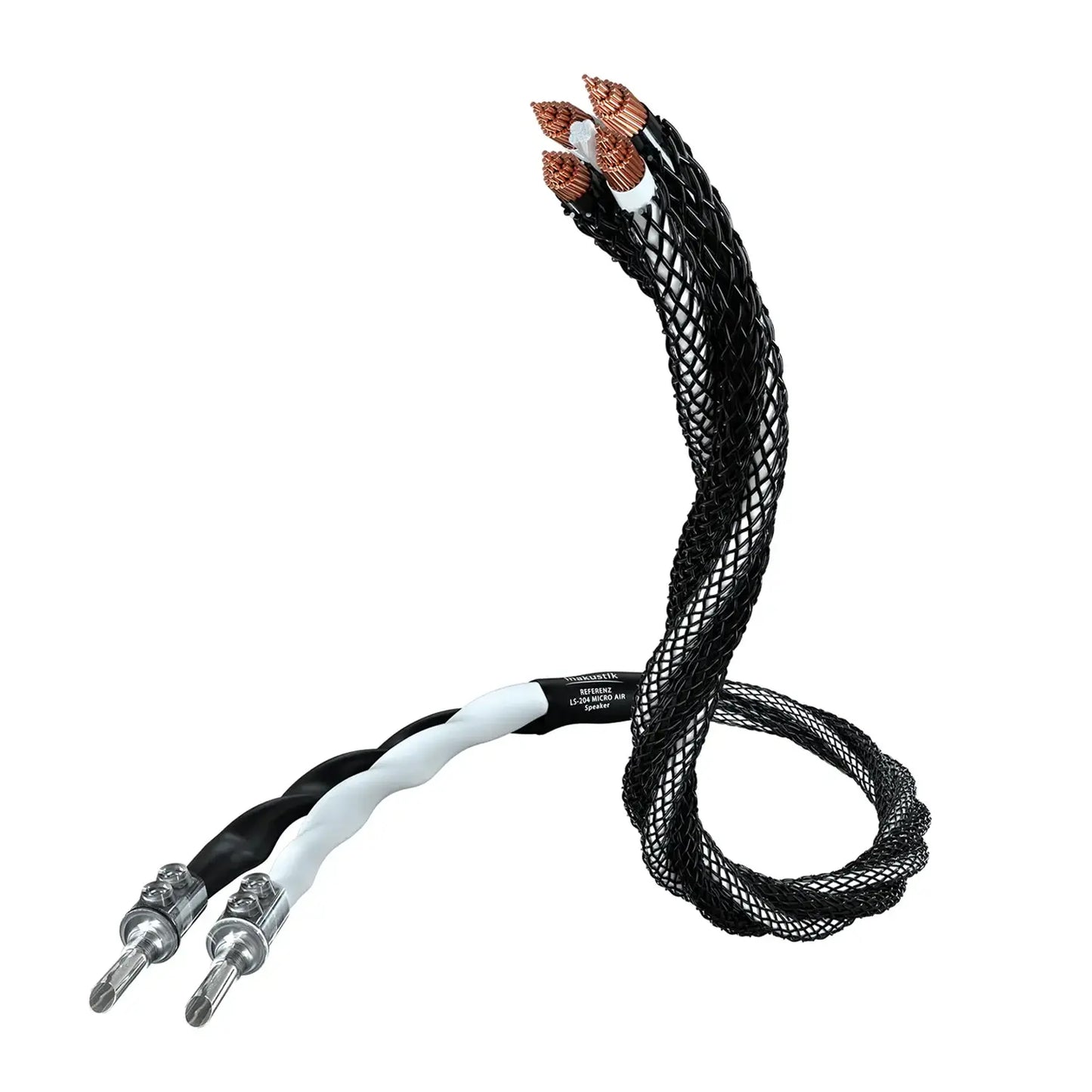

Inakustik REFERENCE LS 204 Micro Air 4 Core BFA Banana Single Wire Cable - 3m - Pair

Inakustik REFERENCE LS 204 Micro Air 4 Core BFA Banana Single Wire Cable - 3m - Pair

Like the flagship model, the LS-204 is also based on Micro Air technology. The difference lies in the multicore architecture. Compared to the XL version, the LS-204 has four instead of six Concentric Copper conductors. This cable boasts an agile character and was primarily developed for slim floorstanding speakers with smaller bass drivers. The Referenz LS-204 Micro AIR is available as a single-wire version with BFA bananas or spade lugs, or as an Easy Plug version.

Micro AIR technology

We are not able to switch off the laws of nature, so the best we can do is use them as ingeniously as possible. Due to the laws of nature, every cable exerts so-called parasitic effects. These include capacitance – the capacity to store energy like a battery and release it again with a time delay. This effect has a considerable impact on the transmission of audio signals and is therefore unwelcome. Capacitance is a physical property, and its value depends on a number of different factors, one of the most important of which is the insulation material used, also known as the “dielectric”. The dielectric material can considerably increase the capacitance of the cable. Because air doesn’t do this, it’s ideal for insulation purposes. One of the insulation elements in the Micro AIR technology is a complex, diamond-shaped structure. The tiny chambers created by this structure increase the distance between the conductors and raise the air content of the insulation. This method reduces troublesome capacitance effects and optimizes the cable’s transmission characteristics for the sensitive audio signals it needs to transport.

Concentric copper

Unlike the sometimes chaotic arrangement of individual wires in conventional conductor designs, concentric copper conductors are arranged in a precisely defined multi-layer pattern. This design reduces irregular contact points between the wires, which harmonizes the signal flow and minimizes runtime differences. Impulses can be reproduced with pinpoint accuracy and the spatial information of the music is retained. A thin layer of polyethylene protects the high-purity copper from oxygen and thus from oxidation.

Copper is the best electrical conductor after silver under normal conditions. Compared to cheap CCA (Copper Coated Aluminum) in particular, copper has a significantly better conductivity and is also mechanically more resilient. The conductors of the Micro AIR cables are made of high-purity OFC (Oxygen Free Copper).

Details:

Application: High-end speaker cable
Cable diameter: 10.5 mm
Conductor cross-section: 2 x 5.24 mm² (4 x 2.62 mm²)
Conductor design: Concentric copper
Conductor material: High-purity OFC copper
Conformity: CE, REACH, RoHS
Connection type: SBW, SW
Connector housing: Solid metal
Contact enhancement: Rhodium-coated
Contact material: Beryllium Copper (BFA Banana), Brass (cable lug)
Customized assembly: On request
Design: 4-fold multicore
Dielectric: Air chambers
Length: 2 x 3 m
Product group: Loudspeaker cables
Product category: Referenz speaker cables
Quality: Referenz
Technology: Micro AIR, Multicore
Connector: Banana, Cable lug, Easy Plug
Connector highlight: Spring-loaded contact fork
Made in Germany: Yes
Free trial listening: Yes
