JBL

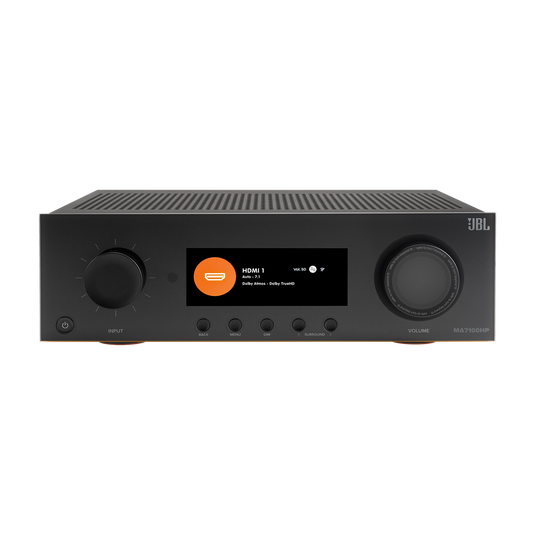

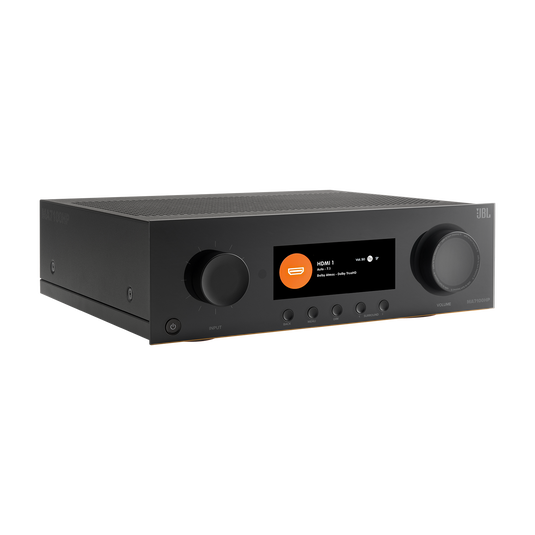

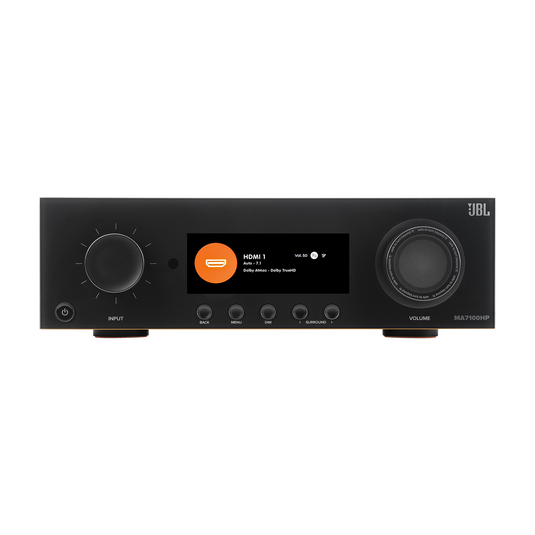

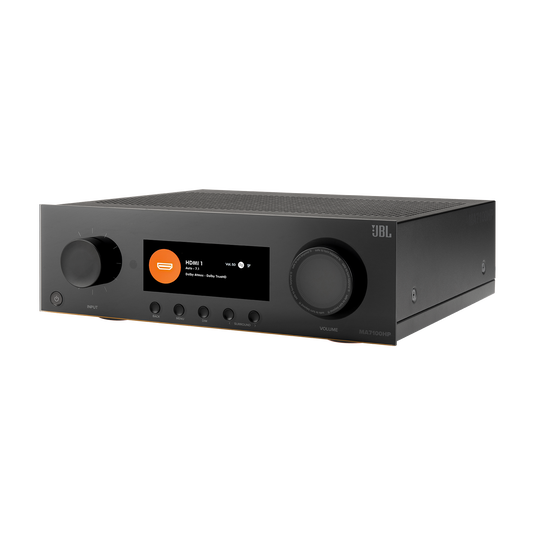

JBL MA7100HP 7.2 Channel 8K High Performance AV Receiver - Black

Regular price R 41,999.00
Regular price Sale price R 41,999.00
Sale Sold out
Tax included.

JBL MA7100HP 7.2 Channel 8K High Performance AV Receiver - Black

ย

Description

Bring both music and movies to life with true high fidelity.

The JBL MA7100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. Designed with a passion for music and movies, the MA7100HP brings both to life with true high fidelity. The MA7100HP features seven channels of low-noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Taking performance to the next level, the MA7100HP comes โ€œDirac Live Readyโ€ for automatic room correction, assuring audiophile-quality sonics and allows integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can also be made available in a secondary location. In addition to physical controls, the MA7100HP allows for IP control for third party control system integration.

ย

Stunning audio and video performance

High-performance 7.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience

ย

Intuitive setup with a minimalist modern design

Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 6 HDMI inputs and 2 outputs, plus eARC

ย

High-performance immersive surround sound

Dolby Atmos and DTS:X decoding, supports up to 7.1 or 5.1.2 channel configurations

ย

Features:

  • Bluetooth and network streaming: Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast)
  • Powerful Amplification: Seven channels of low noise Class D amplification for real world power to all channels.
  • EZ Set EQ: EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
  • Ready for Dirac Live room correction: Comes Dirac Live Ready, fully prepared to run Dirac Live - the worlds most advanced room correction software.

ย

General Specifications

HDMI eARC
Yes
HDMI Audio Return Channel
Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
3
HDMI 2.1 enhanced gaming features
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision
Yes , Yes
File format
MP3 / MPEG-4 AAC
Pure Analog
Yes
EZ Set EQ
Yes
Front channel bi-amp
Yes
Digital signal processing
up to 24-bit/192kHz

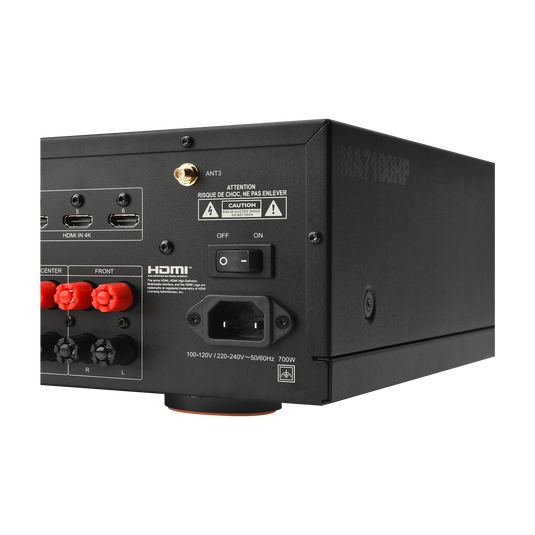

Mains voltage
110 โ€“ 240V, 50โ€“60Hz
Max. power consumption
700W
Standby power consumption
<0.5W

ย

Audio Specifications

Channels
7.2
FTC Rated Output Power (20Hzโ€“ 20kHz, 2 channels driven, 1% THD max, 8ฮฉ)
125W
Rated Power @ 8ฮฉ (20Hz โ€“ 20kHz, 2 channels driven, 0.5% THD max)
125 W RMS
Rated Power @ 4ฮฉ (20Hz โ€“ 20kHz, 2 channels driven, 0.5% THD max)
175 W RMS

ย

Dimensions

Dimensions incl. feet and speaker terminals (H x W x D)
5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm)
Weight
16.4lb (7.4kg)

ย

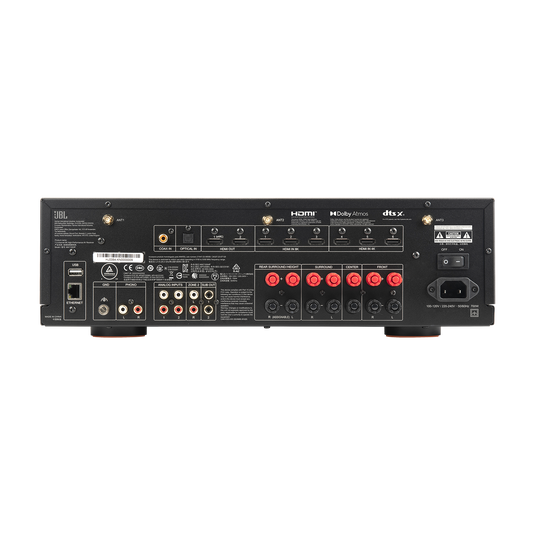

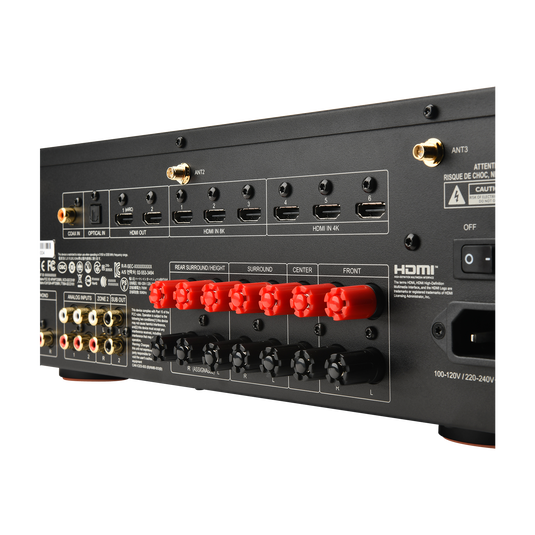

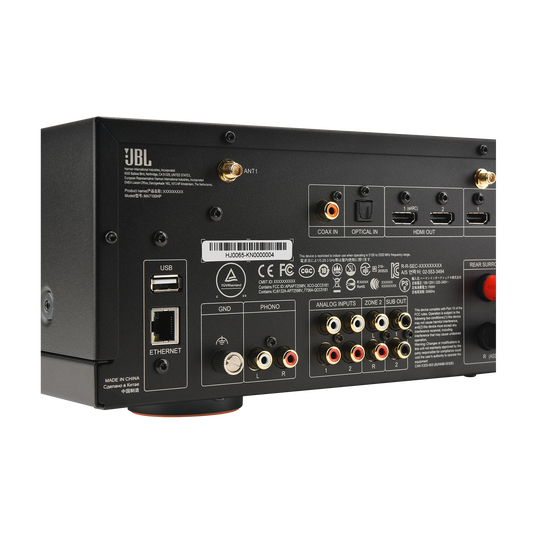

Control and Connection Specifications

HDMI Input/Output
6/ 2
Wi-Fi
Yes (2.4/5GHz)
Bluetooth receiver
Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)
Bluetooth transmit
Yes
Digital Audio Input
1 Coax, 1 Optical, 1 USB
Stereo analog input
2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground
Pre-Out (single ended RCA)
Stereo Zone 2, Subwoofer 1, Subwoofer 2
Ethernet
RJ45 Gigabit, WiFi Onboard

ย

What's in The Box?

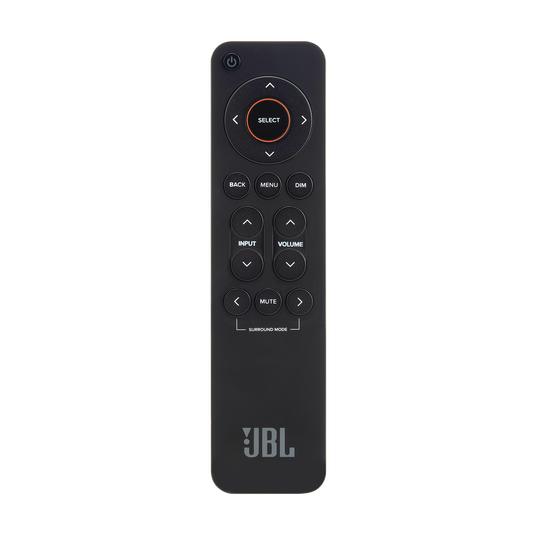

1x IR Remote
2x AAA batteries
1x Bluetooth antenna
2x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
