JVC DLA-NZ700 Compact Native 4K Laser Home Cinema Projector (Black)

JVC DLA-NZ700 Compact Native 4K Laser Home Cinema Projector (Black)

Gen3 0.69-inch Native 4K D-ILA Devices (x3) / 80.000:1 native contrast / New BLU-Escent Laser 2,300-lumen / Gen2 Frame Adapt HDR with Deeper Blacks / New Picture mode “Vivid”

All Components Redesigned

The optical unit, lens, and circuit board have all been redesigned to achieve the world’s smallest native 4K projector.

High Brightness and Long life

JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-NZ700 achieves a high brightness of 2,300lm and the DLA-NZ500 2,000lm. Both models have a laser life expectancy of approximately 20,000 hours.

Superior Resolution

Newly designed large aperture (80mm, 11groups, 15lenses) 4K compatible lens delivers full native 4K D-ILA resolution to every corner of the screen.

Gen2 Frame Adapt HDR Function for Brighter and More Colorful HDR Images

The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful and have a wider dynamic range.

Deeper Blacks for Richer Gradation

The new Deep Black Tone Control has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.

Features

• Completely redesigned interior and exterior results in world's smallest native 4K projector
• New BLU-Escent Laser Light Source
• New 80mm, 15-element, 11-group high-quality lens
• Native Contrast Ratio of 80.000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1

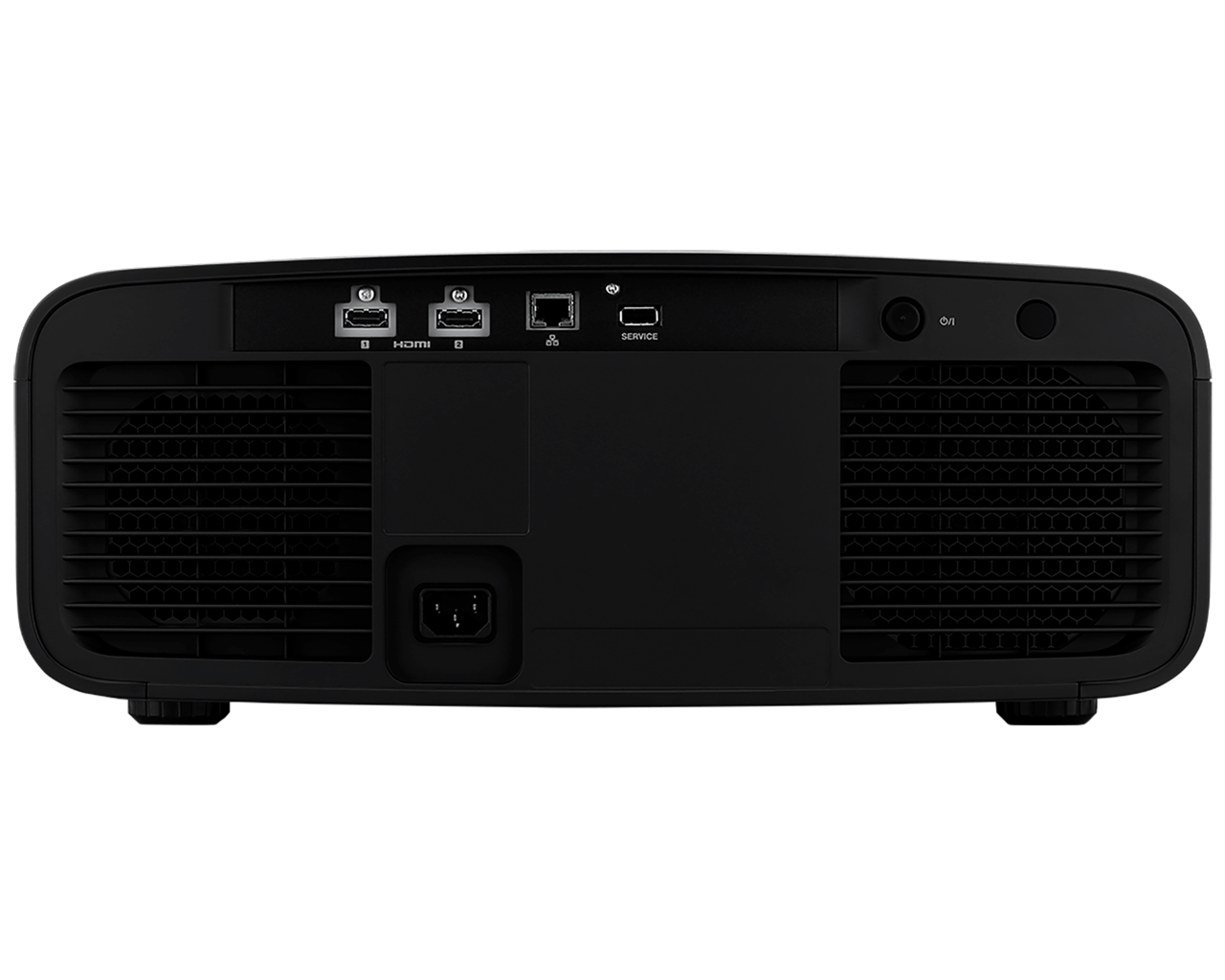

• 2x HDMI (32 Gbps, HDCP 2.3) inputs, supporting 4K60P input signals
• HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
• Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images. It includes improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.
• Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
• FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
• For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.

• 3rd Generation 0.69-inch 4K D-ILA (4096 x 2160) device x 3
• High brightness of 2,300 lm provides vibrant and dynamic images
• ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
• Color Management System with 6-axis Matrix
• Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
• Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
• Auto-Calibration Function using an optical sensor.
• New picture mode ”Vivid” for SDR Images
• DML (Display Mastering Luminance) adjusts/sets the dynamic range for better HDR experience

Specifications:
