Klipsch

Klipsch Designer DS-160CDT Skyhook Cinch In-Ceiling Speaker - Each- White

Regular price R 4,699.00
Regular price Sale price R 4,699.00
Sale Sold out
Tax included.

Klipsch Designer DS-160CDT Skyhook Cinch In-Ceiling Speaker - Each- White



Featuring the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160CDT features a 6.5” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook™ patented Cinch by Swarm Installation System, your install time is reduced by 75%.



HORN-LOADED PERFORMANCE

Using the same Tractrix® horn technology and design principles of our premium architectural and box speaker lines, the all new Klipsch Designer series brings true Klipsch power and performance. With a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn, the DS-160CDT brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theater, or 2-channel system.



EXCLUSIVE PATENTED SKY HOOK® CINCH INSTALLATION SYSTEM

This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. If dealing with an uneven space, a 1/4 turn of each dog leg screw achieves an even more flush finish. This fast, easy installation system reduces install time by up to 75%.



CONTROLLED DISPERSION TECHNOLOGY™ CDT

 technology allows for the tweeter and the woofer to be aimed up to 15° in any direction, helping to ensure on-axis frequency response at almost any listening position.

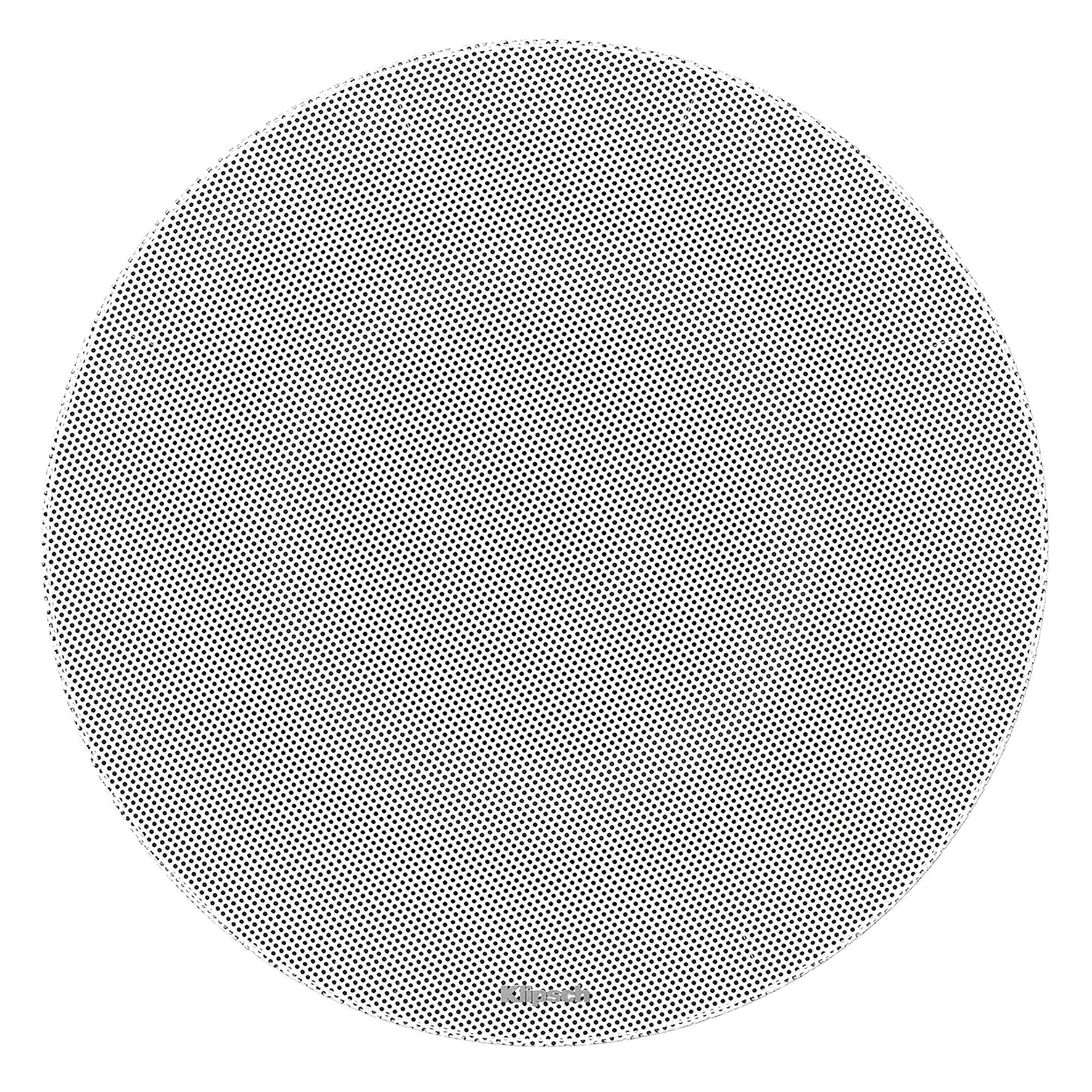

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

 A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space



Specifications:

FREQUENCY RANGE: 65Hz-20KHz +/- 3dB
HIGH FREQUENCY DRIVER: 1" (25.4mm) Silk Dome Tweeter mated to a round                                                             Tractrix® Horn
LOW FREQUENCY DRIVER : 6.5” (165.1mm) Polypropylene Woofer
SENSITIVITY: 91 dB @ 2.83V / 1m
COVERAGE ANGLE: 100°
POWER HANDLING: 50W RMS / 200W RMS
IMPEDANCE: 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE: ABS/Infinite Baffle
FINISH: Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS: 9.17” W x 9.17” H x 4.53” D (233mm H x 233mm W x 115mm D)
MOUNTING DEPTH: 4.41” (112mm)
CUTOUT DIMENSIONS: 7.99” (203mm)
PRODUCT WEIGHT: 7 lbs (3.18kg)
INCLUDED IN BOX: Round Magnetic Grille
INSTALL KIT: IK-650-C II (Sold Separately)
FIRE RATED ENCLOSURE: ME-650-C (Sold Separately)
BUILT FROM: 2017
