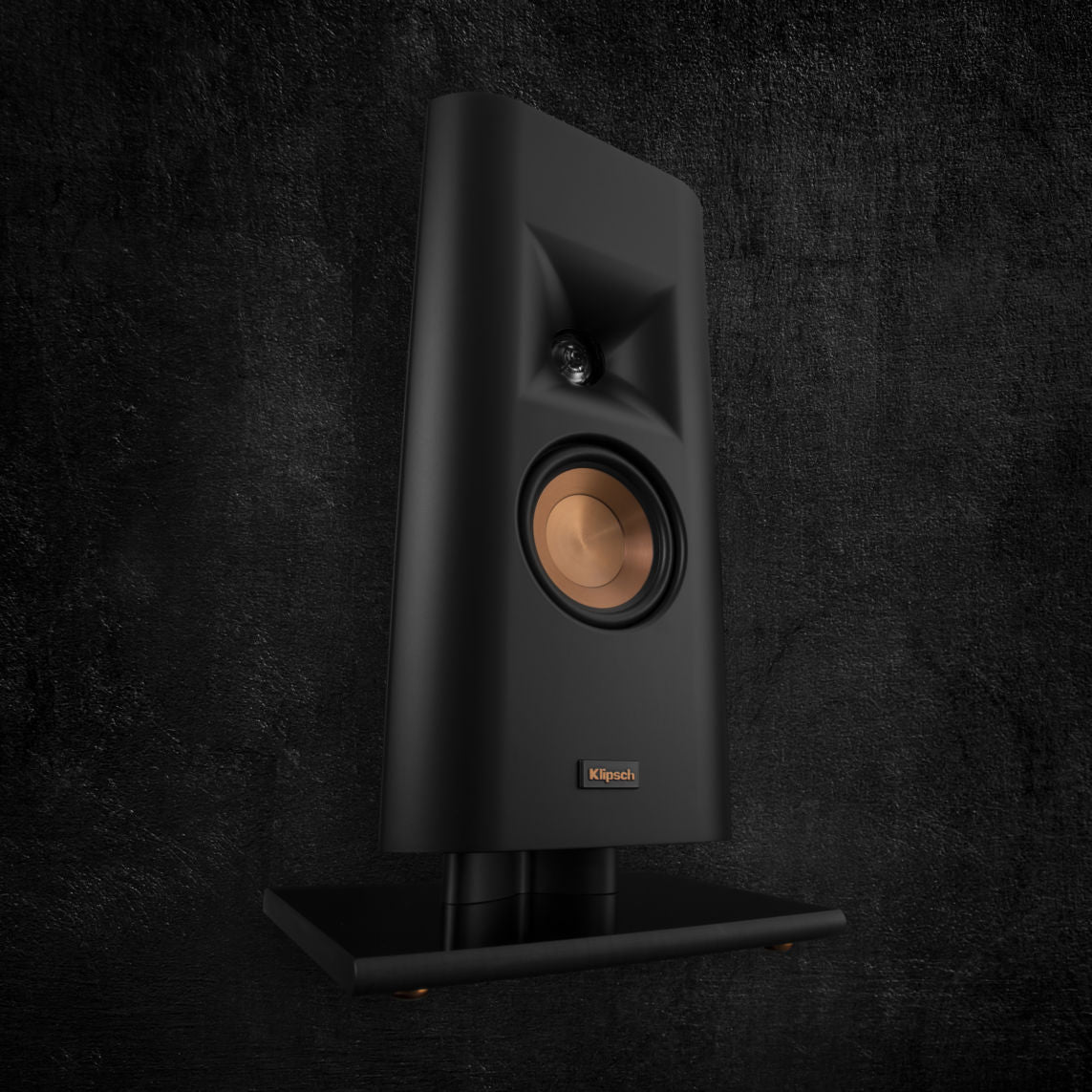

Klipsch RP-140D On-Wall Speaker - each - Black
The Reference Premiere Designer On-Wall RP-140D brings the dynamic, detailed, powerful sound of the Reference Premiere box speakers to a slim, on-wall solution. Featuring a 3.5” Cerametallic™ woofer and 1” Titanium Dome Linear Travel Suspension (LTS) tweeter, this on-wall speakers offers flexible placement for front LCR, or side/rear surrounds.
Slim On-Wall Solution Matches Today's Ultra-Flat TV's
Reference Premiere Horn Loaded Acoustic Technology

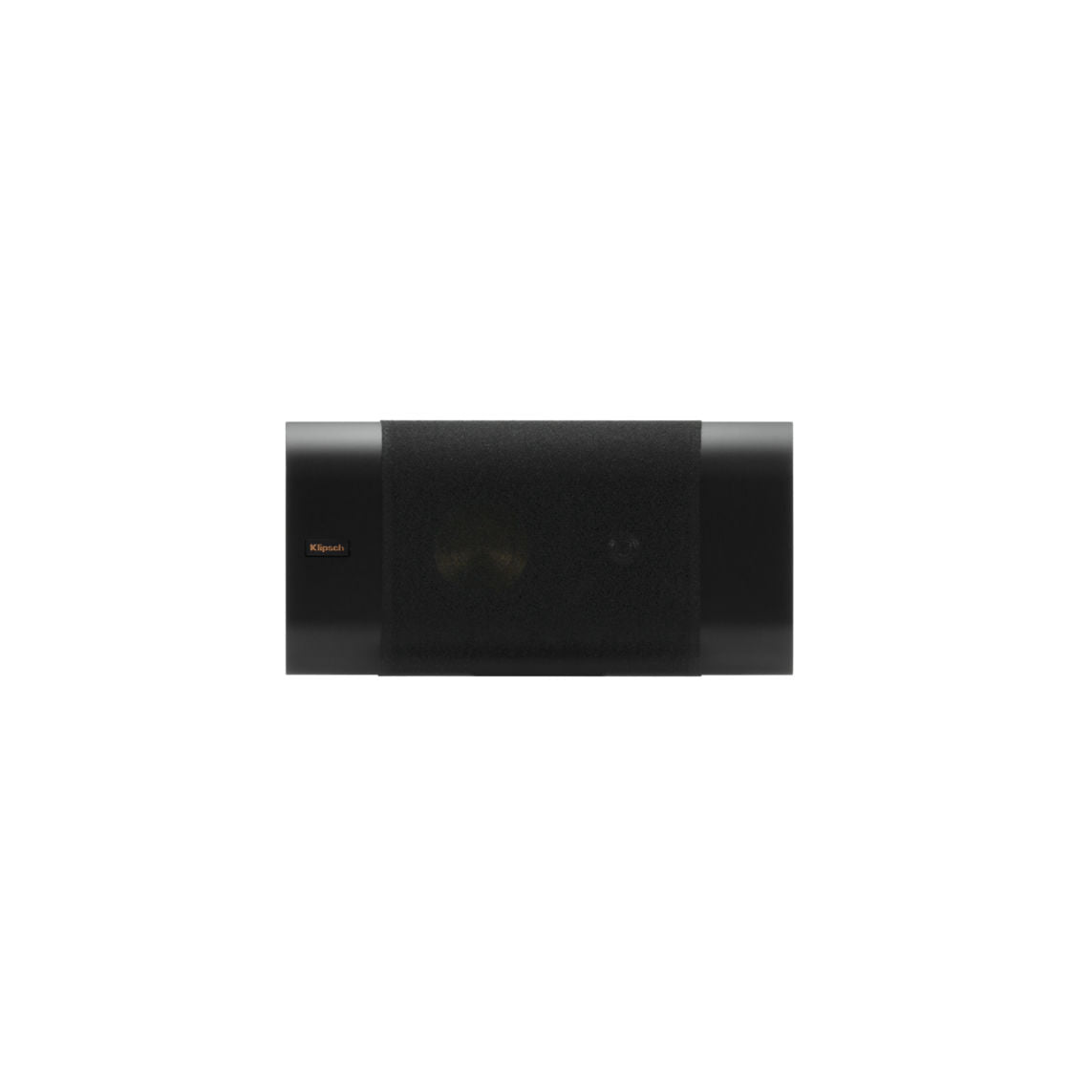

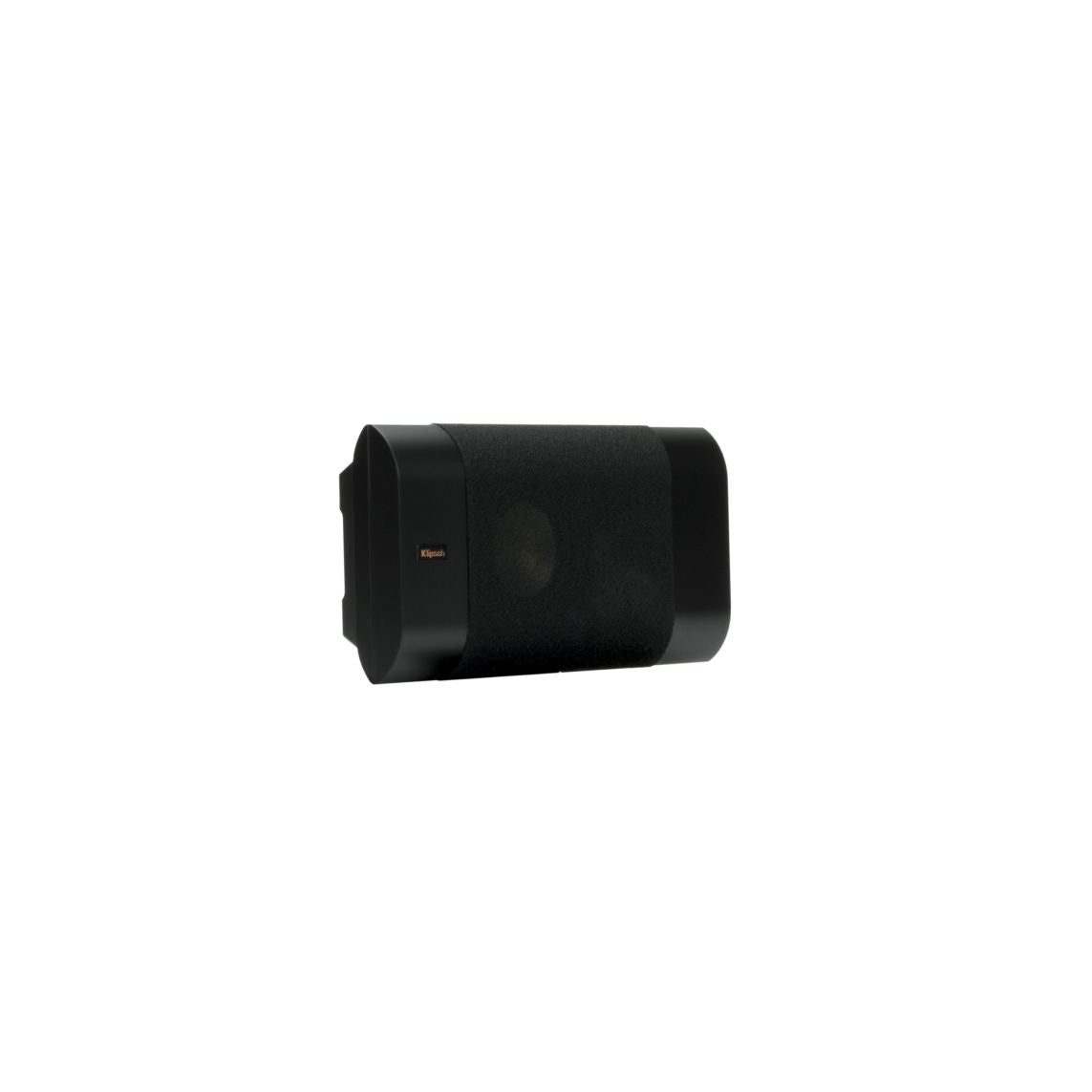

Horizontal and Vertical Mounting Options
Single 1” Titanium Dome Linear Travel Suspension (LTS) tweeter
Single 3.5" Cerametallic™ Woofer
Dual 4-Way Keyholes for secure on-wall mounting
Magnetic Wrap-Around Grille
Included glass base for table-top mounting
Matte Black Painted Finish Blends Seamlessly into Today’s Modern Interiors
Frequency Response 69Hz-25kHz +/- 3dB
Sensitivity 91dB @ 2.83V / 1m
Power Handling 50W / 200W
Nominal Impedance 8 Ohms Compatible
Crossover Frequency 2200Hz
High Frequency Driver 1” (2.54 cm) Titanium Dome LTS Tweeter with 90°x90° Tractrix Horn
Low Frequency Driver 3.5” (8.89 cm) Cerametallic Cone Woofers
Enclosure Material ABS
Enclosure Type Bass Reflex
Inputs Single Binding Posts
Height 12" (30.48 cm)
Width 6" (15.24 cm)
Depth 2.4" (6.10 cm)
Weight 3.75 lbs (1.7 kg)
Finish Matte Black Paint
Built From 2017
90X90 TRACTRIX HORN
The Tractrix® horn geometry helps to improve high-frequency response and extension, while enhancing imaging and dynamics. It also focuses the high frequency sounds towards the listening area, for the cleanest, most natural sound possible.
Reference Premiere Designer On Wall 1
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM TWEETER
The same tweeter used in the Reference Premiere box line, a Linear Travel Suspension maximizes dynamics for enhanced, detailed performance. LTS Tweeters have been a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.
Reference Premiere Designer On Wall 4
SPUN COPPER CERAMETALLIC WOOFERS
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix Horn-loaded LTS tweeter, it provides speaker efficiency highest in its class.
Reference Premiere Designer On Wall 3

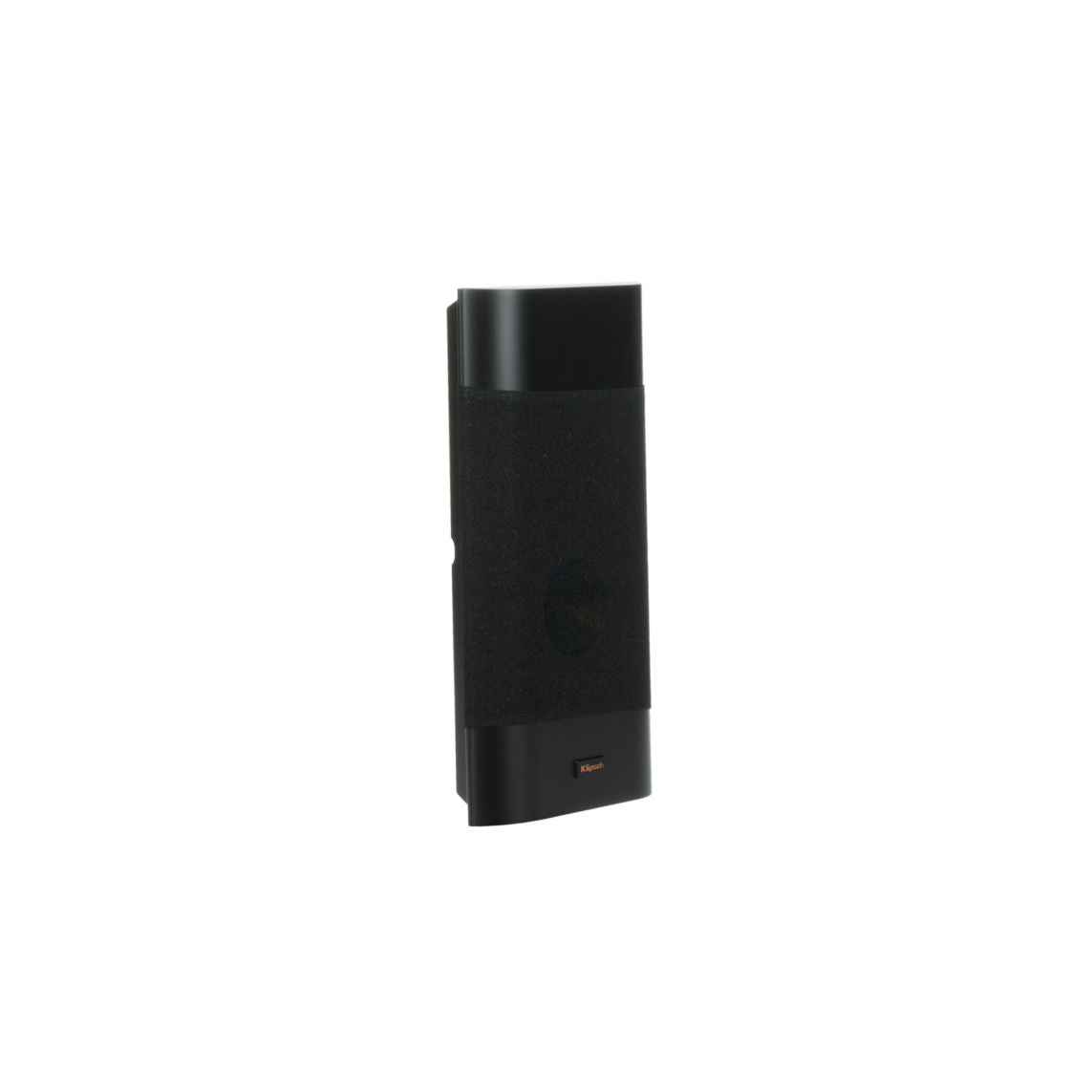

WRAP-AROUND MAGNETIC GRILLE
Front grill attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.
Reference Premiere Designer On Wall 2

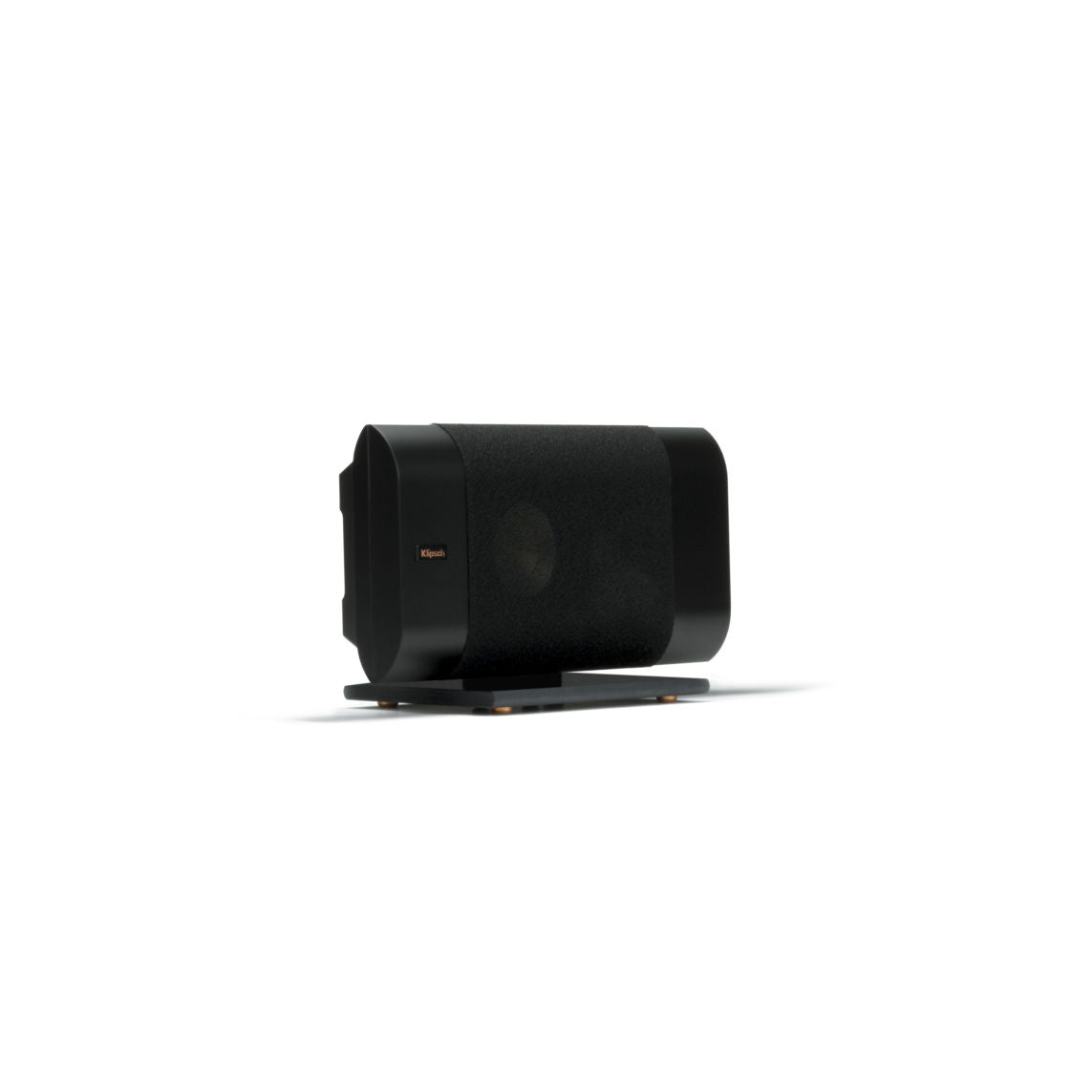

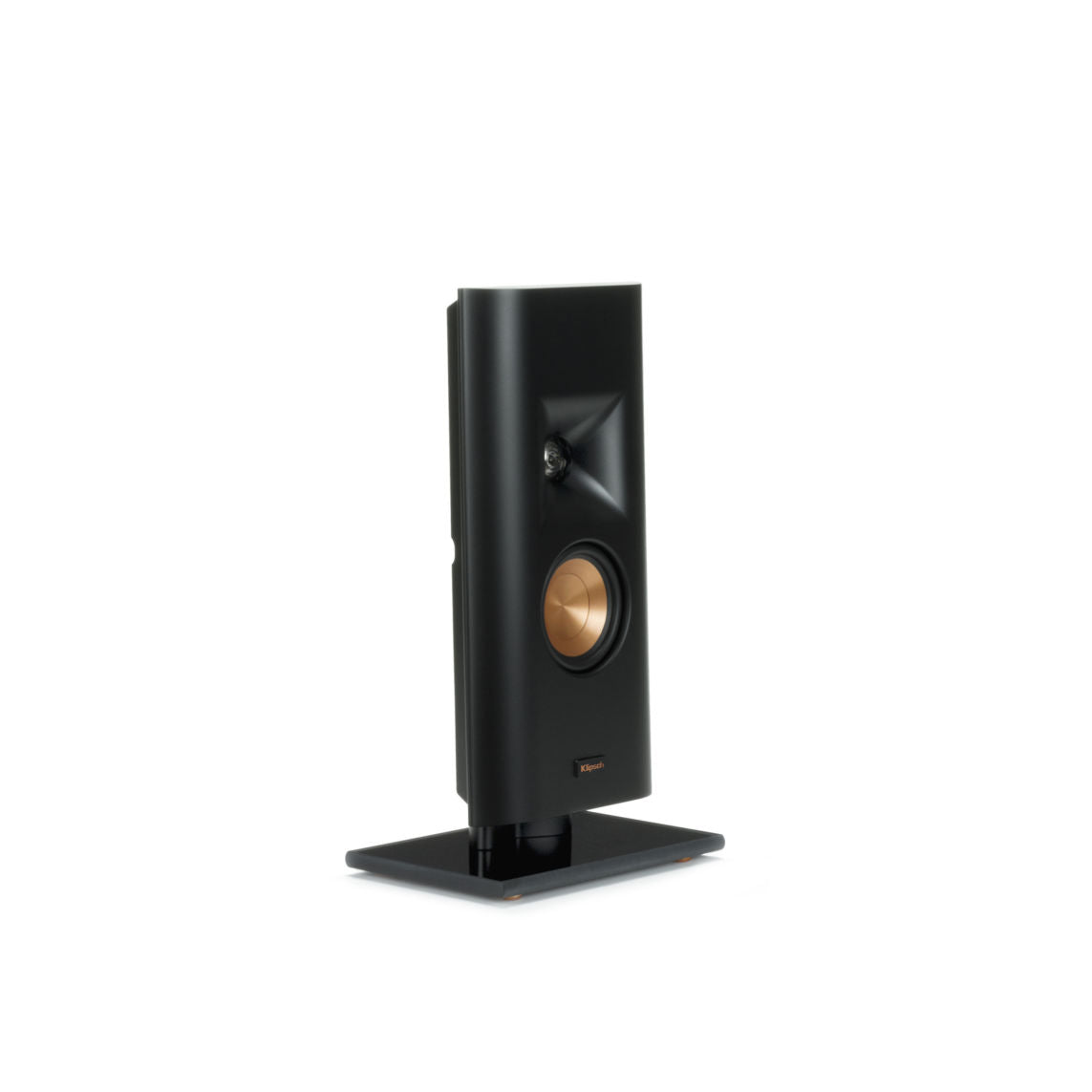

TABLE MOUNT INCLUDED
Dual four-way keyholes allows for easy, tight-to-the-wall mounting either vertically or horizontally, while the included glass base provides a luxurious, modern table-top or bookshelf option.
