Magnetar

MAGNETAR UDP900 4K Ultra HD Blu-ray Player

Regular price R 85,990.00
Regular price Sale price R 85,990.00
Sale Sold out
Tax included.

MAGNETAR UDP900 4K Ultra HD Blu-ray Player

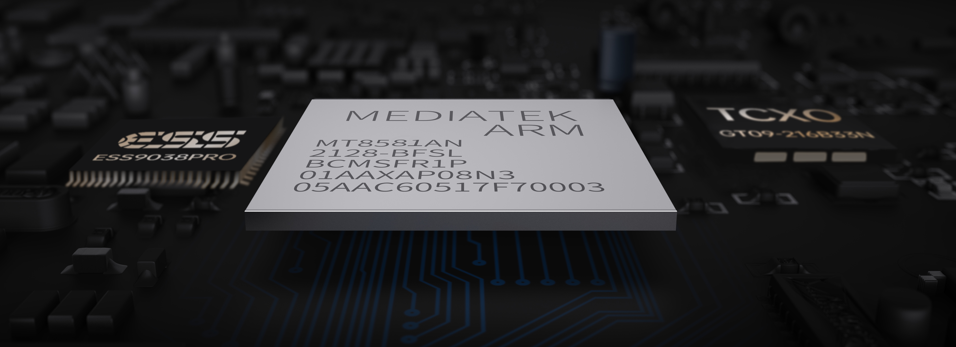

The latest designed 6-layer gold immersion main PCB circuit adopts high-precision, ultra-low noise TCXO temperature compensated crystal oscillator doubling the high precision LDO power supply processing on the UDP800. Murata multilayer ceramic capacitor TDK magnetic devices and 30 NCC electrolytic capacitors further improves audio and video quality.Both audio boards use 4-layer PCB circuit boards, each channel is designed with independent wiring,equipped with high precision, ultra-low phase noise TCXO temperature compensated crystal, oscillator, numerous ELNA, NCC audio capacitors pairing with Red WIMA, ELNA SILMIC II capacitors, and independent high-power linear power supply module equipped with Hi-Fi XLR balanced terminals and gold plated RCA outputs providing for better Audiophile sound quality.



Elegant and Solid quality in Chassis Construction

UDP900 Dimensions: 445x321x133mm(including feet), weight 15.5kg, adopts an all-aluminum alloy body and a reinforced double layer chassis structure, the internal main components are independently shielded by metal casing, greatly reducing vibration, noise and external magnetic field interference, bringing pure and high-resolution audio and video quality.


Present Excellent Picture and Sound

UDP900 supports Dolby Vision and HDR 10+ high dynamic image standards. ESS9038PRO D/A decoding for 2-
channel XLR balanced and RCA unbalanced outputs, ESS9028PRO D/A decoding for 7.1 RCA output. Support for
XMOS USB Audio input.



Wide Range of Media Formats and Connections

Fully compatible with a variety of disc formats including 4K UHD BD, BD, BD-R, BD-RE, DVD-R/RW, DVD+R/RW, DVD-Video, DVD-Audio, SACD, CD, CD-R/RW. In addition, it can easily connect to numerous media resources through USB 3.0, supporting up to 16TB hard drive, sharing video, music, and pictures files through DLNA, SMB and NFS supporting a wide range of media formats including MKV, AVI, MP4, WAV, FLAC, APE, DSD, etc., users can easily play and manage media files in local and LAN storage devices.



Dual Power Supply Design

60W toroidal transformer supplies power for analog audio. Using imported magnetic core, high quality oxygen free copper wiring, metal shields and full epoxy filling is used to reduce vibration noise and heat generation improving output and audio quality.


SPECIFICATIONS

Β

Disc Type

  • UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD,SACD, CD, Kodak Picture CD, CD-R/RW, DVDΒ±R/RW, DVDΒ±R DL, BD-R/RE

Β

Output

  • Analog Audio Output: 7.1chanel RCA, 2-channel RCA and Balanced XLR
  • Digital Audio Output: Optical, Coaxial, HDMI
  • Support up to 7.1 channel 192kHz PCM, 5.1 Channel DSD
  • HDMI Video Output: 4K / 1080P / 1080I / 720P / 576P / 576I / 480P / 480I

Β

Analog Audio Characteristics

  • Frequency range: 20Hz-20kHz (Β±03dB)
  • Signal-to-noise ratio: β‰₯120dB(2CH RCA); β‰₯130dB(2CH XLR)
  • Distortion plus noise: ≀0005%
  • Output amplitude: (RCA) 2. 1Β±2Vrms. (XLR) 4.2Β±0.4Vrms
  • Dynamic range: β‰₯120dB(2CH RCA); β‰₯130dB(2CH XLR)
  • Channel resolution: β‰₯110dB(2CH RCA); β‰₯140dB(2CH XLR)

Β

General SpecificationsΒ

  • Power supply: AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz
  • Power consumption: <40W, Standby<0.5W
  • Dimensions: 445 x 321 x 133 mm
  • Weight:15.5kg
  • Operating Temperature: 5Β°C~ 35Β°C (41Β°F ~ 95Β°FοΌ‰
  • Operating Humidity: 15% – 75%
