Marantz CD50N Network CD Player (Black) + Marantz Model50 Stereo Integrated Amplifier (Black)

Marantz CD50N Network CD Player (Black) + Marantz Model50 Stereo Integrated Amplifier (Black)





Marantz CD50N Network CD Player - Black


PREMIUM CD AND NETWORK AUDIO PLAYER WITH HEOS BUILT-IN AND HDMI ARC


The modern digital engine in the CD 50n reveals the finest details in high-resolution recordings available today, with HEOS® Built-in allowing you to enjoy digital audio experiences from any source.

An Evolution 70 Years in the Making

Warm, rich, and spacious sound. Elegant to behold. Marantz 50 series strikes a perfect balance between timeless and modern.



Key Features

Ultra-High Resolution

Play your highest-resolution music with support up to PCM 384 kHz/32 bit and DSD 128.

HDMI ARC

Hear TV, movies, and games in warm, spacious detail through your stereo with a single cable connection from the TV.

Custom Marantz Musical Digital Filters

By leveraging our own digital filter shapes, CD 50n preserves warm and spacious sound throughout the digital to analog conversion process.

Preamp Out

If you are a digital audio purist, connect CD 50n directly to your power amplifier for the shortest path to the Most
Musical Sound.



Believe in Quality

Engineered for Streaming

With HEOS® Built-in, your favorite music has never sounded better. Airplay 2, Spotify Connect, Tidal, and TuneIn Radio are among the many services included.

Cinematic Stereo

Bring the Most Musical Sound to your TV, movies, and games. Built-in HDMI ARC does it with a single cable.

Elite CD Sound

Our thoroughly modern digital engine entices you to discover never-before-heard details in your favorite CDs.

Digital Pre-Amp Built In

In addition to the traditional analog out use HEOS or the remote control to adjust volume output directly when driving a power amplifier.





Technical Specifications

Features

Network Audio Streaming    Yes
Spotify Connect* / Tidal* / Deezer* / others *    Yes / Yes / Yes / Yes
Amazon Prime Music* / Pandora*    Yes / Yes
AirPlay 2    Yes
Roon Tested    Yes
Internet radio    TuneIn
HEOS Multiroom and Streaming    Yes
Voice Control - Works with Amazon Alexa    Yes
Voice Control - Microphone built-in    -
CD Compatibility: CD / CD-R/RW / SA-CD / WMA / MP3 / AAC    Yes / Yes / - / Yes / Yes / -
CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta data    - / - / Yes / Yes / -
Data Disc Compatibility: DSD / WAV / ALAC    - / - / -
USB input for memory stick    Yes
DAC Master Clock Design    Yes
DAC operation mode: USB-B / Coax / Optical    Yes / Yes / Yes
Asynchronous mode rear USB-B    Yes
Bit-perfect transmission    Yes
USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2    Yes / Yes / Yes
Signal isolator for DAC Mode operation    Yes
HDAM version    HDAM + HDAM SA2
Power Transformer: Toroidal / El    Yes / -
High Grade Audio Components    Yes
Customised Components    Yes
Symmetric circuit layout    Yes
Extra metal plate for chassis strengthing    Yes (double layer, 1mm x 2)
Digital out off / Audio EX Mode    Yes / -
Headphone: Standard / Buffer / Current feedback    - / - / Yes (HDAM SA2)


Network

Wi-Fi / Wired LAN    2.4 GHz, 5 GHz / Yes
Wi-Fi on / off mode    Yes
Bluetooth on / off mode    Yes
DSD Audio Streaming    up to DSD11.2MHz
Lossy formats: MP3 / WMA / AAC    Yes / Yes / Yes
Lossless formats: DSD / FLAC HD 192/24 / ALAC 96/24 / WAV 192/24    Yes / Yes / Yes / Yes
Gapless Playback    Yes (FLAC, WAV, DSD)
Remote APP: iDevice / Android    Yes / Yes
App control AMP/CD via Network Player    Yes


Others

Selectable filter: CD / SA-CD / DAC-Mode    Yes / - / Yes (PCM Only)
Separated rectifier circuit for analogue and digital circuitry    Yes
Display: Dimmer / Off    Yes / Yes
Display    3 line OLED


Playback

Program Play (CD / SA-CD)    25 / -
Repeat    Yes
Random Play    Yes


Inputs/Outputs

Analogue Out (RCA)    1
Variable Out (RCA)    1
Balanced Out    -
HDMI: ARC input for TV    Yes
Digital Optical In / Out    1 / 1
Digital Coaxial In / Out    1 / 1
Max Sample Rate: S/PDIF Input    192 kHz / 24-bit
Gold Plated Cinch    Yes
USB Audio    rear
USB type B input for PC (rear)    Yes
Sample Rate USB type B In    up to DSD11.2 and PCM 384 kHz
D-Bus    Yes
Remote Control Bus in / out    -
Headphone Out    Yes
Headphone Volume Control    Yes
Bluetooth / Bluetooth HP transmission    Yes / Yes (Update)
Ethernet port    Yes
IP control    Yes
Flasher Input    Yes
RS232    Yes


Specifications

Digital Filter    Filter 1,2 selectable
Noise Shaper    None
Low Pass Filter stage    HDAM
Output Buffer    HDAM SA2
Headphone amp    HDAM SA2
Frequency Response    USB DSD 2Hz - 50kHz (-3dB)
USB PCM 2Hz - 50kHz (-3dB)
CD 2Hz - 20kHz (±1dB)
Dynamic Range    USB DSD 106dB
USB PCM 112dB (24bit)
CD 100dB (16bit)
Signal to Noise Ratio    USB DSD 112dB
USB PCM 112dB
CD 112dB
Total Harmonic Distortion    USB DSD 0.0010%
USB PCM 0.0010% (24bit)
CD 0.0016% (16bit)
Channel separation    USB DSD 110dB
USB PCM 110dB
CD 110dB


General

Available colors: Black / Silver-Gold    Yes / Yes
Metal Front Panel    Yes
Remote Control    RC003PMND
Power Consumption in W    35
Standby Consumption in W    0.3
Auto Power off    Yes
Detachable Power Cable    Yes
Maximum Dimensions (W x D x H) in mm    442 x 424 x 130
Weight in kg    10.3
Carton Maximum Dimensions (W x D x H) in mm    527 x 517 x 255
Carton Weight (inc. product) in kg    13.5

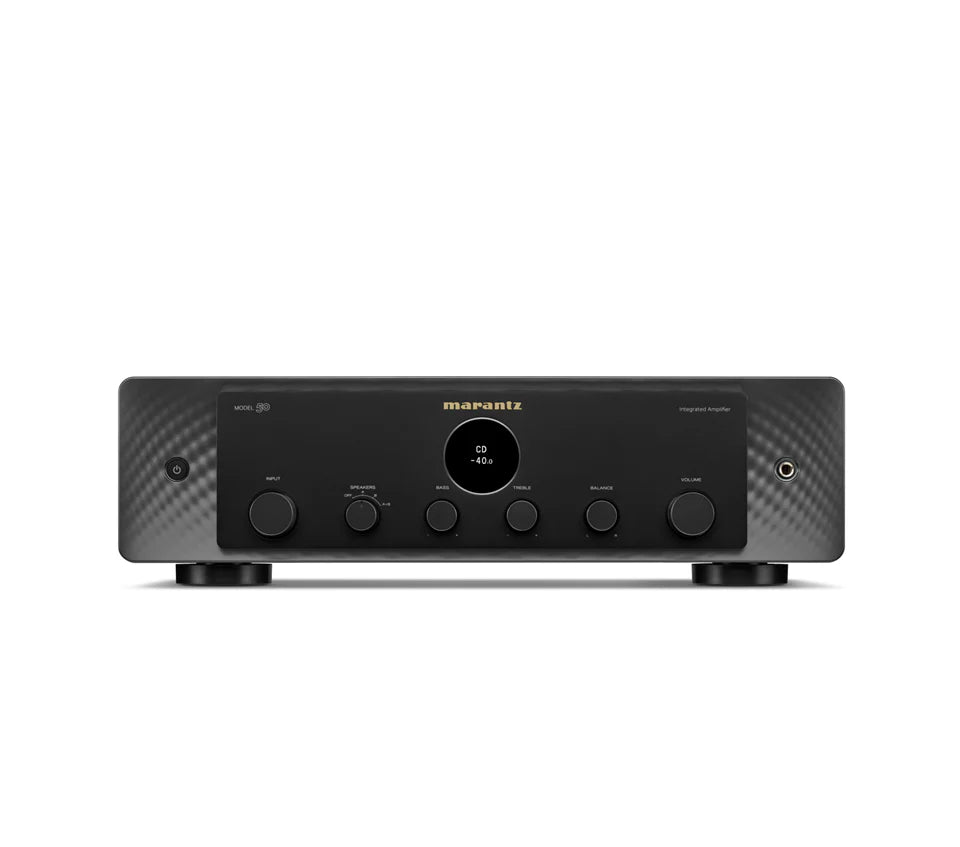

Marantz Model50 Stereo Integrated Amplifier - Black


PREMIUM INTEGRATED STEREO AMPLIFIER WITH 70W AND CUSTOM HDAM


MODEL 50 is the ideal integrated amplifier. With 70 watts per channel of unique Marantz current- feedback power and HDAM SA-3 circuitry, this amplifier drives loudspeakers with total control.



Description:

An Evolution 70 Years
in the Making

Warm, rich, and spacious sound. Elegant to behold. Marantz 50 series strikes a perfect balance between timeless and modern.



Key Features

Powerful And Precise Class A/B Amplifier

Even difficult to drive loudspeakers will sound effortless with the high- current, dual-device amplifier in MODEL 50.

Six Analog Inputs

With a collection of available analog inputs, MODEL 50 can accept audio from myriad source components and includes upgraded connectors for CD and phono.

Moving Magnet Phono

The built-in MM phono stage works with your turntable to amplify the nuance and tone in your records. Using a new circuit without distortion-inducing coupling capacitors.

Stereo Preamp Out

MODEL 50’s stereo preamp outputs add valuable flexibility to your audio system setup. Connect a subwoofer, add channels to your home theater, or multiply listening zones—the possibilities are endless.



Believe in Quality

Powerful Yet Precise

With a precisely engineered Class A/B amplifier, MODEL 50 will drive your loudspeakers with authority yet reveal details you never knew existed.

Analog Purity and Simplicity

Analog is paramount in the design of MODEL 50. The decision to exclude digital audio ensures completely intuitive operation and eliminates the risk of interference from complex digital circuitry.

Exquisite Style

We designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design inspired by icons of our past.



 Specifications:

Features

Channels    2
Current Feedback Topology    Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium    - / Yes / -
Digital in: USB-B / optical / coaxial / USB-A    - / - / - / -
HDAM version    SA3, SA2
Power Transformer: Toroidal / El    Yes / -
High Grade Audio Components    Yes
Customised Components    Yes
Symmetric PCB Layout    Yes
Aluminium extrusion heat sink    Yes
Balance / Bass / Treble / Loudness    Yes / Yes / Yes / -


Others

Linear Drive Power Supply    Yes
Liniear volume control    Yes
Schottky diodes    Yes
Input buffer amp (all inputs / CD only)    - / -
Solid Heat Sinks    Yes
System block shielding: Copper / metal / none    none
Bottom Plate    triple
Low noise OLED display    Yes
Source Direct    Yes
Power Amp direct    Yes


Inputs/Outputs

Audio Inputs    6
Digital in: USB-B / optical / coaxial / USB-A    - / - / - / -
Phono Input: MM / MC    Yes / -
Audio Outputs    1
Balanced In / Out    - / -
Pre-out / Main-in    Yes + subwoofer / -
Power Amp Direct IN    Yes
Gold Plated Cinch    Yes
Speaker A / B    Yes
Speaker Terminals    Marantz SPKT-1+
Number of terminals    4
D-Bus    Yes
Headphone Out    Yes


Specifications

Power Output (8 / 4 Ohm RMS)    70 W / 100 W
Frequency Response    5 Hz–100 kHz
Total Harmonic Distortion    0.02 %
Damping Factor    100
Input Sensitivity: MM    1.4 mV / 47 kΩ
Signal to Noise Ratio: MM/MC    87 dB / -
Input Sensitivity: High level    185 mV / 16 kΩ
Signal to Noise Ratio: High level    116 dB (2 V input)
Input Sensitivity: Power Amp Direct IN    1.5 V / 15 kΩ
Signal to Noise Ratio: Power Amp Direct IN    125 dB
Treble Control    ± 10 dB at 15 kHz
Bass Control    ± 10 dB at 50 Hz


General

Available Colors: Gold / Silver / Black / Silver-Gold    - / - / Yes / Yes
Metal Front Panel    Yes
Power Consumption in W    220
Standby Consumption in W    0.3
Auto Power off    Yes
Detachable Power Cable    Yes
Remote Control    RC003PMND
System Remote Function    Yes
Maximum Dimensions (W x D x H) in mm    442 x 431 x 130
Weight in kg    14.2
Carton Maximum Dimensions (W x D x H) in mm    527 x 517 x 255
Carton Weight (inc. product) in kg    17.5
