Marantz CD60 CD Player (Black) + Marantz Model40N Integrated Amplifier (Black)

Marantz CD60 CD Player (Black) + Marantz Model40N Integrated Amplifier (Black)





Marantz CD60 CD Player (Black)

Extraordinary sound and peerless style—Marantz CD 60 celebrates your CD collection with a player engineered to sound better than any other in this class. Built with high quality materials and Sound Master tuned, CD 60 adds precision CD playback to MODEL 40n or any high-quality audio system.

  • Artisinal Design
  • CD & CD-R/RW Support
  • Exclusive HDAM
  • High Res USB Playback
  • Marantz Musical Digital Filtering
  • 5 Year Warranty



Iconic Design for Modern CD Enthusiasts

Built with high quality materials and Sound Master tuned to inspire listeners to discover new details in their favourite CDs.



CD60

  • Luxurious Design Matches the Most Musical Sound: Architectural design, modern materials, and intuitive operation make CD 60 as incredible to behold as to hear.
  • Unveil New Sounds in Classic CDs: CD 60 is for those who cherish their CD collections and who seek to discover new details upon every listen.
  • Sound Maste tuned: The Marantz Sound Master meticulously tuned CD 60 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
  • Optimized HDAM Circuit: In the CD 60, the proprietary HDAM circuit has been further optimized from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.
  • Plays Hi-Res Audio USB Sources: The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.



Specifications:

General

Unit (W x H x D mm): 442 x 129 x 396
Net weight: 7.5kg
Packaging Dimensions (W x H x D mm): 525×249×511
Panel Color: Available Colors: Silver/Gold and Marantz Black
Front (Center) Panel: Aluminum

Specifications

Frequency response: USB DSD: 2Hz - 50kHz (-3dB)
                                                     : USB PCM: 2Hz - 50kHz (-1.5dB)
                                                      : CD: 2Hz - 20kHz
Total Harmonic Distortion: USB DSD: 0.0006%
                                            : USB PCM 24bit: 0.0005%
                                            : CD: 0.0015%
Signal to Noise Ratio: USB DSD: 110dB
                                    : USB PCM 24bit: 118dB
                                     : CD: 118dB
Dynamic Range: USB DSD: 110dB
                           : USB PCM 24bit: 118dB
                            : CD: 101dB
Line Output Level: 2.2Vrms
Headphone Output Level: 28mW / 32 ohms
Power Consumption: 38W
at Standby: 0.3W

Audio Feature

HDAM: New HDAM + HDAM-SA2
Power Transformer: EI
Headphone Amp: High slew rate op-amp
+ HDAM-SA2: H/P Amp Gain Setting
Yes (Low / Mid / High)
Digital Filter: Filter 1, 2 Selectable

Connectivity Playback Capability

CD Compatibility: CD / CD-R/RW / WMA / MP3 / AAC
Data Disc Compatibility: DSD / WAV / ALAC
Fixed Analog Output (RCA): 1 (Gold Plated)
Optical input / output (Maximum Support): 0 / 1
Coaxial input / output (Maximum Support): 0 / 1
Headphone Output: 1
Remote Control Bus Terminal: Yes (RC-5 In / Out) w/ External / Internal Select Switch
Flasher Input: Yes (U ver)
USB A: 1 (Front)
           : Mass Storage Class
            : 5V/1A
Support format: FAT 16/32
USB-A: FLAC / WAV / AIFF / ALAC / DSD: Yes / Yes / Yes / Yes
DSD Native Playback: Yes
USB Firmware Update: Yes

Easy to use

Remote Controller: System Remote (Amp and CD Player Control)
Unit control (Button): POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev
Unit control (Knob): 1
                                 : Phones Level
Dimmer for Front Display: Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus): Yes
Last Function Memory: Yes
Timer Play (Need external audio timer): Yes
                                                                  : On/Off selectable in Menu
Auto Standby Mode: Yes
Other: Stereo RCA Cable x1
          : Remote connector cable x1
Accessory Box: Yes
Battery: Yes (AAA x2)
Power Cord: Yes

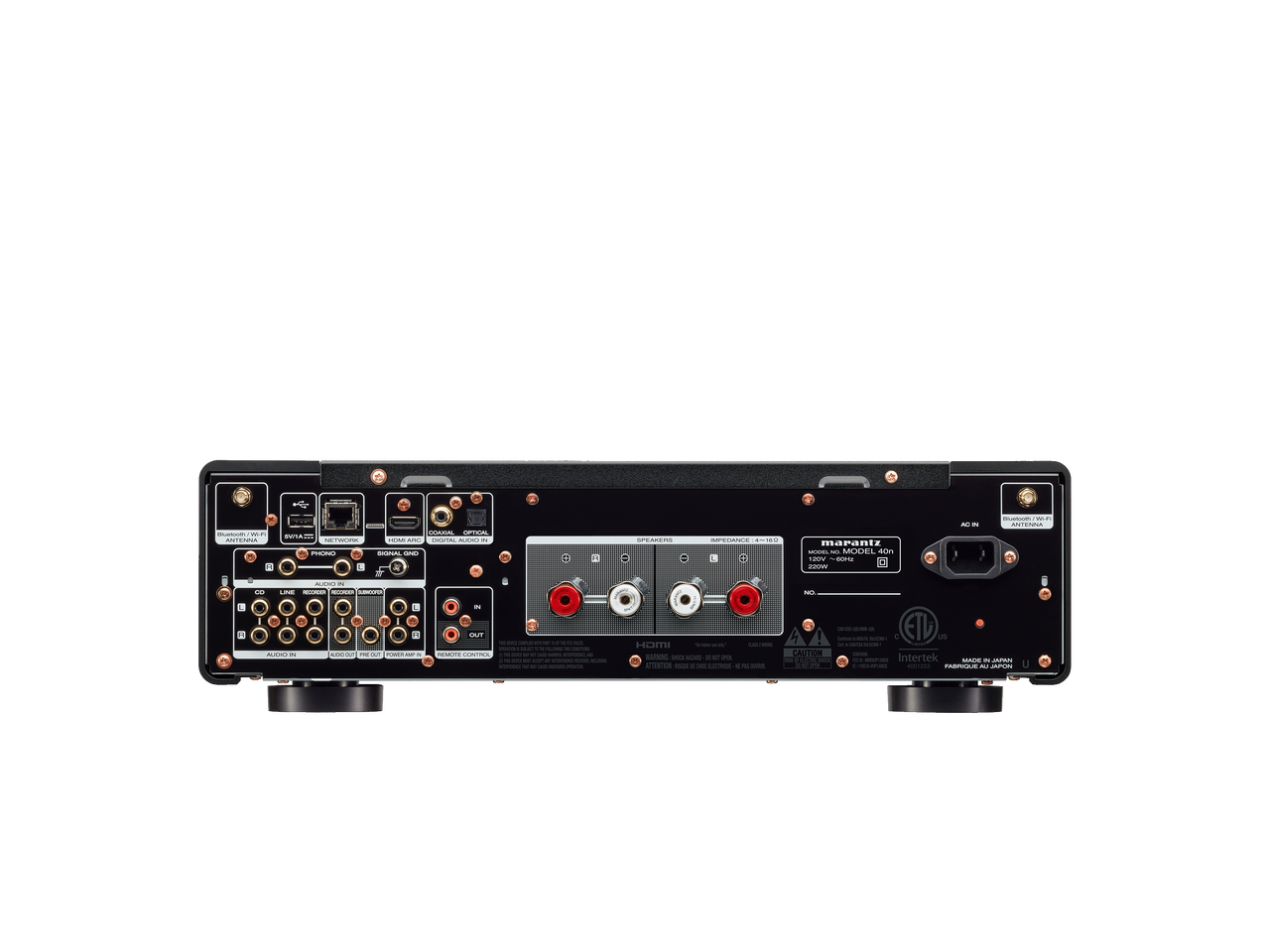

Marantz Model40N Integrated Amplifier - Black



Marantz has reimagined the integrated amplifier for the digital age while preserving a luxurious analog feel and sound.

  • Artisinal Design
  • 2.2 Channels
  • 70 Watts Per Channel
  • Custom HDAM
  • 1 HDMI Input plus ARC
  • 5 Year Warranty



A Masterpiece of Audio Architecture

Created with passion and extraordinary attention to detail, every element brings you closer to the music you love.

Model40N

  • Luxurious Look and Feel: MODEL 40n follows a long line of historic Marantz pieces notable for their exquisite design. Every aspect is considered—from premium materials, symmetry, classic porthole display, and even smooth operation of the volume control. Your stereo doesn’t need to look like lab equipment. Marantz MODEL 40n begs to be heard, seen, and touched.
  • Hyper Dynamic Amplifier Modules: To preserve the detail, nuance, and essence of the music you love, Marantz developed HDAM (Hyper Dynamic Amplifier Modules) which are superior in their speed and response to off-the-shelf modules found in other products. MODEL 40n leverages this unique Marantz innovation to ensure whatever you’re listening to is always the most musical.
  • Sound Master Tuned: The Marantz Sound Master meticulously tuned MODEL 40n for amazing performance with careful parts selection to create the Most Musical Sound in your home.
  • Built For Generations: Thanks to their exemplary build quality and feature-rich design, Marantz amplifiers are engineered to provide years of enjoyment, for you, for those that follow.



Search for Songs Across Platforms

HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.



Your Whole Home in One Place

HEOS-enabled devices allow you to control multiple rooms, all with the HEOS app.



Hi-Resolution Streaming

Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites.



Specifications:

Output Power

Rated Output Power: 70W + 70W (8ohm)
                                   : 100W + 100W (4ohm)

Features

Power Amplifier Circuit: HDAM-SA3
Power Transformer: Double Shielded Toroidal
Volume: Electric
Bass / Treble / Mid / Balance Control: yes / yes / - / yes
Source Direct: yes
Frequency Response: 5Hz - 50kHz
Total Harmonic Distortion: 0.02% (20Hz - 20kHz, 8Ω)
Dumping Factor: 100
Input Sensitivity: Phono input: 2 mV / 47 kohm
Input Sensitivity: CD/Line/Recorder: 220 mV / 20 kohm
Input Sensitivity: Power Amplifier input: 1.6 V / 15 kohm
SN Ratio: PHONO (MM): 87dBCD: 106dB

Terminal

Phono Input: yes (MM)
                     : Marantz Musical Phono EQ
Ext. Pre Input (Power Amp Direct): yes
Preout: no
Analog Input (include Phono) / REC Out (RCA): 4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER)
Optical input: 1
Coaxial input: 1
HDMI: 1 / 0 (ARC) PCM only
USB A: 1 (Rear), Mass Storage Class5V/1A
Speaker Terminal: SPKT-1+
Remote Control Bus Terminal: yes (RC-5 In / Out)
Subwoofer Pre-out Low Pass Filter: Selectable
                                                           : 40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz

Control

App: HEOS App
Remote Controller: System Remote
                               : Features (Amp and CD Player Control)

Others

Weight in lbs: 36 lbs 13 Oz
Carton Weight (incl. product) in lbs: 43 lbs 3 Oz
Power Consumption: 220W, 0.3W (Standby)
AC Inlet: yes
Quick Start Guide: Included
Packaging Dimensions (W x H x D in inches): 21" x 10" x 20.6"
Product Dimensions (W x H x D in inches): 17.4" x 5.1" x 17"

Cosmetic

Panel Color: SG / BK
Front Center Panel: Aluminum
Top Cover: Steel
Edge Lighting: yes (Dimmer)
Volume Knob: Aluminum
Input Selector: Aluminum
Bass/Treble/Balance/ REC Out Sel knobs: Aluminum
Power button: Aluminum
Chassis Material: SECC
Bottom Layer: Thicker double layer
