From the triple-layer aluminum chassis with copper plating to entirely original multi-layer PCBs, isolated sub-enclosures and HDAM modules, LINK 10n is the product of decades of expertise in audio engineering. It sets a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.
Sound Master Tuned
As the flagship digital player in the Marantz portfolio, LINK 10n features the best measured performance of any digital product we’ve ever produced. Through extensive and careful listening, the Sound Master has selected numerous premium parts to be included in key circuits that elevate audible performance to a new standard of excellence.

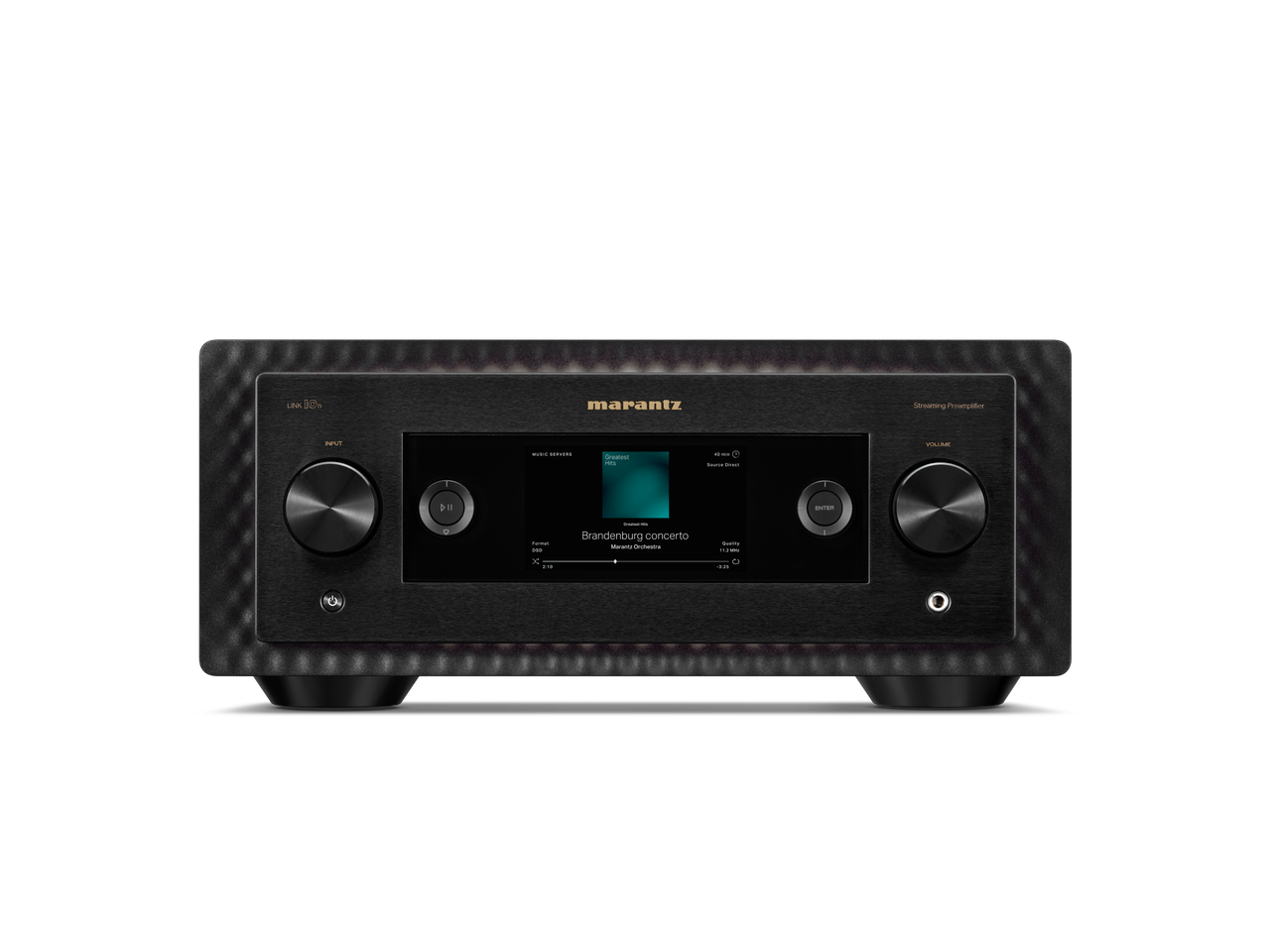

Intuitive Display
LINK 10n comes with a large high-resolution full-color display for a beautiful user interface and intuitive operation. Familiar arrow buttons make navigation effortless. Scroll to select your desired input and see source, track info, and play mode displayed on the screen, or enjoy easy HEOS onboarding and access to the app via a QR code.

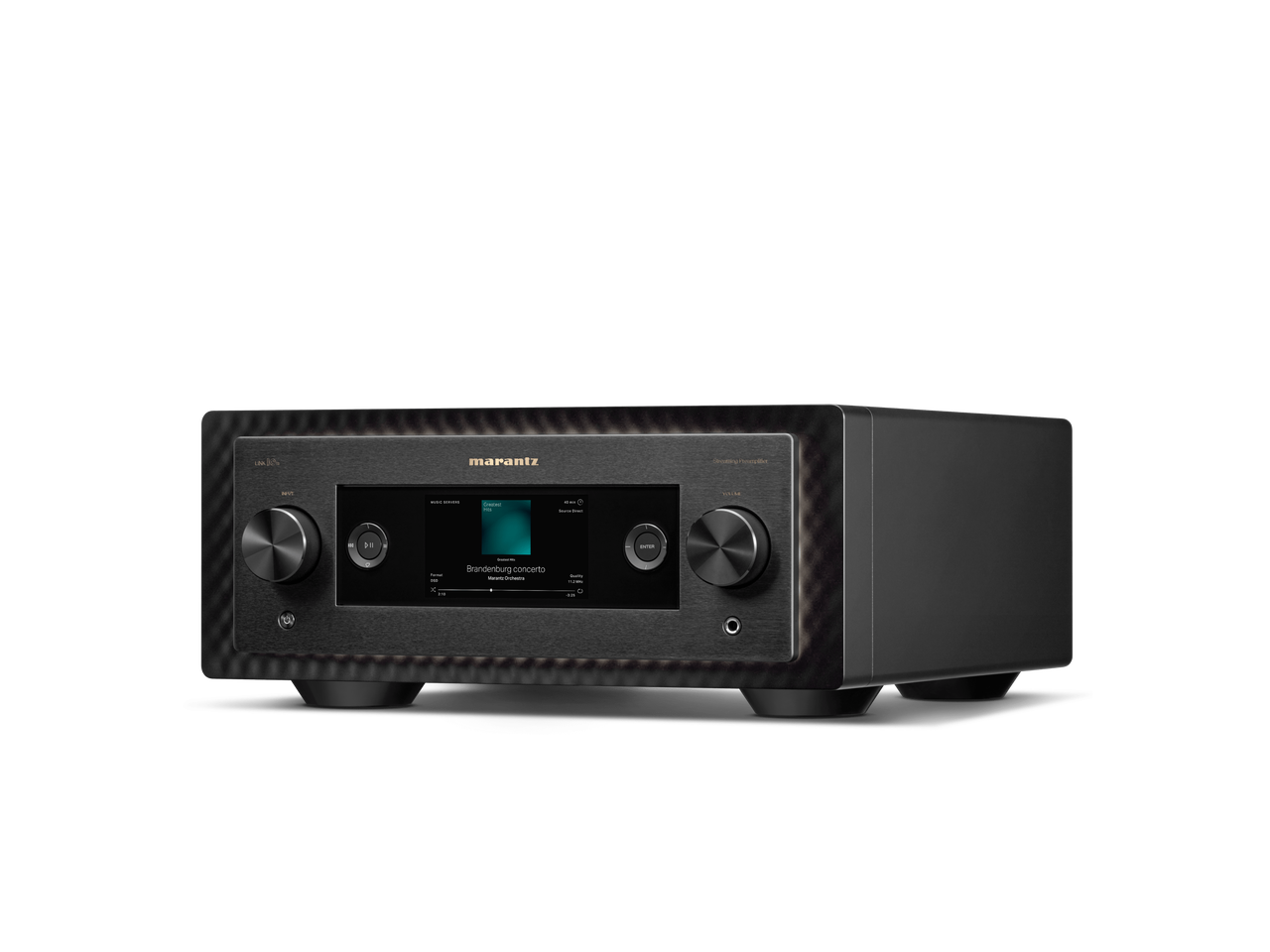

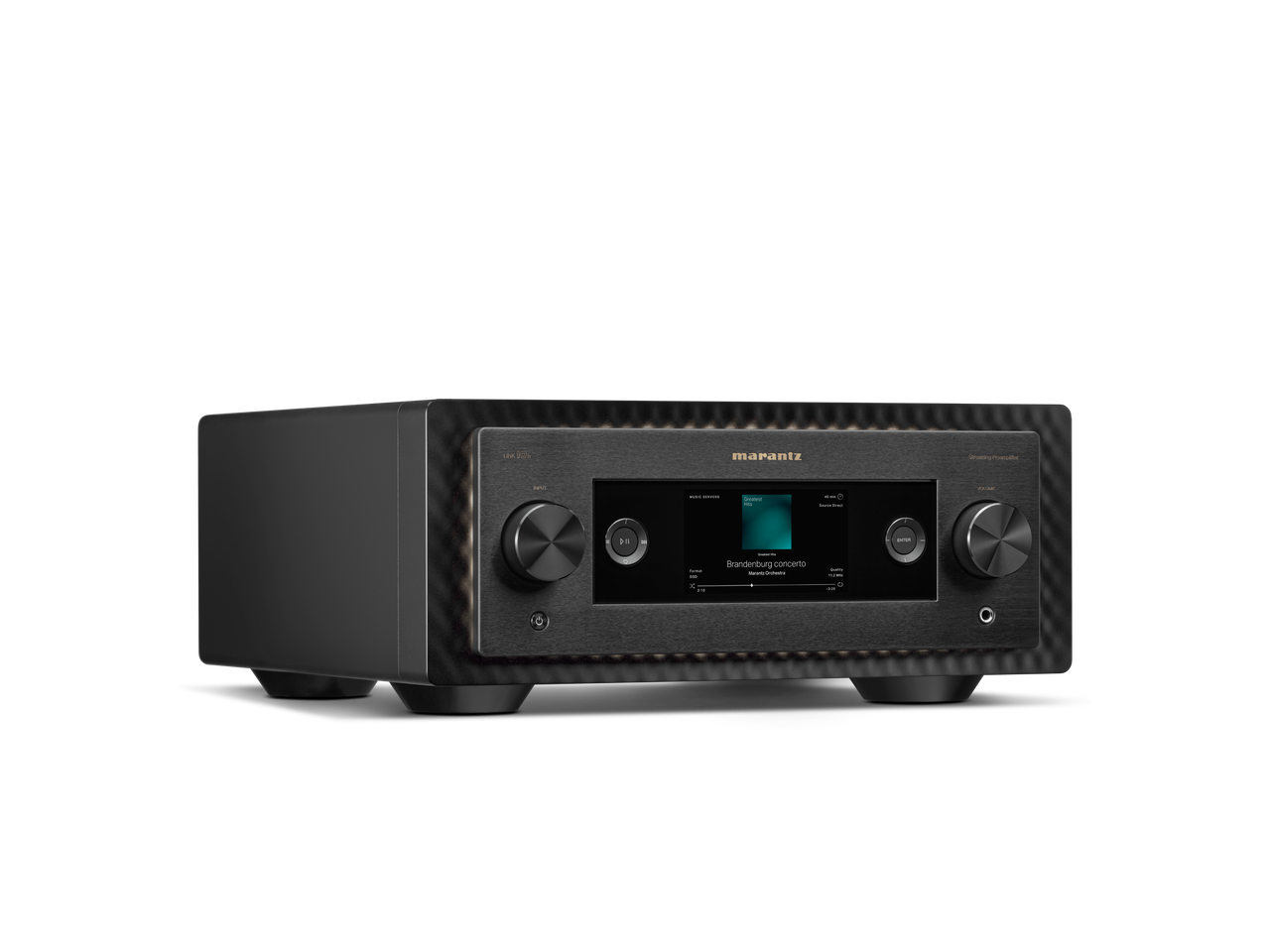

Marantz Industrial Design
Machined and brushed aluminum control surface, sculpted backshell, spun knobs, and high-resolution full color display are each striking features of 10 Series components. The design is both distinctively Marantz, drawing inspiration from classic models, and progressively modern.
Preamplifier Functions
LINK 10n can act as a complete preamplifier front-end for your system, with all the functions of a modern high-end stereo system. Complete with single ended and balanced analog inputs, digital inputs, and a Marantz Premium Phono EQ supporting both MM and MC cartridges, it is also a fully featured front end for even the highest performance stereo systems.
Specifications:
General
-
Unit (W × H × D mm)440 × 192 × 472 (with antenna)
-
Cabinet Size440 × 192 × 422
-
Net weight33.3kg
-
Packaging Dimensions (W × H × D mm)600 × 379 × 540
-
Packaging gross weight38.7g
-
Carton Color1 Color (Material color: Brown Printing: Black)
-
Panel ColorBlack / Marantz Champagne
-
Front (Center) PaneAluminum
-
Back-shellAluminum
-
Front panel illuminationYes (All sides, Dimmer)
-
Side coverAluminum (Thickness: Max 15.8mm)
-
Top cover (Centor) ventilation hole materialNo
-
Interior iluminationNo
-

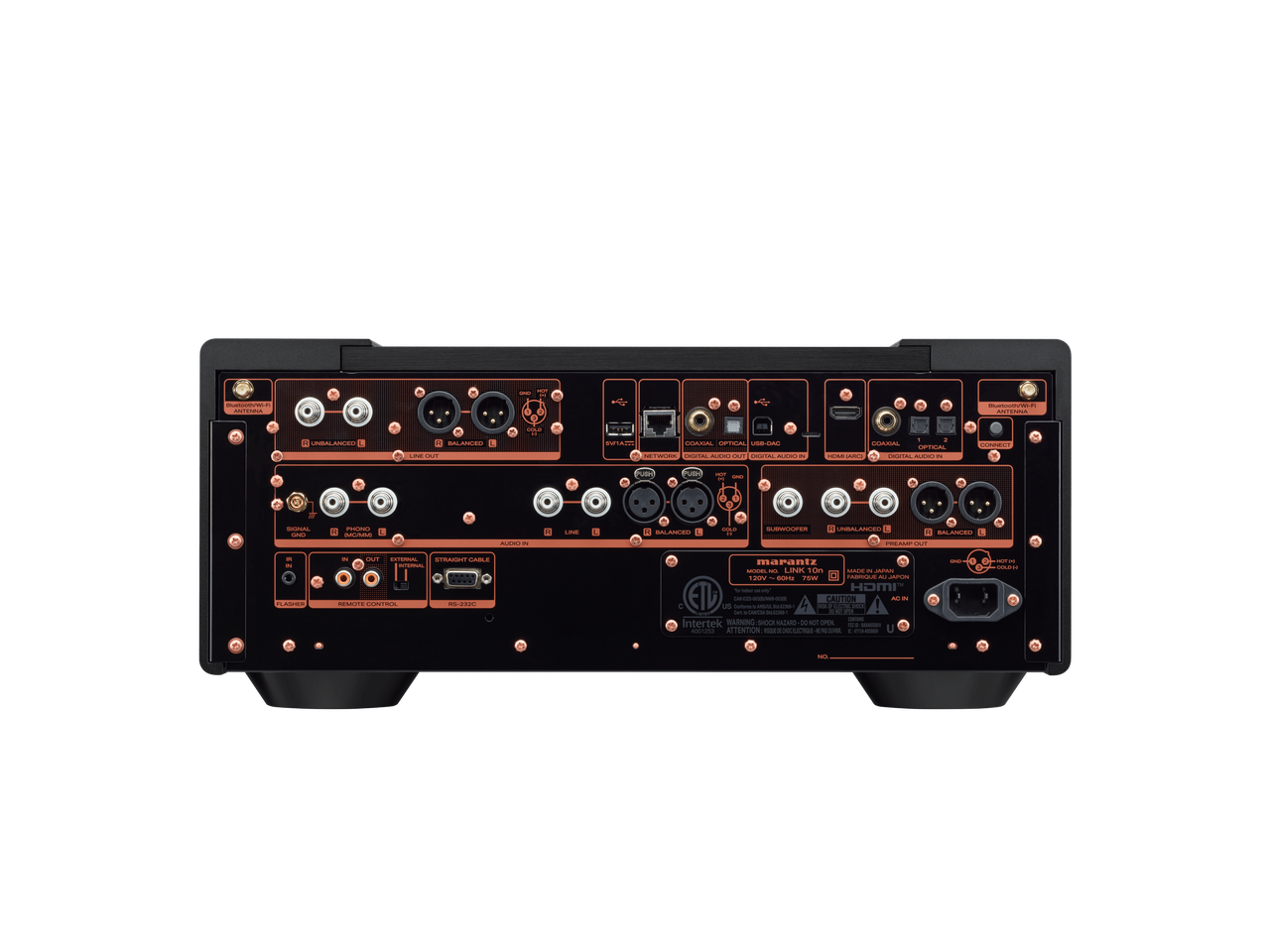

Rear PanelTriple layer Copper-plated
-
Chassis MaterialCopper-plated
-
Bottom Layer / Bottom plateCopper-plated
-
Volume KnobSolid aluminum (Bearing construction)
-
Input SelectorSolid aluminum (Bearing construction)
-
FootSolid aluminum with Copper
Audio
-
Frequency ResponsePCM 2Hz–50kHz (-3dB)
-
Harmonic distortionPCM 0.0004%
-
S/NPCM 0.0004%
-
Dynamic rangePCM 0.0004%
-
Line Output LeveUNBALANCED : 2.0Vrms
BALANCED : 4.0Vrms
-
Headphone Output Level130mW / 32 ohms
-
Frequency Response (analog input)5 Hz–100 kHz (+0dB/-3 dB)
-
Harmonic distortion (analog input)0.001% (20Hz–20kHz)
-
S/NPHONO (MC) : 76dB
HONO (MM) : 88dB
BALANCED : 122dB
LINE : 122dB
-
Phono Input sensitivityMM : 8mV
MC : 80mV
-
Phono Input impedanceMC Low : 32 ohms
MC Mid : 100 ohms
MC High : 390 ohms
MM : 39 kohms
-
Power Consumption7W
Less than 0.3W (at Standby)
Less than 2W (at Network Control On: Bluetooth, Ethernet, Wi-Fi, USB)
Audio Feature
-
Output CircuitNew HDAM
-
Power TransformerToroidal
-
Pre Amplifier CircuitNew HDAM High Grade
Full balance
-
VolumeElectric (MUSES 72323)
Variable gain
-
Bass / Treble / Mid / Balance ControlYes / Yes / No / Yes
-
Type of Tone ControlElectric
-
Headphone CircuitDiscrete
-
H/P Amp Gain SettingYes (Low / Mid / High)
-
H/P On.Off SettingH/P Off automatically, when in use
-
DAC CircuitNew MMM-Conversion
-
DitherMMM-Stream
(Dither 1, 2, Off)
-
Noise ShaperMMM-Stream
Balanced, Natural, Dynamic Music, Dymanic Voice)
-
Digital FilterMMM-Stream
Filter 1, 2 Selectable
-
Jitter ReducerYes
-
DAC Master Clock Design (USB-DAC)Yes
-
Asynchronous mode (for USB-B input)Yes
-
Isolator (for USB-B input)Yes (Complete Isolation System Duo)
-
Fixed Analog Output (RCA)Cinch × 1
Thick nickel plated independent terminals
-
Pre / Variable Audio Output (RCA)Cinch × 1
Thick nickel plated independent terminals
-
Fixed Balanced XLR OutputYes (1 Pair)
-
Pre/ Variable Balanced XLR OutputYes (1 Pair)
-
RCA InputCinch × 1
Thick nickel plated independent terminals
-
Balanced XLR InputYes (1 Pair)
-
Phono inputYes (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
Thick nickel plated independent terminals
-
Optical input / output (Maximum Support)2 / 1 (on/off switchable)
44.1 kHz - 192 kHz
-
Coaxial input / output (Maximum Support)1 / 1 (on/off switchable)
44.1 kHz - 192 kHz
-
HDMI input / outputNo / Yes (ARC)
-
Headphone OutputYes (Φ6.3 ×1)
-
SubwooferYes with LP filter adjustable
Easy to Use
-
AppHEOS app
-
Remote Controller10 series universal Remote control
-
Front Panel DisplayNew HD TFT Color Display
-
Display LanguageN: (English/ German/ French/ Italian/ Dutch/ Spanish/ Swedish/ Polish/ Russian)
U: (English/ French/ Spanish)
K: ( Simplified Chinese/English)
F: (Japanese/ English)
-
Dimmer for Front Display20 steps
-
Level meterNo
-
Volume Display0 –100 / 0.5 step (defalut)-infinity/-99.5dB - 0dB / 0.5 step switchable
-
Voice AssistantApple Siri
Google Assistant
-
Control with App via Network Player (Use Remote Control Bus)No
-
External Amp Control with App (Use Remote Control Bus)Yes
-
Synchronously turn on amplifier and switch the input (Use Remote Control Bus)Yes
-
HDMI CECYes
-
Remote ControllerRC004PMND
-
BatteryYes (AAA ×2)
-
Power CordYes (ALL region : Audio Grade : OFC)
-
OtherStereo RCA Cable ×1
Remote connector cable ×1
CoA card
