From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and all new HDAM modules, MODEL 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.
Sound Master Tuned
MODEL10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail, lower distortion, and higher dynamic range than ever before.
Iconic Details Reimagined for Tomorrow

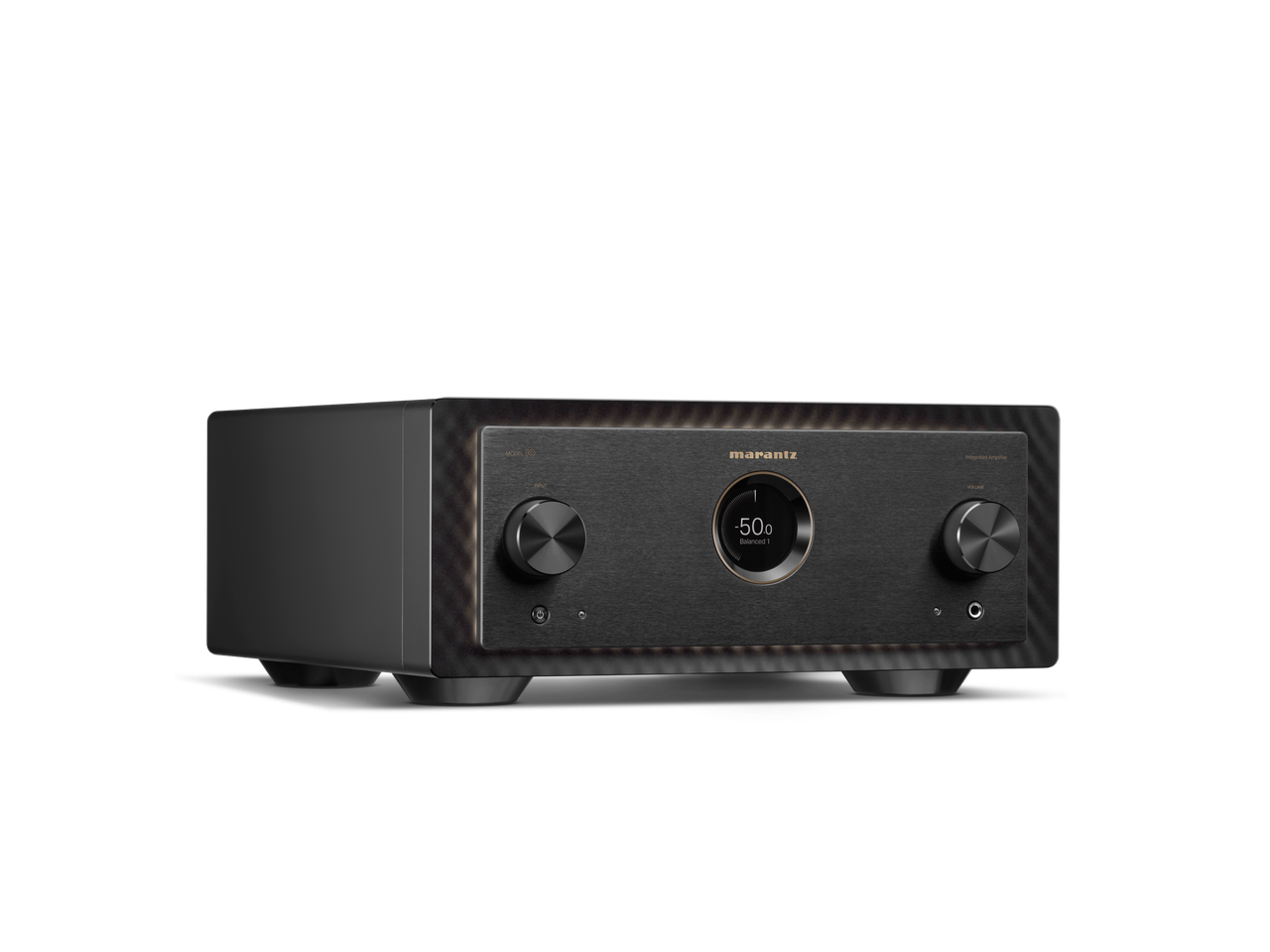

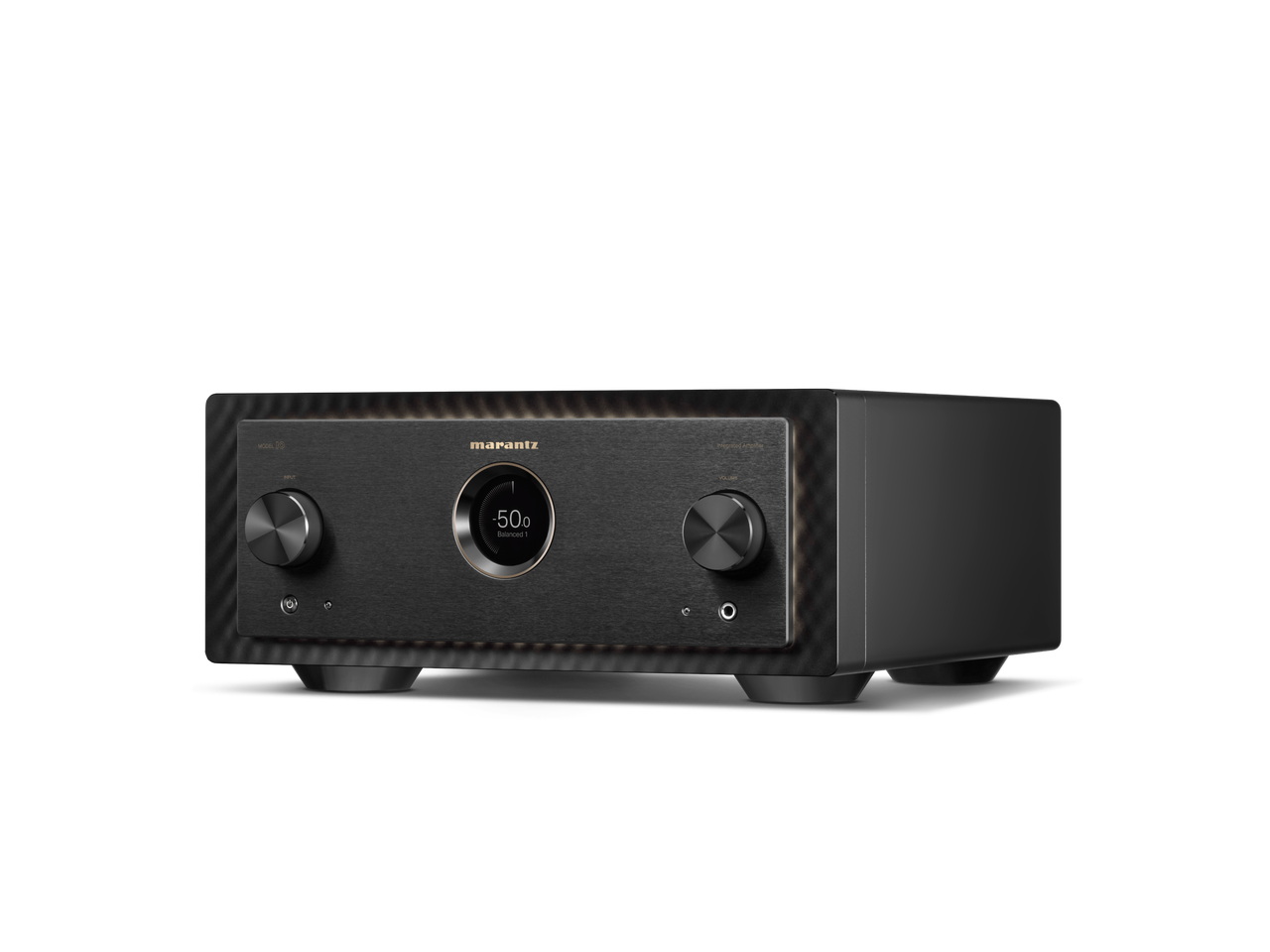

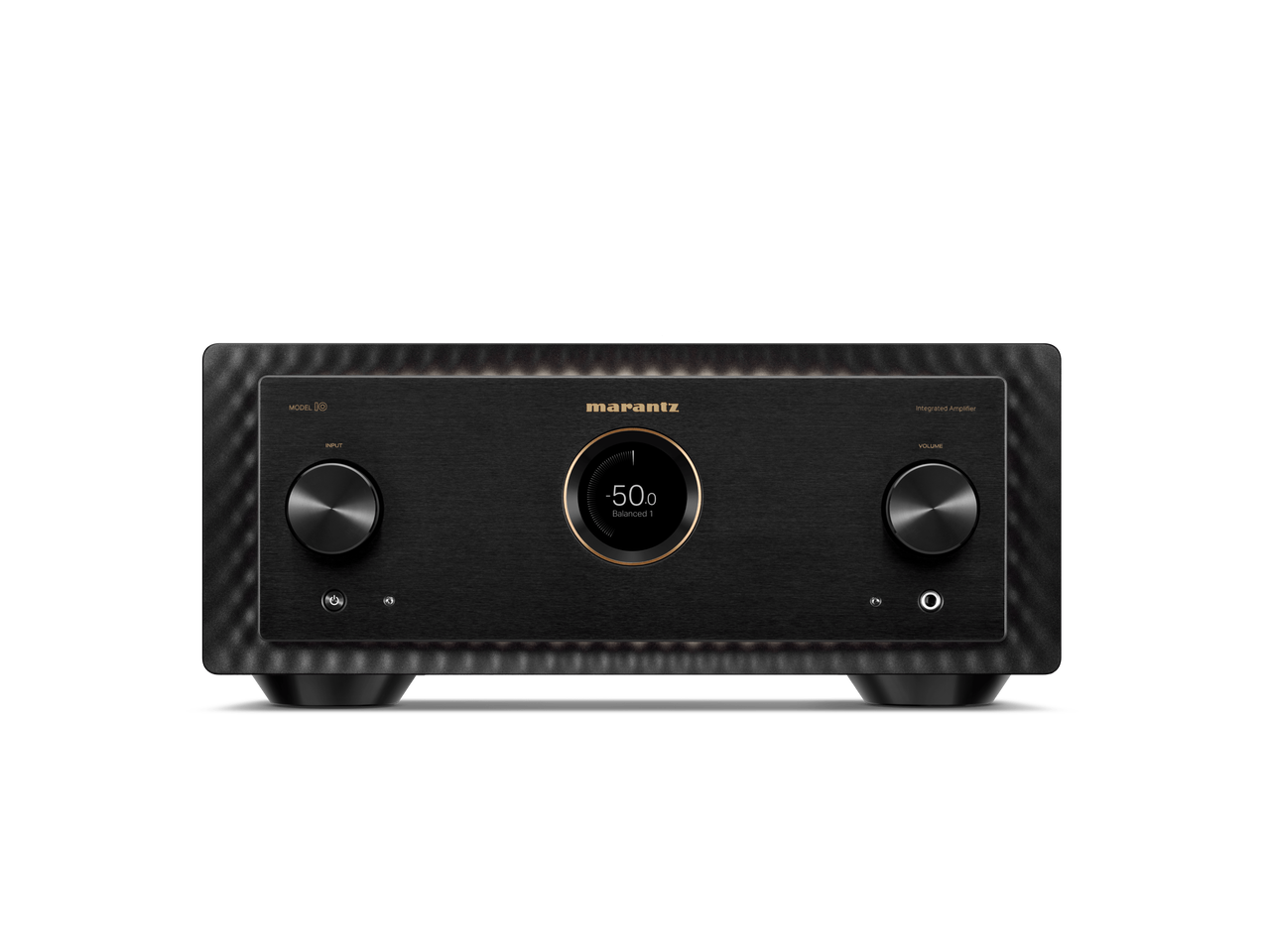

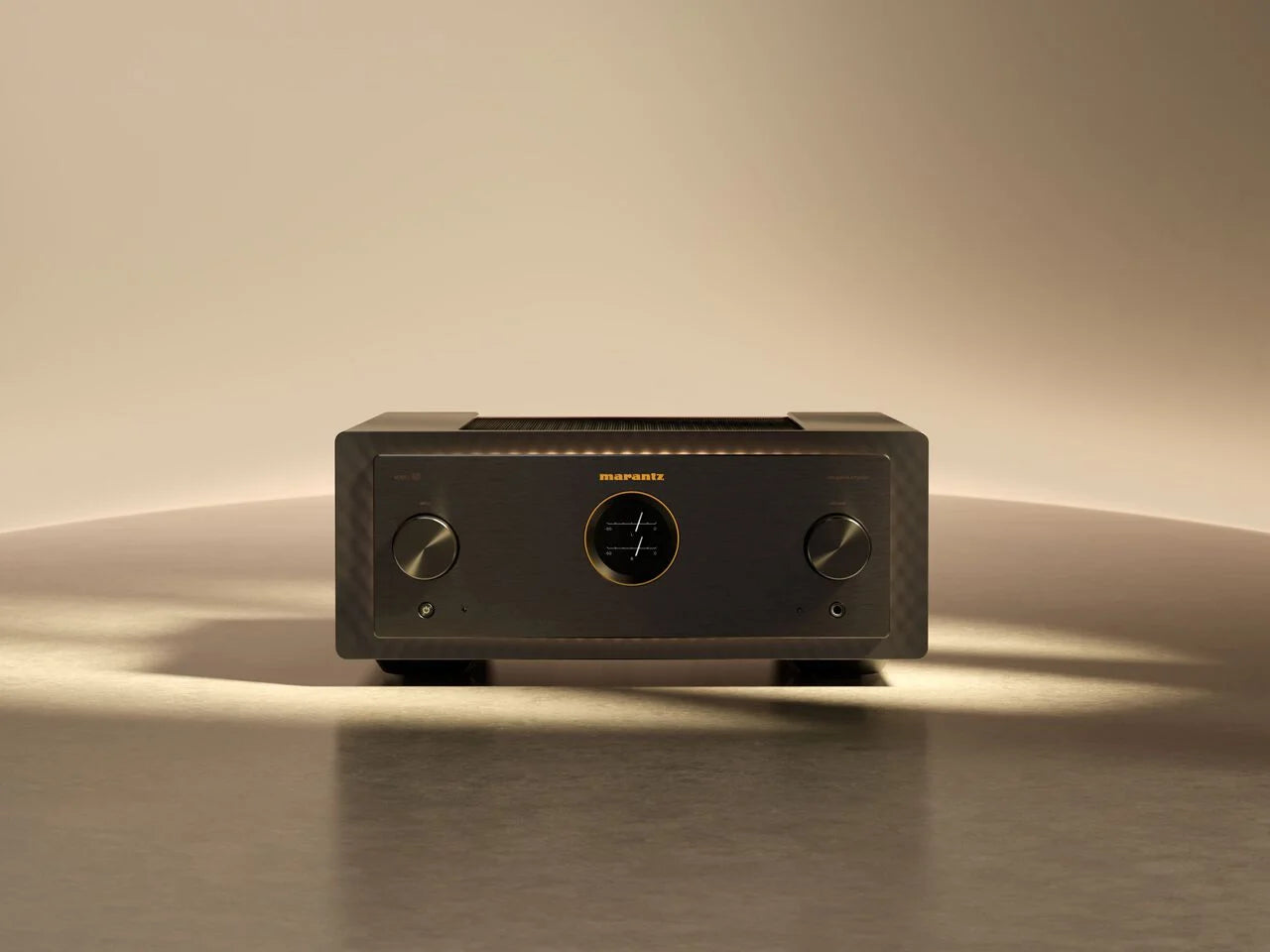

Designed with a brushed aluminum front, MODEL 10 is encased in a copper-plated, triple-layered chassis with illuminated mesh cover grille. Lighting inside the amplifier showcases the circuit boards, high-quality components, and specially designed transformer case. In a nod to the Marantz design DNA, MODEL10’s porthole houses a HD TFT Color Display for volume and input selection, along with a digital level meter that behaves like vintage analog meters.
Crafted in Shirakawa
MODEL 10 was conceived and engineered in our facilities in Shirakawa, Japan to deliver the highest performance.
Specifications:
General
-
Unit (W × H × D mm)440 × 192 × 473
-
Cabinet Size440 × 192 × 422
-
Net weight33.7kg
-
Packaging Dimensions (W × H × D mm)600 × 379 × 540
-
Packaging gross weight39.0kg
-
Carton Color1 Color (Material color: Brown Printing: Black)
-
Panel ColorBlack / Marantz Champagne
-
Front (Center) PanelAnodized machined aluminum
-
Back-shellAAnodized machined aluminum
-
Front panel illuminationYes (All sides, Dimmer)
-
Side coverAluminum (Thickness: Max 15.8mm)
-
Top coverAluminum (Thickness: 6mm)
-
Top cover (Centor) ventilation hole materialStainless mesh
-
Interior iluminationYes, dimmable
-
Rear PanelCopper Plated
-
Chassis MaterialCopper Plated
-
Bottom Layer / Bottom plateTriple layer Copper plated
-
Front panel illuminationYes (All sides, Dimmer)
-
Volume KnobSolid aluminum (Bearing construction)
-
Input SelectorSolid aluminum (Bearing construction)
-
FootSolid Alminum Copper plated (H: 18.5mm)
-
Heatsink for Power AmplifierExtruded Aluminum
Audio
-
Rated Output Power250W + 250W
(8ohm,20Hz-20kHz,THD 0.05 %)
500W + 500W
(4ohm,20Hz-20kHz,THD 0.05 %)
-
Speaker Impedance4~16ohm
-
Frequency Response5Hz~60kHz +0dB/-3dB
20Hz~20kHz +0dB/-0.3dB
-
Total Harmonic distortion0.005%
(125W, 8ohm, 20-20kHz)
(CCIF IMD, DFD IMD)
-
Damping Factor500 (8ohm, 20Hz-20kHz)
-
Input Sensitivity: Phono inputMM: 3.6 mV / 36 kohm
MC (Low): 400 μV / 33 ohm
MC (Mid): 400 μV / 100 ohm
MC (High): 400 μV / 390 ohm
-
RIAA Deviation20 Hz - 20 kHz ±0.5 dB (MM/MC)
-
Phono Maximum InputMM : 80mV
MC : 8mV
-
Input Sensitivity: CD/LINE/RECORDER350 mV/41kohm (Unbalanced)
700 mV/36kohm
-
Input Sensitivity: Power Amp inputUnbalanced: 1.58V / 41kohm (Gain : 29dB)
Balanced: 3.16V / 15kohm (Gain : 24dB)
-
SN RatioPHONO (MM): 88dB
PHONO (MC): 76dB
CD: 122dB
Balanced: 122dB
-
Headphone Output Level130mW / 32 ohms
-
Tone ControlBASS : 50Hz ±10dB
TREBLE : 15kHz ±10dB
-
Power Consumption270W
0.1W (at Standby)
Audio/ Video
-
Phono InputYes (MM / MC)
Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position)
PHONO (MC Low): 400 μV / 33Ω
PHONO (MC Mid): 400 μV / 100Ω
PHONO (MC High): 400 μV / 390Ω
PHONO (MM): 3.6 mV / 39kΩ
-

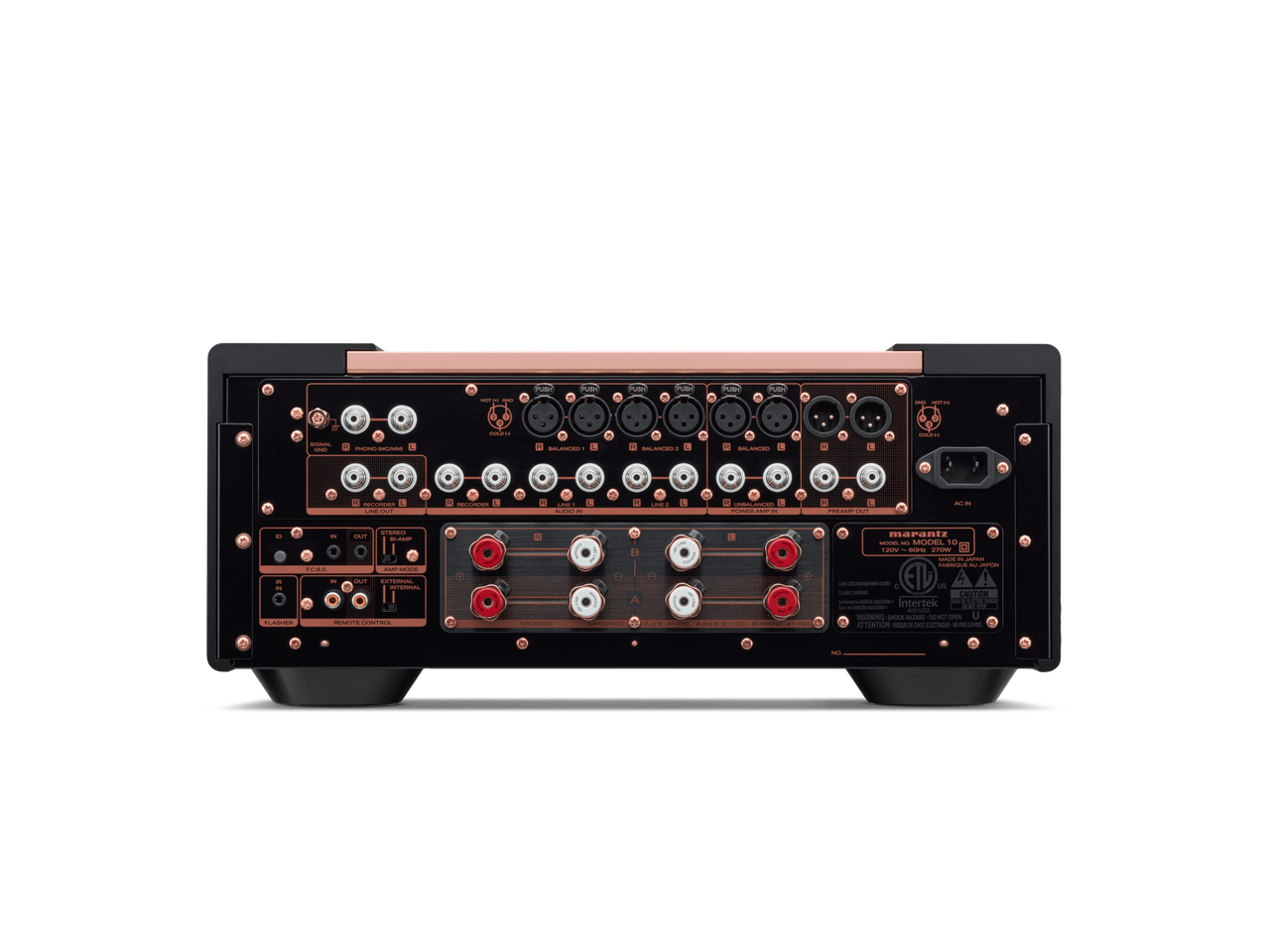

Analog Input (include Phono) / REC Out (RCA)4 /1
(LINE1, LINE2, PHONO: Thick nickel plated independent terminals)
(RECORDER: Thick nickel plated independent terminals)
-
Balanced XLR input2
-
Power Amp DirectYes [RCA (Thick nickel plated independent terminals) / XLR]
-
Pre outYes [RCA (Thick nickel plated independent terminals) / XLR]
-
2 sets of Speaker OutputYes (Bi-wiring)
-
Speaker TerminalMarantz Original SPKT-100+
2 (High quality and high-purity copper plated)
-
Headphone Output1
(Turns off the speaker automatically when headphone is inserted)
Control/ Other
-
Remote Control Bus TerminalYes (RC-5 In / Out)
-
Remote Internal / External SwitchYes
-
Flasher InputYes
-
AC InletYes
-
OtherF.C.B.S.
(Floating Control Bus System)
-
Remote Controller10 series Universal Remote control
-
Unit control (Button)Tact Switch : 1
POWER
-
Unit control (Knob)2
VOLUME, INPUT SELECTOR
-
LEDPOWER: 1 White
Protection: 1 Orange
Illumination (Edge): White
Interior: White
-
Front Panel DisplayNew HD TFT Color Display
-
Dimmer for Front Display20 steps
-
Level meterYes (HD Display)
-
Volume Display-infinity/-99.5dB - 0dB / 0.5 step (default)
0-100 / 0.5 step
switchable
-
Last Function MemoryYes
-
Auto Standby ModeYes
-
Remote ControllerRC004PMND
-
BatteryYes (AAA ×2)
-
Power CordYes
(ALL region / Audio Grade / OFC)
-
OtherCoA card
