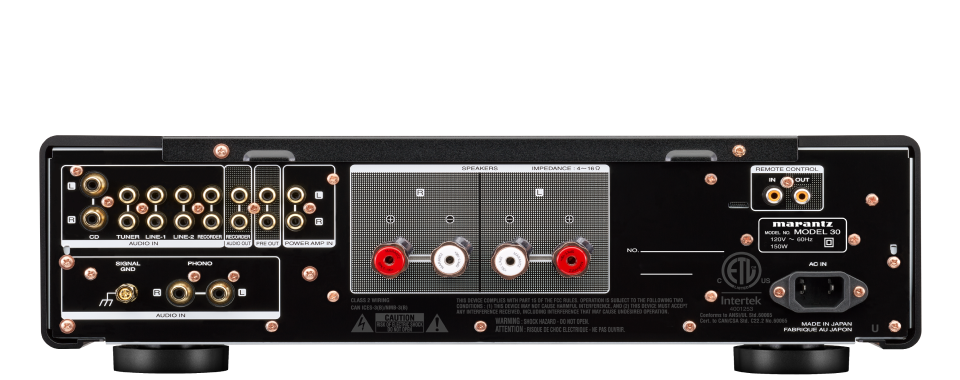

Marantz MODEL30 Integrated Stereo Amplifier - Black

Marantz MODEL30 Integrated Stereo Amplifier - Black



Get the most musical sound possible from this Sound Master tuned integrated amplifier. Its custom designed technology delivers exquisite detail and unforgettable musicality from any style of music.

  • Artisinal Design
  • 2.2 Channels
  • 100 Watts Per Channel
  • Custom HDAM
  • 3 Year Warranty



A Masterpiece of Audio Architecture

Featuring a fully discrete, two stage design for minimal interference, and unique Marantz HDAM technology for signal purity, MODEL 30 offers exceptional sound quality.



Model30

  • Designed to Last: You see and feel it in the build quality and you hear it every time. No matter your musical passions, your music always sounds better with MODEL 30.
  • Fully Discrete and Accurate Detailing: Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.
  • Sound Master Tuned: The Marantz Sound Master meticulously tuned MODEL 30 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
  • Built for Generations: Thanks to their exemplary build quality and feature-rich design, Marantz amplifiers are engineered to provide years of enjoyment, for you, for those that follow.



Search for Songs Across Platforms

HEOS® Built-in has a search feature that lets you find and stream from the world’s leading music platforms, including TIDAL, Pandora, and Amazon Music HD.



Your Whole Home in One Place

HEOS-enabled devices allow you to control multiple rooms, all with the HEOS app.



Hi-Resolution Streaming

Use your HEOS-enabled Marantz devices to access high-resolution music streaming and discover a whole new way to love your favorites.



Specifications:

Output Power

Rated Output Power: 100W + 100W (8ohm)
                                  : 200W + 200W (4ohm)
JEITA Power output: No

Features

Amplifier Circuit: Switching Amp (Hypex NC500/SMPS600by single)
Power Trans: Toroidal w/case
Volume: Electric
Loudness: No
Bass / Treble / Mid / Balance Control: yes / yes / No / yes
REC Out Select: No
Source Direct: yes
Pure Direct: No
(Marantz) Purest Mode: No
Isolator (for USB-B input): No
Jitter reducer: No
Dual Clock: 44.1 / 48 kHz: No
Digital Filter: No
Analog Amp Mode: No
Wide Range: 5Hz - 50kHz
Total Harmonic Distortion: 0.005% (1kHz, 8Ω)
Damping Factor: 500
Input Sensitivity: Phono input: MM: 2.3 mV / 39 kohm
                            : MC: 250
Input Sensitivity: CD/Line/Recorder: 220 mV / 13 kohm
Input Sensitivity: Power Amplifier input: 1.1 V / 13 kohm
SN Ratio: PHONO (MM): 88dB
               : PHONO (MC): 75dB
               : CD: 107dB

Terminal

Phono Input: yes (MM/MC)
Ext. Pre Input (Power Amp Direct): yes
Preout: yes
Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out: 6/1 (PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER) * [PHONO] and [CD] inputs = high grade terminals.
Balanced XLR input: No
Rec-Out Selector: No
Optical input: No
Coaxial input: No
USB A: No
USB B: No
HDMI: No
DAC: No
2 sets of Spk Terminal: No
Speaker Terminal: Marantz Original SPKT-100+
Remote Control Bus Terminal: yes (Cinch)
NFC: No
Ethernet: No

Network

Engine: No
Computer music file streaming: No
Gapless Playback Music ServerUSB A: No
Internet radio: No
AirPlay 2: No
GoogleCast: No
Album art browsing: No
Jpeg Picture Playback: No
Cloud Music Service: No
WPS Wi-Fi Protected Setup: No
Wi-Fi Sharing: No
WMM: No
OFF mode: No
OFF mode: No
Multi-Point: No

UI

Display: yes (Porthole, OLED)

Control

App Control via Network Player: yes
System Remote Controller: yes (New system remote controller to control SACD 30 and MODEL 30)
RS232C: No
Flasher Input: No
Trigger 12V: No
TV Auto-play (Opt/Coax digital-in sensor): No

Others

Unit (W x H x D mm): 443 x 130 x 432
Packaging Dimensions (W x H x D mm): 534 x 255 x 522
Net weight: 14.8kg
Packaging gross weight: 17.6kg
Power Consumption: 130W
at Standby: 0.2W
at Network Control On (all of Bluetooth, Ethernet, Wi-Fi, USB): No
AC Inlet: yes
AC Outlet: No
Owner's Manual: Web Manual
Quick Start Guide: Paper
Chassis Material: SECC
Chassis Layer: Triple
Foot: New

Cosmetic

Panel Color: SG / BK
Front Center Panel: Aluminum
Back-shell: No
Side cover: Aluminum
Top Cover: Steel
Edge Lighting: yes (Dimmer)
Volume Knob: Aluminum
Input Selector: Aluminum
Bass/Treble/Balance/ REC Out Sel knobs: REC Out-->PHONO (Aluminum)
Speaker A/B button: No
Power button: Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc): No
Side screw: Copper plated
