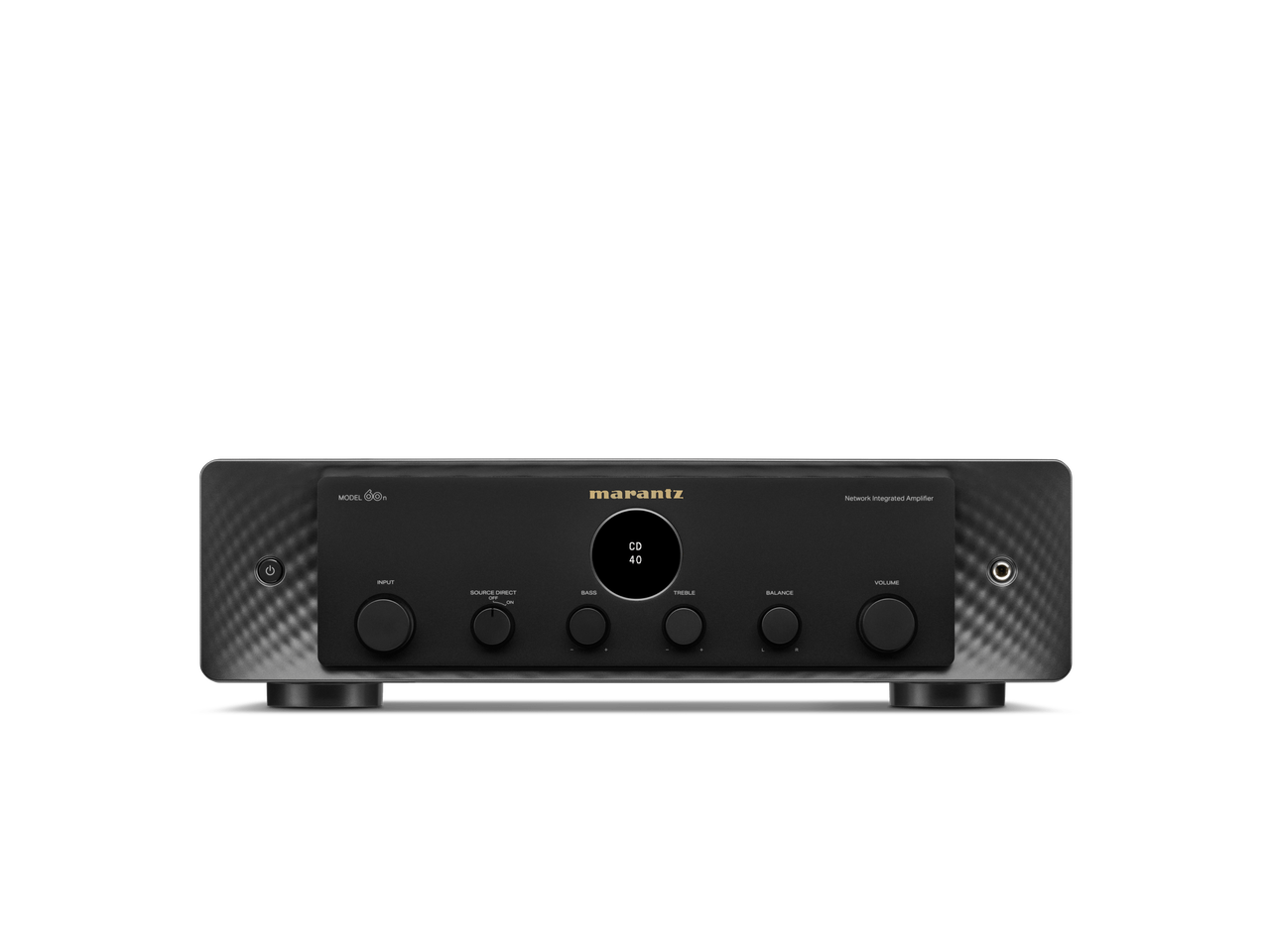

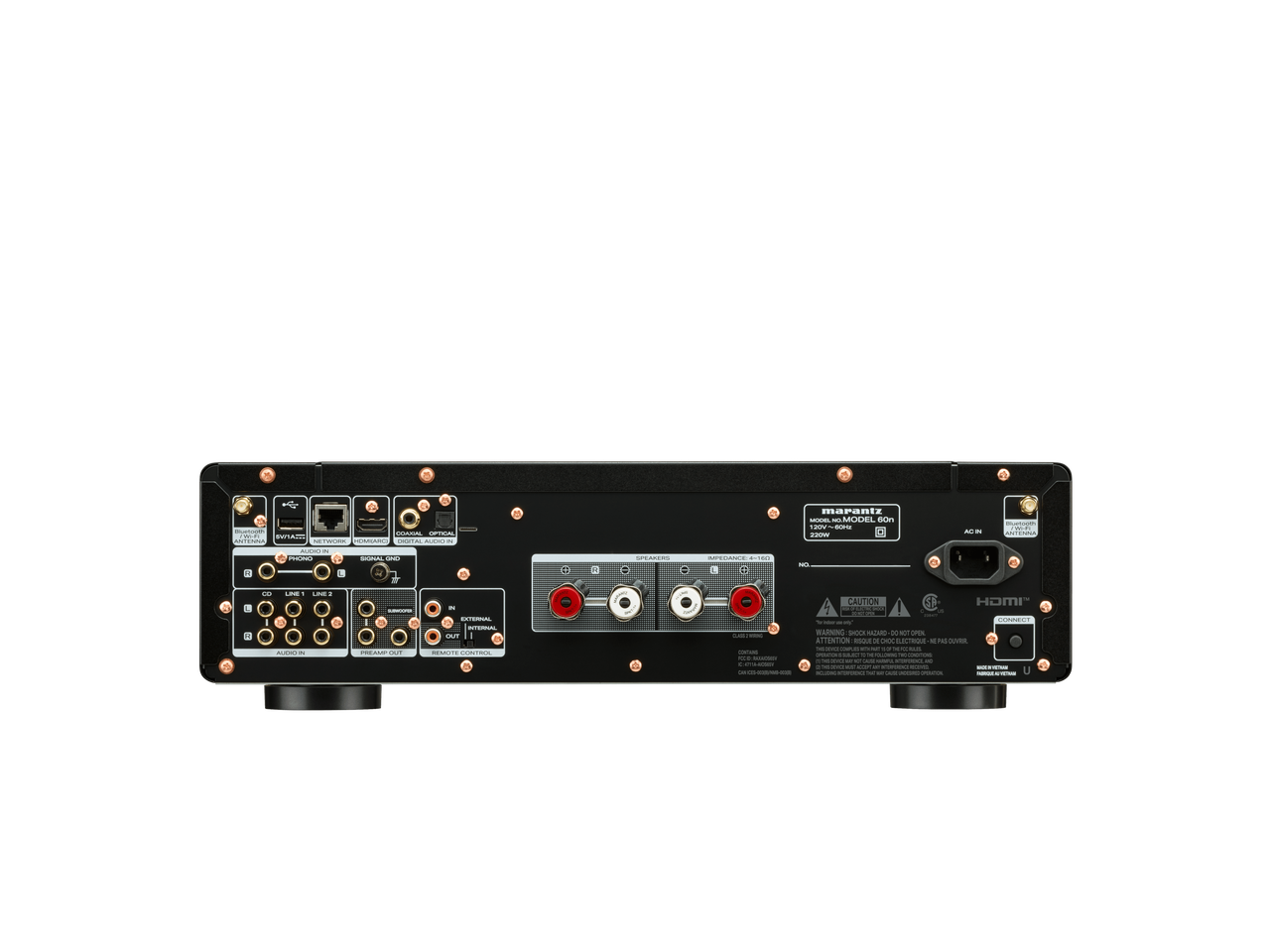

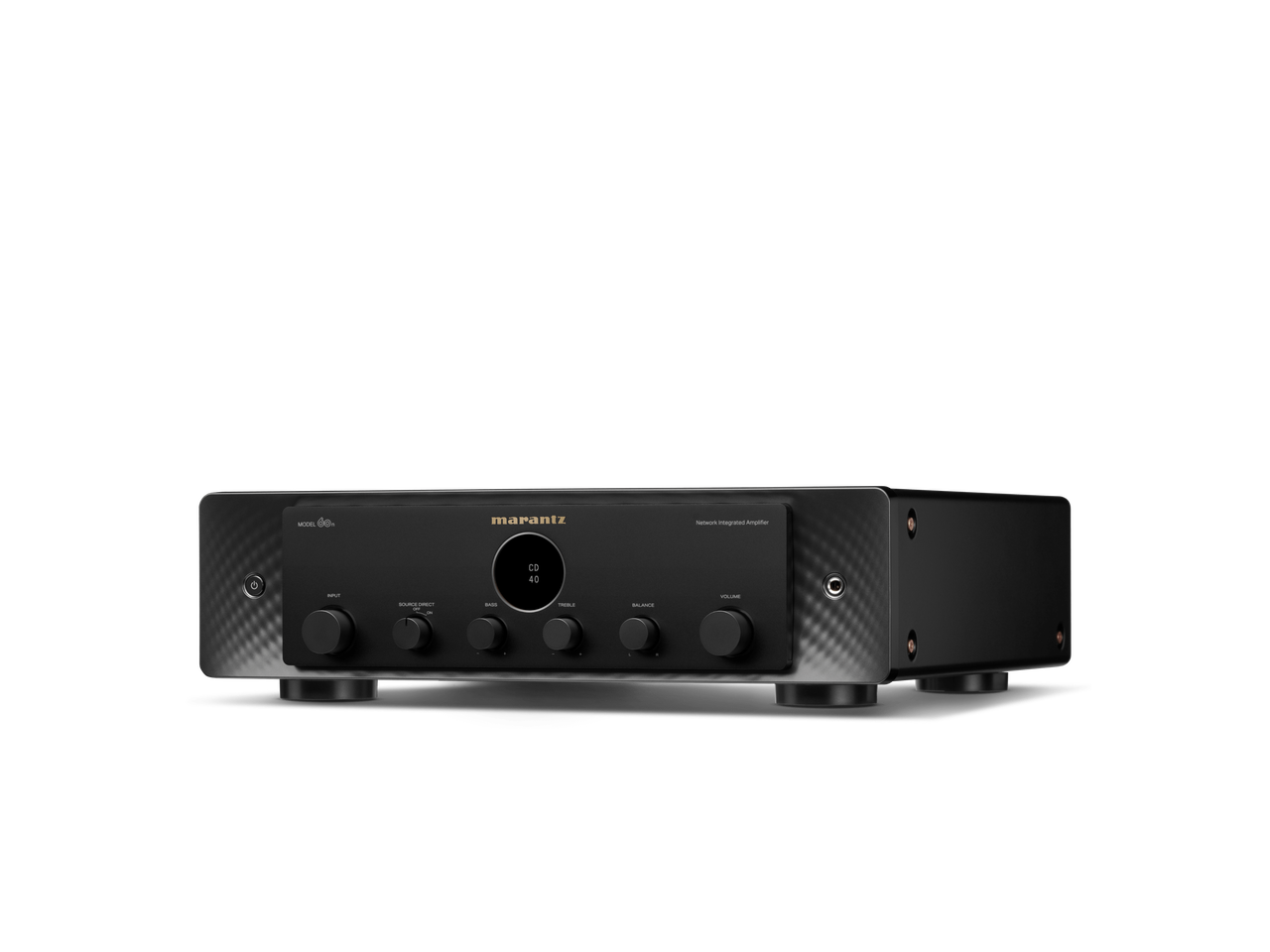

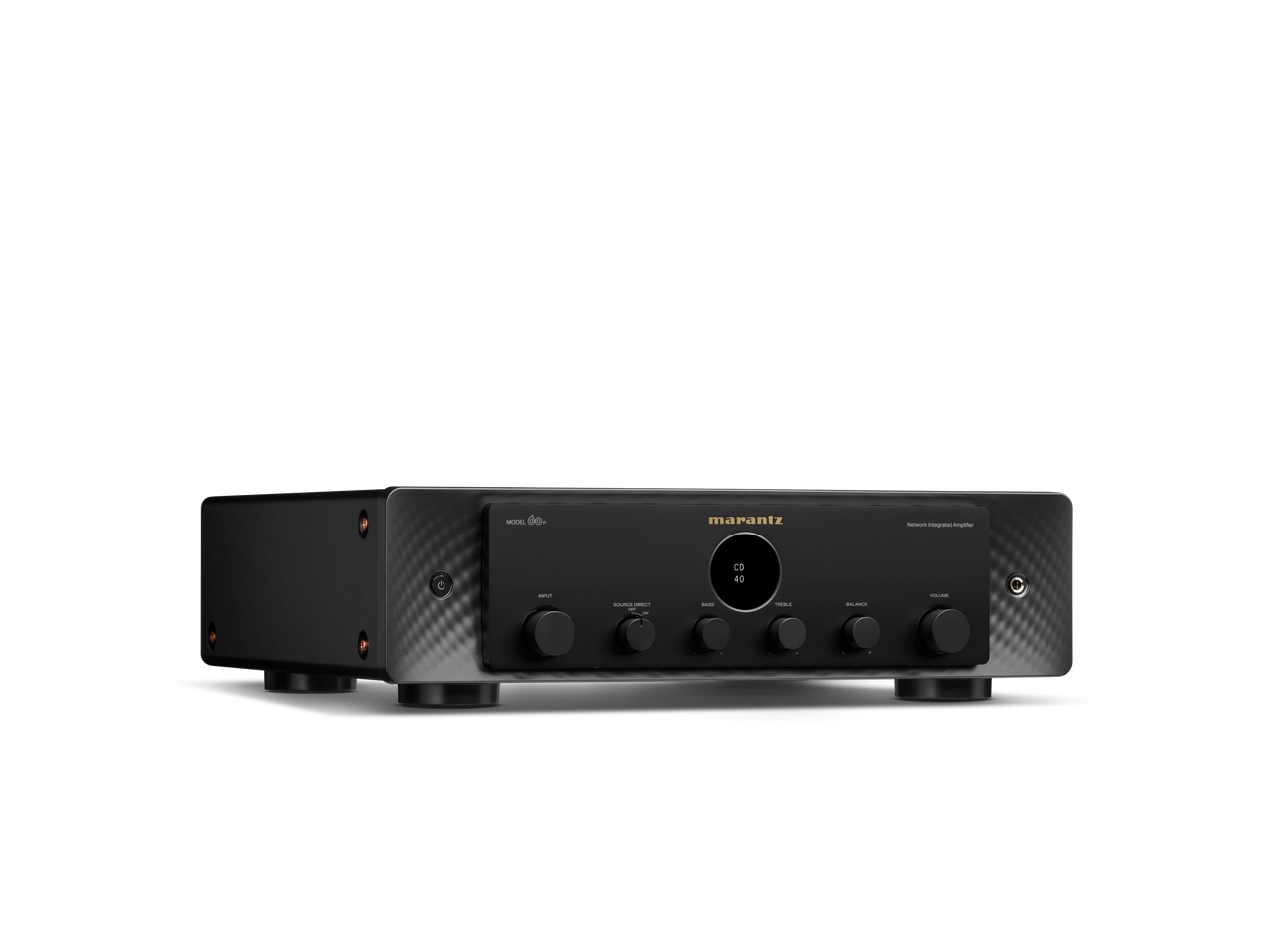

Marantz Model60N Network Integrated Amplifier - Black

Marantz Model60N Network Integrated Amplifier - Black

MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity. Stream in high-resolution via HEOS® Built-in, connect your CD player or turntable and complete your hi-fi system with the speakers of your choice, or an optional subwoofer.

  • 60W per channel
  • HEOS® Built-in
  • HDMI ARC
  • Marantz HDAM® circuits
  • Hi-Res audio support
  • CD and MM phono inputs



The perfect blend of performance and connectivity

MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity.



MODEL60N

  • Superb Marantz Sound: Sound Master tuned and engineered to bring you all the texture, nuance, and clarity of the Marantz signature sound.
  • High Resolution Streaming: Stream in high-resolution from today’s most popular music services, including TIDAL, with HEOS® Built-in.
  • Build your Hi-Fi System: Wide range of connections, including for a CD player and turntable, enable you to build a comprehensive hi-fi system.
  • Enhanced TV Sound: Enjoy superior TV sound for your favorite movies and shows and enhance your gaming experience with MODEL 60n’s HDMI ARC connection.
  • Marantz Industrial Design: Intuitive operation, designed with robust yet refined materials and available in two colorways: black and silver-gold.



Specifications:


Amplifier

Channels
2
PSU Transformer
Toroidal
Speaker A / B
No
Speaker Terminals
Marantz SPKT-1+
Number of Terminals
2
Power Output (8 / 4 Ohm RMS)
60 W / 80 W
Topology
Class A/B

Audio Components and Technologies

Current Feedback Topology
Yes
HDAM Version
SA3, SA2
High Grade Audio Components
Yes
Customised Components
Yes
Symmetric PCB Layout
Yes
Aluminium Extrusion Heat Sink
Yes
Copper Plated Chassis
No
Marantz Musical Digital Filtering
No
Linear Drive Power Supply
Yes
BI-AMP and Multichannel Option
No
Shottky Diodes
Yes

Control

D-Bus
Yes

DAC

Digital Inputs
Coaxial, Optical, USB-A
Max PCM Sample Rate
192 kHz / 24-bit
Max DSD Sample Rate
DSD 4X (11.2 MHz)
HDMI
1 ARC

HEOS

Streaming Technologies
Bluetooth, Airplay 2, Roon Ready, Spotify Connect, Tidal Connect
Streaming Services (subject to change and local availability)
Tidal (Hi Res), Deezer (Hi Res), Amazon Music HD, Pandora, TuneIn, iHeartRadio, SoundCloud, SiriusXM, AWA, Mood:Mix, Qplay, Sony HiRes
HEOS Multiroom and Streaming
Yes
Lossy Formats
MP3, WMA, AAC
Lossless Formats: DSD/DSF, FLAC, ALAC, WAV
Gapless Playback: Yes
HEOS App: iOS, Android

Network

Wi-Fi / Wired LAN: Yes / Yes

Other

Display: Low-Noise OLED Monochrome

Preamp

Phono EQ: MM Standard
Tuner: FM / AM: No
Audio Adjustments: Yes
Power Amp Direct: No
Balanced In / Out: No / No
Preamp Outputs: 1
Subwoofer Output: 1 Mono
Headphone Out: Yes

Specifications

Frequency Response: 5 Hz-100 kHz
Total Harmonic Distortion: 0.02 %
Damping Factor: 100<
Input Sensitivity: MM: 1.9 mV / 47 kOhm
Signal to Noise Ratio: MM/MC: 87 dB / -
Input Sensitivity: High Level: 190 mV / 20 kOhm
Signal to Noise Ratio: High Level: 113dB
Treble Control: ± 10 dB at 15kHz
Bass Control: ± 10 dB at 50Hz
Metal Front Panel: Yes
Power Consumption in W: 220
Standby Consumption in W: 0.3
Auto Power Off: Yes
Detachable Power Cable: Yes
Remote Control: RC006PM
System Remote Function: Yes
Maximum Dimensions (W x D x H) mm: 442 x 431 x 129
Carton Maximum Dimensions (W x D x H) mm: 527 x 517 x 255
Carton Weight (inc. product) in kg: 15.5
Maximum Dimensions (W x D x H) in: 17.4 x 17 x 5.1
Weight in LBS: 28.1
Carton Maximum Dimensions (W x D x H) in: 20.8 x 20.4 x 10.1
Carton Weight (inc. product) in LBS: 34.3
