Mission LX-Connect - Black

Mission LX-Connect - Black

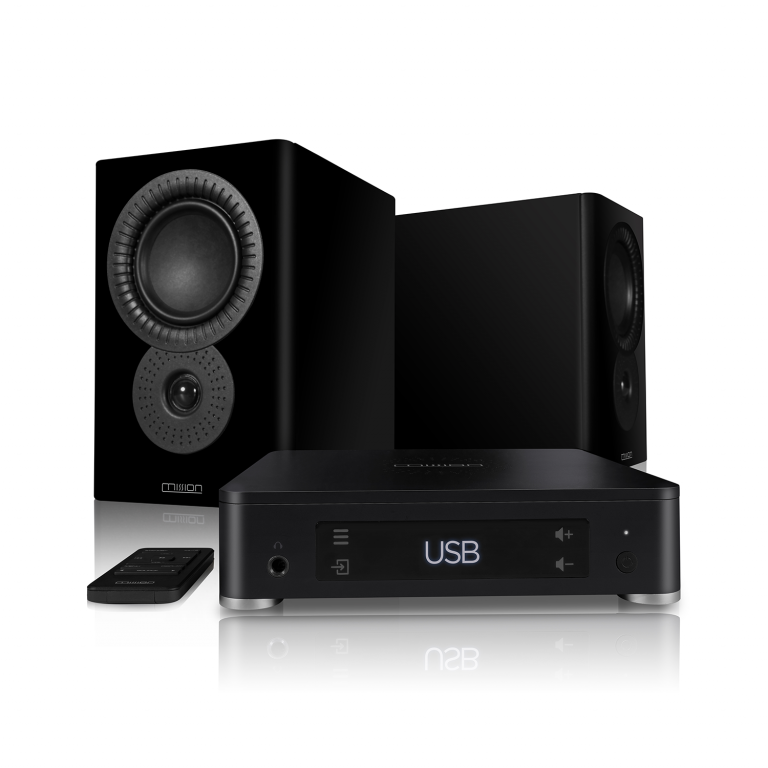

The Mission LX CONNECT wireless speaker system is Missions first ‘True Wireless’ speaker system. Utilising innovative wireless technologies and combining it with the award-winning LX MKII Series speakers, the Mission LX CONNECT offers a new level of convenience and performance that changes the game for all wireless speaker systems.

LX CONNECT offers wireless connectivity via an advanced wireless hub which hosts all of the connectivity options for your listening pleasure. The LX CONNECT HUB intelligently transmits left and right audio signals to the appropriate speaker via uncompressed, 5.8Ghz wireless audio signal transmission. There is no trailing cable between speakers or hub with no need for the speakers to be connected together via a cable, for ‘True Wireless’ audio.



Description



MISSION LX CONNECT

The Mission LX CONNECT wireless speaker system is Missions first ‘True Wireless’ speaker system. Utilising innovative wireless technologies and combining it with the award-winning LX MKII Series speakers, the Mission LX CONNECT offers a new level of convenience and performance that changes the game for all wireless speaker systems.

LX CONNECT offers wireless connectivity via an advanced wireless hub which hosts all of the connectivity options for your listening pleasure. The LX CONNECT HUB intelligently transmits left and right audio signals to the appropriate speaker via uncompressed, 5.8Ghz wireless audio signal transmission. There is no trailing cable between speakers or hub with no need for the speakers to be connected together via a cable, for ‘True Wireless’ audio.



IMMERSIVE STEREO QUALITY

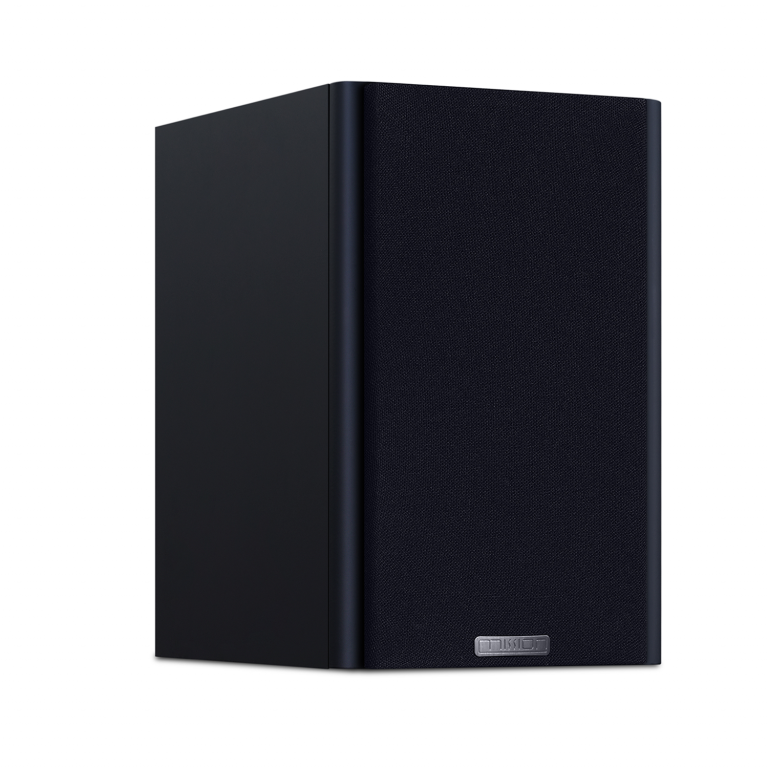

The speaker system is based on the Mission LX-2 MKII speakers, with specially engineered, high-power digital amplification modules offer 60w from each cabinet (120w per system). Following the LX MKII series design and performance, the LX CONNECT speaker maintain the Mission trademark ‘Inverted Driver Geometry’ design and precision-tuned crossover to yield improved transient attack and astonishing detail. Mission DiaDrive bass units offer superior control of the low-frequency diaphragm while a refined high-frequency performance and a re-engineered cabinet bracing system further help create a loudspeaker system that outperforms its price-class.



ADVANCED WIRELESS SYSTEM

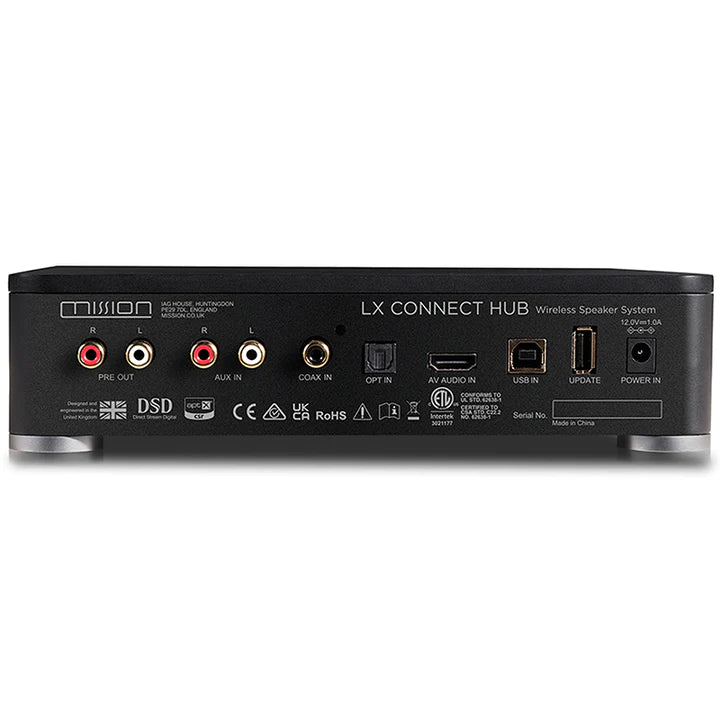

The LX CONNECT HUB, which acts as the central console for all of your music sources; including analogue, optical and coax digital inputs. The LX CONNECT HUB is a high-specification, standalone audio hub in it’s own right. There is a dedicated HDMI ARC connection to bring high fidelity, true wireless performance for TV, movies and games, and Bluetooth aptX connections for wireless streaming of hi-resolution audio from tablets and smartphones.



ADVANCED WIRELESS HUB

The LX CONNECT HUB also doubles as a high performance USB DAC, equipped with the ESS Sabre32 ES9018K2M Reference DAC, and hi-fi grade headphone amplifier that will outperform most dedicated headphone amp / DAC combinations in this price-point, alone!

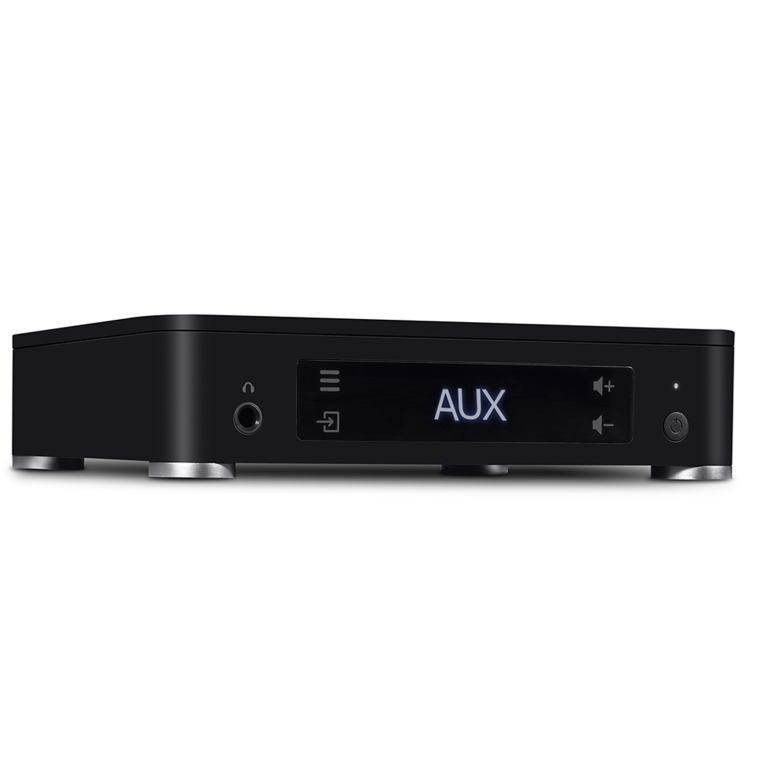

Unlike other wireless and active speakers where controls and inputs are often placed awkwardly on the back panel, the LX CONNECT HUB is easily controlled via the tactile interface and OLED display or, for even more convenience, you can use the included remote.





SPECIFICATIONS



General Description Wireless Speaker System
Design Philosophy And Core Technology 5.8GHz Wireless Uncompressed
Technology
DAC ESS Sabre 9018
Support Music And Movie Mode
Headphone Amplifier
Support USB Upgrade
Pre Delay Setting
Roon Tested
Touch Control
Analogue Input RCA (AUX)
Digital Input OPT, COAX, PC USB, Bluetooth, AV Audio
Analogue Output RCA Pre Out
Pre Amplifier (hub)
Input Sensitivity 300mV (AUX IN, volume = MAX)
Input Impedance 13K (AUX IN)
Variable Output Voltage 0 – 3.2V
Output Impedance 100 ohm
Frequency Response 20Hz-20kHz (+/-0.3dB)
Signal-to-noise Ratio > 100dB (AUX IN, A-weighted)
(S/N) > 110dB (digital Inputs, A-weighted)
Total Harmonic Distortion < 0.001% (digital sources )
< 0.005% (analogue sources)
Sampling Rate 24bit - 192kHz (OPT, COAX)
32bit - 384kHz (USB, PCM)
2.8M for DSD64, 5.6M for DSD128,
11.2M for DSD256 (USB, DSD)
Digital Filters Fast Roll-off, Slow Roll-off, Minimum Phase

Active Speakers
Enclosure Type Bass Reflex
Transducer Complement 2-way
Drive Unit
Bass Unit 130mm Composite Fibre Cone
Treble Unit 25mm Microfibre Dome
AV Shielded No
Rated Power Output 60W
Peak Power Output 100W
Peak SPL 99dB
Frequency Response (+/-3dB) 58Hz – 20kHz
Bass Extension (-6dB) 52Hz
Crossover Frequency 3.2kHz
Wireless Reception Distance 20m
Cabinet Volume 8.2L
Dimensions Speaker
Height (on feet) 305mm
Width 200mm
Depth (with terminals) (250+15)mm
Hub
Height (on feet) 55mm
Width 225mm
Depth (with terminals) 231mm
System
Carton Size 545 x 440 x 400mm
Net Weight 6.55kg x 2 (speakers)
1.75kg (hub)
Gross Weight 17.8kg
Finish Walnut Pearl / Lux White / Lux Black (speakers); Black (hub)
Power Requirements 100-240Vac (50/60Hz)
