The Bronze On-Wall 6G is a highly flexible addition to the Bronze Series. Not only does the super-slim profile allow it to be a perfect rear and side channel AV speaker, but it also means that it is perfect for wall-mountable front LCR (left-centre-right) applications – making it an ideal home cinema speaker. Featuring the latest C-CAM 1-inch gold dome tweeter featuring the UD waveguide, and highly dynamic 6.5-inch bass-mid driver; benefiting from the latest C-CAM cone technology and powerful motor system. The Bronze On-Wall 7G is a highly versatile, décor friendly alternative, delivery, detailed high-fidelity surround sound in abundance.
A starting point for acoustic excellence.

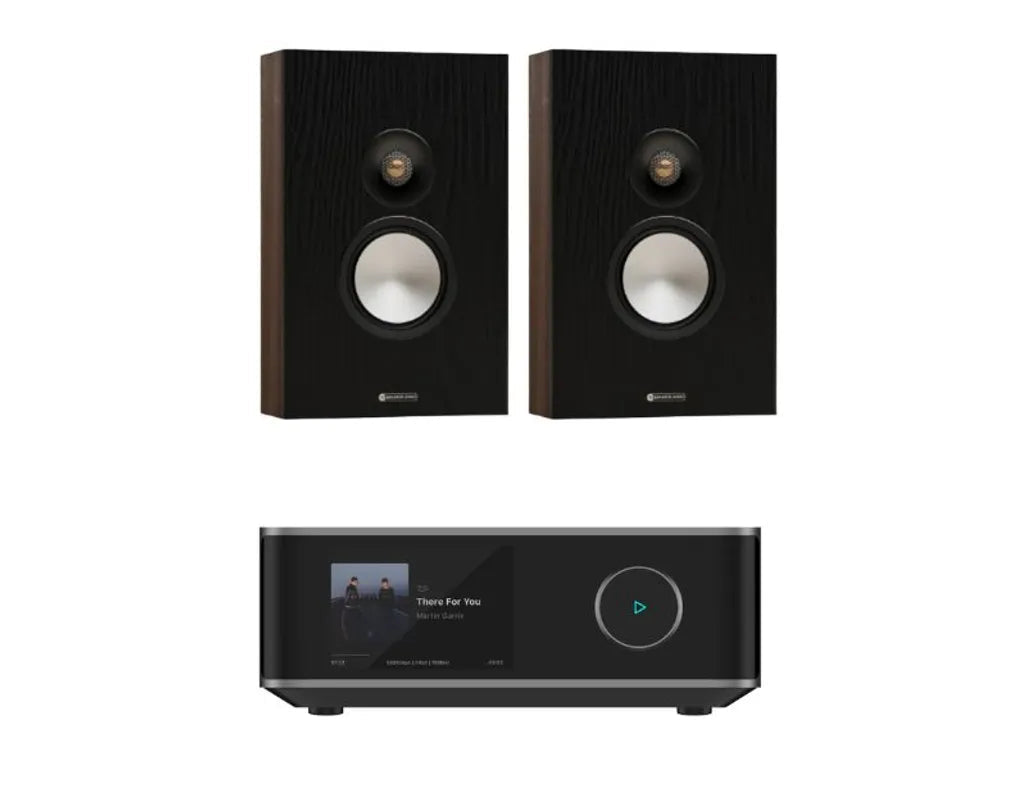

The Bronze On-Wall 7G is a slim, décor-friendly speaker that brings high-fidelity performance to wall-mounted stereo and surround sound systems. Ideal for front LCR and rear or side channel AV use, its compact profile offers flexible placement without compromising on sound.
Featuring a 1-inch C-CAM gold dome tweeter with UD waveguide and a dynamic 6-inch C-CAM bass-mid driver, it delivers tight bass, crisp highs and immersive detail. A new crossover design and HiVe II port technology ensure smooth, punchy performance across the frequency range.
Ideal for versatile placement, the Bronze On-Wall 7G is an elegant choice for audiophiles and movie lovers alike.
A captivating class leader.
Bronze Series 7G exudes all the qualities you’d expect in terms of craftsmanship and sonic excellence that many have followed, yet very few have bettered.
Bronze has always led and is the entryway into achieving an enhanced listening experience.
A Jewel in the Crown.
One of the more distinct design features on the Bronze Series 7G is the tweeter. The C-CAM gold dome, protected by an aluminium-etched hexagonal grille design, blends seamlessly into the hexagonal waveguide, allowing the high frequencies to reach the listener with the minimum of obstruction to deliver detailed, clear and pristine high fidelity.
Compact, controlled and crystal clear.
The latest incarnation of the Gold Dome tweeter, within Bronze Series 7G, is not only thinner, lighter and more rigid than the previous 6th generation, but its carefully formed profiled dome now benefits from the UD (Uniform Dispersion) Waveguide II. This improves time alignment and allows a lower frequency to crossover for wider directivity.
Delivering life-like clarity.
The Bronze Series 7G utilises a bass-mid driver design that features large magnets and a voice coil, giving this Bronze range much higher power handling and high sensitivity and thus delivering far greater control and more accurate time responses.
What this means is that movie soundtracks, from the quietest to the most dynamic passages or delicate strings to powerful bombastic music passages, are delivered with total realism and neutrality.
Crossover Design – the purest of signals.
The crossovers for Bronze Series 7G have been optimised over many hundreds of hours of listening, each component having been carefully selected by the R&D team. Each component has gone through rigorous measurement testing to improve the overall ‘system design’, and with high-quality capacitors and transistors used – at this price point – the Bronze Series 7G provides detailed and precise sound delivery across all audible sound frequencies for an engaging listen.
Powerful Bronze bass, to move you.
Below the smooth metallic finish of the Bronze Series 7G C-CAM drivers lies a powerful motor system – designed for agility, accuracy and impact.
We’ve introduced a new progressive spider design to ensure smoother, more controlled driver movement, improving excursion linearity. The voice coils on this generation of Bronze are much larger than the previous, now 28.5mm compared to 25mm. The result? Far more bass extension and greater power handling for controlled, punchy, articulate bass.
Specifications:
System Format
2-Way
Performance
-
Frequency Response (-6dB, In-Room): 42 Hz — 30 kHz
-
Sensitivity (2.83 Vrms @ 1m, Free-Field): 88 dB
-
Nominal Impedance: 8 Ohms
-
Minimum Impedance (20 Hz - 20 kHz): 4.7 Ohms @ 17 kHz
-
Maximum Peak SPL (AES75, Z-weighted): 112 dB
-
Continuous Power Handling (CTA 426-B): 100 W
-
Recommended Amplifier Power:
-
50 – 200 W into 4 Ohms
-
30 – 100 W into 8 Ohms
Acoustic Design
Dimensions & Weight
-
External Dimensions (H x W x D): 465 x 300 x 135 mm (18 5/16 x 11 13/16 x 5 5/16")
-
Packed Dimensions (H x W x D): 573 x 402 x 240 mm (22 9/16 x 15 13/16 x 9 7/16")
-
Weight (each): 7 kg (15 lb 7 oz)
Additional Information
-
Sold As: Single
-
Warranty: 5 Years
WiiM Amp Ultra Highlights
100W of pure hi-fi power with a vibrant 3.5″ touchscreen for smart, seamless control
- 100W per channel at 8 ohms: More power, more control
- Premium unibody aluminum design: Sleek, durable, and thermally optimized
- High-fidelity audio with premium components: Premium DAC, amplifier, and op-amps
- Advanced Thermal Management: Stay cool, play longer
-
![]()
Next-Gen Connectivity: Fast, stable streaming
- Elegant Touchscreen Design: Intuitive control and stunning aesthetics
- RoomFit™ Room Calibration Built-In: Optimize soundstage and tonal balance
- Post filter feedback technology (PFFB): Overcomes speaker-load dependency
-
![]()
All-in-One Streaming Hub: Stream everything you love
-
![]()
Cinematic TV Audio: Immersive home theater sound
-
![]()
Smart Preset: One tap access to content and control
Unleash Studio-Quality Sound
Meet the WiiM Amp Ultra – our most advanced streaming amplifier yet. Built for music lovers, home theater buffs, and smart home fans, it delivers stunning 100W per channel (8Ω) with ultra-low distortion, pushing high-fidelity audio to every corner of your space. Whether it’s vinyl, Spotify, or cinematic surround sound—you’ll hear it like never before.

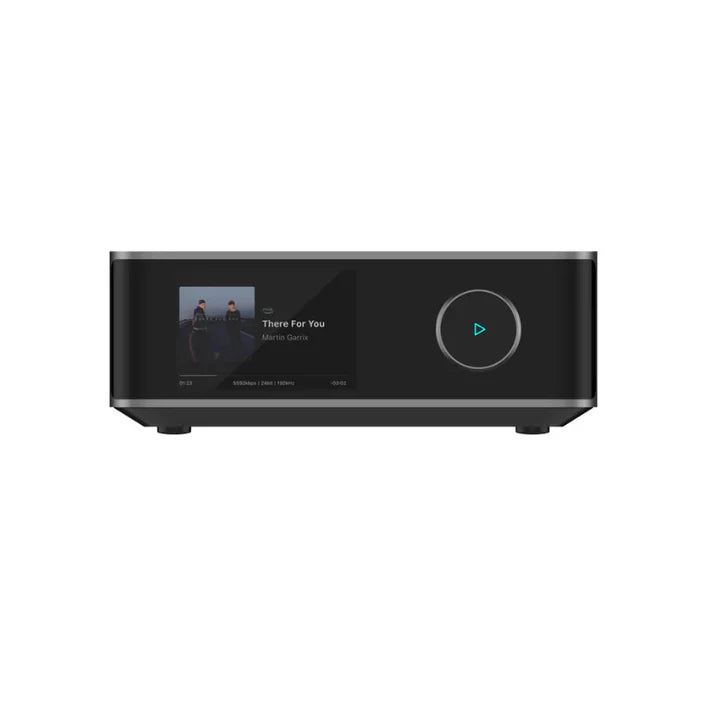

Beautiful Inside and Out
Designed to stand out and fit in, the Amp Ultra features a sleek unibody aluminum chassis and a vibrant 3.5″ glass-covered touchscreen. Easily control playback, switch sources, view album art, and more—all at your fingertips.
Flagship Components, Flawless Fidelity
Under the hood, the Amp Ultra is powered by top-tier components:
ESS ES9039Q2M SABRE DAC
Dual TI TPA3255 Class-D amplifiers
Six TI OPA1612 op-amps
Combined with Post Filter Feedback (PFFB) technology, it delivers clean, detailed sound with consistent performance across all speaker loads—perfect for bookshelf, floor-standing, or in-wall speakers.
Post Filter Feedback Technology
At the core of the WiiM Amp Ultra’s superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimizes distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature. The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.
Advanced Thermal Management
High-power amplification generates heat, but the WiiM Amp Ultra stays cool under pressure with advanced thermal management:
![]()
- Copper Heat Pipe – Rapidly transfers heat from key components for stable performance at any volume.
- Large Aluminum Heatsink – Exceptional conductivity ensures fast, efficient cooling, preventing thermal throttling.
- Precision PID Control – Real-time temperature regulation for optimal cooling and long-term reliability.
Next-Gen Wireless Streaming
Stay connected with the latest in wireless tech:
Wi-Fi 6 (Tri-Band)
Bluetooth 5.3 with SBC and AAC support
Stream ultra-high-resolution audio with near-zero latency—no dropouts, no lag, just music.
See Your Sound
A vivid 3.5″ glass touchscreen puts album art, VU meters, and one-tap controls front and center—making input switching, setting tweaks, and playback navigation
effortless, with instant visual feedback.
Built-In RoomFit™ Room Correction
Every room is different—WiiM Amp Ultra adapts. Using built-in acoustic measurement and correction, it tunes your setup to match your environment, optimizing for speaker type, distance, and room acoustics.
All the Music You Love, All in One Place
Stream directly from your favorite platforms:
Spotify, Amazon Music, TIDAL, Qobuz, Deezer, Pandora, iHeartRadio, TuneIn, SoundCloud, and more.
Tailor Your Sound
Dial in the perfect tone with:
24 Preset EQ Profiles
10-Band Graphic and Parametric EQ
Per-input EQ settings
Subwoofer crossover control
Versatile Connectivity
Easily integrate turntables, TVs, CD players, or stream to any WiiM or Bluetooth-enabled device.
Control Everything with the WiiM Home App
One app. Total control.
Stream music, adjust EQ, group rooms, set alarms, or update firmware with ease—right from your phone or tablet.
Take full control with the WiiM Voice Remote 2
WiiM Voice Remote 2 crafted with a sleek aluminum body, rechargeable battery, and intuitive Push-to-Talk voice commands—plus smart presets and dedicated playback buttons for a seamless, intuitive experience.
Smarter Listening
-
Multi-Room Audio with WiiM, Google Home, and Alexa systems
-
![]()
Stereo Pairing for wider soundstage
-
![]()
Home Theater Mode with HDMI ARC and Dolby Digital support
-
![]()
Smart Presets & Alarm Clock to simplify your routine
-
![]()
Voice Control via Alexa, Google Assistant, or the included WiiM Voice Remote
Future-Proof by Design
We’re constantly improving. With regular OTA firmware updates, your Amp Ultra only gets better over time—with new features, streaming services, and optimizations.
Specifications:
Dimensions and Weight
Dimensions: 7.87 x 8.3 x 3 inches (200 x 211 x 76.2 mm)
Weight: 5.4 lbs (2.45 kg)
Audio Performance
• Power Output (THD = 0.08%, two channels driven): 100 W per channel @ 8Ω, 200 W per channel @ 4Ω
• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
•Total Harmonic Distortion (THD+N): ≤0.005%, -106 dB (A-weighted)
• Signal-to-Noise Ratio (SNR) : ≥120dB
• Damping Factor: 94
• Frequency Response: 20Hz – 20kHz ± 0.5dB
• Impedence Range: 2 – 8Ω
Audio Processing
Premium Audio Components: ESS 9039Q2M high-performance DAC, Dual TI TPA3255 Amps, TI OPA1612 op-amps for ultra-low distortion and rich, detailed sound.
Bit-Perfect Playback: Supports up to 192kHz/24-bit audio
Dynamic Range: ≥120dB for high-resolution sound

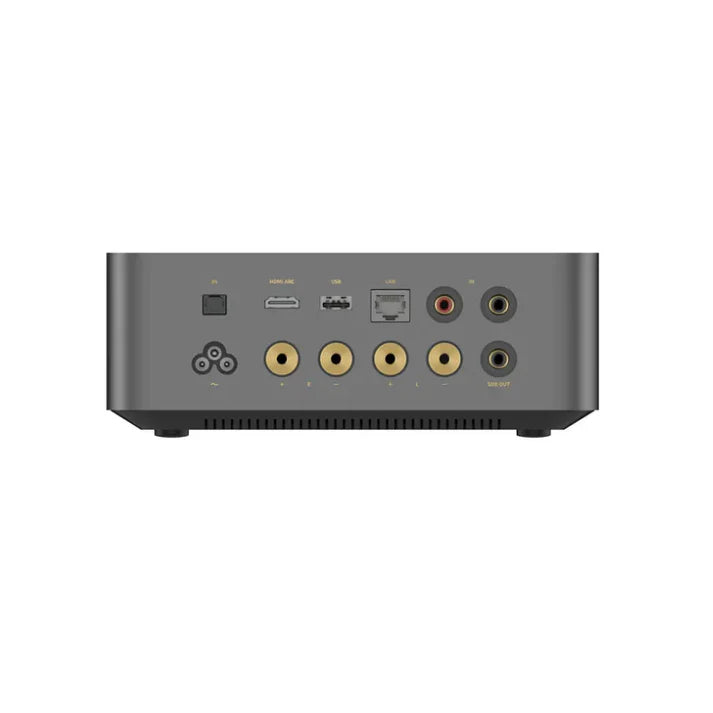

Input & Output Options
Analog Inputs:
• 1x RCA Stereo: Connects to external audio sources like CD players or PCs
Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• HDMI ARC: Receives audio from TVs, PCM up to 192kHz/24-bit, and Dolby Digital 5.1 formats
Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
USB Audio Output:
• Supports up to 8-channel 24-bit/192kHz; UAC 2.0 compliant
Sub Output:
• Dedicated output for powered subwoofers (RCA Mono)
Wireless & Network Connectivity
Wireless Connectivity:
Bluetooth 5.3: Supports A2DP receiver and transmitter, AVRCP, HID, and works with the WiiM voice remote Wi-Fi 6 (Upgradeable to Wi-Fi 6E): Ensures stable and high-speed wireless streaming
Wired Network:
Ethernet (100Mbps): Standard RJ45 port
EQ & Sound Customization
Input-Specific EQ:
Independent settings for Wi-Fi, HDMI ARC, Optical, Bluetooth, Line-In
EQ Tools:
▪ 24 Preset EQ Profiles
▪ 10-Band Graphic & Parametric EQ
▪ Built-in Room Correction with mic-guided acoustic tuning
Streaming & Smart Features
Streaming Protocols:
▪ WiiM Home App
▪ Chromecast Audio
▪ Spotify Connect
▪ TIDAL Connect
▪ DLNA, LMS
▪ Roon Ready (Certification Pending)
• Multi-Room Audio:
Compatible with WiiM, Google Home, and Alexa multi-room systems
• Stereo Pairing:
Supports L/R speaker setup for enhanced stereo imaging
• Home Theater Mode:
Functions as front, center, or surround channel in a Dolby 5.1 setup via HDMI ARC
• Smart Presets:
Quick access to favorite playlists, sources, or routines
• Alarm Clock:
Configurable time, repeat schedule, and music source

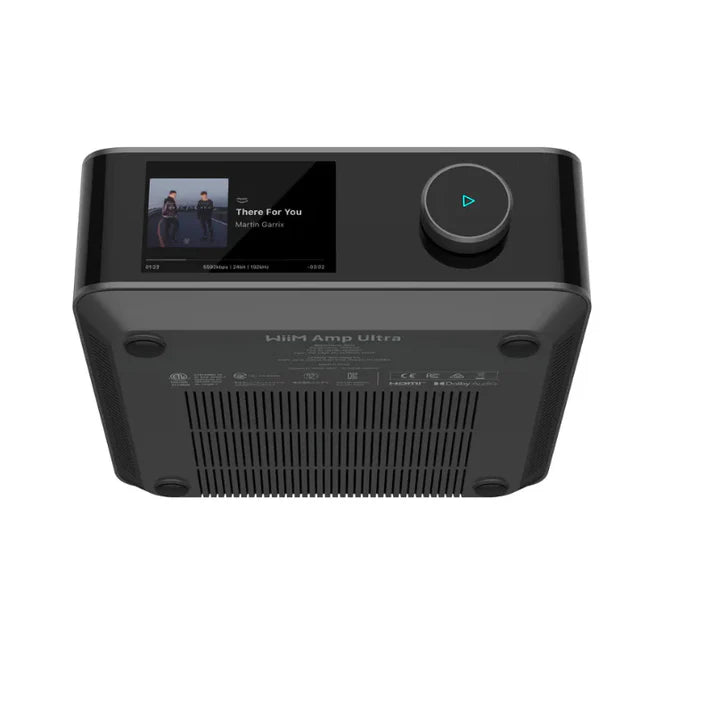

Touch Display
Screen:
3.5” glass-covered capacitive touchscreen
Functions:
▪ Playback controls, album art, EQ adjustment, input switching
▪ Queue view, preset access, VU meters, time/date in standby
▪ Custom wallpapers and onboarding setup (OOBE)
▪ Supports firmware updates directly via screen
Design & Controls
Chassis: Precision-machined unibody aluminum for durability & heat dissipation
Dimensions: 7.9” x 2.9” x 7.9” (200 x 75 x 200 mm)
Weight: 5.4 lbs (2.45 kg)
Physical Controls: Multifunctional rotary knob (Volume, Play/Pause)
Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
Cooling System: Passive, silent operation
Package Contents
User Guide *1
Power Cable *1
RCA Cable *1
Optical Cable *1
HDMI Cable *1
Remote 2 *1
Banana Plugs *4
