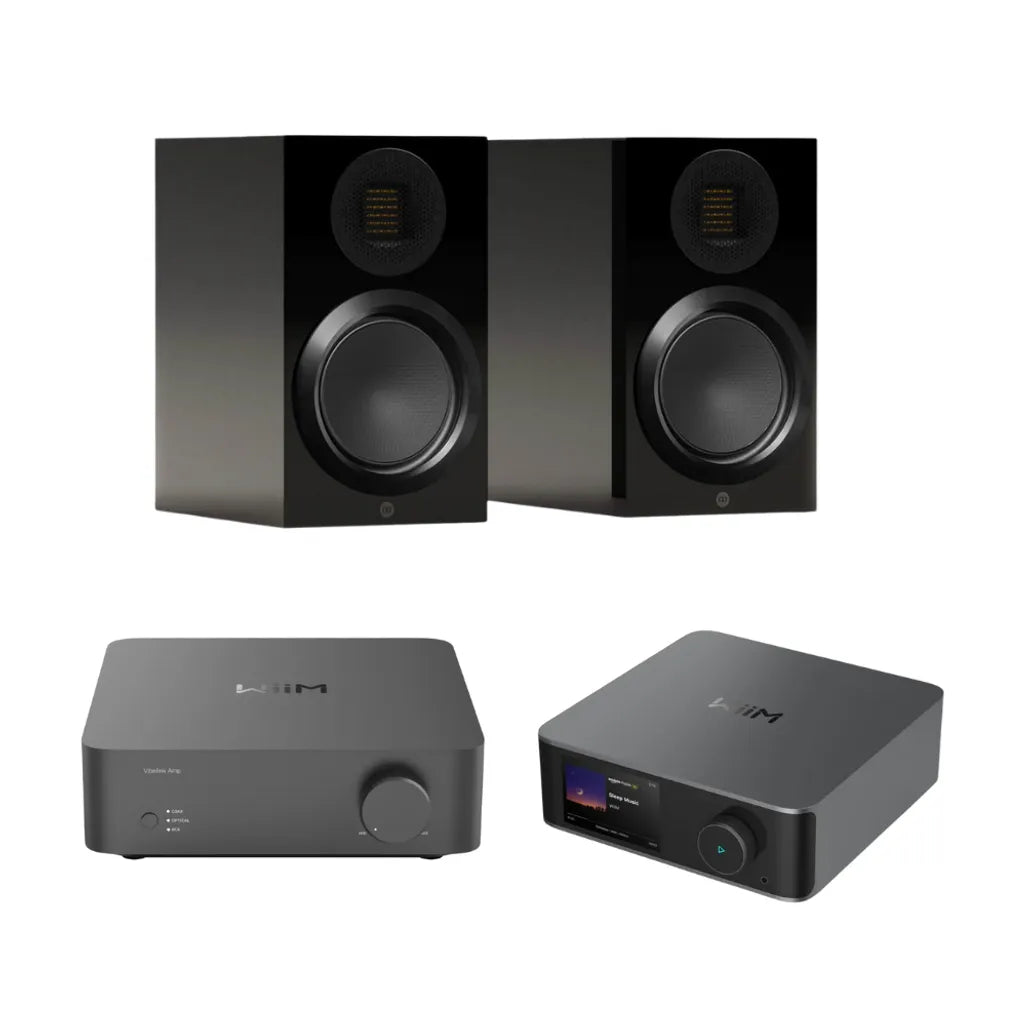

Monitor Audio Gold 50 6G Bookshelf Speakers - Pair (Gloss Black) + WIIM Vibelink Amp (Grey) + Wiim Ultra Digital Hub (Grey)

R 43,699.00
R 57,990.00 R 43,699.00
Sale Sold out
Tax included.

Monitor Audio Gold 50 6G Bookshelf Speakers - Pair (Gloss Black) + WIIM Vibelink Amp (Grey) + Wiim Ultra Digital Hub (Grey)

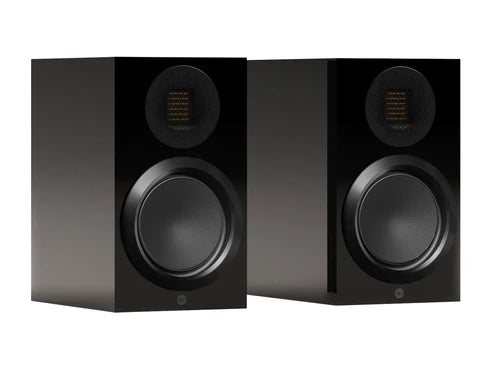

Monitor Audio Gold 50 6G Bookshelf Speakers - Pair - Gloss Black



The Gold 50 6G is the smallest model in the Gold Series 6G. Incredibly flexible in its positioning potential, this two-way model features the latest MPD III high-frequency transducer alongside an HDT, C-CAM 6-inch mid-bass driver.



The Gold 50 6G is a compact, high-fidelity bookshelf speaker. Its discreet proportions, plus the ability to partner it with the ST-2 speaker stand, make it the most flexible of all the Gold Series 6G models when it comes to placement in a listening environment. Designed to house the latest MPD III high- frequency transducer and a powerful 6-inch mid-bass driver, both of which benefit from the new HDT, C-CAM cone technology and hugely powerful motor systems. The Gold 50 6G is a joy, delivering purity, precision, and a never less than compelling listen.


Key Features

  • Two-way design
  • 1 x MPD III high-frequency transducer
  • 1 x 6-inch bass-mid driver, featuring HDT, C-CAM cone technology
  • Machined aluminium drive unit trims
  • New crossover design utilising carefully selected high-quality capacitors
  • Ported cabinet design using HiVe II port technology and through-bolt technology
  • Compatible with the ST-2 Universal Stand
  • Finishes available: Macassar wood veneer, High-Gloss Black and Satin White

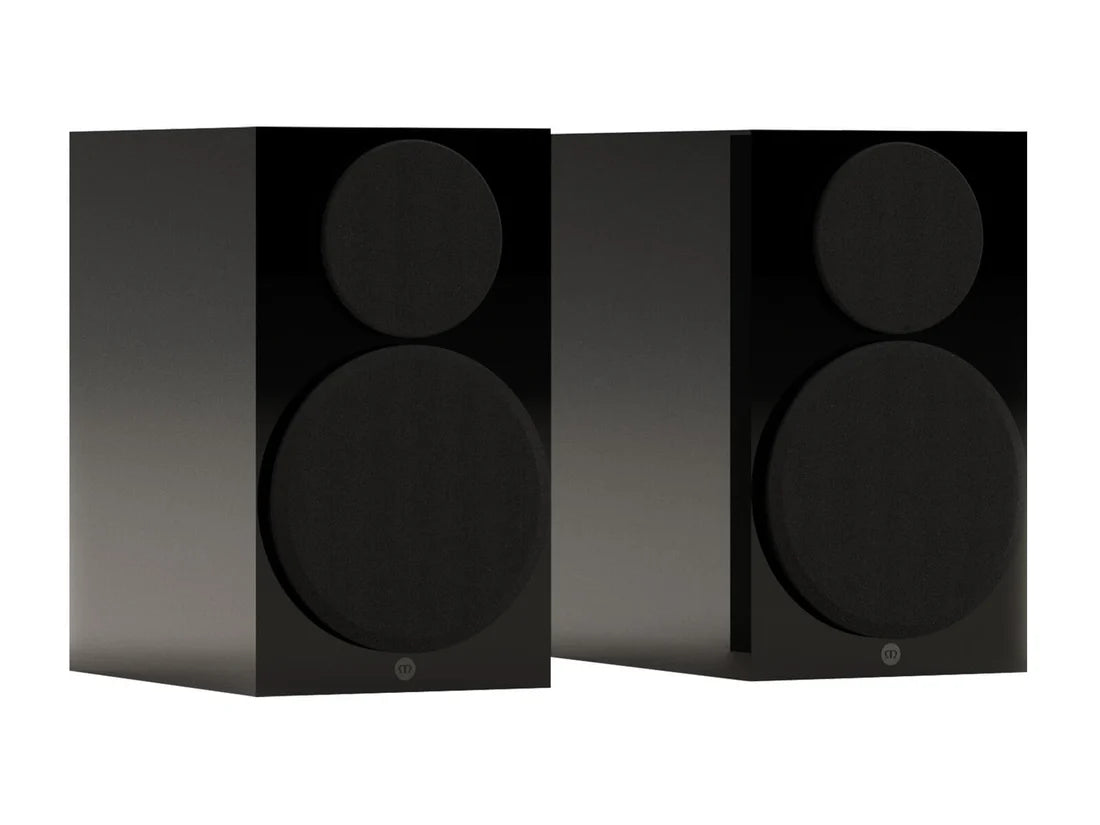

  • Individual driver ‘Magnetic grilles’ included



Specifications:

System Format
2-way

Sensitivity (2.83v @ 1m, Free-Field)
85 dB

Sensitivity (2.83v @ 1m, Installed)
N/A

Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)
130 – 300 W

Continuous Power Handling (CTA 426-B)
150 W

Nominal Impedance
4 Ohms

Minimum Impedance (20Hz to 20kHz)
4.0 Ohms @ 225 Hz

Drive Unit Complement
1 x 6” (152 mm) HDT C-CAM Bass-Mid Drivers
1 x MPD III Tweeter

Frequency Response Free-Field (-6dB)
55 Hz – 60 kHz

Frequency Response, In-Room (-6dB)
44 Hz – 60 kHz

Maximum Peak SPL (AES75, Z-weighted)
114 dB

Bass Alignment
HiVe II Ported

Port Tuning Frequency
50 Hz

Crossover Frequency
LF/HF: 2.5 kHz

External Dimensions with all accessories fitted (H x W x D)
320 x 185 x 303 mm (125/8 x 75/16 x 1115/16”)

Weight (each)
8.5 kg (18 lb 12 oz)

Sold As
Pair



WIIM Vibelink Amp - Grey



Power. Precision. Pure Performance.

Designed for music lovers and home theater enthusiasts, the WiiM Vibelink Amp delivers 100W per channel at 8Ω and 200W per channel at 4Ω, providing powerful, high-fidelity amplification. Every note, beat, and dialogue is rendered with exceptional clarity, depth, and precision, ensuring an immersive listening experience.



Premium Build, Modern Aesthetic

Crafted from a sleek, unibody aluminum chassis, the WiiM Vibelink Amp offers exceptional durability and peak performance. Its premium, minimalist design blends seamlessly into any audio setup, whether on a media console or in a high-end rack. Engineered with advanced thermal management, including a copper heat pipe and a large aluminum heatsink, it ensures efficient cooling and long-term reliability, even under demanding conditions.


High-Fidelity Audio with Premium Components

Equipped with a premium ESS 9039Q2M DAC, TI TPA3255 amplifier chip, and six TI OPA1612 op-amps, the WiiM Vibelink Amp delivers ultra-low distortion and noise, revealing details often lost in standard amplifiers. Supporting high-resolution audio up to 192kHz/24-bit, it preserves the integrity of every recording while enhancing dynamic range for a richer, more immersive listening experience.


Post Filter Feedback Technology

At the core of the WiiM Vibelink Amp’s superior sound is its advanced Post-Filter Feedback (PFFB) technology, a cutting-edge refinement system that minimizes distortion, enhances clarity, and ensures consistent sound quality across different speaker loads. Unlike traditional amplifiers that suffer from load-dependent performance variations, PFFB dynamically compensates for these inconsistencies, delivering a more accurate, balanced, and natural sound signature. The result? A wider soundstage, richer details, and an immersive listening experience that faithfully reproduces every note with precision and depth.


Advanced Thermal Management

High-power amplification generates heat, but the WiiM Vibelink Amp stays cool under pressure with advanced thermal management:
  • Copper Heat Pipe – Rapidly transfers heat from key components for stable performance at any volume.
  • Large Aluminum Heatsink – Exceptional conductivity ensures fast, efficient cooling, preventing thermal throttling.
  • Precision PID Control – Real-time temperature regulation for optimal cooling and long-term reliability.

Smart, Energy-Efficient Performance

The Vibelink Amp is designed with modern convenience in mind. With Auto Standby Mode, it automatically powers down after 30 or 60 minutes of inactivity, saving energy without compromising performance. The 12V Trigger In enables instant activation when connected to compatible devices, making it a smart and efficient addition to your home audio setup.


Pure Analog Input – No ADC Conversion, No Compromise

Unlike many amplifiers that digitize analog signals, introducing unwanted processing and degradation, the WiiM Vibelink Amp offers a pure analog input that bypasses any Analog-to-Digital Conversion (ADC). This results in:
  • A direct, unaltered audio signal path for the purest analog experience
  • Authentic, warm sound reproduction without artificial enhancements
  •  A true audiophile listening experience, preserving the integrity of vinyl, CD, and high-end analog sources


Bit-Perfect Music Playback – Pure High-Resolution Sound

The WiiM Vibelink Amp delivers bit-perfect 192kHz/24-bit playback via Optical and Coax inputs, ensuring zero signal loss and true-to-source audio fidelity. Unlike conventional amplifiers that alter or resample audio, it preserves every detail with pristine clarity, depth, and dynamic range, making it the ultimate choice for audiophiles.



Adaptive Sample Rate & Bit Depth – Optimized for Every Track

The WiiM Vibelink Amp offers variable sample rate and bit depth selection, allowing full control over playback settings for true high-fidelity audio. Whether streaming high-resolution music, playing lossless FLAC files, or enjoying vinyl rips, the amp seamlessly adapts to the source—delivering the best possible sound quality without unwanted pops or clicks for a smooth, uninterrupted listening experience.



The Perfect Match for WiiM Streamers

  • Seamless Integration – Designed for flawless compatibility with WiiM Mini, Pro, Pro Plus, and Ultra—just plug and play.
  • Flexible Connectivity – Choose digital (Optical/Coaxial) or analog (RCA) inputs for maximum audio fidelity.
  • Ultra-Low Latency – Perfectly synced playback for high-resolution streaming and immersive home theater sound.
  • Studio-Grade Sound – Experience deep bass, crisp highs, and stunning clarity with bit-perfect precision.



Unleash the Full Power of Your WiiM Streamer!

Pair your WiiM Mini, Pro, Pro Plus, or Ultra with the WiiM Vibelink Amp and experience pure, powerful, and immersive sound like never before. Elevate your high-fidelity streaming with crystal-clear detail, deep bass, and room-filling audio.



Specifications:

Dimensions and Weight

Dimensions： 7.9 x 8.4 x 2.6 inches (200 x 212.5 x 66 mm)

Weight： 2.05 kg (4.5 lbs)

Power input: 100-240V, 50/60Hz AC, 3A Max


Power & Amplification

• Output Power : 100W per channel at 8Ω (stereo)
• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
• Total Harmonic Distortion (THD+N) : ≤0.0005%
• Signal-to-Noise Ratio (SNR) : ≥120dB
• Frequency Response: 20Hz – 20kHz ± 0.5dB
• Impedence Range: 3~8 ohms


Audio Processing

• Premium DAC : ESS 9039Q2M high-performance DAC
• Bit-Perfect Playback : Supports up to 192kHz/24-bit audio
• Dynamic Range : ≥120dB for high-resolution sound
• Pure Analog Input : No ADC conversion, maintaining signal integrity


Input & Output Options

Analog Inputs:
• 1x RCA Stereo (Line-In, pure analog signal path)
 Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
 Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
 Trigger & Power Management:
• 12V Trigger In: Auto power-on with compatible devices
• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity


Supported Audio Formats

PCM up to 192kHz/24-bit (through digital sources)


Control Interfaces

Volume Knob: Adjusts volume
LED Indicator: Three 4-color RGBW LED indicates source input and device status


Build & Design

• Chassis: Premium unibody aluminum for durability & heat dissipation
• Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
• Cooling System: Passive, silent operation


Package Contents

Use Guide *1
Power Cable *1
RCA Cable *1
Optical Cable *1
Banana Plugs *4

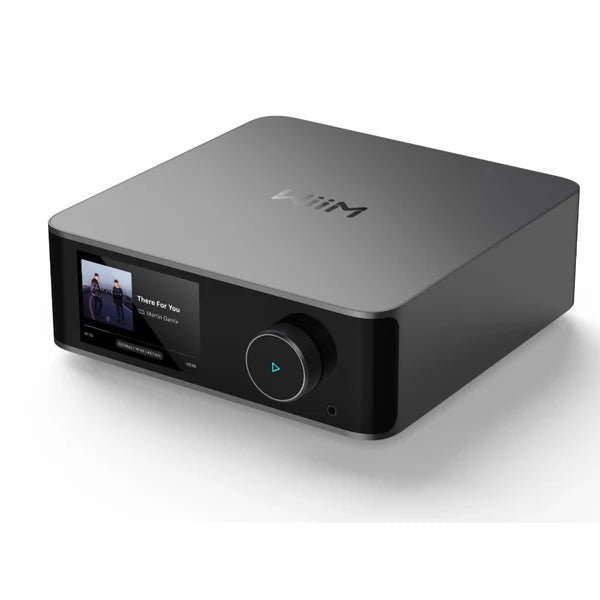

Wiim Ultra Digital Hub - Grey



Sleek Design, Superior Build

Experience exceptional audio with our sleek aluminum-encased device, featuring a 3.5" glass-covered touchscreen. It offers a comprehensive suite of audio inputs and outputs and is built with audiophile-grade components for unparalleled sound quality.



Stream Everything You Love

Streamline your sonic exploration with the WiiM Home app. Say goodbye to app-hopping; this all-in-one interface connects you to a plethora of popular music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz, Napster, Pandora, TuneIn, Deezer, and more.



Superior Sound Quality

Premium 32-bit/384kHz ES9038 Q2M SABRE DAC, and high fidelity headphone amplifier TPA6120A2, delivers outstanding audio clarity with a THD+N of -116dB and an SNR of 121 dB for Line Out, up to -99 dB THD+N and 119 dB SNR for headphone out.



Connect with Ease

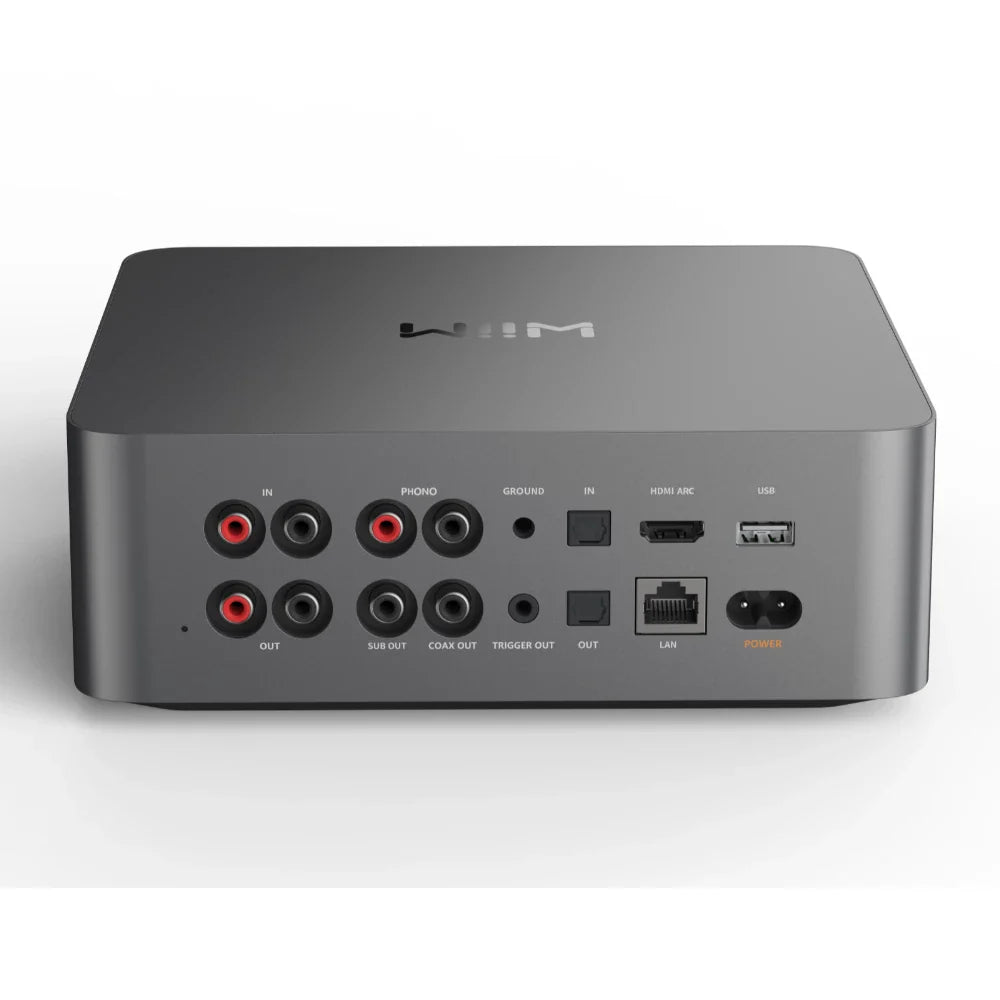

WiiM Ultra’s comprehensive connectivity suite offers USB, Optical, Coaxial, RCA outputs, and HDMI ARC, plus multiple inputs including RCA, Phono, and Optical. It’s designed to flawlessly integrate with both digital and analog systems, enhancing any audio setup with versatility and superior sound.



Cutting-Edge Wireless Tech

Latest Wi-Fi 6E and BT 5.3 with two antennas offering rock solid Bluetooth or Wi-Fi audio streaming



Your Music Looks Great

Features a 3.5" vibrant touch screen, displaying large album art, VU meter, instant feedback, music playback, and other customizable displays. This makes navigating through inputs, outputs, and settings a smoother and more user-friendly experience, also provides immediate visual feedback to the user's actions.



Seamless Multiroom Audio

Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronize speakers, save your favorite tunes, set alarms, and customize settings, all from one central hub.



Customized Hi-Res Audio

Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space.



Enhance Your Home Theater Experience

Quickly enhance your entertainment with the WiiM Ultra's HDMI ARC and Subwoofer Out. Experience rich stereo sound for movies, shows, and games. Customize your sound experience with tailored EQ settings. Add a powered subwoofer for deep, cinematic bass. The WiiM Ultra ensures your home audio setup is both powerful and straightforward, bringing superb sound quality with minimal effort.



Specifications:

Dimensions and Weight:

Dimensions: 8.3" x 7.87" x 2.83" (211 mm x 200 mm x 72 mm)

Weight: 3.13 lbs) 1.42 kg

Touch Display: Glass-covered 3.5" vibrant touchscreen display:
Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings
Guides users through the OOBE and OTA
Provides feedback when there's a change in the play mode

Controls: Volume knob, play/pause, setup, and more

LED: 4 Color RGBW LED indicates the device status

Audio Input: HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/ 192 kHz

Audio Output: RCA, Headphone, Coax, Optical, and USB, up to 192 kHz/ 24-bitWireless to another BT, DLNA receiver Performance
Line out：
Maximum output: 2.1V RMS
SNR: 121 dB (A-wt)
THD+N (1 kHz): 0.00018% (-115 dB) for 44.1k to 192k
FR curve:+/-0.05 dB
Headphone out：
300 ohms: SNR (119 dB), THD+N (-99 dB)
32 ohms: SNR (119 dB), THD+N (-92 dB)

EQ: 24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ

Subwoofer Output: Comprehensive bass management
Adjustable crossover frequency, level, phase, and latency.

Power Supply: 100-240V AC input, 50/60 Hz, 0.5A Max

Network: Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands.
10M/100 Mbps LAN.

External Storage Supported Streaming: Protocol Spotify Connect, TIDAL Connect, Google Chromecast Audio (CastLite), Alexa built-in, DLNA, Squeezelite, Roon Ready
