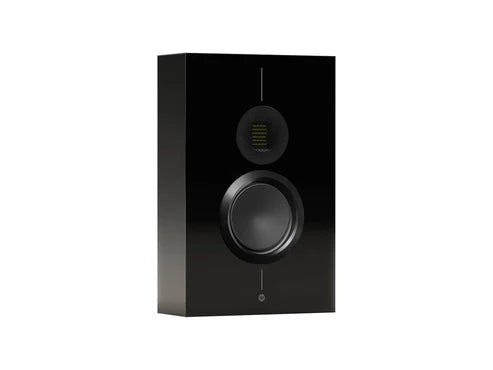

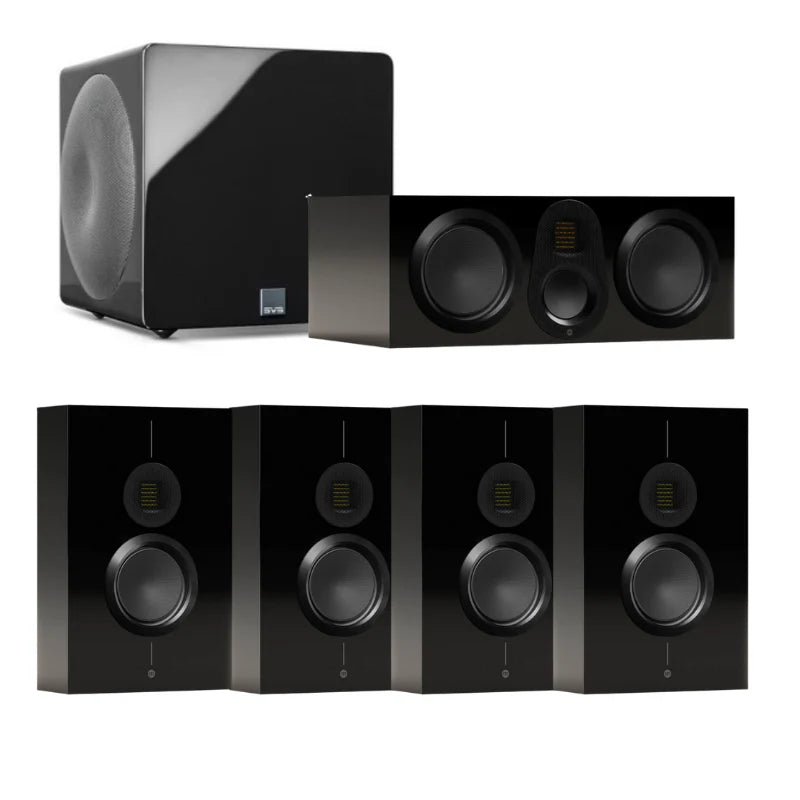

Monitor Audio Gold On-Wall 5.1 Home Theatre System (Black)

System Format
3-way

Sensitivity (2.83v @ 1m, Free-Field)
87.5 dB

Sensitivity (2.83v @ 1m, Installed)
N/A

Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)
130 – 500 W

Continuous Power Handling (CTA 426-B)
250 W

Nominal Impedance
4 Ohms

Minimum Impedance (20Hz to 20kHz)
3.9 Ohms @ 165 Hz

Drive Unit Complement
2 x 6” (152 mm) HDT C-CAM Bass Drivers
1 x 3” (76 mm) HDT C-CAM Mid-Range Driver
1 x MPD III Tweeter

Frequency Response Free-Field (-6dB)
64 Hz – 60 kHz

Frequency Response, In-Room (-6dB)
54 Hz – 60 kHz

Maximum Peak SPL (AES75, Z-weighted)
121 dB

Bass Alignment
Sealed

Port Tuning Frequency
N/A

Crossover Frequency
LF/MF: 800 Hz
MF/HF: 2.7 kHz

External Dimensions with all accessories fitted (H x W x D)
205 x 537 x 335 mm (81/16 x 211/8 x 133/16”)

Weight (each)
15.3 kg (33 lb 12 oz)

Sold As
Single Unit

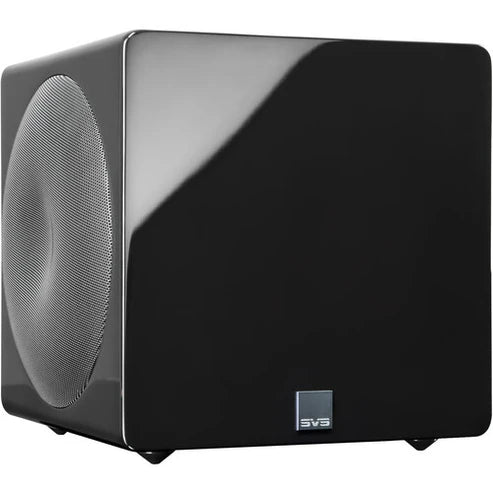

SVS 3000 Micro Subwoofer - Black

Chest-pounding, musical bass with depth, slam, and impact, from a shockingly compact 10-inch cabinet. Many micro subwoofers have tried, all have failed.

Until now. The miniature yet mighty SVS 3000 Micro subwoofer seamlessly blends into any room and speaker system, energizing the space with astonishingly rich, effortless bass that’s all the more impressive given its micro-sized enclosure.

Featuring innovations from the reference SVS 16-Ultra subwoofers married to fully active dual opposing 8-inch drivers, and an 800 watt RMS, 2,500 watt Peak Power Sledge STA-800D2 amplifier with discrete MOSFET output, 3000 Micro delivers performance that obliterates every micro subwoofer that has come before. It also features the powerful SVS subwoofer control smartphone app for advanced tuning and DSP. Finally, a micro subwoofer worthy of the name SVS.

The challenges of designing a subwoofer capable of chest-pounding output at the lowest frequencies, while maintaining effective thermal and energy management in a micro-sized enclosure, has always been the holy grail of subwoofer brands. Previous designs were flawed with weak output, distortion, and uncontrolled movement of the cabinet itself.

3000 Micro is like a magic trick— small enough to fit anywhere and capable of delivering breathtaking bass from a shockingly compact 10-inch enclosure. For the first-time ever, a micro subwoofer that does not compromise on performance.

SVS engineers had to bend the laws of physics designing a micro-sized subwoofer capable of massive, pristine output in HiFi and home theater systems. Reference amplifier technology from the flagship SVS 16-Ultra subwoofers was applied in an 800 watt RMS, 2,500+ watt Peak Power Sledge STA-800D2 amplifier with discrete MOSFET output for effortless, on-demand current with unerring control.

Harnessing the colossal power are fully active dual opposing 8-inch SVS drivers connected in parallel to move in perfect unison for massive slam and output with crisp, musical transients. The usable surface area of two fully active 8-inch woofers firing in opposite directions unleashes performance on par with much larger subwoofers and the tight, punchy output obliterates multi-driver passive radiator subwoofer designs known for bloated, one-note bass.

3000 Micro also has brains to match its brawn. A 50 MHz Analog Devices DSP enables sophisticated control and custom frequency response curves for optimized real-world output and acoustically tuned room gain. It also enables advanced tuning and control via the SVS subwoofer DSP smartphone app.

Subwoofer Specs:

Dimensions (including grilles): 10.9” (278mm) H X 11.7” (297mm) W X 10.7” (271mm)D
Weight: 22.5lbs (10.2kg)
Packaged Dimensions: 13.9” (353mm) H X 15.4” (390mm) W X 15.4” (390mm) D
Packaged Weight: 26.7lbs (12.1kg)
Dual opposing 8-inch active drivers designed acoustically and electrically in parallel
800-watt RMS, 2,500-watt peak Sledge STA-800D amplifier with fully discrete MOSFET output

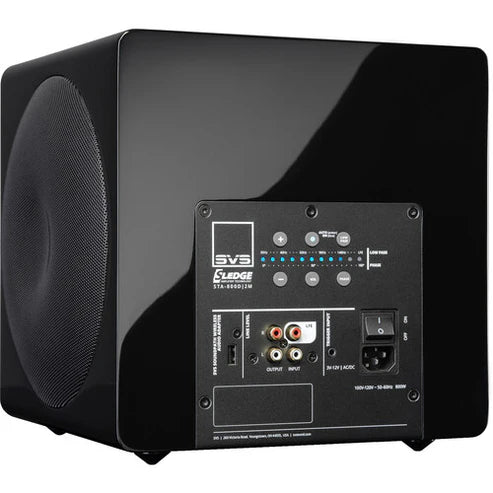

Rear-mounted internal amplifier with Intelligent Control Interface (ICI)
High-end Piano Gloss Black and Piano Gloss White finish options
Screw-in rubber feet
Structurally reinforced MDF cabinet construction

Specifications:

Frequency Response / Acoustic Data:
