Monitor Audio Silver 100 5.1 Home Theatre System (Walnut) + Denon AVR-X2800H AV Receiver (Black)

System Format

3 - way

Frequency Response, In-Room (-6dB)

65 Hz - 35 kHz

Sensitivity (2.83v @ 1m)

88.5 dB

Nominal Impedance

8 Ohms

Minimum Impedance

3.9 Ohms @ 170 Hz

Maximum SPL (single, free-field)

110 dB

Power Handling (RMS)

200 W

Recommended Amplifier Requirements

80 - 200 W

Crossover Frequency

L.F: 650 Hz
M.F/ H.F: 3.3 kHz

Port Tuning Frequency

N/A

Bass Alignment

Sealed cabinet

Drive Unit Complement

2 x 5 1/4" C-CAM RST II bass driver
1 x 3" C-CAM RST II mid-range driver
1 x 1" (25 mm) C-CAM Gold Dome tweeter with UD Waveguide II

External Dimensions (Including Grille and Terminals (H x W x D))

206 x 481 x 272 mm (8^7/64 x 18^16/64 x 10^45/64")

External Dimensions (including Outrigger Feet and Spikes (H x W x D))

N/A

Weight (each)

10.6 kg (23 lb 6 oz)

Sold As

Single Unit

SVS SB-1000 Pro Subwoofer - each - Black Ash

Breathtaking bass and stunning musicality from a compact 13-inch enclosure with state-of-the-art features that redefine subwoofer performance at their price and beyond. A true powerhouse with legendary pedigree that punches well above its class, the SB-1000 Pro subwoofer features a 325 watts RMS, 820+ watts peak power Sledge amplifier with fully discrete MOSFET output and sophisticated 50 MHz DSP for pristine, room-energizing bass.

A reimagined 12-inch high-excursion driver takes control of a room with heart-pounding, tonally accurate low end for more immersive listening experiences. Also includes SVS subwoofer DSP smartphone app for convenient tuning and control.

Jaw-dropping deep bass extension down to 20Hz and massive output with stunning musicality that will delight both audiophiles and home theater fans. Reference subwoofer performance has never been available near this price from a cabinet of this size. SB-1000 Pro is a breakthrough subwoofer in every way.

Multiple innovations were deployed in the high-excursion 12-inch SVS SB-1000 Pro driver to ensure massive subwoofer performance from a relatively compact cabinet. Advances to the cone, surround, voice coil, and motor assembly maximize excursion for room-energizing SPLs at the lowest frequencies, with precision and control.

Using reference amplifier technology from the flagship SVS 16-Ultra Series, the SB-1000 Pro features a 325 watts RMS, 820+ watts peak power Sledge STA-325D amplifier with fully discrete MOSFET output. Harnessing the immense power while ensuring tonal accuracy and driver control for more convincing bass effects is a 50 MHz Analog Devices Audio DSP with frequency response precisely tuned for the SB-1000 Pro.

SB-1000 Pro also features the SVS subwoofer smartphone app, the most convenient way to control volume, access multiple DSP functions, and program custom presets. Adjust crossover frequencies, a three-band parametric EQ, polarity, room gain and more, all from your favorite seat.

1000 Pro Series Technology
Inspired Subwoofer Engineering for Uncompromised Performance.
The new SVS 1000 Pro Series features technology breakthroughs from the 16-Ultra Series, 4000 Series, 3000 Series, and 2000 Pro Series. This technology joins with exclusive 1000 Pro Series innovations to set a new standard for subwoofer performance value. More people than ever can now enjoy room-shaking bass below the threshold of human hearing with unerring accuracy and control.

Maximizing every available square-inch of surface area, SVS packed a high-excursion 12-inch driver and dual ferrite motor assembly into an acoustically inert, 13-inch cabinet. Thermal management is critical when dealing with such a powerful amplifier and motor in a relatively compact sealed cabinet. SVS engineered a vented pole piece and efficient high-power voice coil to keep the SB-1000 Pro subwoofer cool without impacting performance.

Multiple innovations enhance performance within a sealed cabinet enclosure, all aimed at generating subterranean deep bass extension and seismic output while remaining accurate and controlled.

Fiber composite cone with exceptional stiffness-to-mass ratio moves massive amounts of air while starting and stopping on a dime with crisp precision.

Proprietary injection-molded extreme-excursion surround ensures flawless pistonic motion for pinpoint control and accuracy without distortion at the highest drive levels.

Dual ferrite magnet motor assembly with extended aluminum polepiece produces effortless on-demand driving-force for subtle and over-the-top bass thrills.

Powder coated FEA optimized driver basket provides maximum rigidity, tensile strength, and thermal energy transference.

Dual layer voice coil design enhances linearity and fidelity at full excursion while minimizing distortion and power compression.

SB-1000 Pro Smartphone App – Easiest way ever to manage subwoofer DSP and control.

The most convenient way ever to control volume, access multiple DSP functions, and program custom preset tuning profiles optimized for music, movies, gaming, and more.

All accessible with a single touch. Adjust crossover frequencies, a three-band parametric EQ, polarity, room gain and more, all from your favorite seat.

Connects via Bluetooth for convenient control even when subwoofer is out of sight.

Saved custom presets for one-touch tuning with optimized settings based on listening preferences for movies, music, and more. All accessible from a single touch.

Variable port tuning modes with customized frequency response curves for “Standard” and “Sealed” allow tuning for maximum output or deep bass extension and transient speed.

3-band parametric EQ controller allows precise adjustments for boost or cut, Q-factor, and frequency down to the single Hz level with so users can customize performance by eliminating peaks, nulls and other room issues.

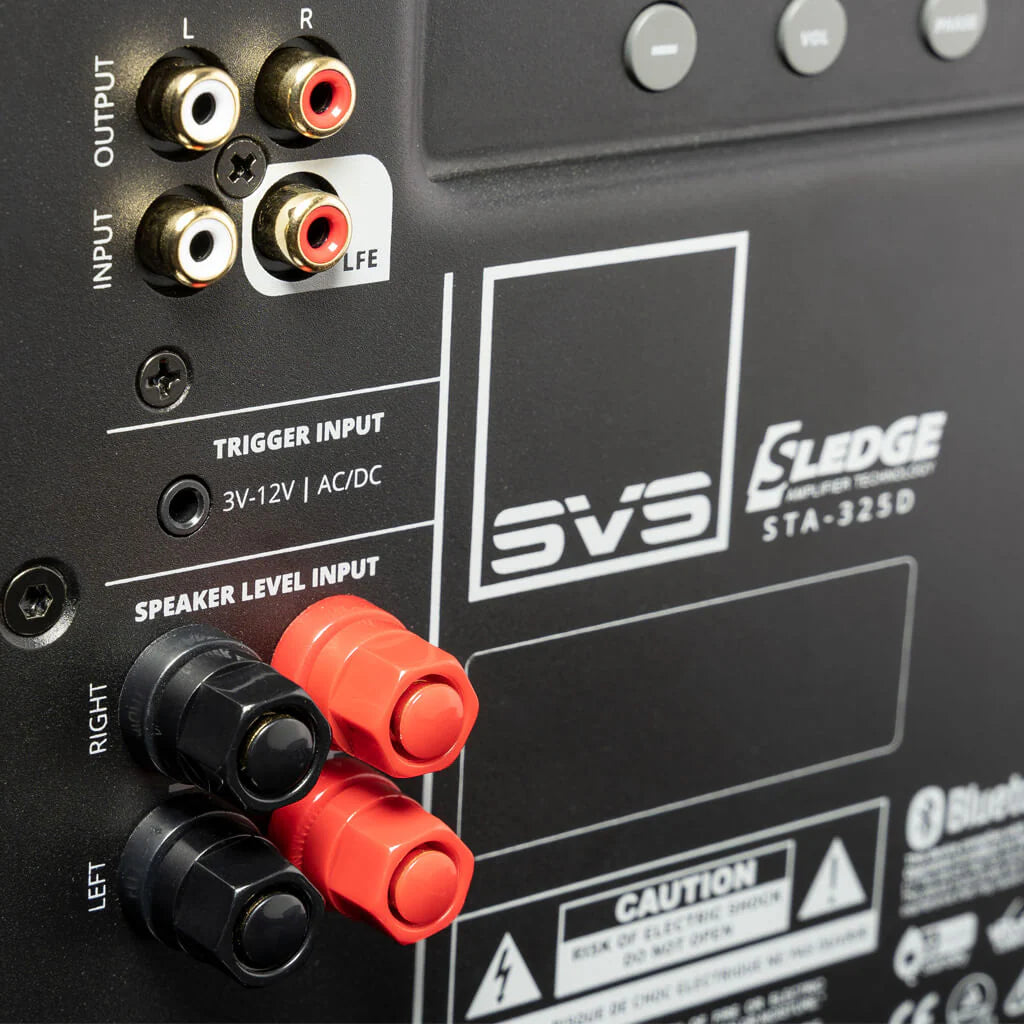

Rear Panel Intelligent Control Interface (ICI).
The rear-panel SVS Intelligent Control Interface (ICI) provides control options and connections for the subwoofer’s most critical functions.

Rear Panel Intelligent Control Interface (ICI)

Level Control to fine tune the overall output level that best matches the system and room

Low pass filter control to ensure smooth sonic transitions and seamless blending with the main speakers

Phase control to align the subwoofer’s output timing with the main speakers or additional subwoofers

USB port also provides power for the optional SVS SoundPath Wireless Audio Adapter which eliminates the need for a cable run to the subwoofer from the source component.

RCA Audio Interconnect Input for use with most AV receivers and preamplifiers

Speaker Level Stereo Inputs for use with older legacy receivers

Acoustically Inert and Rigidly Braced Sealed-Cabinet Design.

Understated yet stylish, the acoustically optimized sealed cabinet features extra-thick

MDF front baffle and rigid internal bracing to create a resonance-free environment.

Compact enough to fit in nearly any room or system, it serves as a blank canvas for uncompromised subwoofer performance.

Acoustic absorption eliminates all coloration from the cabinet, even when the deepest low frequencies are played at reference volume.

Protective non-resonant extra-thick ABS grille frame with fabric mesh cover shields driver to prevent damage while ensuring longevity

Reinforced internal bracing for resonance free performance at highest drive levels
Custom iso-elastomer screw-in feet reduce noise artifacts and improve stability

 Specifications

Protective non-resonant extra-thick ABS fabric mesh grille
Iso-elastomer feet included
Extra heavy-duty, high current power cord 6'
Quick Start Guide
Unbalanced stereo input/output
Speaker Level Stereo Input
Auto/On and Trigger options through app, 3-12V AC/DC trigger
RoHS compliant, lead-free construction, world-wide safety certifications
Green 0.5-watt low standby power consumption
Dimensions (w/ grille): 13.5” (342mm) H X 13” (330mm) W X 14.76” (375mm) D
Dimensions (without grille): 13.5” (342mm) H X 13” (330mm) W X 13.9” (352mm) D
Shipped Dimensions: 17.4” (455mm) H 17.4” (442mm) W X 18.4” (471mm) D
Weight (unboxed): 26lbs (11.9kg) with Grille

Denon AVR-X2800H 7.2 Ch. 150W 8K AV Receiver with HEOS® Built-in

Enjoy incredible 8K video and immersive 3D audio from the AVR-X2800H. Fill medium-size rooms with more refined sound from a 7.2 or 5.2.2 set up with Dolby Atmos and DTS:X. And with HEOS® Built-in, wirelessly stream online music and share with HEOS-enabled speakers in other rooms.

7.2 channels
150 watts per channel
8K Ultra HD
3D Audio
HEOS® Built-in
6 HDMI inputs

Dolby Audio Technology
Feel every dimension in Dolby Atmos. Upgrade your home theater
with height speakers to unleash a fully immersive 3D audio
experience from Dolby Atmos content. Dolby Surround upmixer
engages all speakers to create 3D audio sensation from legacy
content. Dolby Atmos Height Virtualization Technology creates the
sensation of overhead sound even without height speakers. You can
also enjoy Dolby Atmos music tracks available from Apple Music,
Amazon HD, and TIDAL and a compatible streaming device.

DTS:X
DTS:X immersive audio content places sound where it would
naturally occur in space, creating lifelike, multidimensional audio.
DTS Neural:X upmixer offers improved immersion and heightened
realism for legacy content. DTS Virtual:X provides immersive audio
without height channels, creating virtual height effects in a 7.1, 5.1,
or 2.1 speaker setup.

HDMI Connectivity with ARC/eARC
Supports the latest technology on all HDMI inputs and output.
ARC (Audio Return Channel) or eARC (Enhanced Audio Return
Channel) makes playing TV audio through your AV receiver simple,
with just a single HDMI connection. eARC provides HD and 3D
audio transmission such as Dolby TrueHD, DTS HD Master Audio,
and Dolby Atmos while ARC is limited to conventional 5.1ch audio
formats or PCM.

8K/HDCP 2.3
Enjoy pristine 8K picture quality on your 8K TV or projector.
Supports both 8K pass-through and 8K upscaling of 4K content.
Supports HDCP 2.3, the latest copy protection standard, for peace
of mind when streaming copy protected content.

Brilliant color from HDR 10+
Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma),
as well as Dynamic HDR and HDR10+ pass-through. HLG offers
HDR technology over broadcast content. Both Dynamic HDR
and HDR10+ use dynamic metadata to optimize shadows and
highlights as screens change.

Dolby Vison
Dolby Vision is a stunning HDR imaging technology that brings
extraordinary color, contrast, and brightness to the screen.
Compatible with Dolby Vision so you can enjoy Dolby Vision content
from a compatible source device and TV.

Next-generation gaming
Supports Variable Refresh Rate (VRR), Quick Frame Transport (QFT),
and Auto Low Latency Mode (ALLM) for smooth, lagfree gaming
experience when connected with the compatible gaming devices.

HEOS Built-in
With HEOS® Built-in, your AV receiver can stream music wirelessly
across compatible HEOS components from a variety of free and
premium streaming services. Consumers can also enjoy their
favorite music in any room of the home wirelessly. Play the same
song in every room or select a different song for each connected
room via a variety of streaming sources. Add Denon Home speakers
to more rooms and control it all with the HEOS app.

Airplay 2 and Apple Siri Voice Control
Use AirPlay 2 to stream Apple music wirelessly to the AV receiver,
or group with other AirPlay compatible speakers to fill your
home with music.

Works with Amazon Alexa
Control your AV receiver handsfree with Amazon Alexa and your
voice. Adjust the volume, skip to the next track, switch inputs for
your different media players, and more—“Just Ask.” Download
the free HEOS Home Entertainment Skill to enable Amazon Alexa
voice commands. Requires Alexa app and Amazon Echo, Dot, or
equivalent.

High-resolution audio via USB input
Discover the incredible fidelity of high-resolution audio tracks and
enjoy music as the artist intended. A front USB port supports up to
24bit/192kHz hires audio playback from a USB drive. Supported
audio formats are MP3, WMA, WAV, MPEG- 4/AAC, FLAC, and ALAC.

Bluetooth audio transmitter
Pair your favorite Bluetooth headphones with your AV receiver to
continue listening to your favorite music, movies, or TV programs
at night. You can also play audio from both speakers and Bluetooth
headphones simultaneously. If you have a family member or a friend
who is hearing impaired, we recommend this setup. You can connect
one pair of headphones at a time.

Multi-source, multi-room
By connecting a pair of speakers in a second room to the AV receiver,
it’s possible to enjoy 5.1 channel surround sound in the main room
and a separate source or music stream in the second room, such
as den or patio. You can also play the same audio in both so that
everyone in your home can enjoy and cheer your favorite team on
Sunday evening or listen to the same song in both rooms. The AV
receiver supports 2-source, 2-zone audio.

Denon Setup Assistant
Award-winning guide Denon Setup Assistant supplies simple, clear
instructions to get started. Just connect your AV receiver to your
TV and follow the instructions on the TV screen to connect your
speakers, perform speaker measurements, and connect source
devices. For additional convenience, the AV receiver renames HDMI
inputs automatically when connected or you can rename manually
at your convenience.

Audyssey suite of roomcorrection technology
Denon AV receivers use the Audyssey suite of EQ software for
simple, accurate setup and calibration. With the supplied Audyssey
measuring microphone, Audyssey measures all the speakers in your
home theater, and tunes the AV receiver to provide the smoothest,
most optimal overall listening experience for your room. This AV
receiver supports Audyssey MultEQ room-correction technology.
The other supported Audyssey features are Dynamic EQ and
Dynamic Volume.

Audyssey MultEQ Editor app
You can go even further with the Audyssey MultEQ Editor app,
going “under the hood” to view and adjust settings for detailed
tuning—allowing you to customize the sound more precisely to the
specific problems in your room and tailor the sound to your personal
preferences. With this comprehensive app, you can harness the
power of Audyssey MultEQ to take total control of the way your
home cinema sounds. The app is available for purchase in iOS and
Google Play stores.

Denon AVR Remote app
This iOS or Android control app allows you to turn the receiver
on and off, select an input source, adjust volume level, and
browse music from your phone or in a USB drive when connected
to the receiver.

Works with Google Assistant
Start music in the HEOS app, then ask your Google Assistant to
control volume, play, pause, skip tracks, mute, and unmute.

Josh.ai
Start music in the HEOS app, then ask your Google Assistant to
control volume, play, pause, skip tracks, mute, and unmute
