MSI

MSI MAG B650M MORTAR WIFI AMD AM5 mATX Gaming Motherboard

Regular price R 6,349.00
Regular price Sale price R 6,349.00
Sale Sold out
Tax included.

MSI MAG B650M MORTAR WIFI AMD AM5 mATX Gaming Motherboard

ย

The all-new MSI MAG series lets you fight alongside gamers in pursuit of honour. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. Unleash and sustain maximum performance with an aggressive VRM design built with a digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.

MSI lightning Gen 4 PCI-E represents the bandwidth of an x16 interface to 64GB/s which has doubled compared to its previous generation. MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. A huge step of DDR performance enhancement with the latest DDR5 memory. By combining a dedicated SMT welding process and MSI Memory Boost technology, the MSI MAG B650M MORTAR WIFI is ready to deliver the world-class memory performance

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. The MSI MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

MSI MAG Series motherboards let you manage speeds and temperatures for all your system and CPU fans in the BIOS and software with a simplified graphical interface. You can also set up 4 temperature targets, which will adjust the fan speeds automatically.

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked โ€˜keep-out-zoneโ€™ allows for easy and safe installation and a perfect fit.

FEATURES:
Supports AMD Ryzenโ„ข 7000 Series Desktop Processors
Supports DDR5 Memory, up to 6400+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2ร—2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience


SPECIFICATIONS:
Socket: AM5
CPU Support: Supports AMD Ryzenโ„ข 7000 Series Desktop Processors
Chipset: AMD B650
DDR5 Memory: DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
Memory Channel: Dual Channel DDR5
DIMM Slots: 4
Max Memory (GB): 128
PCI-E x16: 2
PCI-E x1: 1
SATAIII: 6
M.2 Slot: 2
RAID: 0/1/10
LAN: 1x Realtekยฎ RTL8125B 2.5Gbps LAN
Wi-Fi and Bluetooth: Intelยฎ Wi-Fi 6E module
USB 3.2 ports (Front): 1(Gen 2, Type-C), 4(Gen 1, Type A)

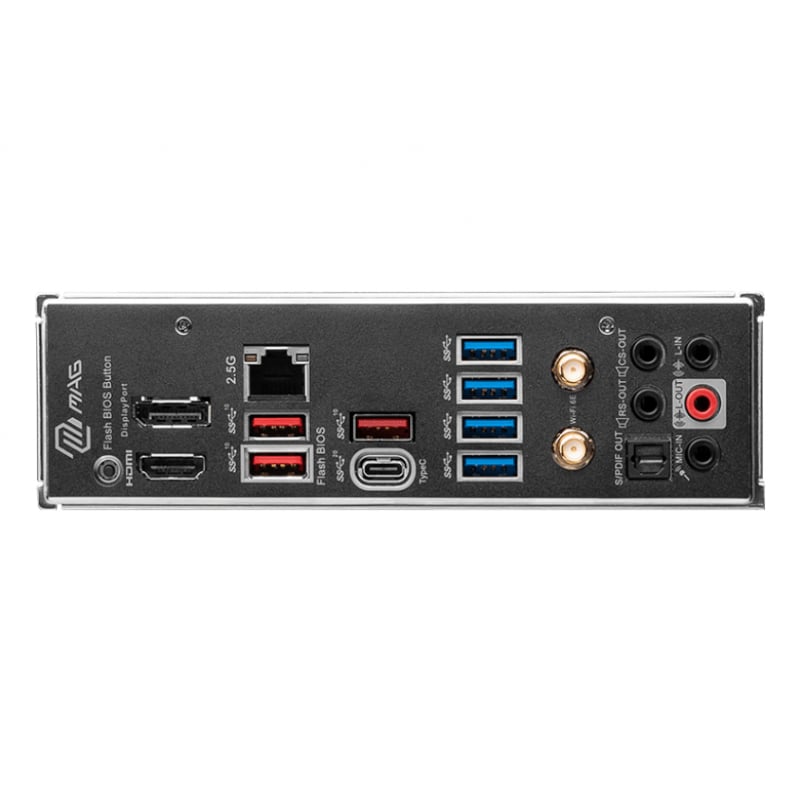

USB 3.2 ports (Rear): 1(Gen 2ร—2, Type-C), 3(Gen 2, Type A), 4(Gen 1, Type A)
USB 2.0 ports (Front): 4
Audio ports (Rear): 7.1 Channel HD Audio (Realtekยฎ ALC4080 Codec)
DisplayPort: 1
HDMI: 1
DirectX: 12
Form Factor: mATX
Operating System: Support for Windowsยฎ 11 64-bit and Windowsยฎ 10 64-bit

WHATโ€™S IN THE BOX:
MSI MAG B650M MORTAR WIFI AMD AM5 mATX Gaming Motherboard โ€“ Black x1
Wi-Fi Antenna x2
SATA Cables x2
EZ M.2 Clips x2
Quick Install Guide x1
