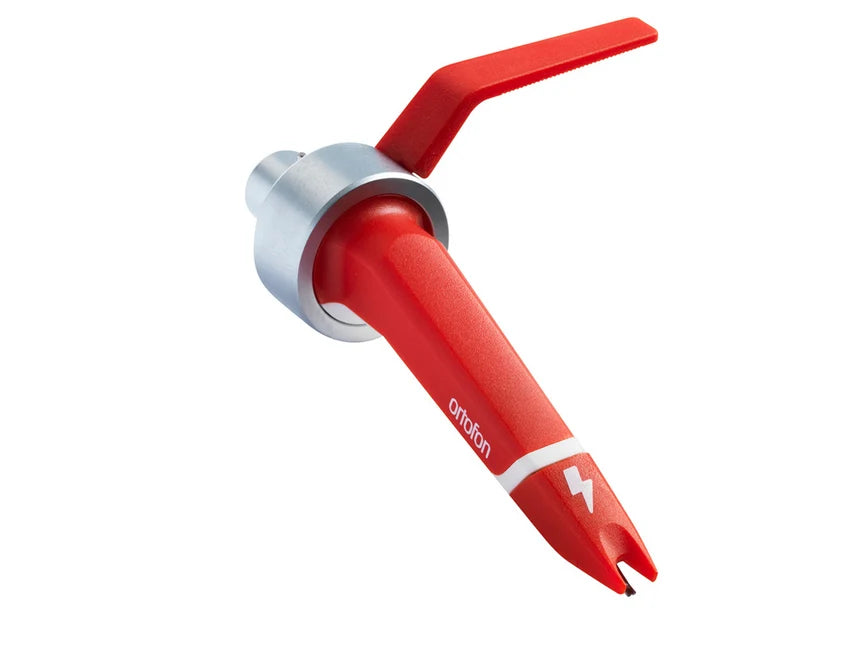

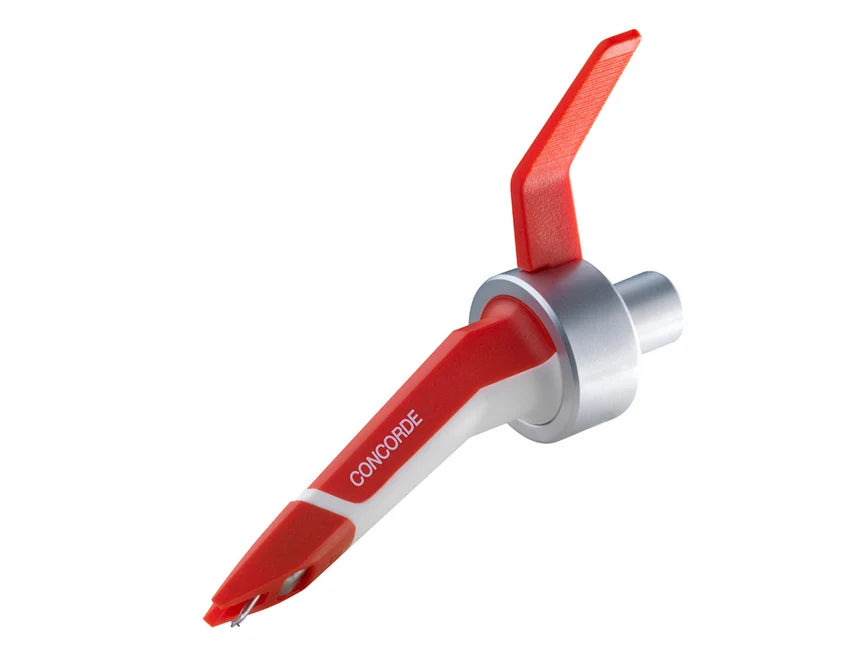

Ortofon Concorde MKII Digital Optimized for Time Coded Vinyl Cartridge - Each

Ortofon Concorde MKII Digital Optimized for Time Coded Vinyl Cartridge - Each

The Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding. At the same time the DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.

Extends the life of timecode vinyl

Output

The DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl. This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.

20-18,000 Hz

Frequency range

A decrease in the reproduction of frequencies where vinyl wear and crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.

Minimizing errors in the timecode signal

Vinyl is the new digital

The Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding.

Specifications

Output voltage at 1 kHz, 5cm/sec
10 mV
Tracking ability at 315Hz
100 μm
Cantilever material
Aluminium
Stylus type
Spherical diamond
Stylus tip radius
R/18/μm
Channel separation at 1 kHz
22 dB
Dynamic lateral compliance
14 μm/m N
Recommended tracking force
4 g
Recommended load resistance
47 kOhm
Cartridge weight
18,5 g
Channel balance at 1 kHz
1 dB
Internal impedance, DC resistance
1200 Ohm
Internal inductance
850 mH
Recommended load capacitance
200-400 pF
Replacement stylus
Stylus CC MKII Digital
