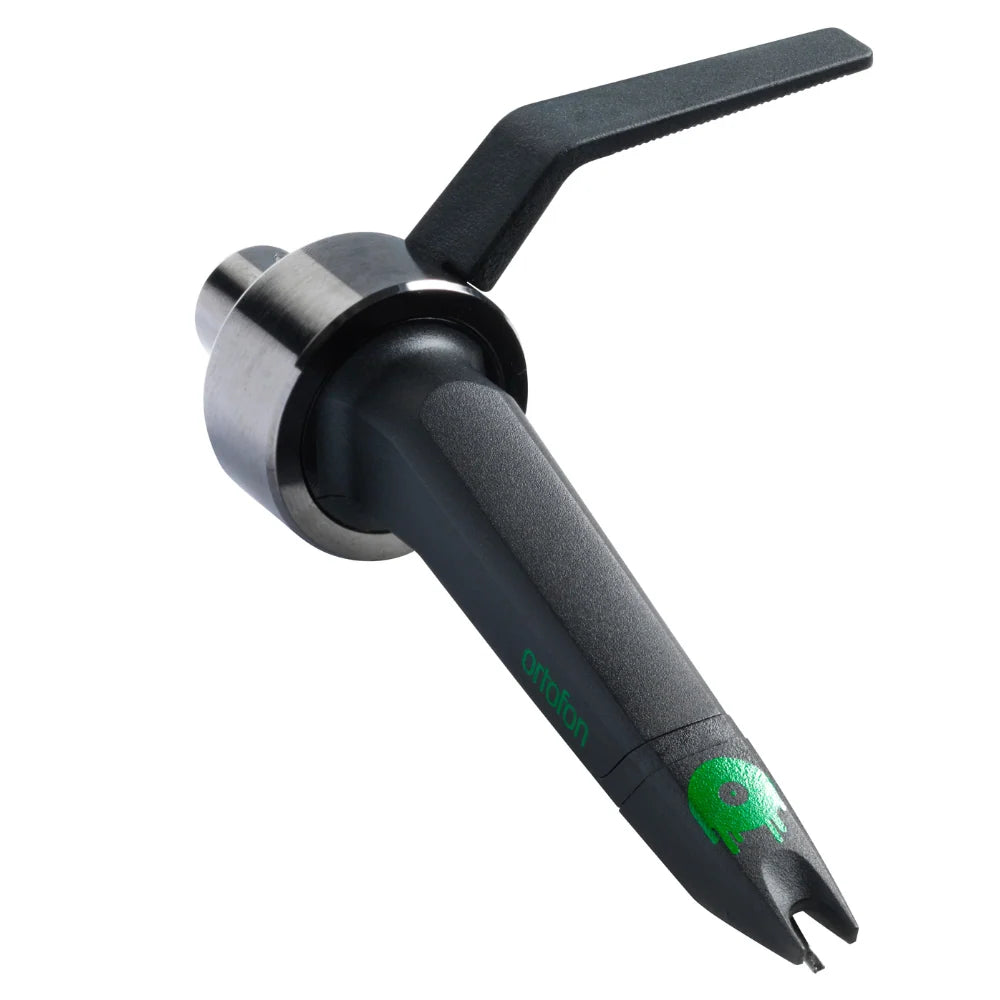

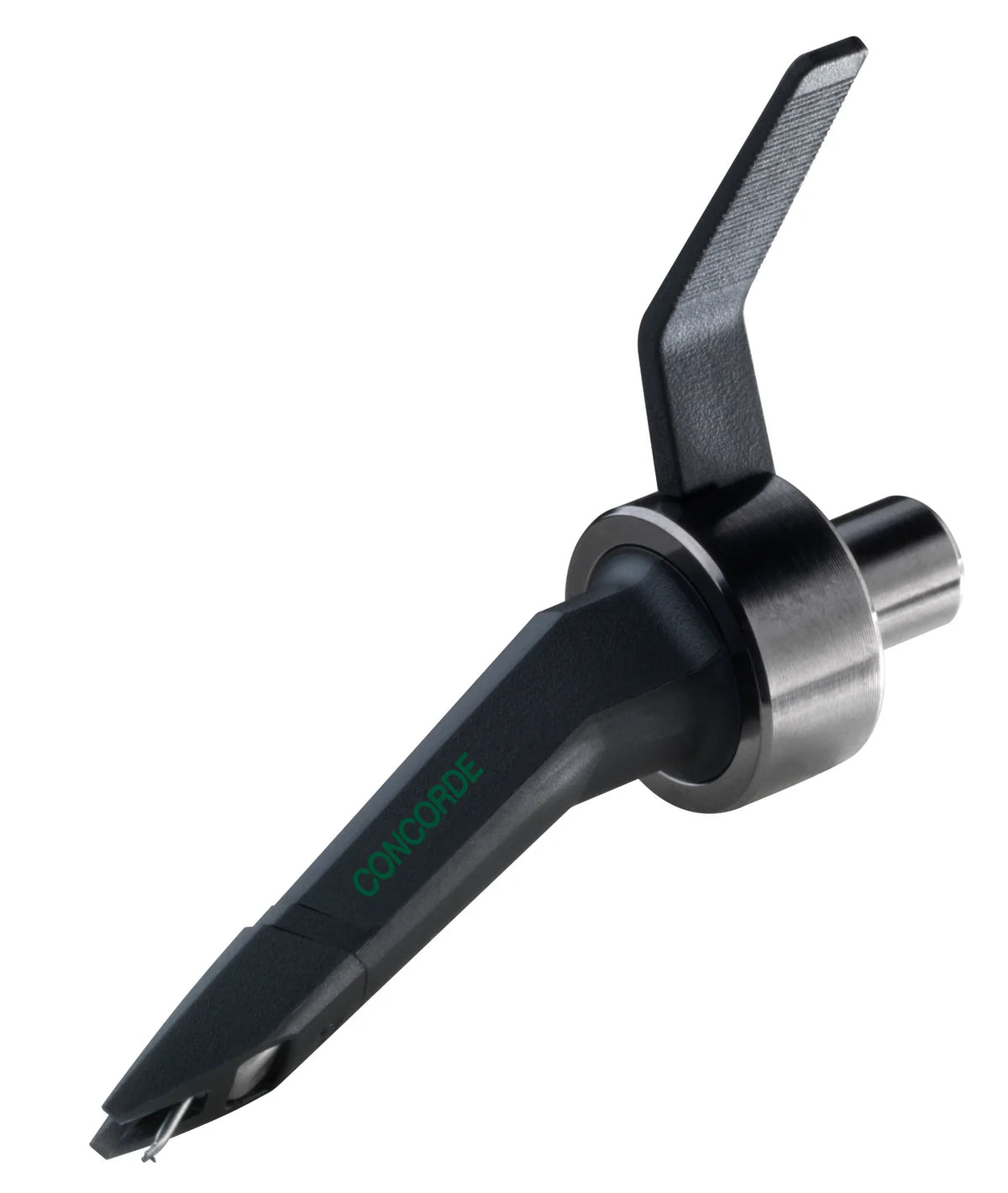

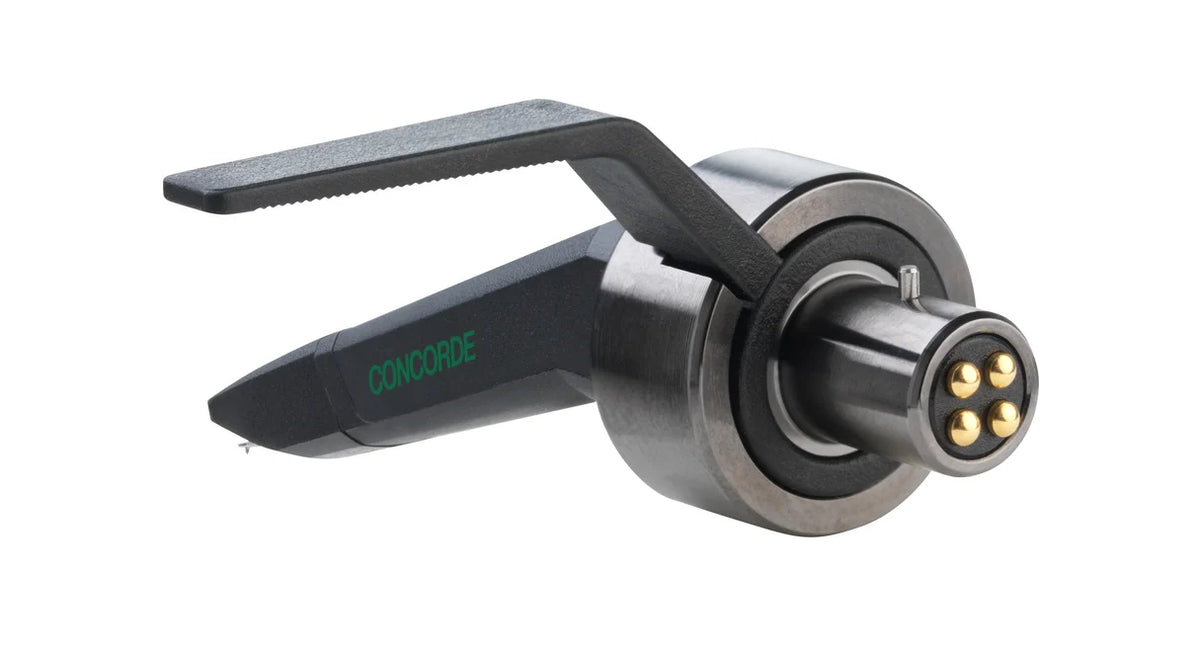

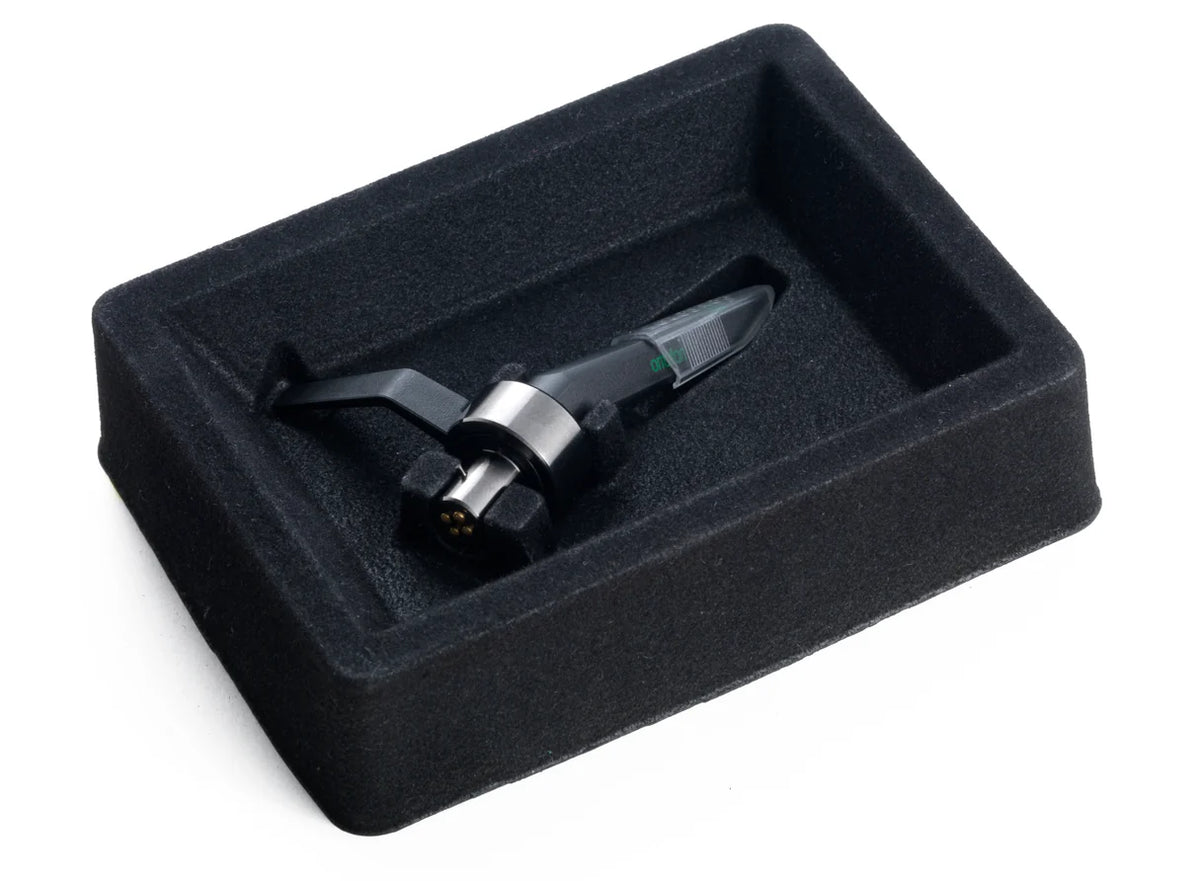

Ortofon Concorde MKII Mix All-Rounder Cartridge - Each

Ortofon Concorde MKII Mix All-Rounder Cartridge - Each

The MIX is a general-purpose model for scratch and back-cueing, providing great performance and durability. With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.

A groovy all-rounder

Stylus

The Concorde MKII MIX provides great performance and durability with a good quality spherical stylus and a solid cantilever and serves general purposes well.

Reasonable output and balance of sound

Output

At the forefront of the Concorde series, the MIX cartridge not only offers a pocket-friendly option but also ensures high sound quality and adept tracking ability. Moreover, it provides a reasonable output of 6 mV and transparency across the sonic spectrum.

Excellent price-to-performance ratio

Watch the MIX fly

With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges. The new Concorde is on point! It looks good, sounds good, and feels great! - DJ Rafik

Specifications

Output voltage at 1 kHz, 5cm/sec
6 mV
Tracking ability at 315Hz
100 μm
Cantilever material
Aluminium
Stylus type
Spherical diamond
Stylus tip radius
R 18 μm
Channel separation at 1 kHz
20 dB
Dynamic lateral compliance
14 μm/m N
Recommended tracking force
3 g
Recommended load resistance
47 kOhm
Cartridge weight
18,5 g
Channel balance at 1 kHz
1,5 dB
Internal impedance, DC resistance
700 Ohm
Internal inductance
450 mH
Recommended load capacitance
200-600 pF
Replacement stylus
Stylus CC MKII Mix
