Ortofon Concorde MKII Twin Club Best Possible Sound Quality Cartridge - Pair

Ortofon Concorde MKII Twin Club Best Possible Sound Quality Cartridge - Pair

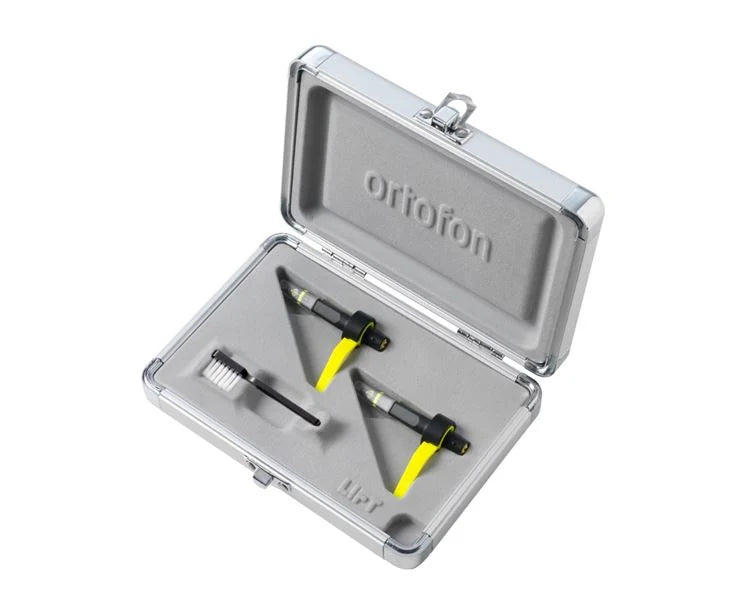

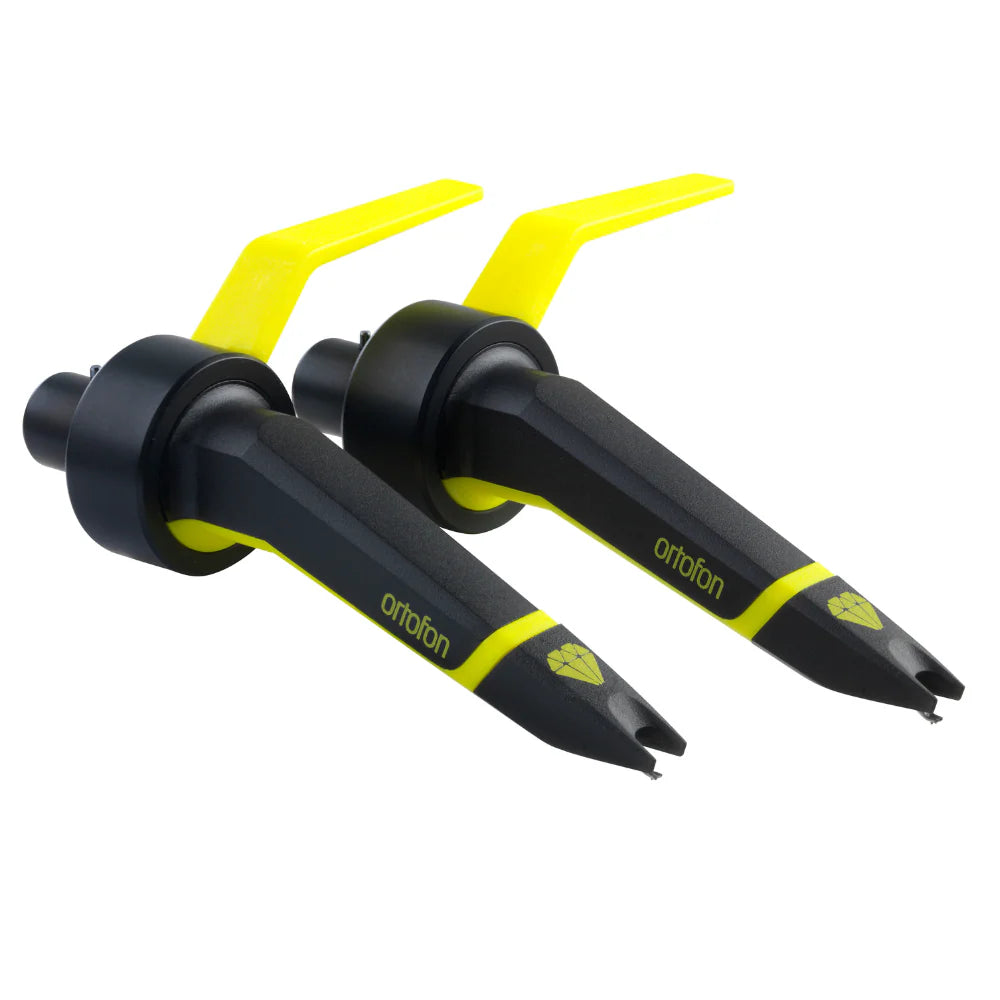

The Concorde TWIN includes two Concorde MKII DJ cartridges with preinstalled styli, all conveniently housed within a Flight case. The Concorde CLUB delivers exceptional sound quality and an elevated output voltage for a powerful, energetic audio experience. With its outstanding specifications and remarkable sound profile, the CLUB stands as a prime selection for Club DJs across various settings – be it the studio, broadcast, or club venues.

Special Elliptic stylus

Stylus

The CLUB features a Special Elliptic stylus that allows for detailed sound quality. The Special Elliptic stylus fits better in the groove and has more contact area with the groove itself, extracting more intricate details, than is possible with a Spherical diamond.

Captivating performances in vibrant live settings

Output

The Concorde CLUB presents outstanding sound quality and an increased output of 8 mV, translating into a robust and vibrant audio performance. This heightened output voltage significantly reduces the demand for preamp gain, resulting in a cleaner and more faithful sound reproduction. Additionally, this attribute minimizes susceptibility to feedback, a particularly advantageous feature when performing in dynamic live environments.

The Concorde CLUB in action

Watch the CLUB in action

The CLUB is also recommended for digitalizing purposes: it provides optimal quality and extracts every last detail from vinyl when transferring vinyl to any digital storage media.

Specifications

Output voltage at 1 kHz, 5cm/sec
8 mV
Tracking ability at 315Hz
100 μm
Cantilever material
Aluminium
Stylus type
Special Elliptical diamond
Stylus tip radius
r/R 13/25 μm
Channel separation at 1 kHz
25 dB
Dynamic lateral compliance
14 μm/m N
Recommended tracking force
3 g
Recommended load resistance
18,5 g
Cartridge weight
18,5 g
Channel balance at 1 kHz
1 dB
Internal impedance, DC resistance
1000 Ohm
Internal inductance
650 mH
Recommended load capacitance
200-600 pF
Replacement stylus
Stylus CC MKII Club
