Ortofon OM Scratch White Premounted on SH-4 Blue Headshell - Each

Ortofon OM Scratch White Premounted on SH-4 Blue Headshell - Each

The OM Scratch White on the SH-4 Blue headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.

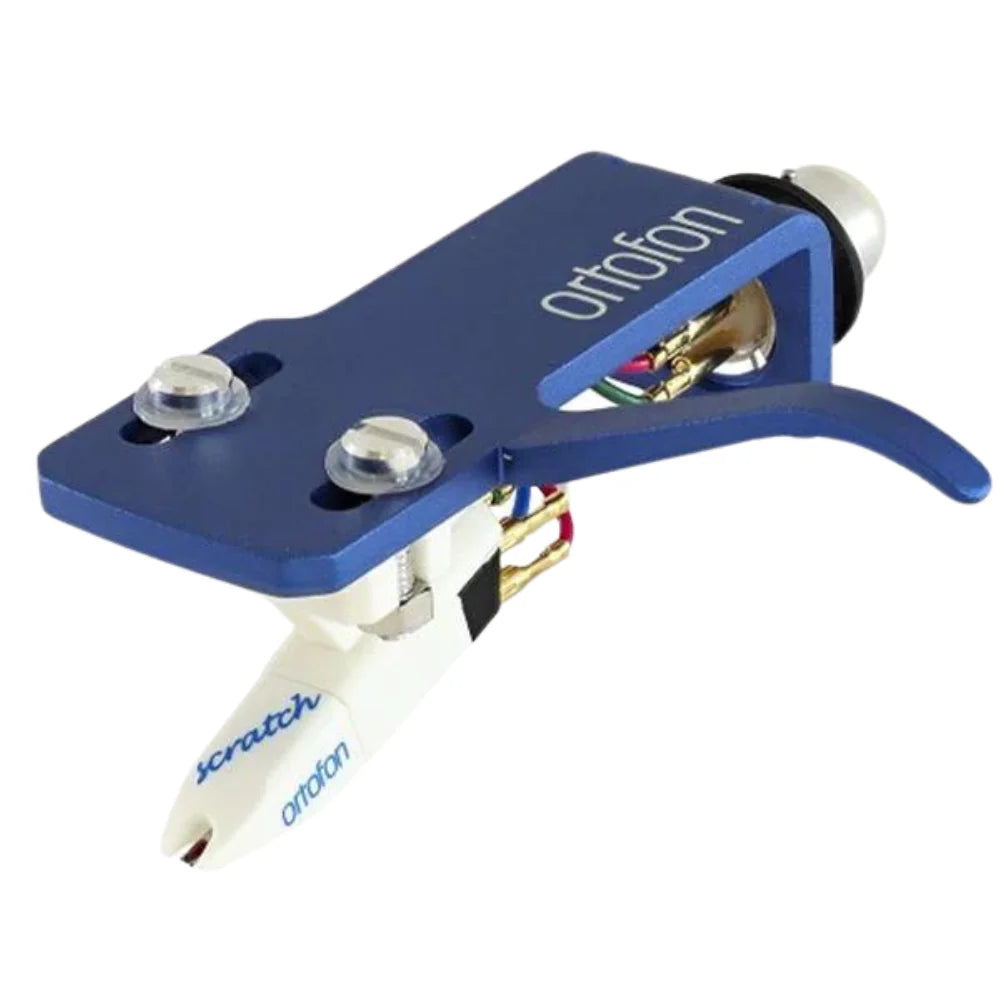

OM Scratch White mounted on SH-4 Blue headshell
Features:

• Universal mount fitting a wide range of S-shaped tonearms

• Correct Baerwald alignment with the major part of tonearms with universal mount

• Increased tracking ability

• Reinforced rubber suspension

High output and maximum scratch performance guaranteed!

Specifications

Channel balance at 1 kHz
1,5 dB
Output voltage at 1 kHz, 5cm/sec
7 mV
Channel separation at 1 kHz
25 dB
Frequency response 20 Hz - 20 kHz
3dB/-2dB
Tracking ability at 315 Hz
80 μm
Compliance, dynamic, lateral
6 μm/m N
Stylus type
Spherical
Stylus tip radius
R 18 μm
Tracking force range
3,0-5,0 g (30-50 mN)
Tracking force, recommended
4,0 g (40 mN)
Tracking angle
20°
Internal impedance, DC resistance
750 Ohm
Cartridge weight
5 g (incl headshell = 18.5 g)
Recommended load resistance
47 kOhm
Internal inductance
450 mH
Recommended load capacitance
200-600 pF
Replacement stylus
Stylus MFS
