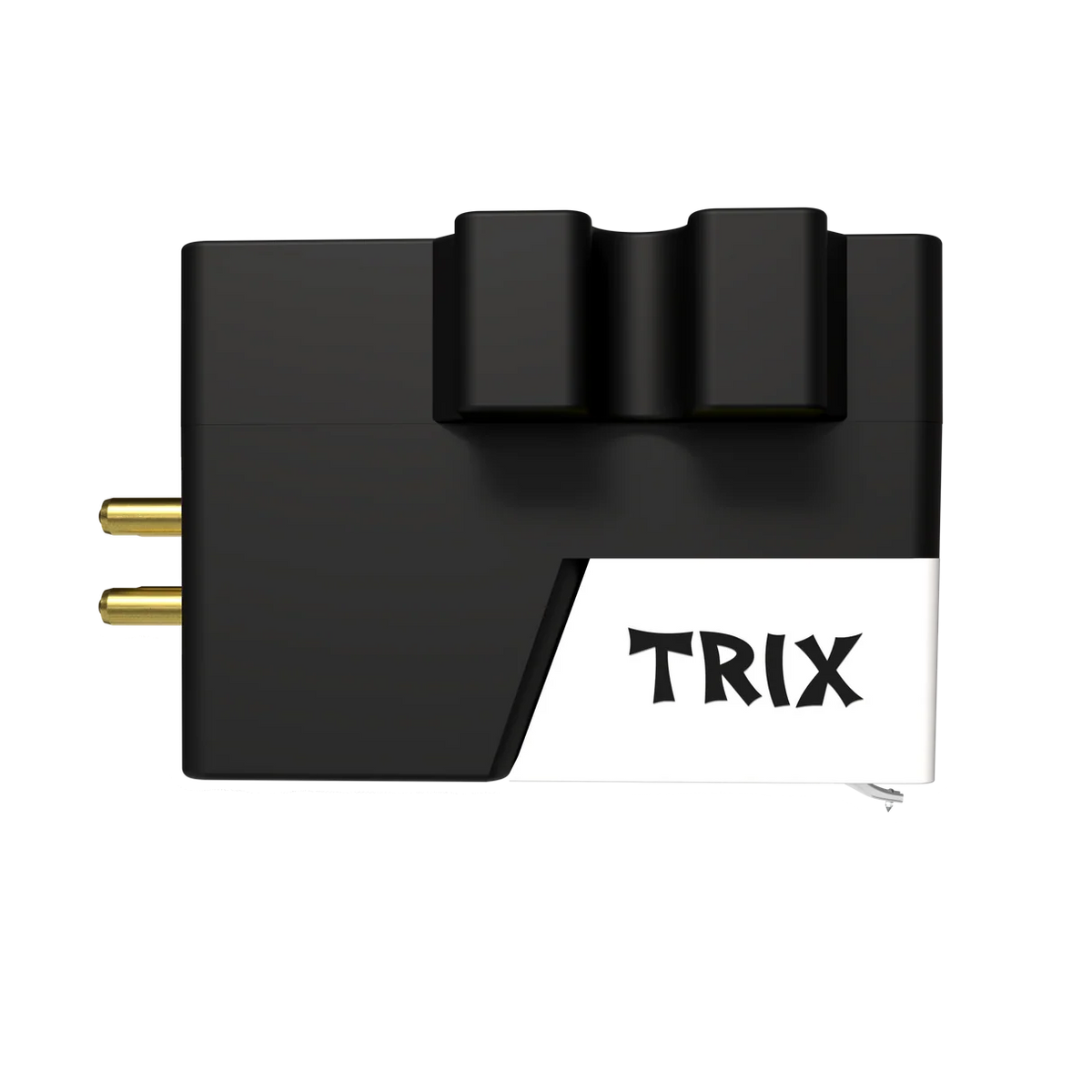

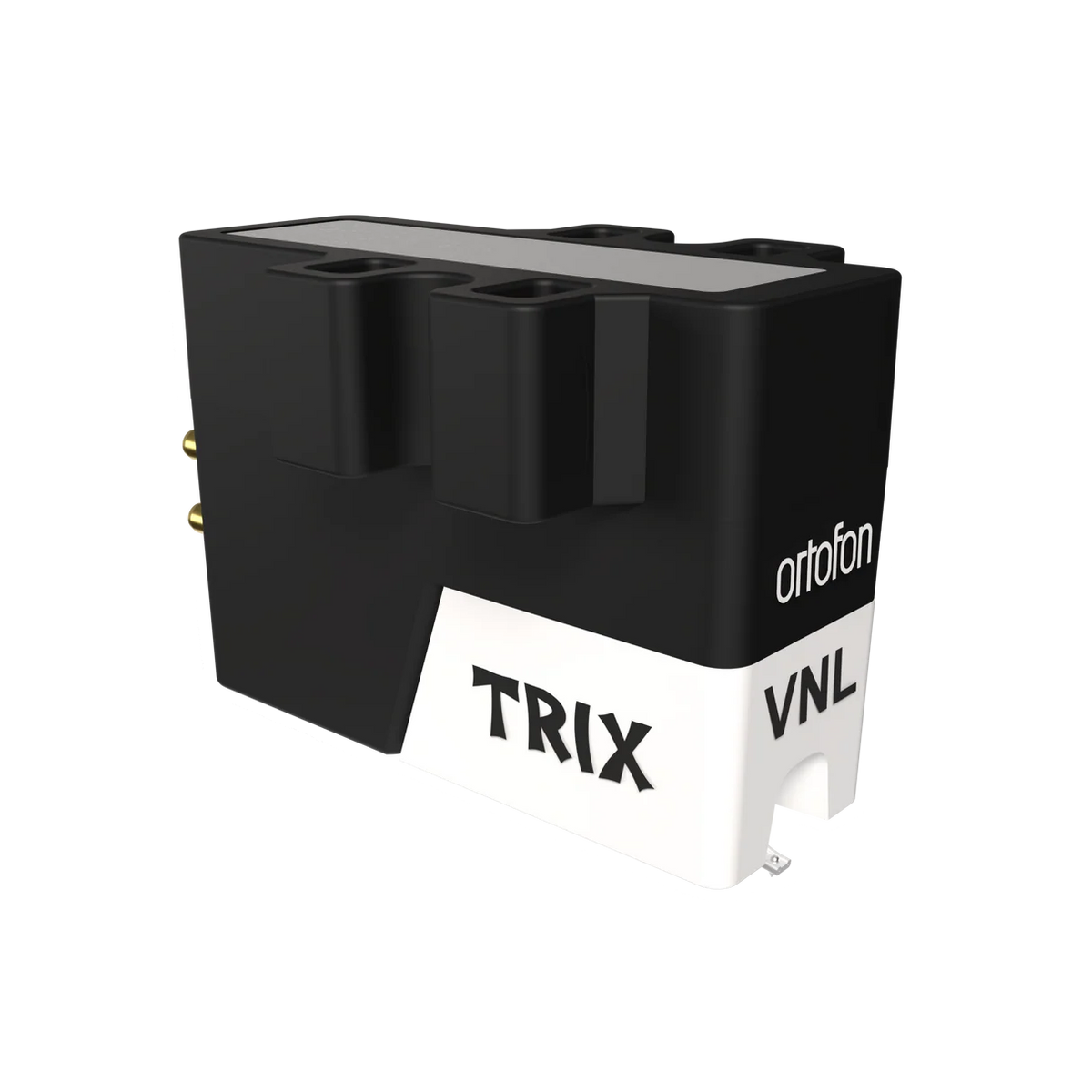

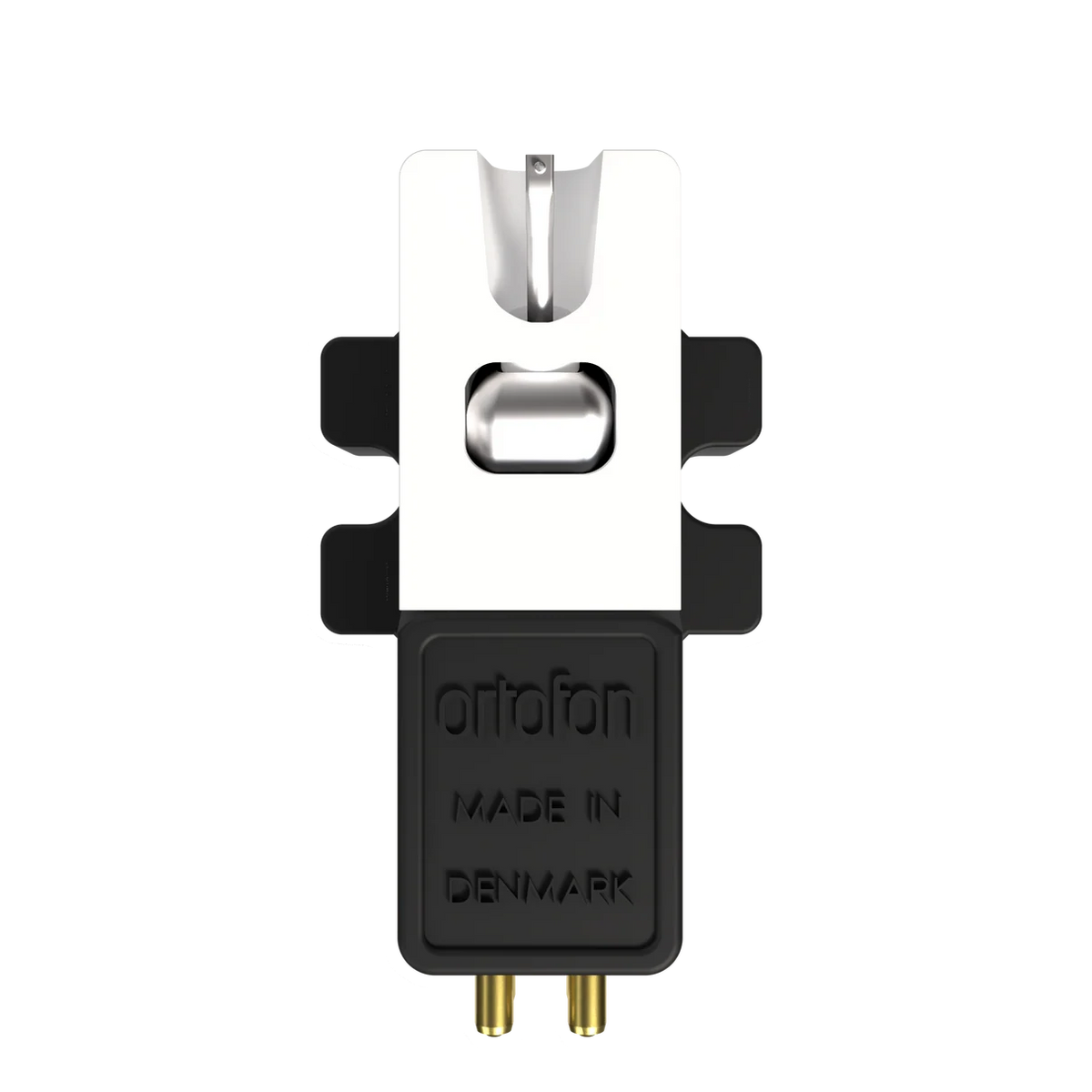

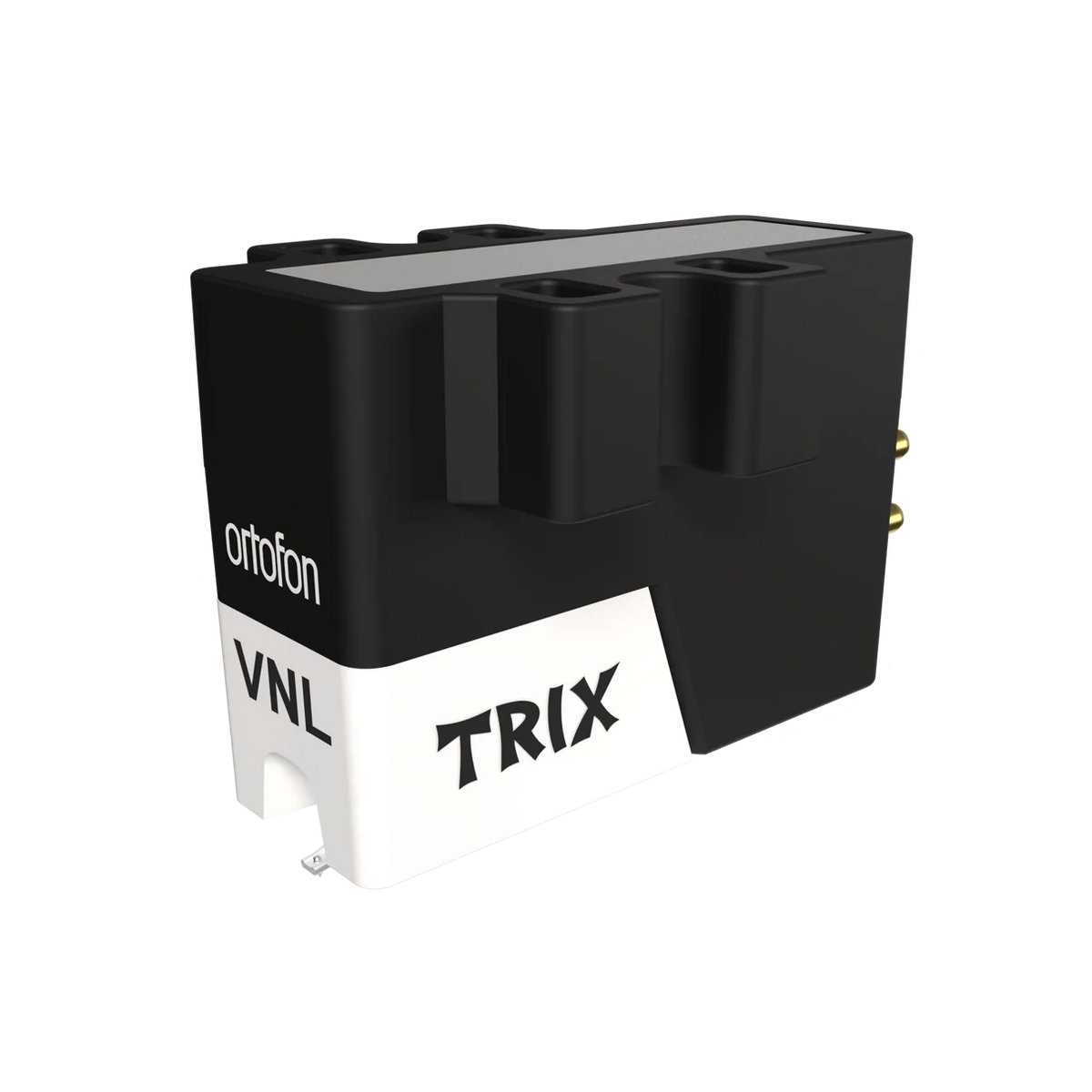

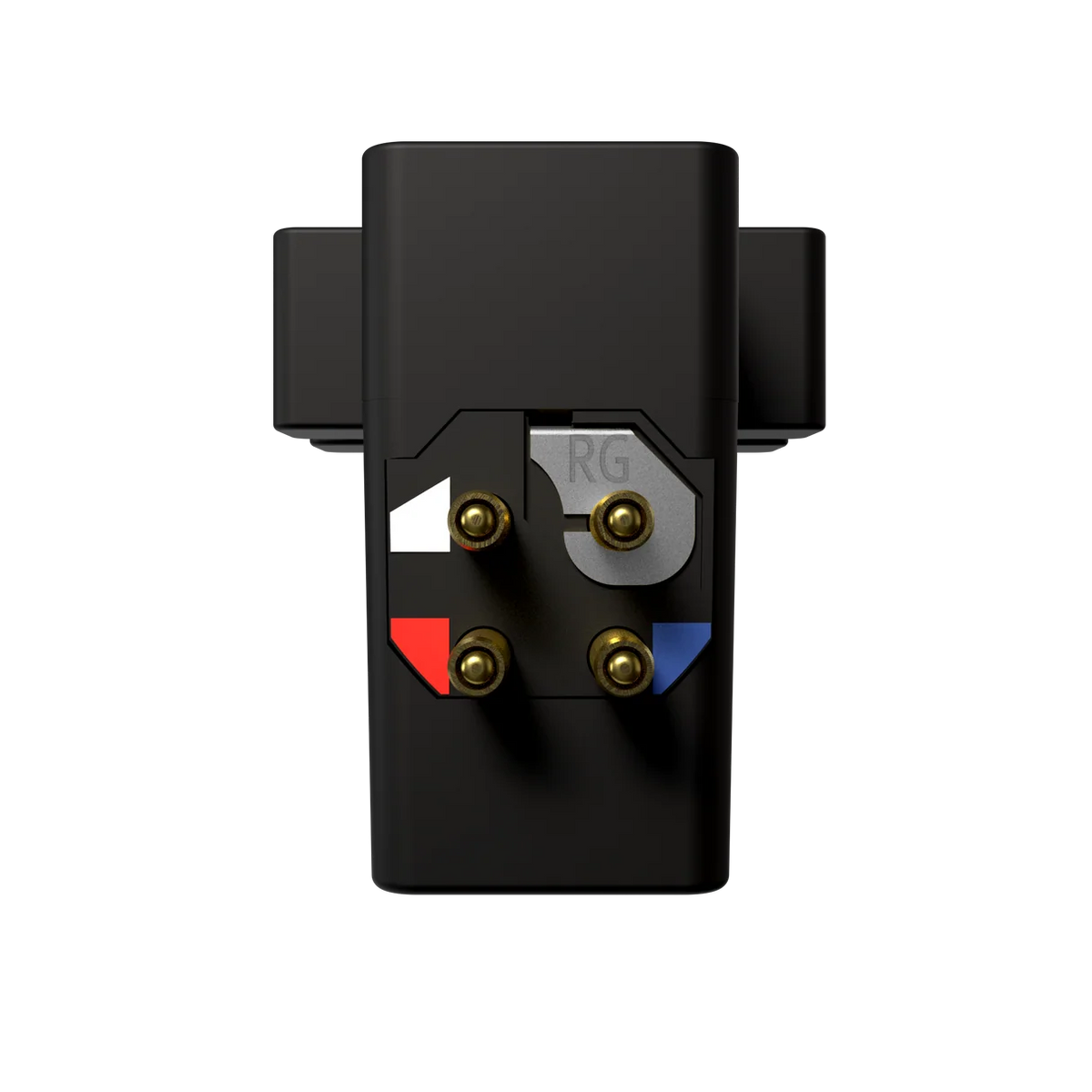

Ortofon VNL Trix High Output DJ Cartridge - Each

Ortofon VNL Trix High Output DJ Cartridge - Each

Ortofon just leveled up with the all-new VNL TRIX and VNL DANCE, the latest additions to the iconic VNL series. Built tough, tuned for performance, and ready for the stage. The VNL TRIX and VNL DANCE cartridges are engineered for DJs who demand both power and precision.

With a spherical stylus mounted on a rigid aluminum cantilever and Ortofon’s exclusive rubber suspension, VNL TRIX is built to take a beating. The fluorescent white stylus makes cueing even faster, and the premium tracking keeps it locked for pro use including heavy scratching and back-cueing.

Raw volume and crystal clarity

LOUD. CLEAN. POWEFULL.

Pumping a massive 10 mV output, the VNL TRIX deliver raw volume and crystal clarity to any rig, from underground raves to big-room stages.
Louder than ever before, it brings pure energy to the system.

Grips the groove and never let go.

Rock-Solid Tracking

Thanks to its 100 µm trackability, the VNL TRIX resists skips and holds the groove under aggressive techniques like scratching and back-cueing. Expect reliable performance in clubs and on tour, with clean, consistent playback!

Fluorescent Stylus

Find your mark, even in the dark!

The fluorescent white stylus glows bright under UV light, so the tip is instantly visible on busy stages and in blackout booths. Enjoy faster cueing and cleaner beatmatching during heavy scratching and quick back-cues.

Featuring a spherical stylus mounted on a rigid aluminium cantilever and Ortofon's exclusive rubber suspension, VNL TRIX is built to take a beating!

Maximum flexibility adapts to any set

Interchangeable Stylus

The VNL TRIX is fully VNL-compatible - also with the classic VNL cartridges - letting you swap styli to match your vibe and flow.

Specifications

Output voltage at 1 kHz, 5cm/sec
10 mV
Tracking ability at 315Hz
100 μm
Cantilever material
Aluminium
Stylus type
Spherical diamond
Stylus tip radius
R 18 μm
Stylus suspension
Ortofon exclusive
Coil system
Quad coils
Coil wire material
OFC
Channel separation at 1 kHz
22 dB
Frequency response 20 Hz - 20 kHz
+/-3 dB
Dynamic lateral compliance
12 μm/mN
Recommended tracking force
4.0 grams
Cartridge weight
7 grams
Cartridge colour
Black
Stylus colour
White
Replacement stylus
Stylus VNL TRIX
