Pioneer DJ PLX-1000 Professional direct drive turntable (Black)
Couldn't load pickup availability
Pioneer DJ PLX-1000 Professional direct drive turntable (Black)
Overview:
A reborn classic
The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables.
Key Features:
Turn the tables
The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).
Excellent sound design
The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.
Pick up the pace
Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.
Flexible connectivity

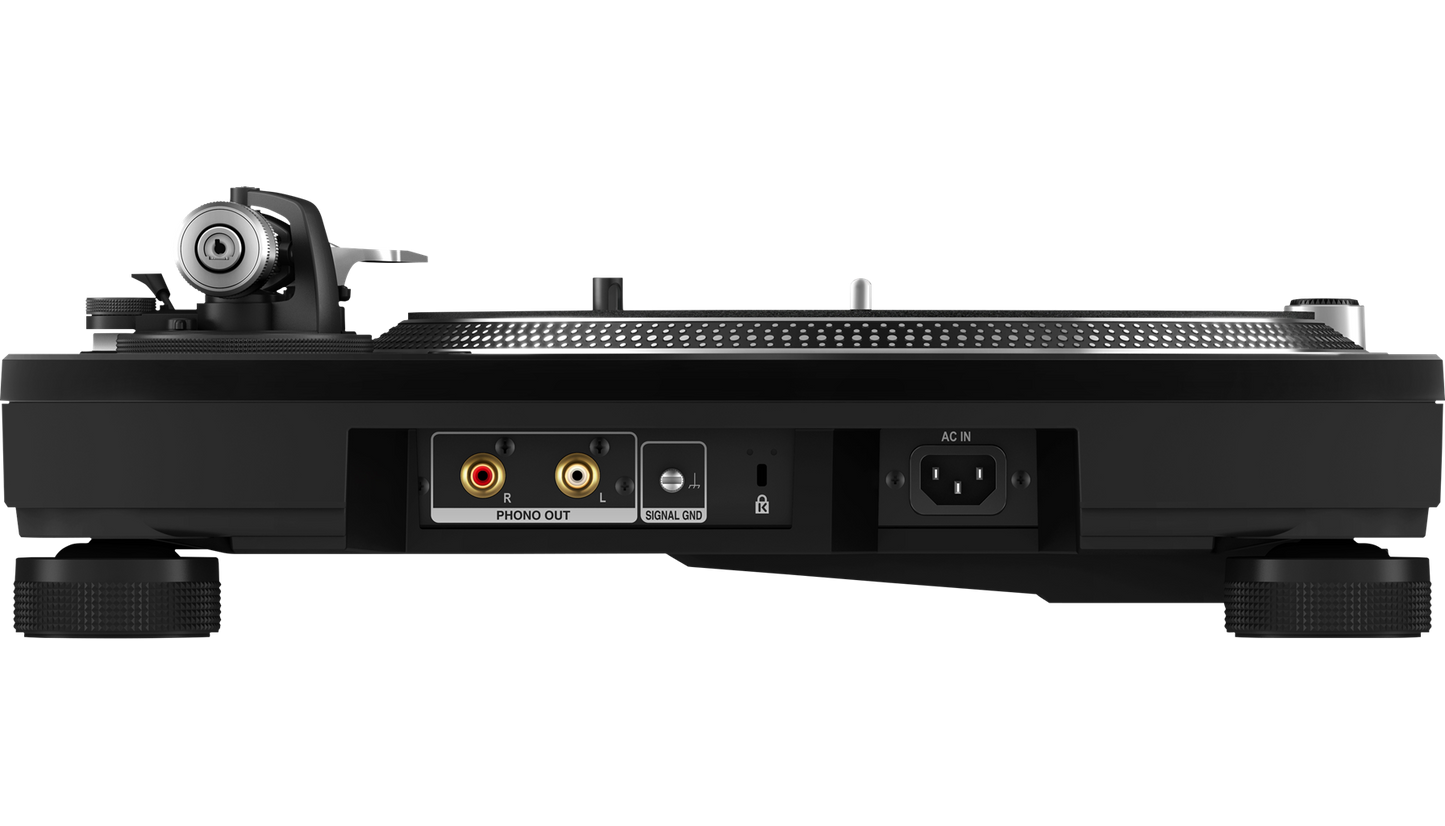

Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.
Specifications:
Main Features
Accessories |
|
---|
Specifications
Width |
453 mm |
---|---|
Height |
159 mm |
Depth |
353 mm |
Weight |
14.6 kg |
Turntable
Drive Method |
Quartz lock, servo-type, direct drive |
---|---|
Turntable |
Aluminium, die-casting diameter: 332 mm |
Motor |
3-phase, brushless DC motor |
Braking System |
Electronic brake |
Rotation Speed |
33⅓ rpm, 45 rpm |
Rotation Adjustment Range |
±8, ±16, ±50 % |
Wow and Flutter |
0.1 % or less WRMS (JIS WTD) |
Signal-to-Noise Ratio |
70 dB |
Starting Torque |
> 4.5 kgf・cm |
Start Time |
0.3 sec (at 33⅓ rpm) |
Tone Arm
Arm Type |
|
---|---|
Overhang |
15 mm |
Effective Length |
230 mm |
Tracking Error |
Within 3° |
Height Adjustment Range |
6 mm |
Stylus Pressure Variable Range |
0-4 g (1 scale 0.1 g) |
Proper Cartridge Weight |
2.5-12 g (includes mounting materials) |
Terminals
Outputs |
1 ANALOGUE (RCA) |
---|
